◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#169625) — 79 parça

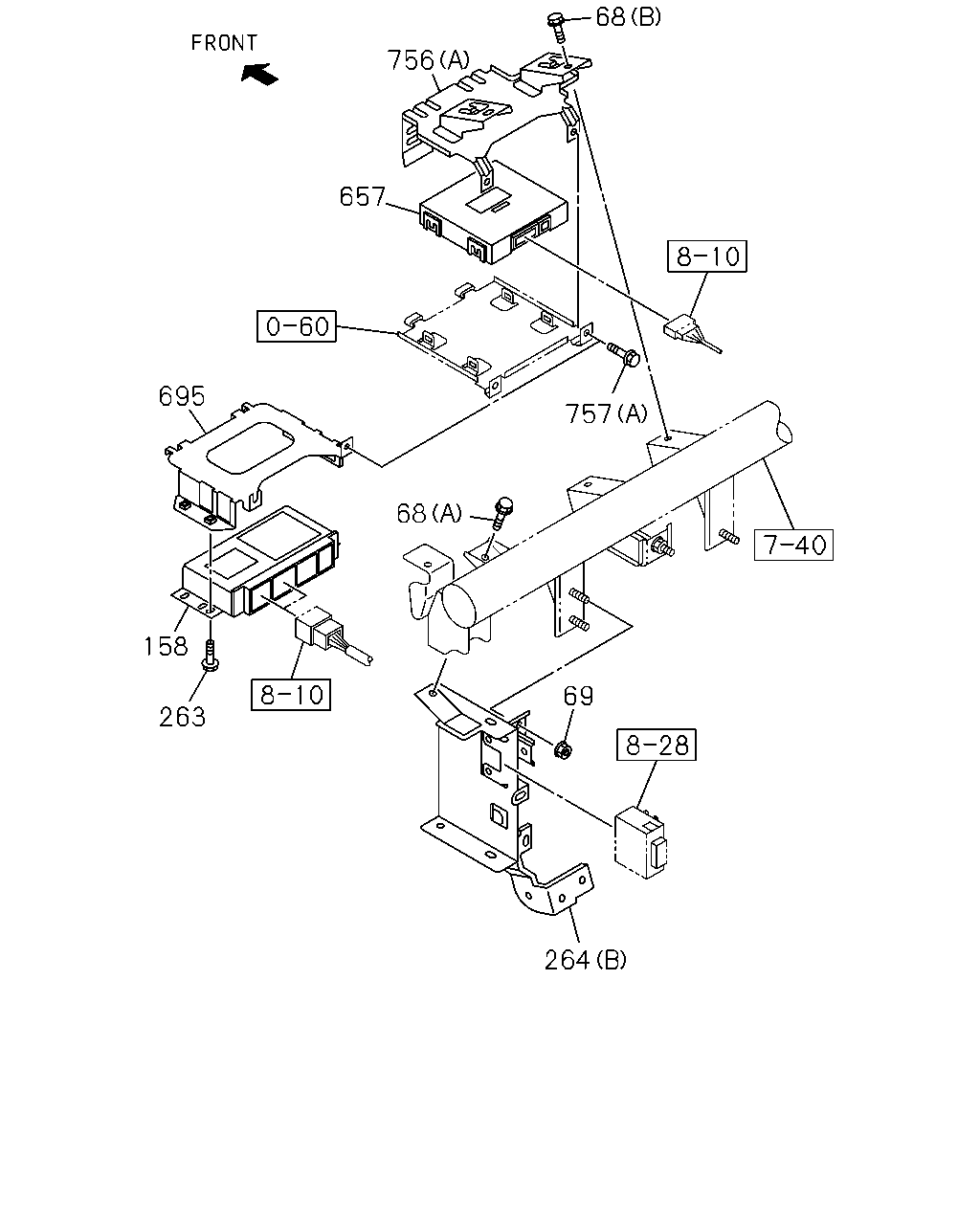

çizim 503181
68 756 657 757 68 695 158 263 264 69
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1511- ● ●
68 BOLT; BRKT
H.S.A SYSTEM<6EP> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
69 NUT; BRKT
H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
158 CONTROLLER; ABS 8-98306-560-0 01 1 1511- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
263 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
263 BOLT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1511- ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (A) 		8-98252-197-0 01 1 1511- ● ●
657 CONTROL UNIT; MIMAMORI 8-98312-616-1 01 1 1511- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1511- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98252-076-1 01 1 1511- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98252-077-1 01 1 1511- ● ●
757 BOLT; BRKT,BCM
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
757 BOLT; BRKT,BCM
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511- ● ●

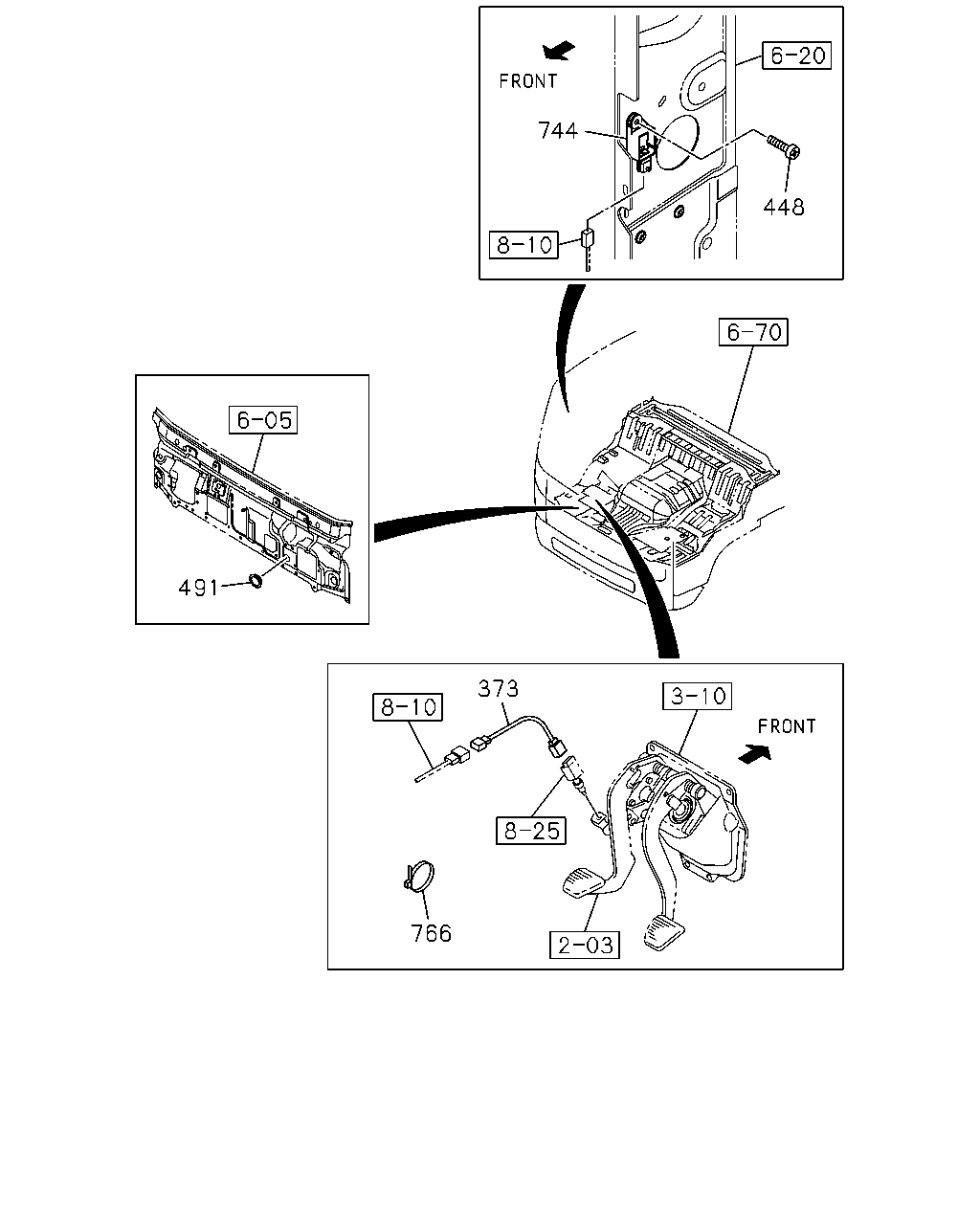

çizim 503273
448 744 373 766 491
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-419-2 01 1 1511- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1511- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1511- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98190-212-0 01 1 1511- ● ●
766 BAND; CLIP
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) L=140 		5-09707-031-1 01 1 1511- ● ●

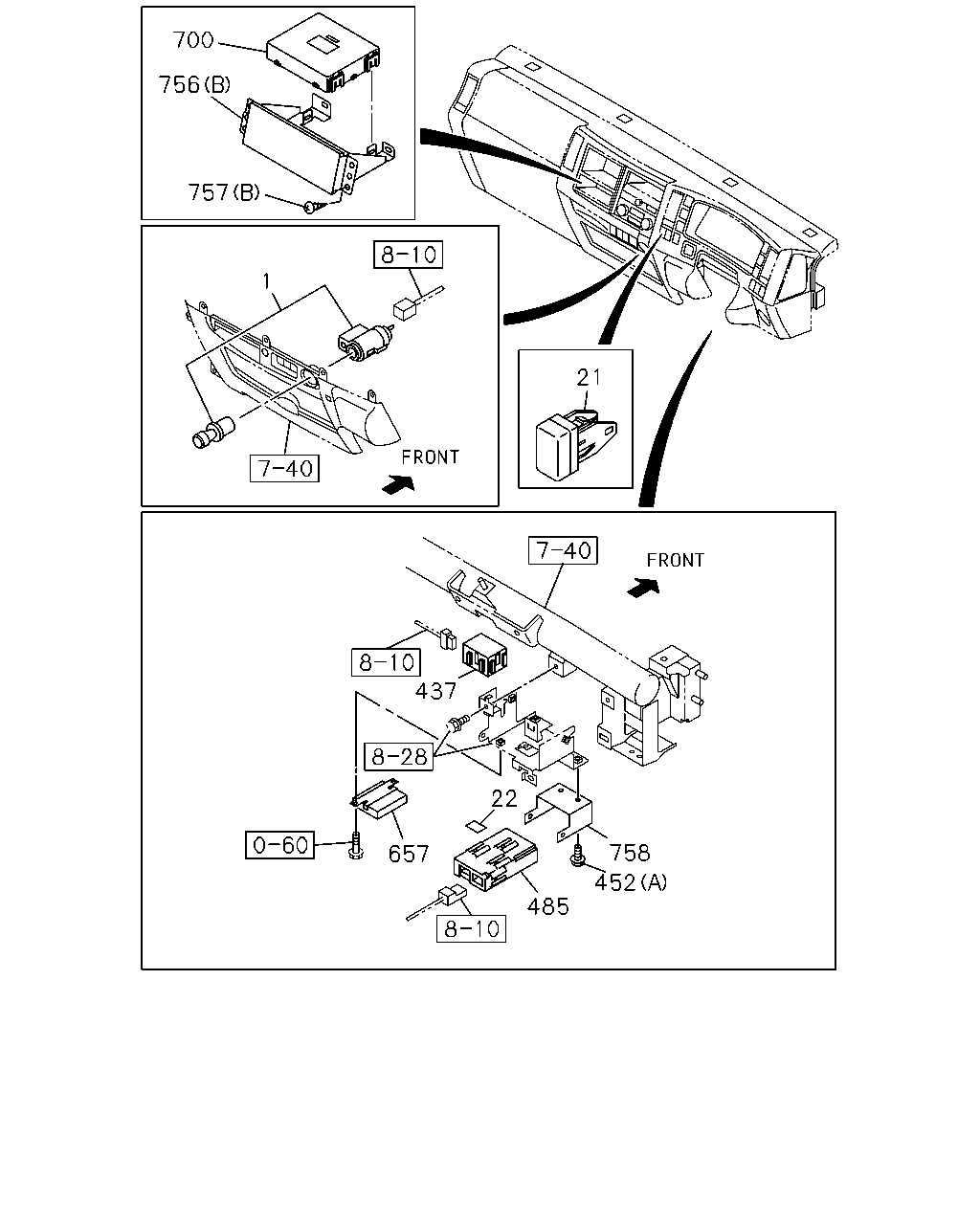

çizim 503304
700 21 437 758 485 657 22 452 1 757 756
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1511- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1511- ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1511- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1511- ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511- ●
485 CONTROL UNIT; SPEED SENSOR
LCT2500 A/T ALLISON(Y5W) 		8-98232-696-0 01 1 1511- ● ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98232-694-0 01 1 1511- ● ●
657 CONTROL UNIT; MIMAMORI 8-98312-616-1 01 1 1511- ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1511- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98252-076-1 01 1 1511- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98252-077-1 01 1 1511- ● ●
757 BOLT; BRKT,BCM
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
757 BOLT; BRKT,BCM
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1511- ● ●
çizim 503307
380 507
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1511- ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1511- ● ●

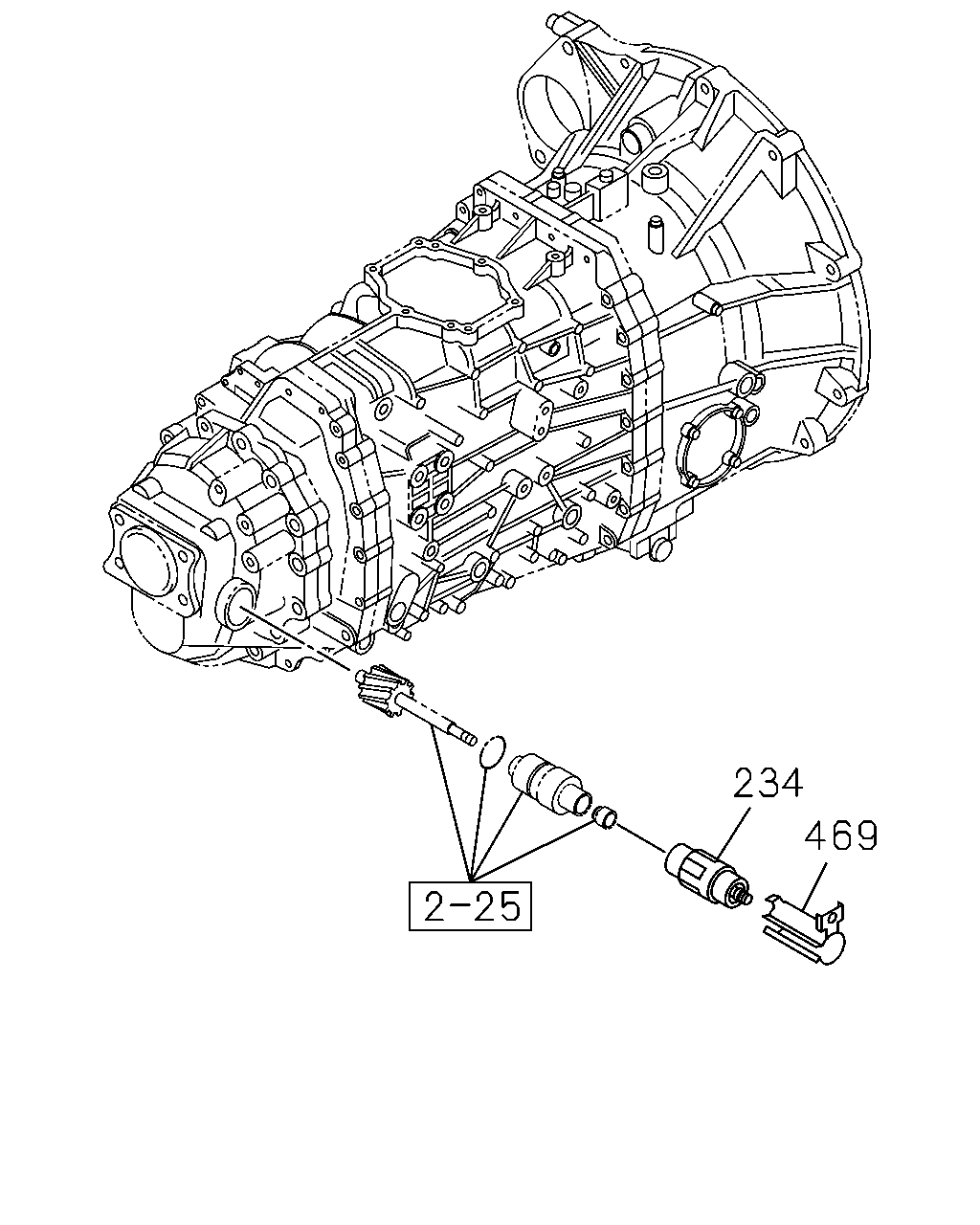

çizim 503363
234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1511- ● ●
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98119-901-0 01 1 1511- ● ●

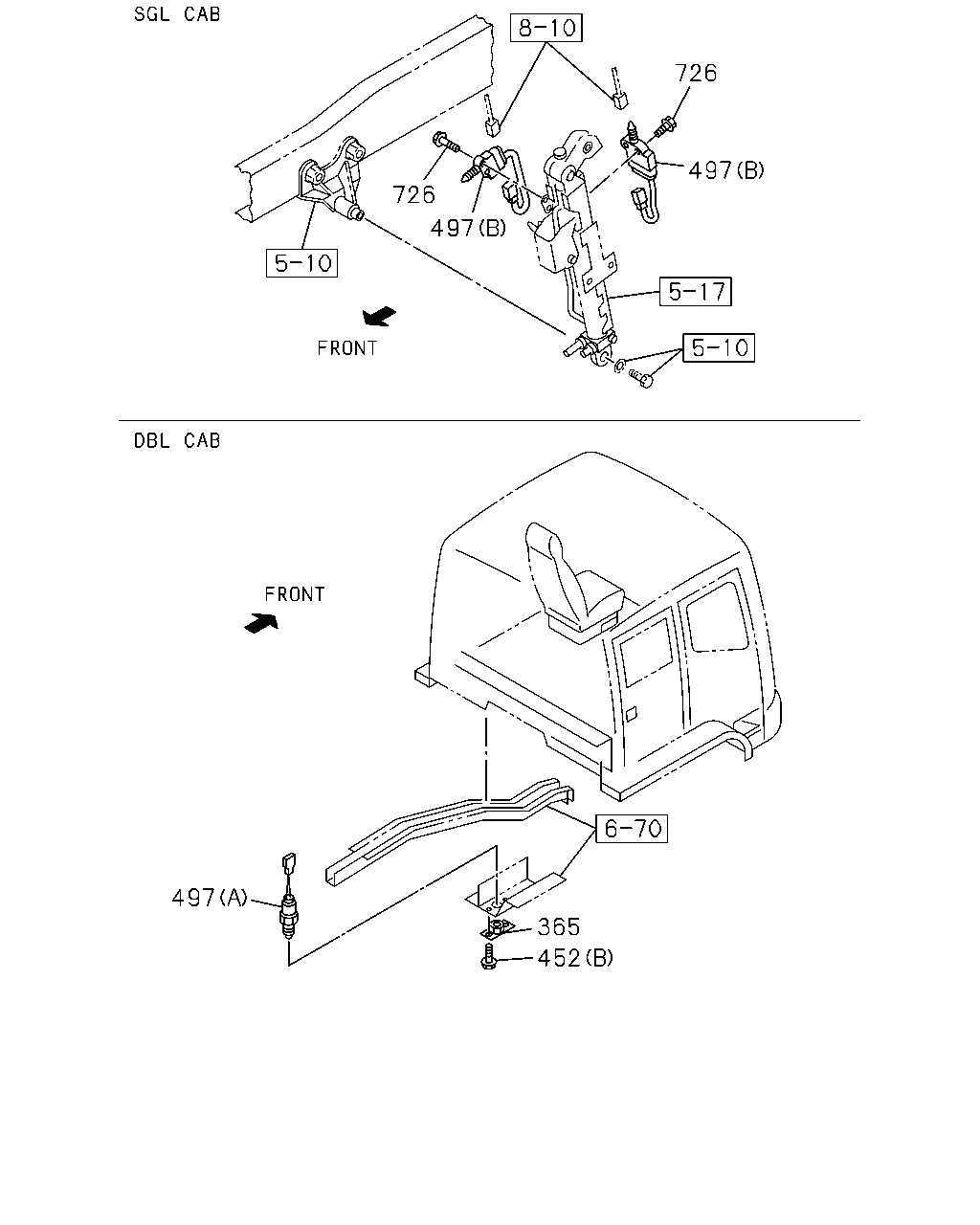

çizim 503396
726 497 497 497 365 452 726
BalonParca AdiParca NoAdetTipApplied Date A B
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 1511- ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511- ●
497 SWITCH; CAB TILT
(B) STAMP NO 		1-82380-172-1 02 1 1511- ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 1511- ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1511- ●

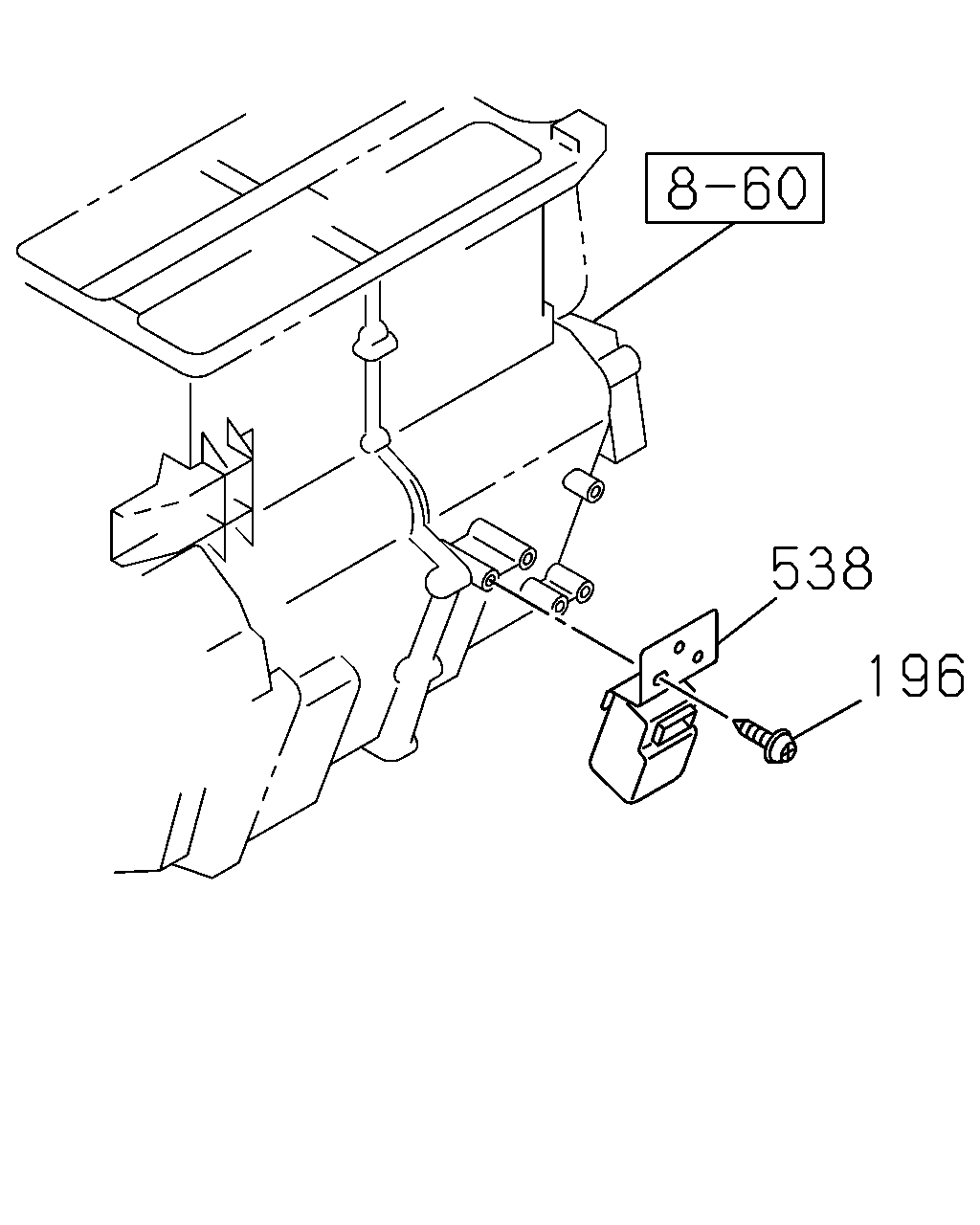

çizim 503397
538 196
BalonParca AdiParca NoAdetTipApplied Date A B
196 BOLT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1511- ● ●
538 CONTROLLER; LEVEL 8-98330-611-0 01 1 1511- ● ●

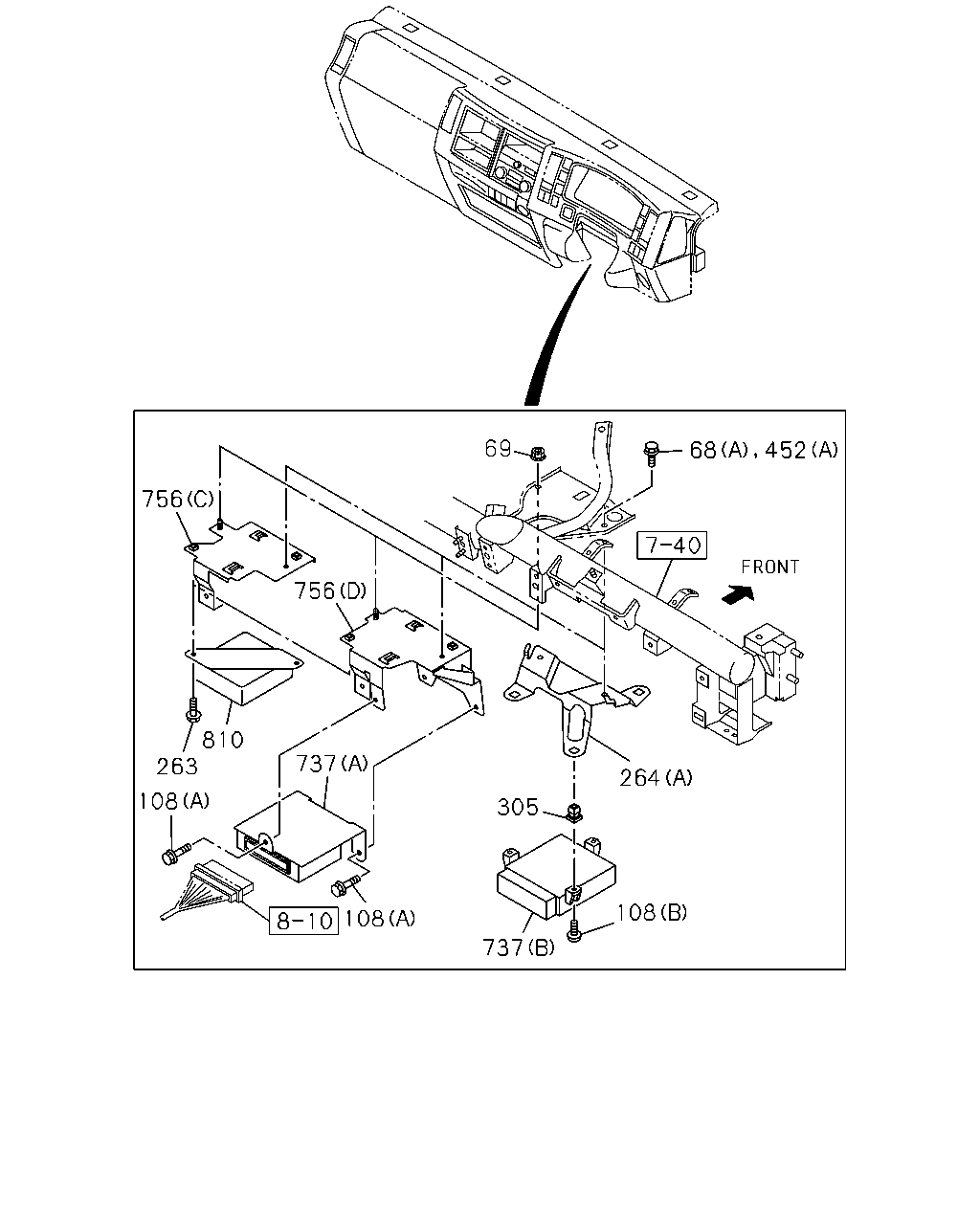

çizim 503509
756 756 810 263 108 737 108 737 108 305 264 69 68 452
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1511- ● ●
68 BOLT; BRKT
H.S.A SYSTEM<6EP> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
69 NUT; BRKT
H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
108 BOLT; TRANS CONT MODULE
LCT2500 A/T ALLISON(Y5W) (B) M6X20 TAPPING 		0-72180-620-0 03 1 1511- ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 03 1 1511- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
263 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
263 BOLT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1511- ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (A) 		8-98252-197-0 01 1 1511- ● ●
305 NUT; CONT UNIT
LCT2500 A/T ALLISON(Y5W) D=9.7X9.7 L=8 		8-94222-314-0 03 1 1511- ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511- ●
737 CONTROL UNIT; TRANSMISSION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98329-119-0 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
LCT2500 A/T ALLISON(Y5W) (B) 		8-98319-111-0 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1511- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98252-076-1 01 1 1511- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98252-077-1 01 1 1511- ● ●
810 CONTROL UNIT; ISS
H.S.A SYSTEM<6EP> COUNTRY NEW ZEALAND(CX6) 		8-98322-712-0 01 1 1511- ● ●
810 CONTROL UNIT; ISS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COUNTRY NEW ZEALAND(CX6) 		8-98322-712-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
