◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#169621) — 160 parça

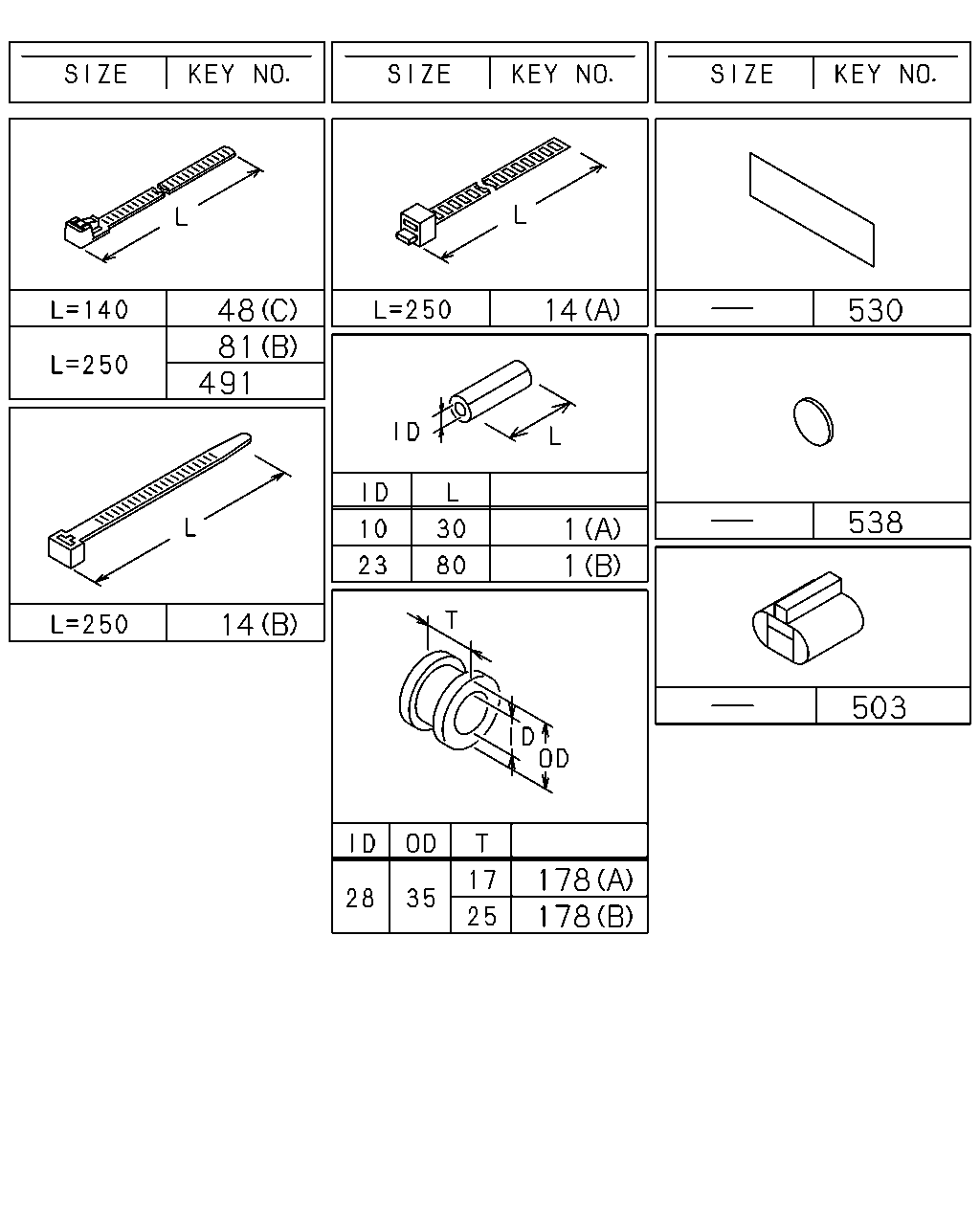

çizim 501914
48 81 491 14 1 1 178 178 530 538 503 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1511- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1511- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1511- ● ●
14 CLIP; BAND,HARNESS
LCT2500 A/T ALLISON(Y5W) (B) L=250 		8-98216-430-0 15 1 1511- ● ●
14 CLIP; BAND,HARNESS
MZW6P M/T(RSZ) (B) L=250 		8-98216-430-0 14 1 1511- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ●
48 CLIP; FRAME HARNESS
(D) ID=16 L=28 		0-95235-556-0 01 1 1511- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1511- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ●
178 GROMMET; HARNESS
WHEEL BASE 6000MM(60W) (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ●
491 CLIP; BAND,HTR HOSE & HARNESS
EXC. MANUAL TRANSMISSION<X9C> L=250 		5-09707-030-1 06 1 1511- ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 07 1 1511- ●
503 CONNECTOR
HEATER & DEFROSTER(C41) 		1-82690-668-0 01 1 1511- ● ●
503 CONNECTOR 1-82690-668-0 01 1 1511- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1511- ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1511- ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> 180X40 		1-72498-019-1 01 1 1511- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1511- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1511- ●
530 SEAL; HARNESS
AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40 		1-72498-019-1 03 1 1511- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1511- ● ●

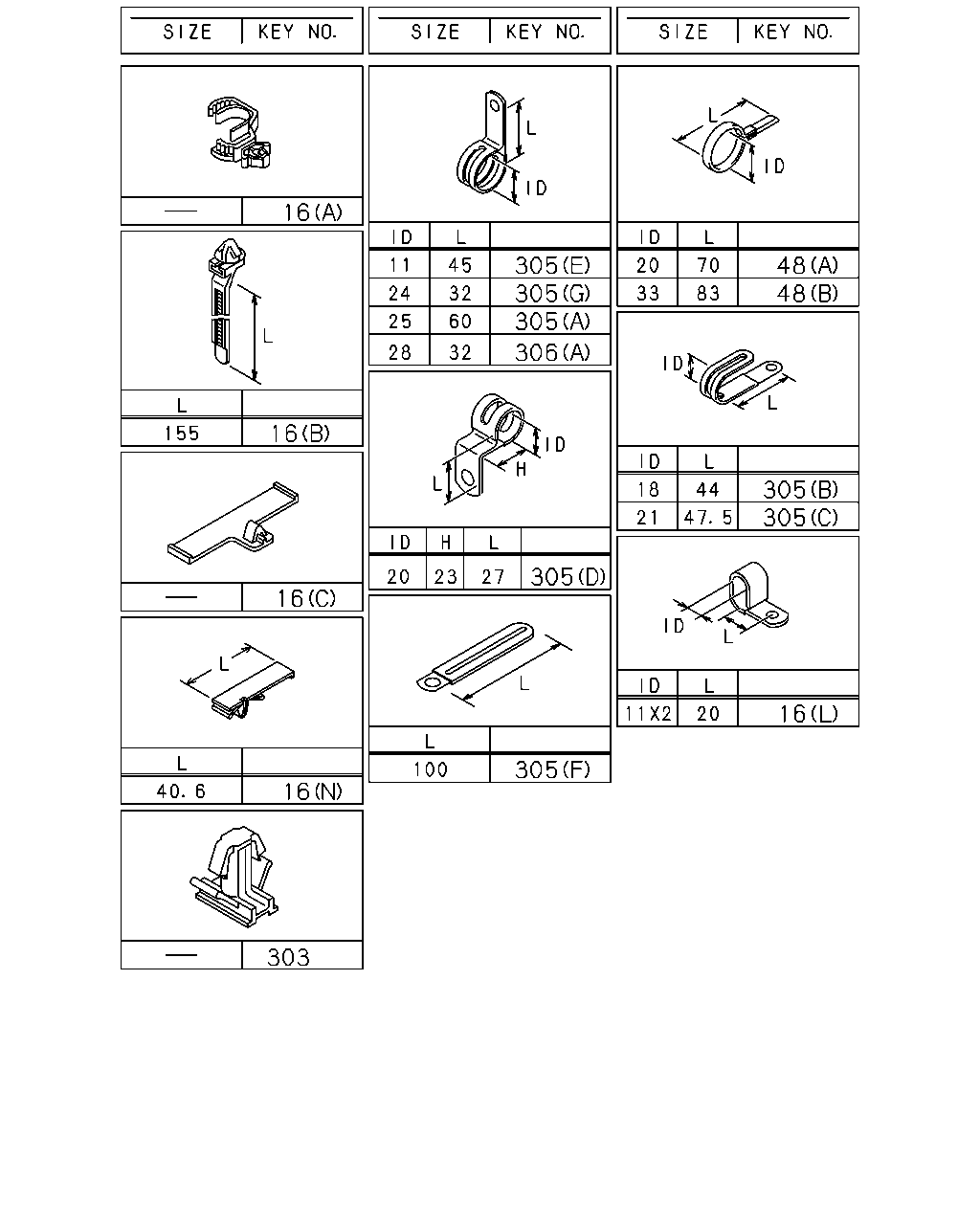

çizim 501915
16 16 16 16 303 305 305 305 306 305 305 48 48 305 305 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1511- ●
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 1511- ● ●
16 CLIP; HARNESS
(F) ID=15 H=30 L=30 		1-09700-832-0 02 1 1511- ● ●
16 CLIP; HARNESS
(L) ID=11X2 L=20 		1-09700-871-0 01 1 1511- ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ●
16 CLIP; HARNESS
(N) L=40.6 		8-97229-357-0 02 1 1511- ● ●
16 CLIP; HARNESS
(N) L=40.6 		8-97229-357-0 02 1 1511- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (D) ID=11 L=20 		0-95235-035-0 02 1 1511- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 L=32 		0-95235-866-0 02 1 1511- ● ●
16 CLIP; HARNESS
(I) L=60 		8-94449-165-0 02 1 1511- ●
16 CLIP; HARNESS
(H) L=60 		8-97063-335-0 02 1 1511- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ●
48 CLIP; FRAME HARNESS
(D) ID=16 L=28 		0-95235-556-0 01 1 1511- ●
303 CLIP; HARNESS POWER TILT RELAY
OD=8.95 H=6.25 		8-97375-754-0 01 1 1511- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1511- ● ●

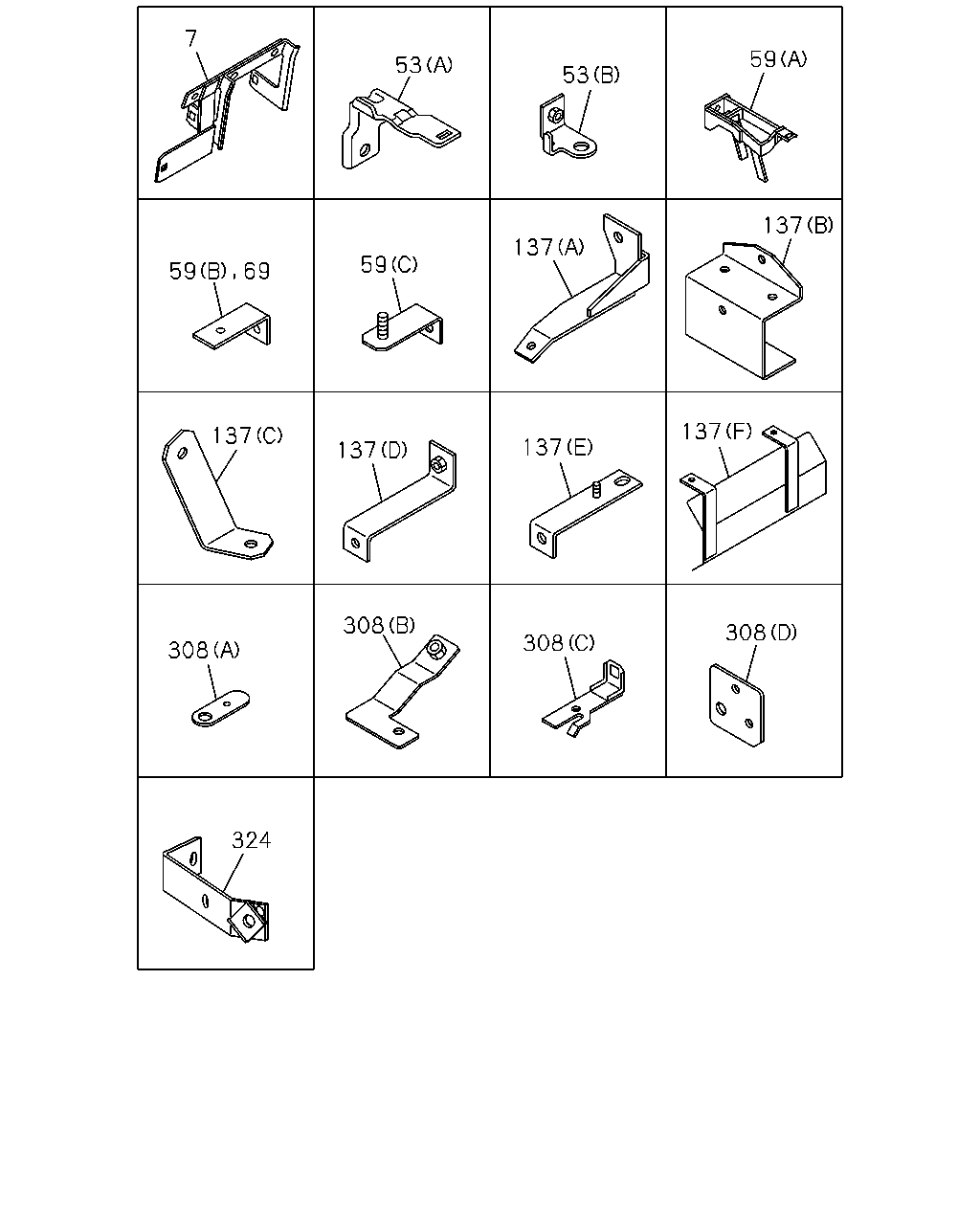

çizim 503205
7 53 53 59 59 69 59 137 137 137 137 137 137 308 308 308 308 324
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1511- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1511- ● ●
53 BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W) (B) 		1-82698-296-0 02 1 1511- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1511- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-98306-304-0 01 1 1511- ● ●
59 BRACKET; FRAME HARNESS
(B) L=75 		1-47478-323-0 01 1 1511- ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(D) L=110 		1-82699-589-0 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-013-0 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98097-528-0 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(F) 		8-98255-001-0 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1511- ● ●
324 BRACKET; CLIP 8-98210-921-1 01 1 1511- ● ●
324 BRACKET; CLIP 8-98210-922-1 01 1 1511- ● ●

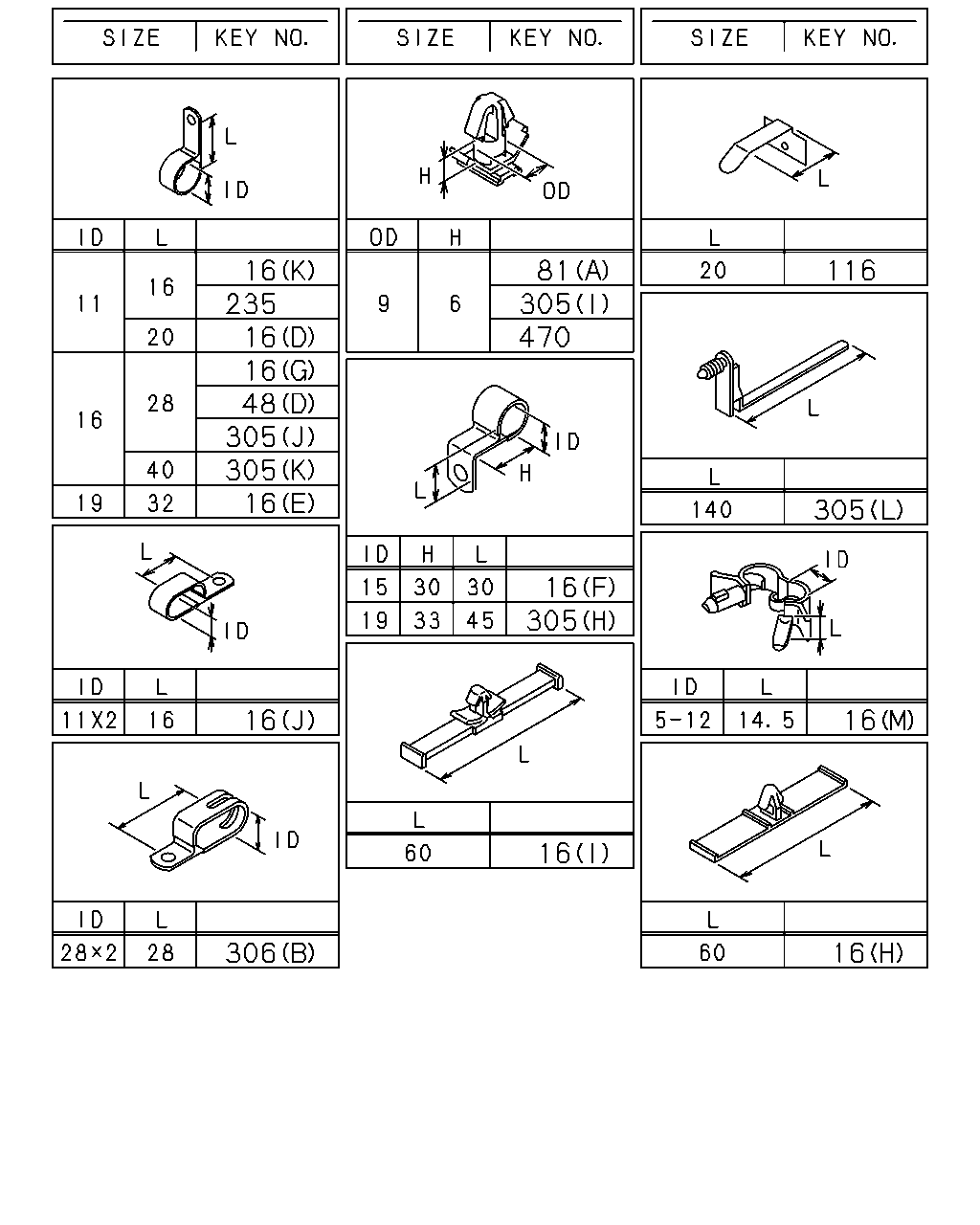

çizim 503301
16 16 48 305 235 16 305 16 16 306 81 470 305 16 305 16 116 305 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1511- ●
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 1511- ● ●
16 CLIP; HARNESS
(F) ID=15 H=30 L=30 		1-09700-832-0 02 1 1511- ● ●
16 CLIP; HARNESS
(L) ID=11X2 L=20 		1-09700-871-0 01 1 1511- ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ●
16 CLIP; HARNESS
(N) L=40.6 		8-97229-357-0 02 1 1511- ● ●
16 CLIP; HARNESS
(N) L=40.6 		8-97229-357-0 02 1 1511- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (D) ID=11 L=20 		0-95235-035-0 02 1 1511- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 L=32 		0-95235-866-0 02 1 1511- ● ●
16 CLIP; HARNESS
(I) L=60 		8-94449-165-0 02 1 1511- ●
16 CLIP; HARNESS
(H) L=60 		8-97063-335-0 02 1 1511- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ●
48 CLIP; FRAME HARNESS
(D) ID=16 L=28 		0-95235-556-0 01 1 1511- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1511- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1511- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1511- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1511- ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●

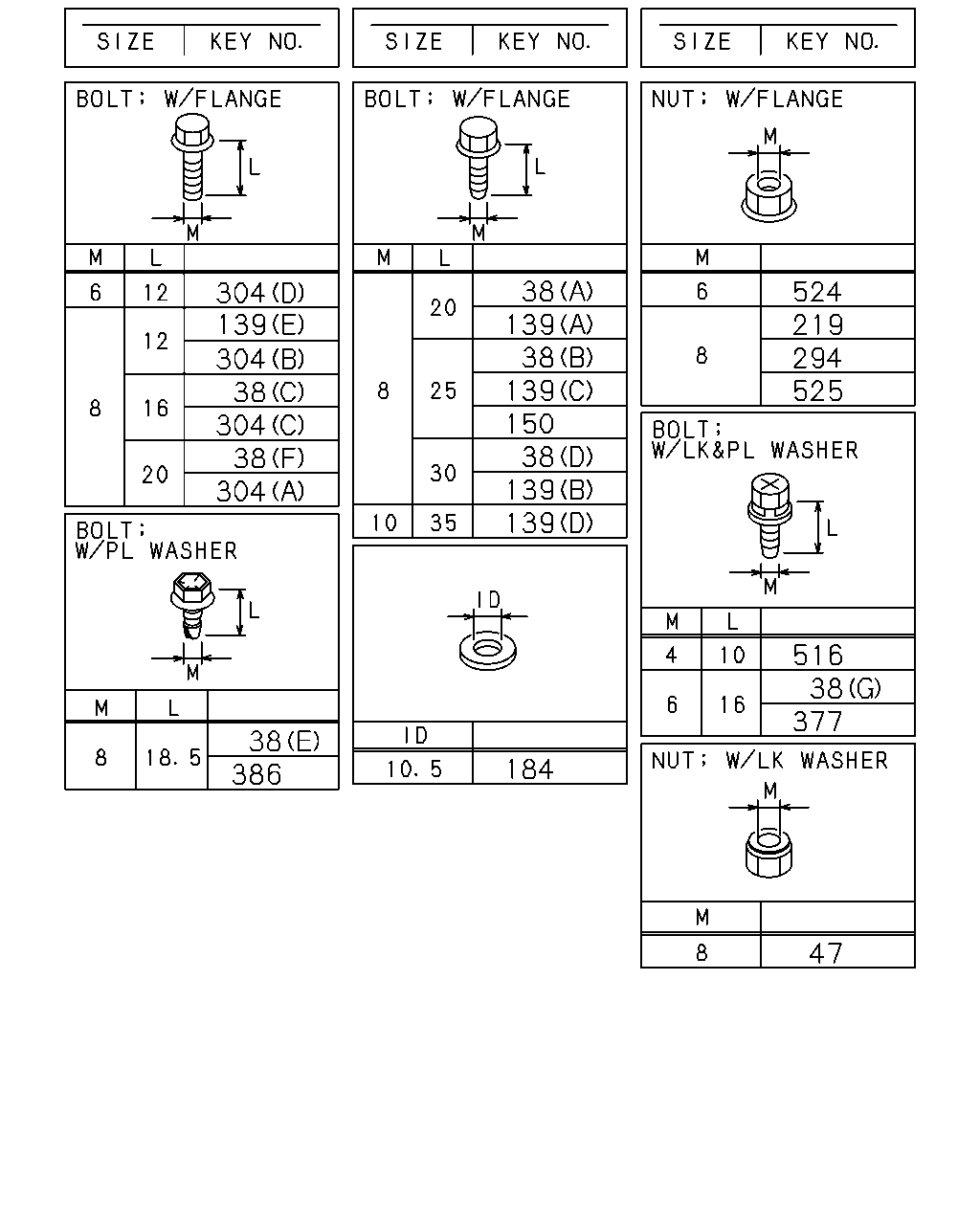

çizim 503474
304 304 304 139 38 38 38 386 304 38 38 139 139 38 150 139 184 139 524 294 219 525 516 38 377 47
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (G) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1511- ● ●
38 BOLT; CLIP,HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ●
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1511- ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (F) M8X20 FLANGE 		8-98105-048-0 01 1 1511- ● ●
38 BOLT; CLIP,HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1511- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1511- ● ●
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 1511- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ● ●
139 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 01 1 1511- ● ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
304 BOLT; ENG HARNESS CLIP
(D) M6X12 FLANGE 		0-28050-612-0 01 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1511- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1511- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1511- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1511- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
