Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#169620) — 394 parça

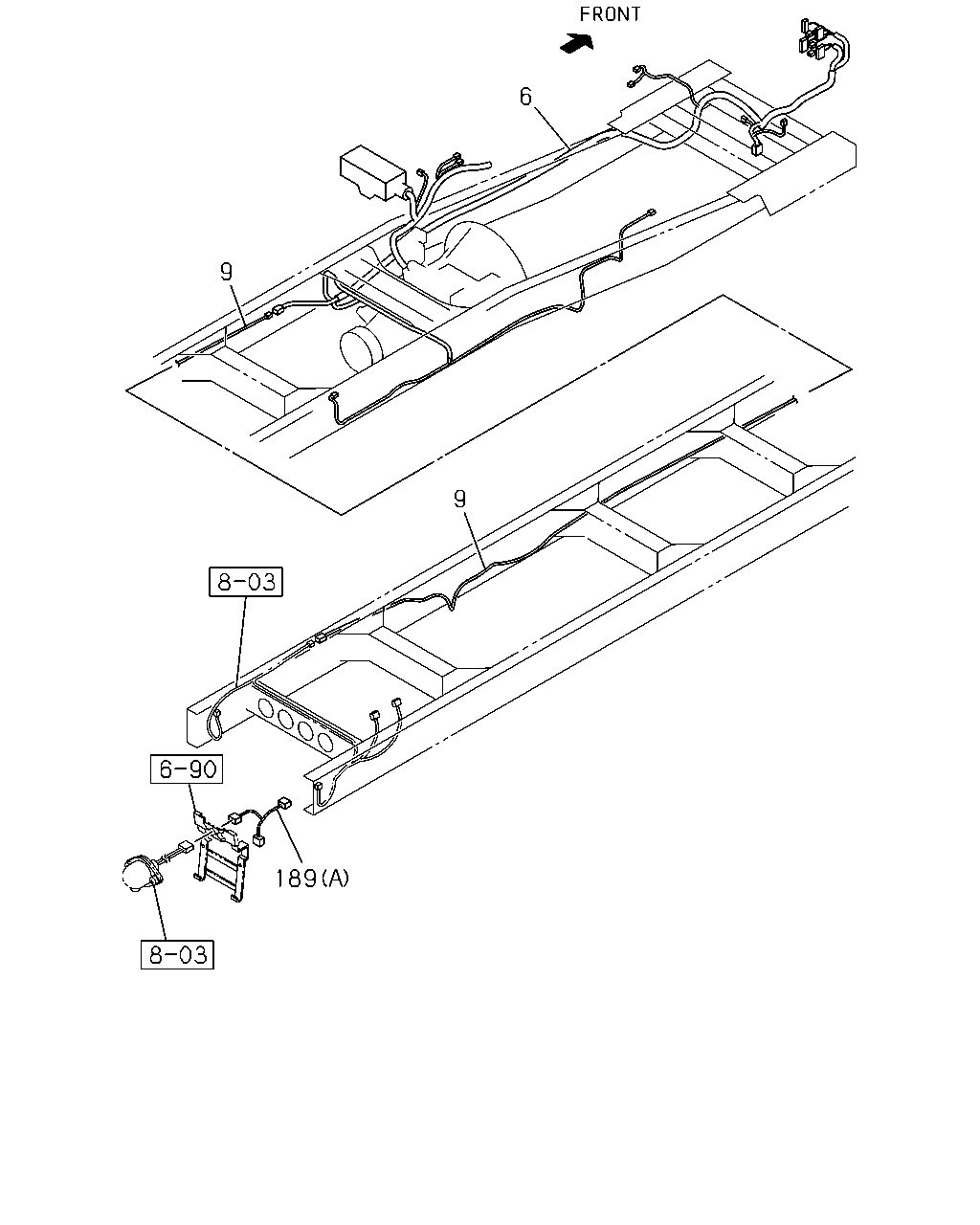

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-125-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-127-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-130-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-123-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-124-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-129-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-128-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-126-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-134-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-132-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-133-0	01	1	1511-		●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W)	8-98322-446-0	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98322-447-0	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W)	8-98322-448-0	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 6500MM(65W)	8-98322-450-0	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W)	8-98322-449-0	01	1	1511-		●
189	HARNESS; EXT (B)	8-98098-510-0	01	1	1511-	●	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-98131-066-0	01	1	1511-	●	●

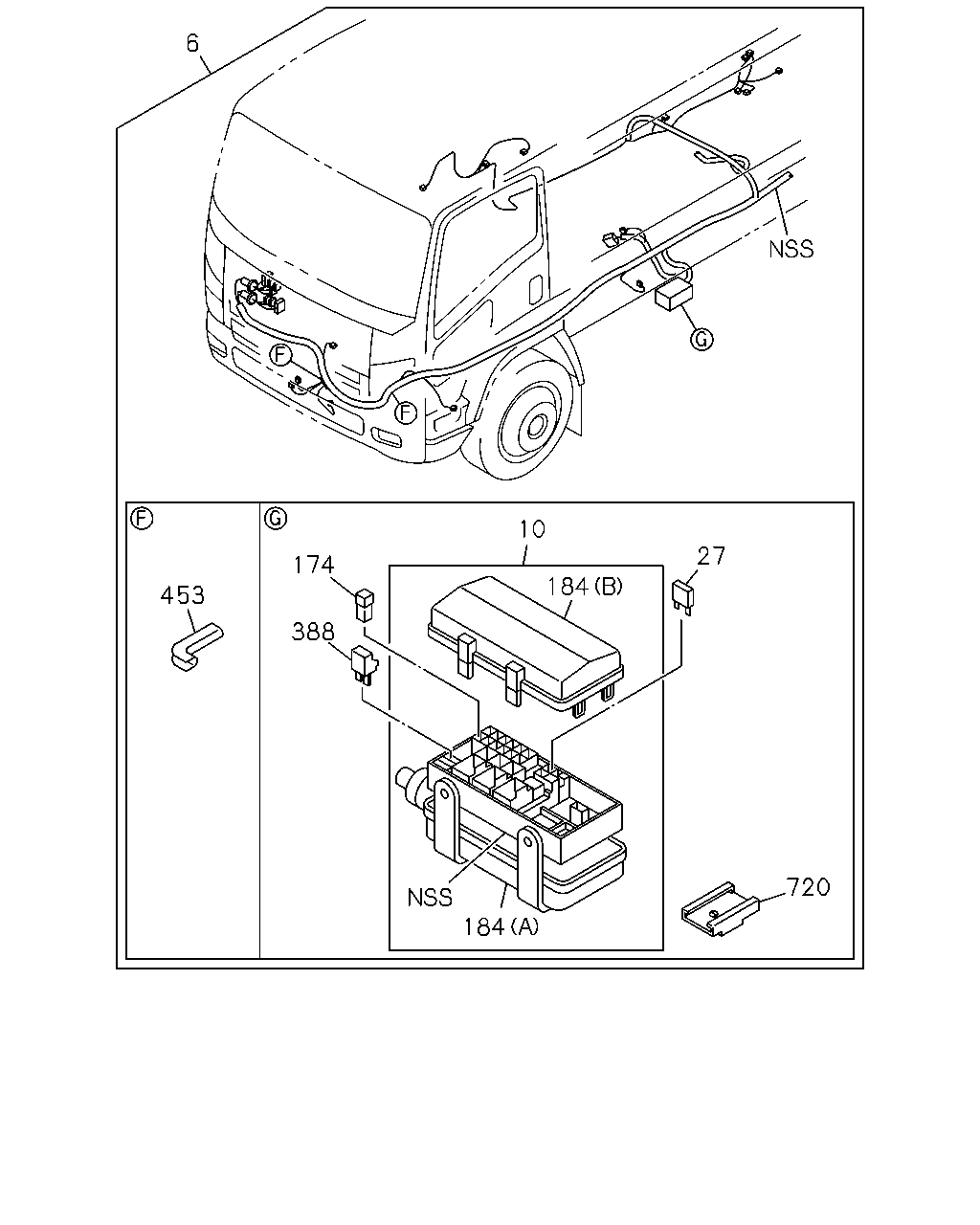

6 453 174 388 10 184 27 184 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-125-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-127-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-130-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-123-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-124-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-129-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-128-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-126-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-134-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-132-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-133-0	01	1	1511-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1511-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1511-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1511-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1511-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1511-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1511-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1511-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1511-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1511-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1511-	●	●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	01	1	1511-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1511-	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1511-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1511-	●	●

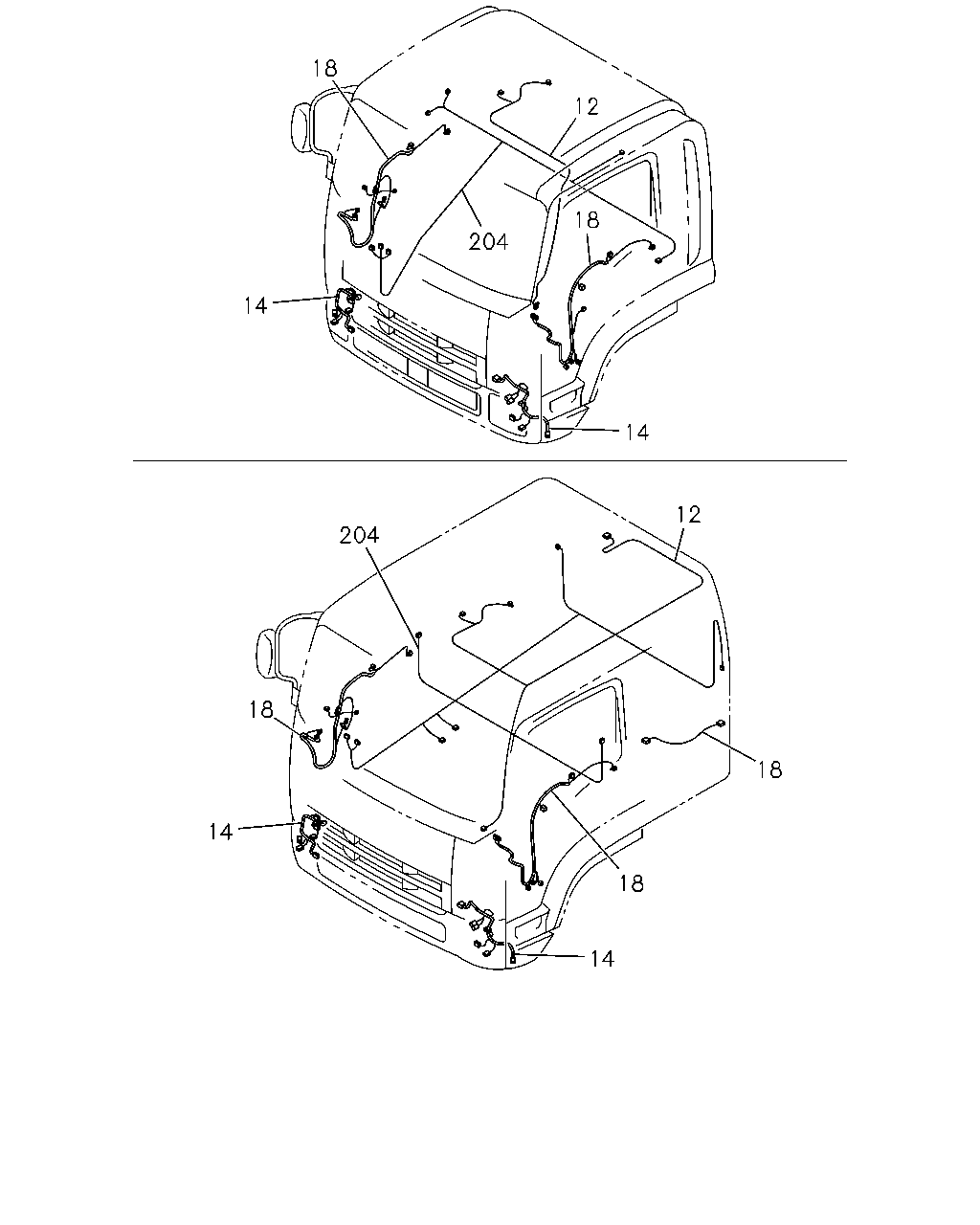

18 14 204 12 18 14 12 204 18 14 14 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF	8-98079-072-1	01	1	1511-	●
12	HARNESS; ROOF	8-98085-334-0	01	1	1511-		●
14	HARNESS; HEADLAMP CORNERING LAMP<T87>	8-98077-292-1	02	1	1511-	●	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98069-166-1	02	1	1511-	●	●
14	HARNESS; HEADLAMP EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ,CORNERING LAMP<T87>	8-94270-986-0	02	1	1511-	●	●
18	HARNESS; DOOR	8-98079-079-5	01	1	1511-	●	●
18	HARNESS; DOOR	8-98079-076-5	01	1	1511-	●	●
18	HARNESS; DOOR	8-98056-047-1	02	1	1511-		●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5)	8-98232-246-0	01	1	1511-	●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3)	8-98206-459-0	01	1	1511-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98085-297-1	01	1	1511-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98085-286-1	01	1	1511-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98085-294-1	01	1	1511-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98085-281-2	01	1	1511-	●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA>	8-98232-247-0	01	1	1511-		●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98306-572-0	01	1	1511-		●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3)	8-98206-460-0	01	1	1511-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98085-303-1	01	1	1511-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98085-306-1	01	1	1511-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98306-570-0	01	1	1511-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98306-571-0	01	1	1511-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98085-305-2	01	1	1511-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98085-302-1	01	1	1511-		●

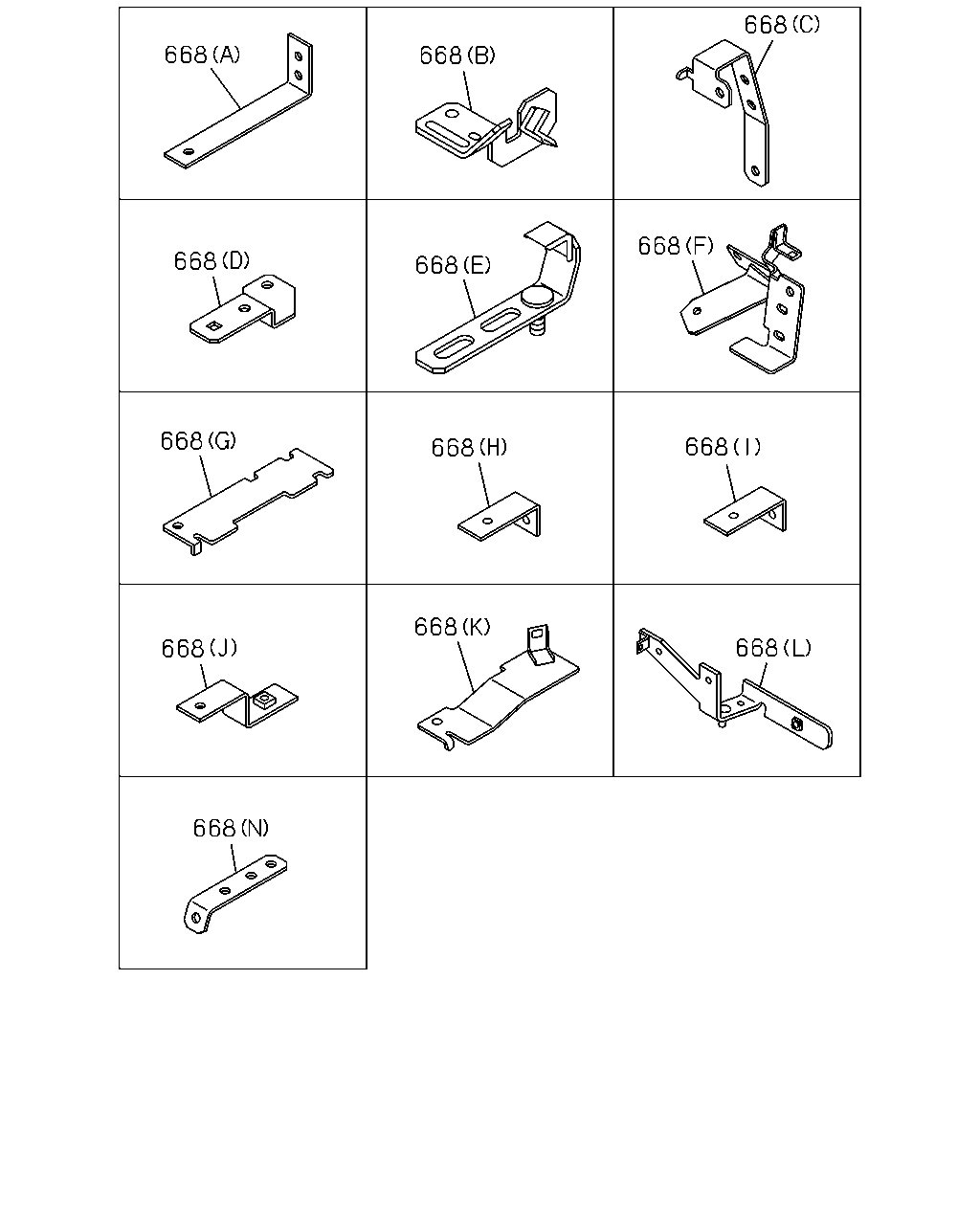

668 668 668 668 668 668 668 668 668 668 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
668	BRACKET; HARNESS (A)	1-47479-674-0	01	1	1511-	●
668	BRACKET; HARNESS (D)	8-97620-519-0	01	1	1511-	●
668	BRACKET; HARNESS (K)	8-98107-610-1	01	1	1511-	●
668	BRACKET; HARNESS (I) L=55	1-47475-304-0	01	1	1511-	●	●
668	BRACKET; HARNESS (N)	1-82698-167-0	01	1	1511-	●	●
668	BRACKET; HARNESS (H) L=95	1-82699-085-0	04	1	1511-	●	●
668	BRACKET; HARNESS (J)	8-97609-110-1	01	1	1511-	●	●
668	BRACKET; HARNESS (C)	8-97619-097-1	01	1	1511-	●	●
668	BRACKET; HARNESS (E)	8-98047-730-0	02	1	1511-	●	●
668	BRACKET; HARNESS (M)	8-98095-653-2	01	1	1511-	●	●
668	BRACKET; HARNESS (F)	8-98107-611-0	01	1	1511-	●	●
668	BRACKET; HARNESS (L)	8-98212-082-1	01	1	1511-	●	●
668	BRACKET; HARNESS (B)	8-98254-592-0	01	1	1511-	●	●
668	BRACKET; HARNESS (G)	8-98127-093-0	01	1	1511-		●

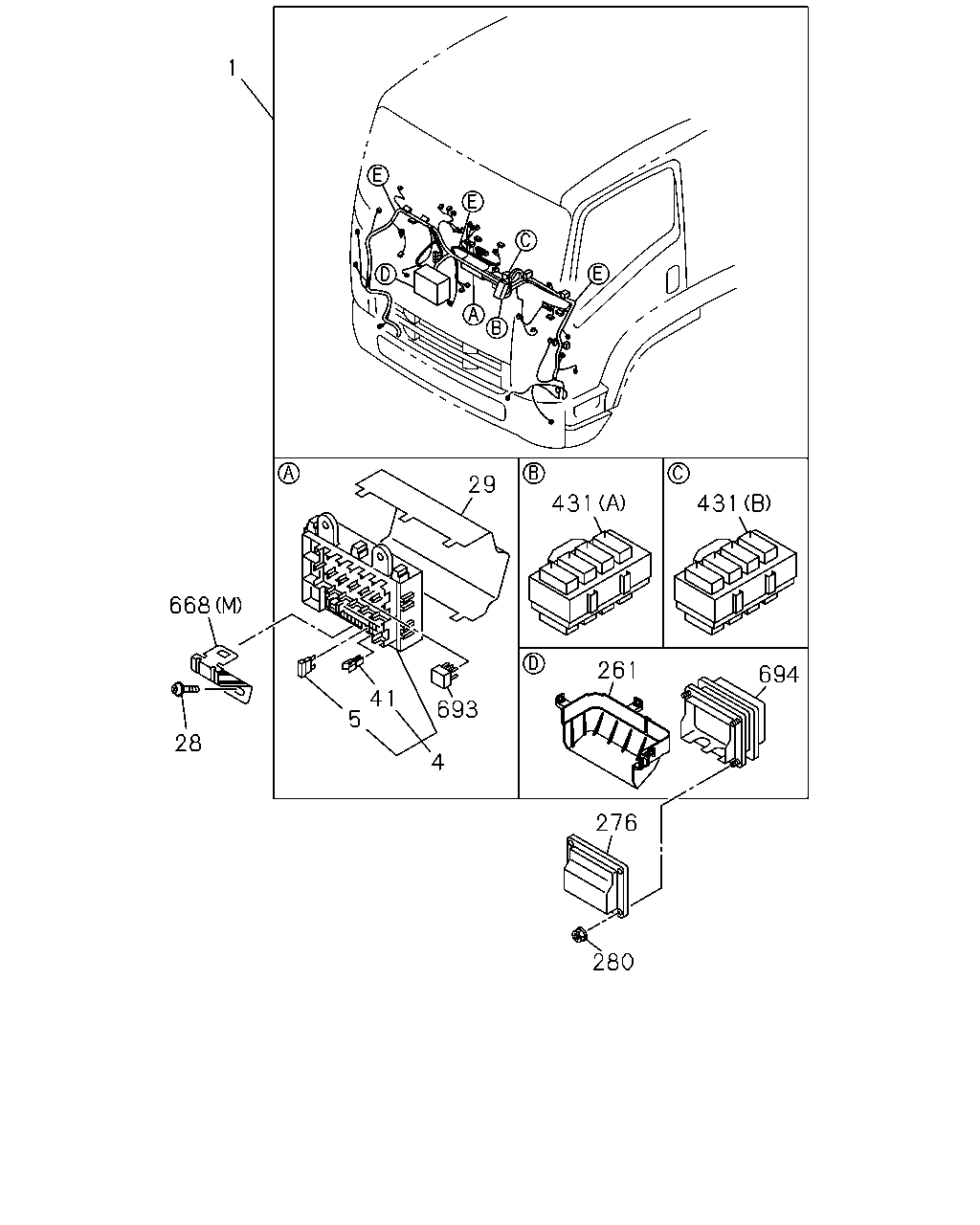

1 668 28 5 41 693 4 29 431 431 694 261 276 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-978-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-980-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-979-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-981-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-997-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-001-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-999-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-003-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-992-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-994-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-996-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-000-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-993-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-995-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-998-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-002-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-004-1	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-005-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-009-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-011-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-006-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-008-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-007-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-010-1	01	1	1511-		●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1511-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1511-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1511-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1511-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1511-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1511-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1511-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1511-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1511-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1511-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1511-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1511-	●	●
668	BRACKET; HARNESS (A)	1-47479-674-0	01	1	1511-	●
668	BRACKET; HARNESS (D)	8-97620-519-0	01	1	1511-	●
668	BRACKET; HARNESS (K)	8-98107-610-1	01	1	1511-	●
668	BRACKET; HARNESS (I) L=55	1-47475-304-0	01	1	1511-	●	●
668	BRACKET; HARNESS (N)	1-82698-167-0	01	1	1511-	●	●
668	BRACKET; HARNESS (H) L=95	1-82699-085-0	04	1	1511-	●	●
668	BRACKET; HARNESS (J)	8-97609-110-1	01	1	1511-	●	●
668	BRACKET; HARNESS (C)	8-97619-097-1	01	1	1511-	●	●
668	BRACKET; HARNESS (E)	8-98047-730-0	02	1	1511-	●	●
668	BRACKET; HARNESS (M)	8-98095-653-2	01	1	1511-	●	●
668	BRACKET; HARNESS (F)	8-98107-611-0	01	1	1511-	●	●
668	BRACKET; HARNESS (L)	8-98212-082-1	01	1	1511-	●	●
668	BRACKET; HARNESS (B)	8-98254-592-0	01	1	1511-	●	●
668	BRACKET; HARNESS (G)	8-98127-093-0	01	1	1511-		●

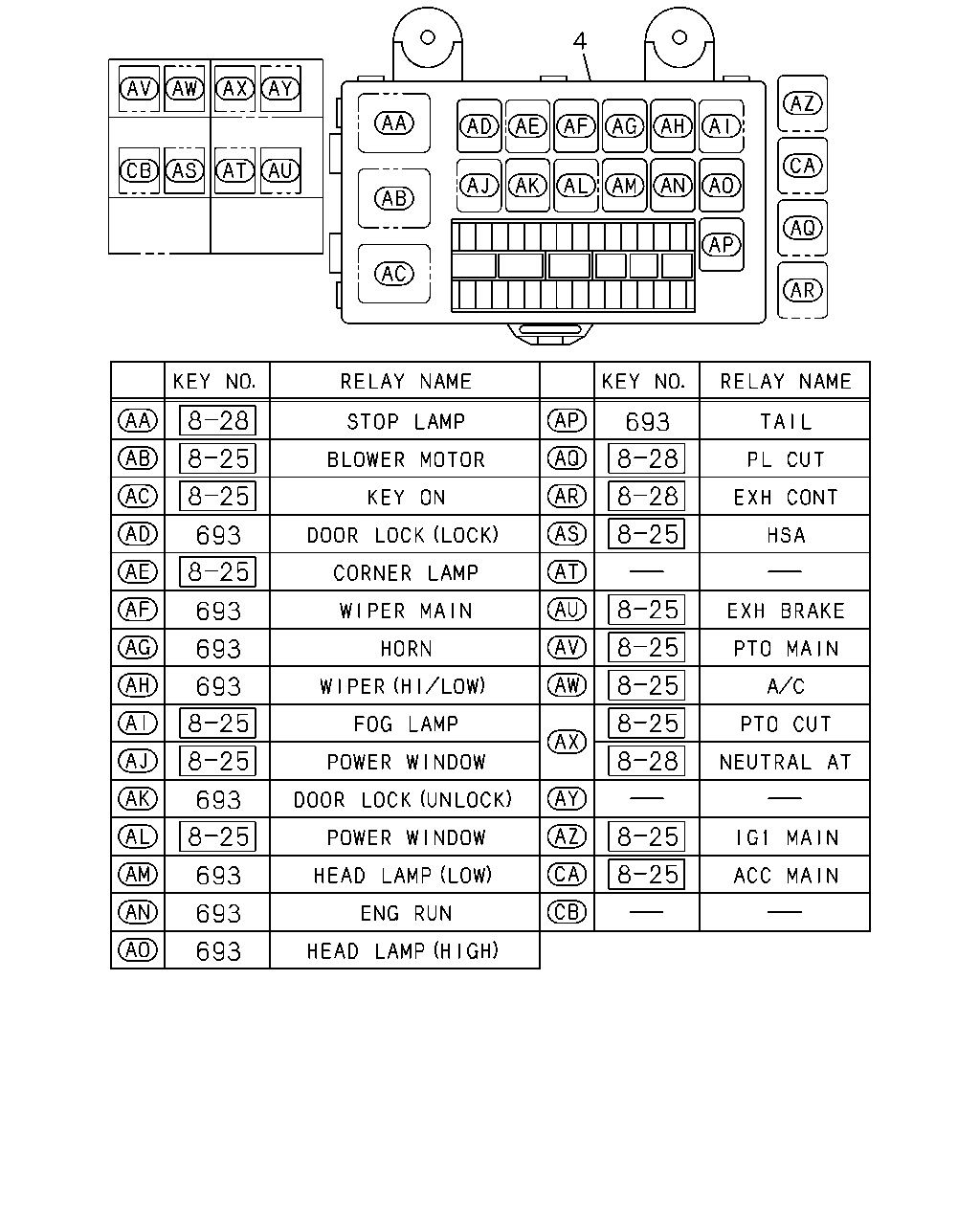

693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1511-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1511-	●	●

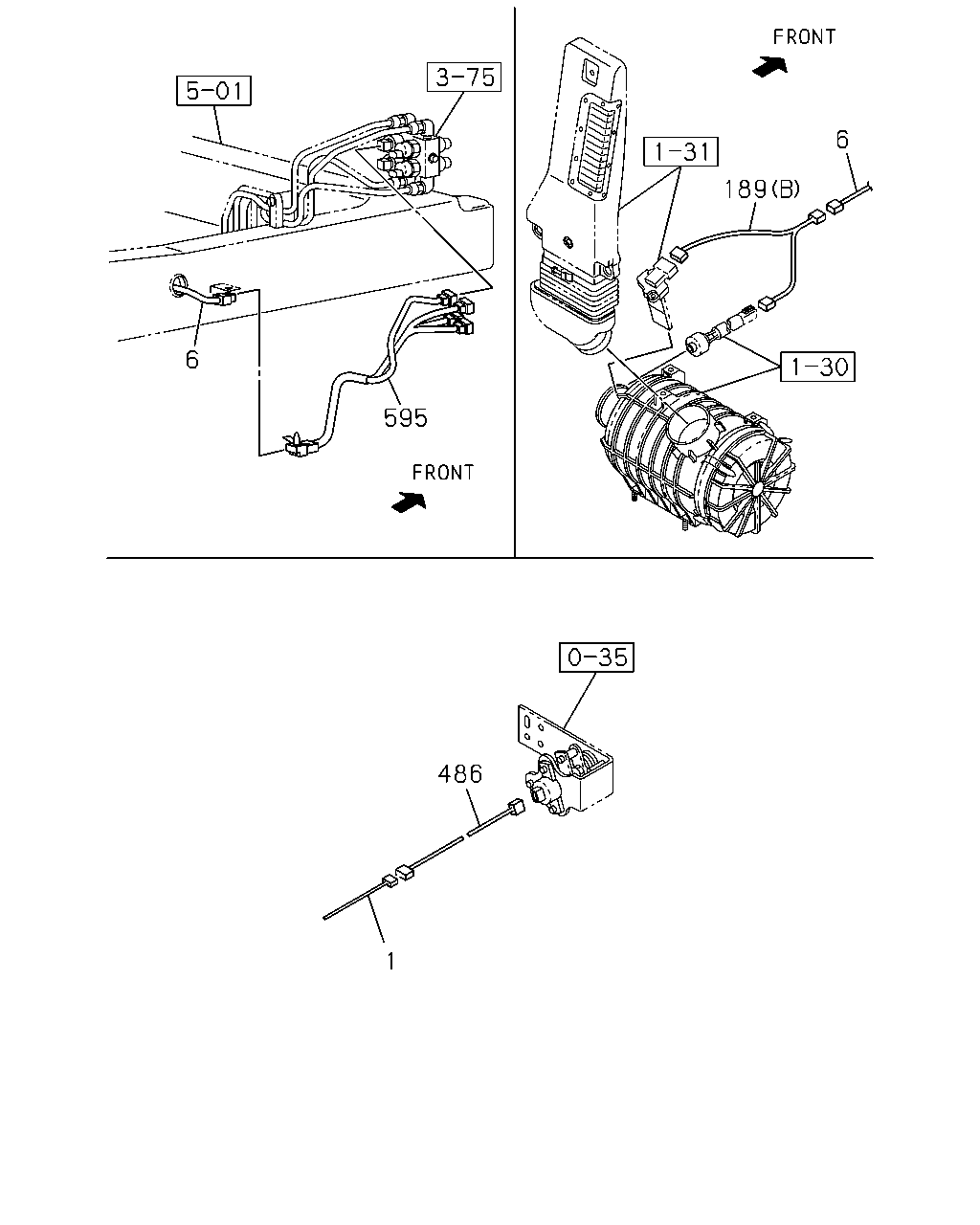

595 6 189 6 486 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-978-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-980-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-979-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-981-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-997-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-001-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-999-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-003-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-992-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-994-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-996-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-000-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-993-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-995-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-998-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-002-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-004-1	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-005-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-009-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-011-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-006-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-008-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-007-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-010-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-125-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-127-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-130-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-123-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-124-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-129-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-128-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-126-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-134-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-132-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-133-0	01	1	1511-		●
189	HARNESS; EXT (B)	8-98098-510-0	01	1	1511-	●	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-98131-066-0	01	1	1511-	●	●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1511-	●	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98329-528-0	01	1	1511-	●	●
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98329-527-0	01	1	1511-	●	●

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1511-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1511-	●	●

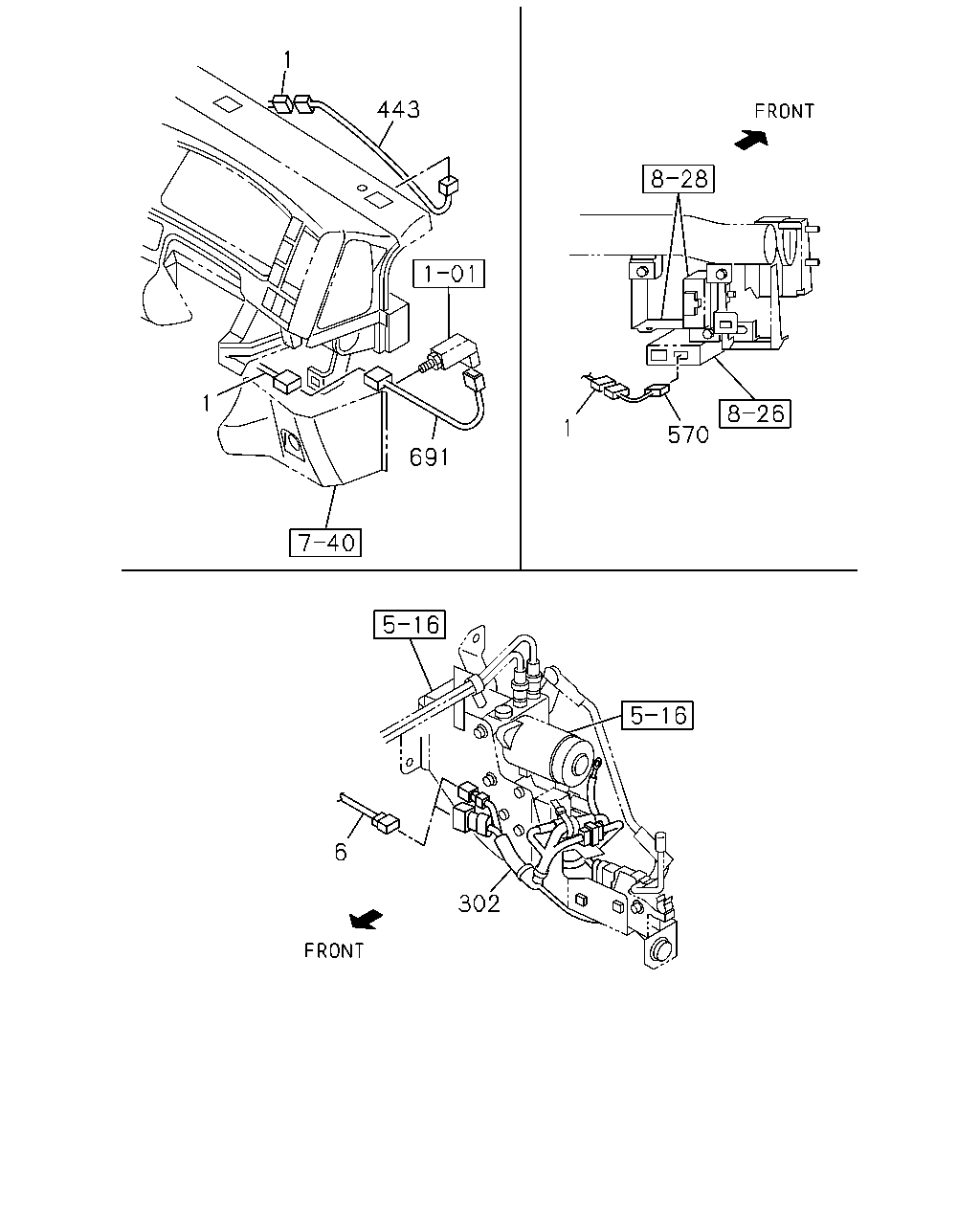

570 1 302 6 691 1 443 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-978-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-980-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-979-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-981-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-997-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-001-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-999-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-003-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-992-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-994-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-996-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-000-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-993-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-995-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-998-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-002-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-004-1	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-005-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-009-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-011-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-006-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-008-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-007-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-010-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-125-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-127-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-130-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-123-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-124-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-129-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-128-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-126-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-134-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-132-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-133-0	01	1	1511-		●
302	HARNESS; POWER CAB TILT	8-97620-490-1	01	1	1511-	●
302	HARNESS; POWER CAB TILT	8-97622-116-0	01	1	1511-		●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1511-	●
570	HARNESS; SPEED SENSOR LCT2500 A/T ALLISON(Y5W)	8-98305-915-0	01	1	1511-	●	●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ)	8-98172-313-0	01	1	1511-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1511-	●	●

1 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-978-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-980-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-979-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-981-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-997-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-001-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-999-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-003-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-992-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-994-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-996-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-000-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-993-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-995-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-998-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-002-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-004-1	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-005-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-009-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-011-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-006-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-008-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-007-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-010-1	01	1	1511-		●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	1511-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1511-	●	●
2	DIODE; CABLE HARNESS (C) 2P	8-98223-969-0	AR	1	1511-	●	●

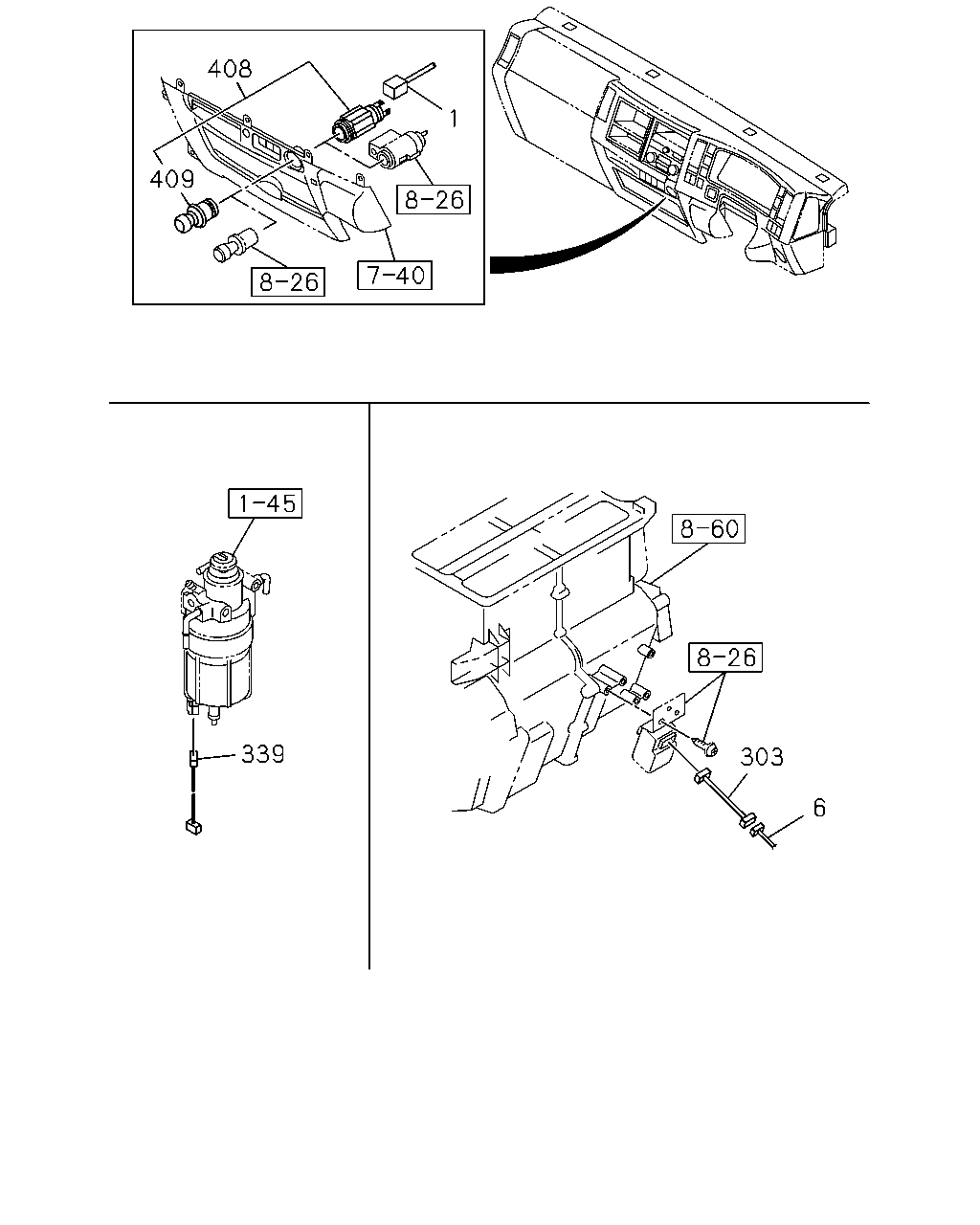

408 1 409 303 6 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-978-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-980-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-979-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-981-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-997-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-001-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-999-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-003-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-992-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-994-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-996-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-000-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-993-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-995-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-998-1	01	1	1511-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-002-1	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-004-1	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-005-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-009-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98308-011-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-006-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-008-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98308-007-1	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98308-010-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-125-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-127-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-130-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-123-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-124-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-129-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-128-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-126-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-134-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-132-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-133-0	01	1	1511-		●
303	HARNESS; WATER LEVEL	8-98306-992-1	01	1	1511-	●	●
339	HARNESS; EXT,FUEL	8-98227-392-1	01	1	1511-	●
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1511-	●	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1511-	●	●

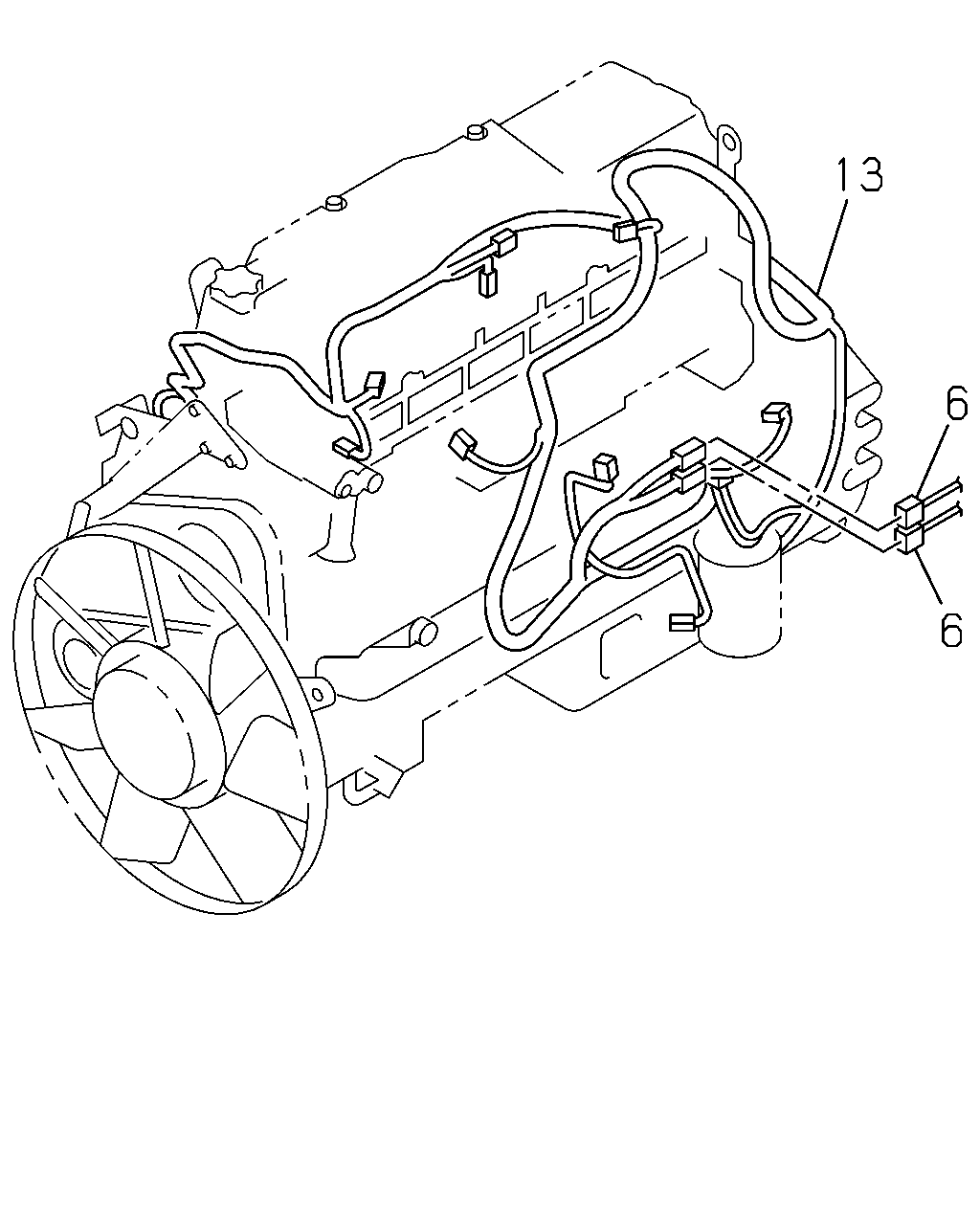

6 6 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-125-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-127-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-130-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-123-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-124-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-129-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-128-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-126-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-134-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-132-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-133-0	01	1	1511-		●
13	HARNESS; ENG MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9)	8-98328-517-0	01	1	1511-	●
13	HARNESS; ENG MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-517-0	01	1	1511-	●
13	HARNESS; ENG MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9)	8-98328-517-0	01	1	1511-		●
13	HARNESS; ENG MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-517-0	01	1	1511-		●
13	HARNESS; ENG MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(K89) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9)	8-98328-516-0	01	1	1511-	●
13	HARNESS; ENG MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(K89) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-516-0	01	1	1511-	●
13	HARNESS; ENG MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V50A(K89) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9)	8-98328-516-0	01	1	1511-		●
13	HARNESS; ENG MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V50A(K89) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-516-0	01	1	1511-		●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) A/T<X9D> EXC. 15" CLUTCH(RE9),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-523-0	01	1	1511-	●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) A/T<X9D> EXC. 15" CLUTCH(RE9),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-523-0	01	1	1511-		●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(K89) A/T<X9D> EXC. 15" CLUTCH(RE9),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-522-0	01	1	1511-	●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V50A(K89) A/T<X9D> EXC. 15" CLUTCH(RE9),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-522-0	01	1	1511-		●

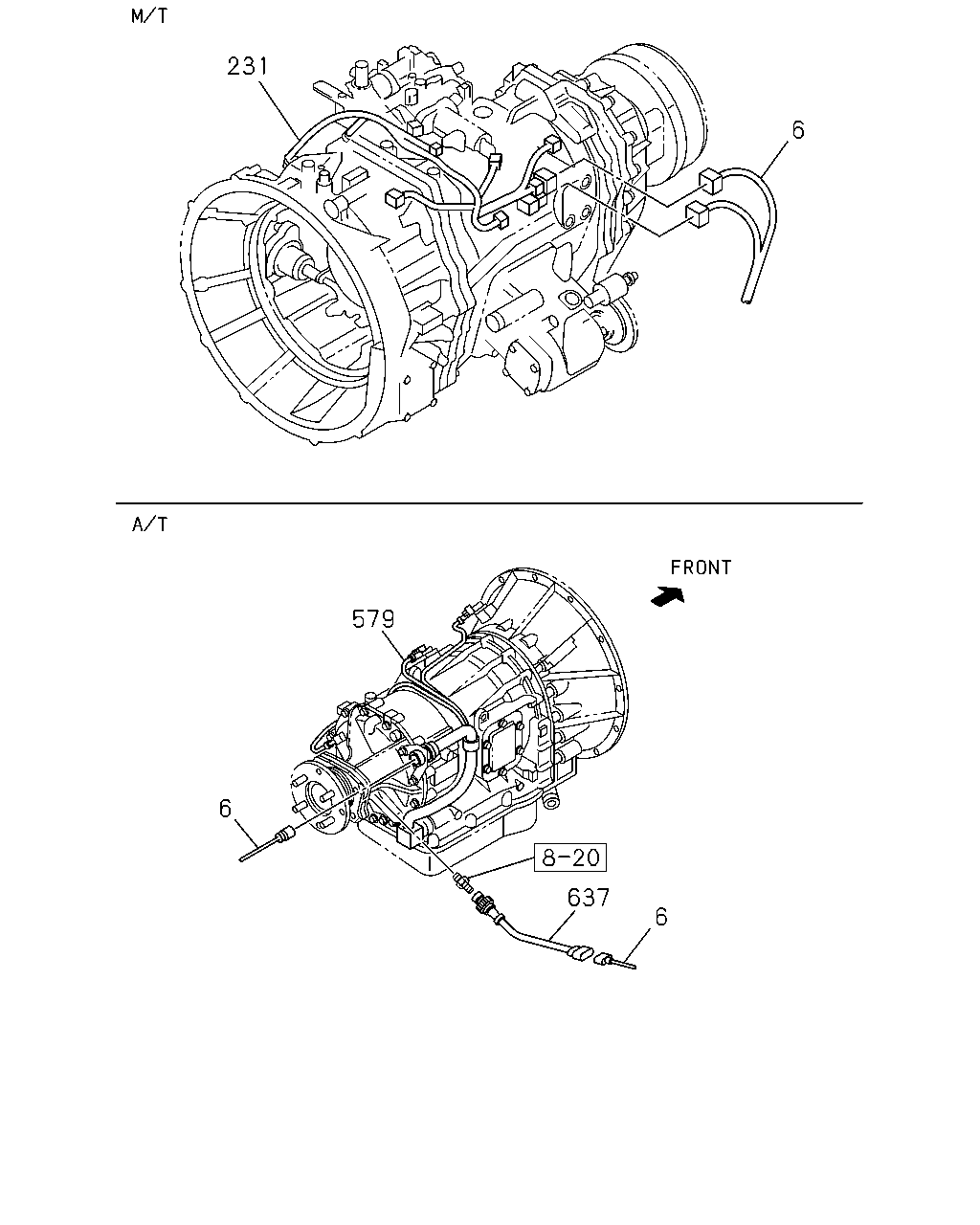

231 6 579 6 637 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-125-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-127-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-130-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-123-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-124-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-129-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-128-0	01	1	1511-	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-126-0	01	1	1511-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-134-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-132-0	01	1	1511-		●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-133-0	01	1	1511-		●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98243-722-0	01	1	1511-	●	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-229-1	01	1	1511-	●	●
579	HARNESS; A/T LCT2500 A/T ALLISON(Y5W)	8-98276-300-0	01	1	1511-	●	●
637	HARNESS; EXT,S/SENSOR LCT2500 A/T ALLISON(Y5W)	1-82671-045-1	01	1	1511-	●	●

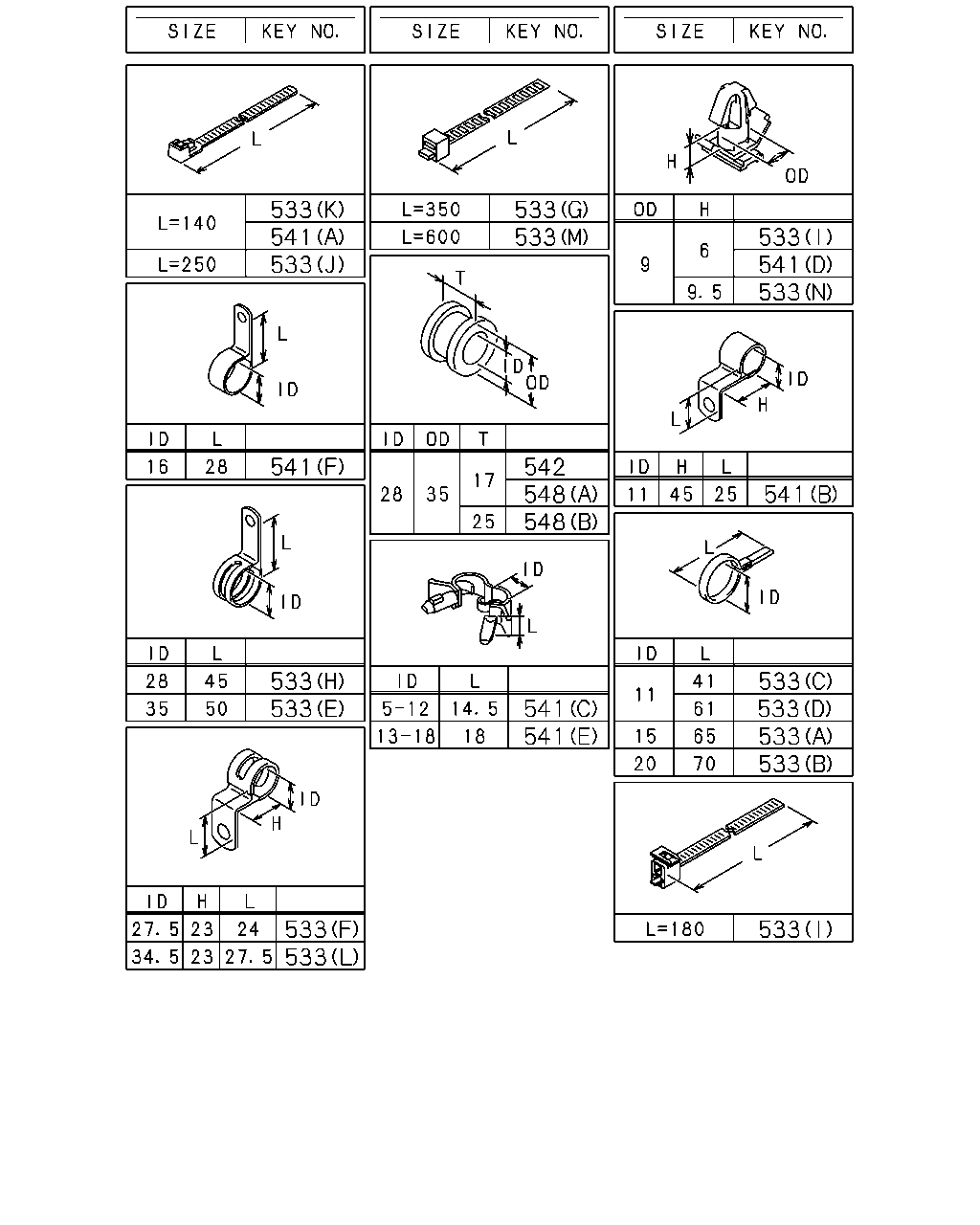

533 533 541 541 533 533 533 533 533 542 533 548 541 548 541 533 533 533 533 533 541 533 541 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (H) ID=28 L=45	1-09700-825-1	01	1	1511-	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1511-	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1511-	●
533	CLIP (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1511-		●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50	1-09701-214-0	01	1	1511-	●
533	CLIP (E) ID=35 L=50	1-09701-214-0	01	1	1511-		●
533	CLIP WHEEL BASE 4200MM(42W) (A) ID=15 L=65	1-09700-466-0	03	1	1511-	●
533	CLIP WHEEL BASE 4200MM(42W) (B) ID=20 L=70	1-09700-485-0	12	1	1511-	●
533	CLIP WHEEL BASE 5500MM(55W) (B) ID=20 L=70	1-09700-485-0	16	1	1511-	●
533	CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=15 L=65	1-09700-466-0	05	1	1511-	●
533	CLIP (A) ID=15 L=65	1-09700-466-0	05	1	1511-		●
533	CLIP WHEEL BASE 6500MM(65W) (A) ID=15 L=65	1-09700-466-0	06	1	1511-	●
533	CLIP WHEEL BASE 6500MM(65W) (B) ID=20 L=70	1-09700-485-0	19	1	1511-	●
533	CLIP (C) ID=11 L=41	1-09700-403-0	05	1	1511-	●	●
533	CLIP (D) ID=11 L=61	1-09700-484-0	04	1	1511-	●	●
533	CLIP (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1511-	●	●
533	CLIP (M) L=600	1-09707-107-1	01	1	1511-	●	●
533	CLIP (M) L=600	1-09707-107-1	01	1	1511-	●	●
533	CLIP (M) L=600	1-09707-107-1	01	1	1511-		●
533	CLIP (G) L=350	1-09707-183-0	01	1	1511-	●	●
533	CLIP (J) L=250	5-09707-030-1	02	1	1511-	●	●
533	CLIP (J) L=250	5-09707-030-1	02	1	1511-	●	●
533	CLIP (J) L=250	5-09707-030-1	02	1	1511-	●	●
533	CLIP (J) L=250	5-09707-030-1	02	1	1511-	●
533	CLIP (J) L=250	5-09707-030-1	01	1	1511-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (J) L=250	5-09707-030-1	01	1	1511-	●	●
533	CLIP (J) L=250	5-09707-030-1	01	1	1511-		●
533	CLIP (J) L=250	5-09707-030-1	03	1	1511-	●	●
533	CLIP (K) L=140	5-09707-031-1	01	1	1511-	●	●
533	CLIP (A) ID=15 L=65	1-09700-466-0	02	1	1511-	●	●
533	CLIP (N) OD=9 H=9.5	1-09709-179-0	01	1	1511-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (I) L=180	1-09707-162-1	01	1	1511-	●	●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (I) L=180	1-09707-162-1	01	1	1511-	●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) (I) L=180	1-09707-162-1	01	1	1511-		●
533	CLIP WHEEL BASE 6000MM(60W) (B) ID=20 L=70	1-09700-485-0	18	1	1511-	●	●
533	CLIP (G) L=350	1-09707-183-0	03	1	1511-		●
541	CLIP (B) ID=11 H=45 L=25	1-09700-866-0	01	1	1511-	●
541	CLIP (C) ID=5-12 L=14.5	1-09987-221-0	02	1	1511-	●
541	CLIP (D) OD=9 H=6	8-97368-793-0	02	1	1511-	●
541	CLIP (A) L=140	5-09707-031-1	01	1	1511-	●	●
541	CLIP (F) ID=16 L=28	0-95235-556-0	01	1	1511-		●
541	CLIP (E) ID=13-18 L=18	1-09709-291-0	01	1	1511-		●
542	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1511-	●	●
542	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	02	1	1511-	●	●
548	GROMMET (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1511-	●
548	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1511-	●	●

267 535 267 267 639 535 534 639 267 639 290 290 640 525 295 293 534 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
267	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●
267	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1511-	●	●
267	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
267	BOLT; BRKT (D) M10X25 FLANGE	0-28651-025-0	02	1	1511-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
295	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
534	BOLT (B) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
534	BOLT (C) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1511-	●	●
534	BOLT (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1511-	●	●
535	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	04	1	1511-	●	●
535	BOLT; BRKT FIX (A) M10X35 FLANGE	0-28651-035-0	01	1	1511-	●	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●
639	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
639	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
639	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●
639	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1511-		●
640	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
