Isuzu WW
▶
TRUCKS
▶
FTR
▶
11716 - FTR AUST/NZ EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

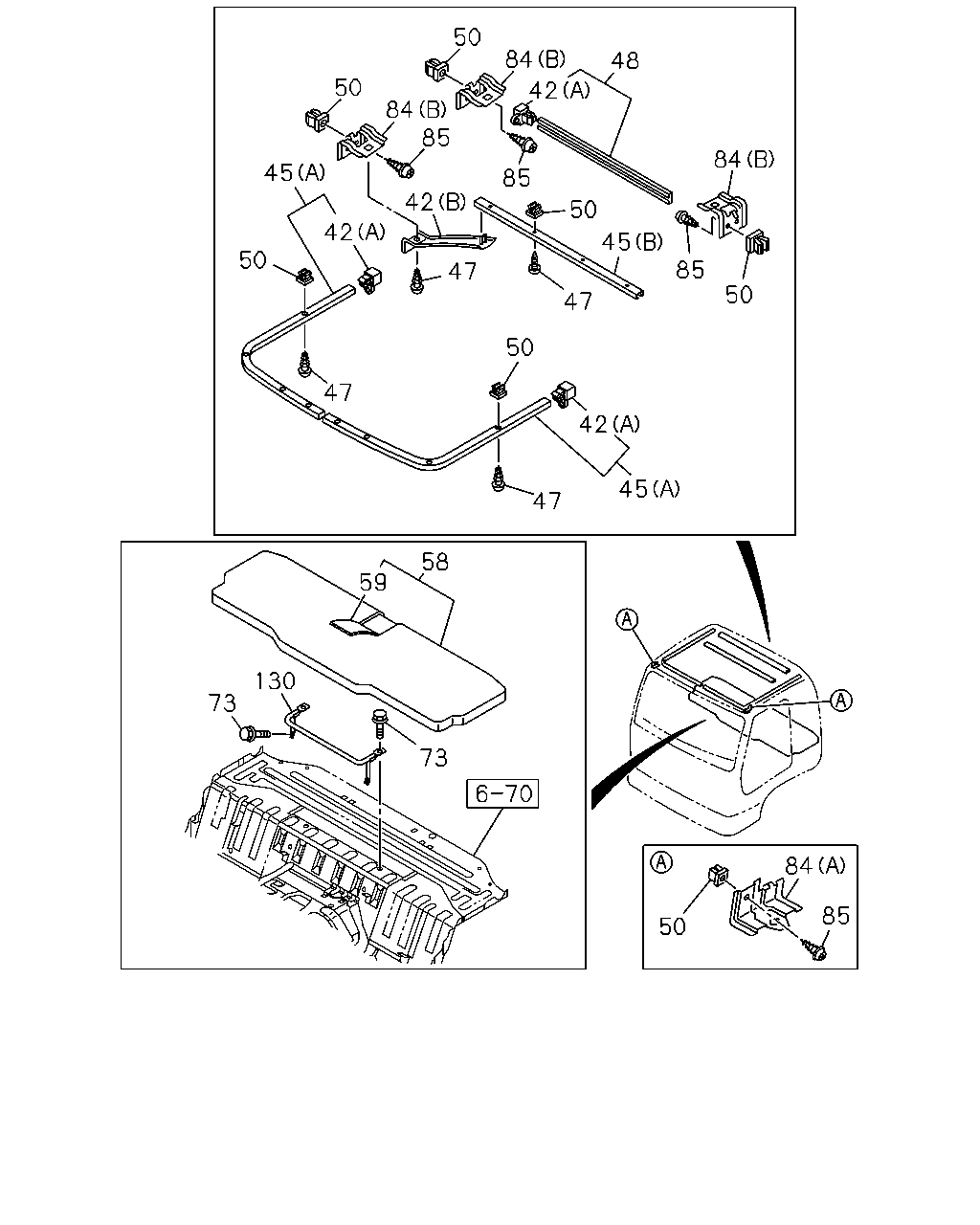

7-70 — SEPARATER AND BED
(#169616) — 25 parça
Tümü
A - FGR5MV
B - FGR5WV
50
50
42
48
85
42
85
84
45
50
47
47
45
50
85
84
50
42
50
47
45
47
42
58
59
130
73
73
50
84
85
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97408-038-0
01
1
1511-
●
42
STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97408-038-0
02
1
1511-
●
42
STOPPER; CURTAIN RAIL
(B) DARK GRAY
8-97407-972-2
01
1
1511-
●
●
42
STOPPER; CURTAIN RAIL
(B) DARK GRAY
8-97407-499-2
01
1
1511-
●
●
45
RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97415-676-0
01
1
1511-
●
45
RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97415-675-0
01
1
1511-
●
45
RAIL; CURTAIN,FRT
(B) DARK GRAY
8-97407-486-0
01
1
1511-
●
●
47
SCREW; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
14
1
1511-
●
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1511-
●
●
48
RAIL; CURTAIN,BACK
ROUND CURTAIN RAIL<EDH> DARK GRAY
8-97407-866-2
01
1
1511-
●
50
GROMMET; SCREW,CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5
8-94279-078-0
20
1
1511-
●
50
GROMMET; SCREW,CURTAIN RAIL
EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1511-
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1511-
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1511-
●
●
58
BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97407-384-2
01
1
1511-
●
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97412-043-1
01
1
1511-
●
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1511-
●
84
BRACKET; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A)
8-98028-326-1
02
1
1511-
●
84
BRACKET; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (B)
8-98042-152-0
04
1
1511-
●
84
BRACKET; CURTAIN RAIL
EXC. ROUND CURTAIN RAIL<EDH> (B)
8-98042-152-0
02
1
1511-
●
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
02
1
1511-
●
85
SCREW; BRKT
ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
06
1
1511-
●
85
SCREW; BRKT
EXC. ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
02
1
1511-
●
85
SCREW; BRKT
M5X20
5-09981-059-0
02
1
1511-
●
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1511-
●
