◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#169615) — 35 parça
çizim 501958
123
BalonParca AdiParca NoAdetTipApplied Date A B
123 BELT ASM; SEAT
AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-970-0 01 1 1511- ●
123 BELT ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98333-917-0 01 1 1511- ●
123 BELT ASM; SEAT
(A) 		8-98097-971-0 01 1 1511- ● ●

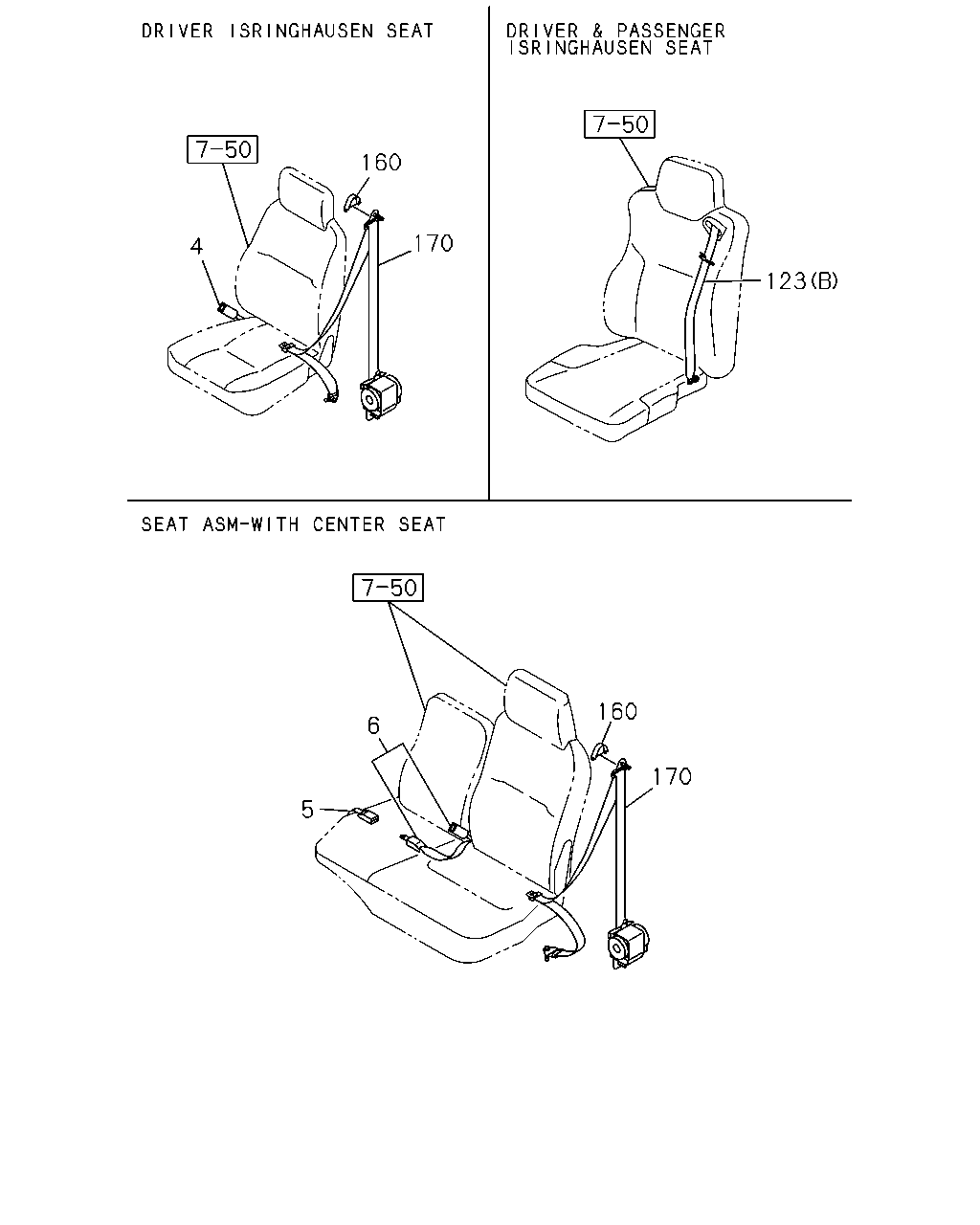

çizim 503460
160 170 123 160 170 6 5 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1511- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1511- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 1511- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1511- ●
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97423-515-1 01 1 1511- ●
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> GRAY 		8-97466-402-0 01 1 1511- ●
123 BELT ASM; SEAT
AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-970-0 01 1 1511- ●
123 BELT ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98333-917-0 01 1 1511- ●
123 BELT ASM; SEAT
(A) 		8-98097-971-0 01 1 1511- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1511- ●
160 COVER; THROUGH ANCHOR
DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97405-991-0 01 1 1511- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1511- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1511- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97428-394-0 01 1 1511- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1511- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1511- ●
çizim 503523
169 88 169
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1511- ●
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> (A) OD=25 BLACK 		1-76798-019-0 01 1 1511- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR RMS ORANGE(550) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1511- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR RMS ORANGE(550) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1511- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 WHITE 		8-94271-620-1 02 1 1511- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) OD=36 WHITE 		8-94271-620-1 02 1 1511- ●
çizim 503526
160 18 19 20 20 19 21 160 18 12 12 21
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1511- ●
18 BELT; SEAT,RR
GRAY 		8-97466-948-0 02 1 1511- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97466-945-0 02 1 1511- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97466-949-0 01 1 1511- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97466-950-0 01 1 1511- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97466-946-0 01 1 1511- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97466-947-0 01 1 1511- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1511- ●
160 COVER; THROUGH ANCHOR
DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97405-991-0 01 1 1511- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
