Isuzu WW
▶
TRUCKS
▶
FTR
▶
11716 - FTR AUST/NZ EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#169607) — 76 parça
Tümü
A - FGR5MV
B - FGR5WV
◀

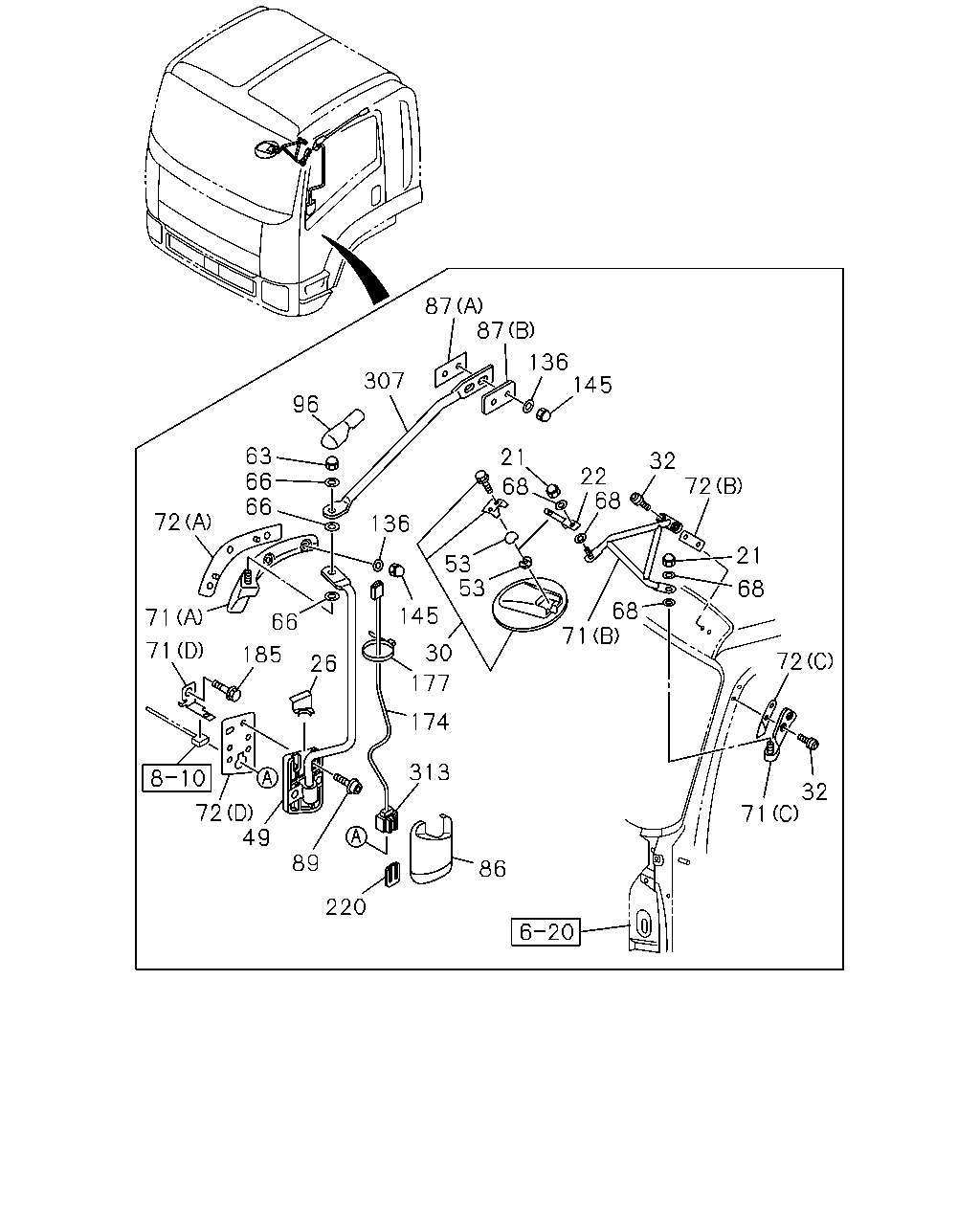

[720A] ASSIST SIDE (38 parça)

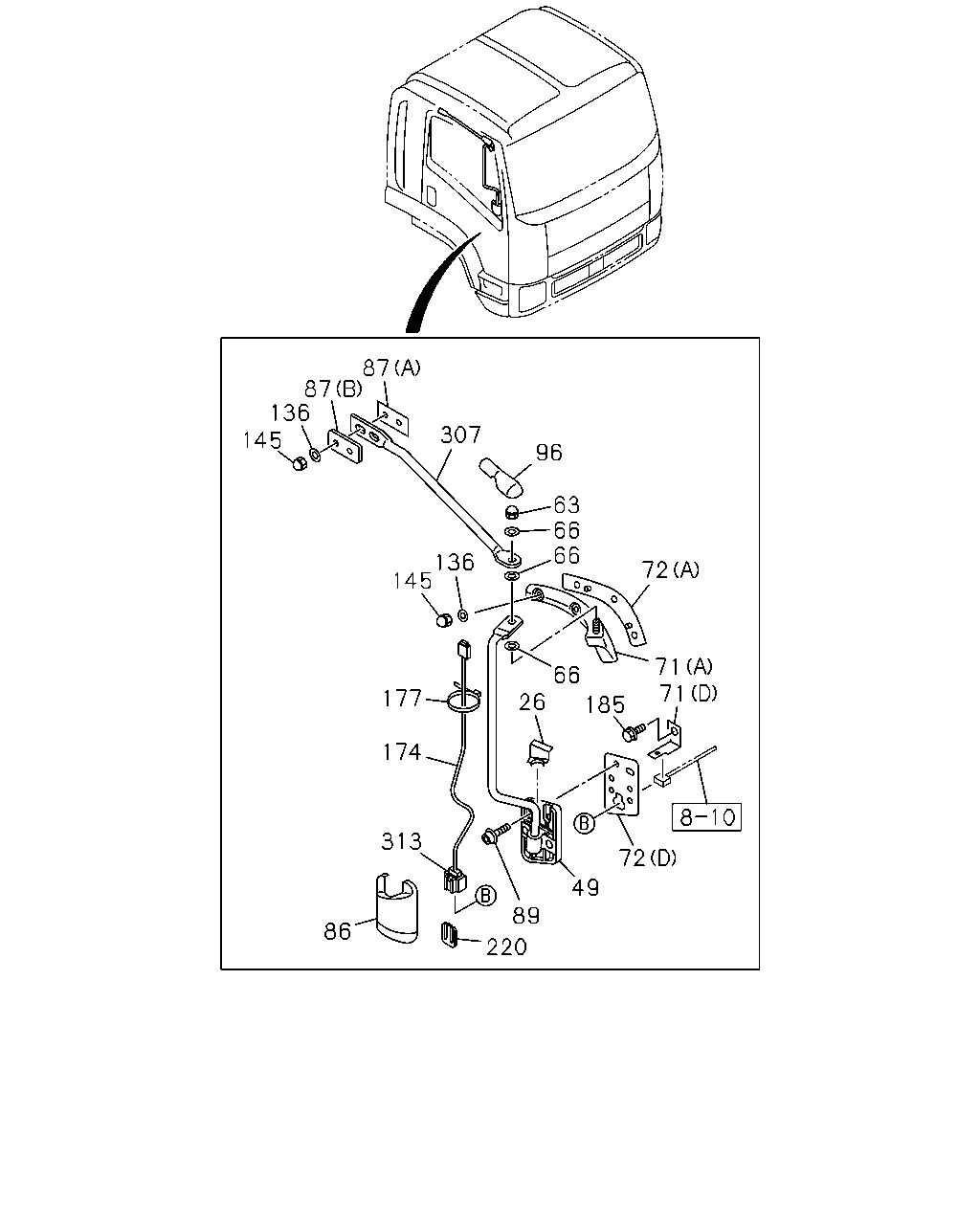

[720A] DRIVER SIDE (32 parça)

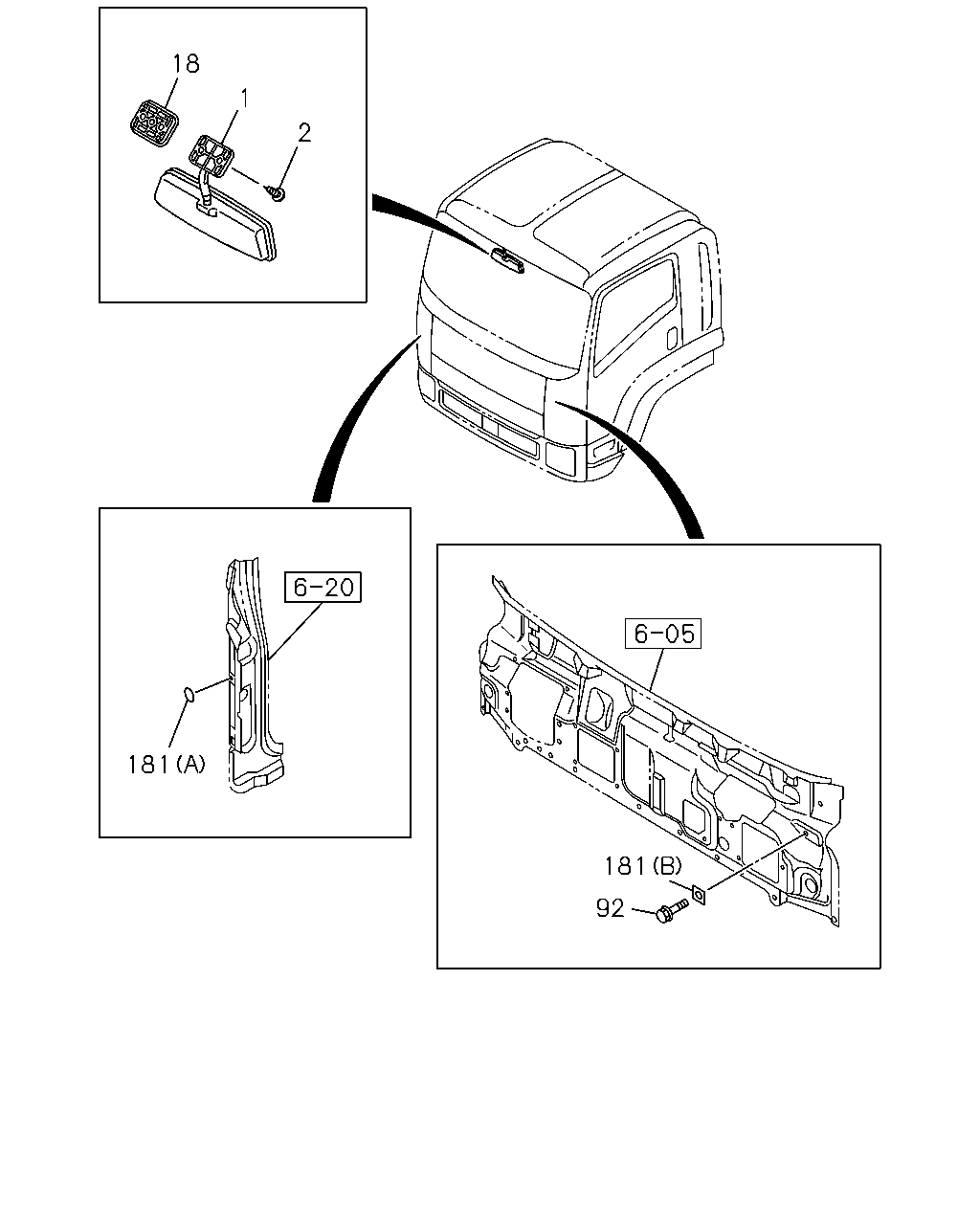

[720A] ROOM MIRROR AND SEAL (6 parça)
▶
32
71
72
68
21
72
32
68
71
68
22
145
136
87
87
307
21
68
53
53
96
136
63
66
66
72
71
71
66
185
26
145
30
177
174
313
86
220
89
49
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT
1-09984-134-0
02
1
1511-
●
●
22
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
8-98092-493-0
01
1
1511-
●
●
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1511-
●
●
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1511-
●
●
30
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
8-98309-725-0
01
1
1511-
●
●
32
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER
8-98067-249-2
04
1
1511-
●
●
49
STAY; MIRROR SIDE
8-98166-201-0
01
1
1511-
●
●
49
STAY; MIRROR SIDE
8-98166-200-0
01
1
1511-
●
●
53
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1
1-71737-633-2
02
1
1511-
●
●
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1511-
●
●
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1511-
●
●
68
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
(D)
8-98039-277-2
02
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C)
8-98060-240-0
01
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B)
8-98092-492-3
01
1
1511-
●
●
72
SHEET
(A)
8-98031-797-0
01
1
1511-
●
●
72
SHEET
(D)
8-98101-865-0
01
1
1511-
●
●
72
SHEET
(A)
8-98031-796-0
01
1
1511-
●
●
72
SHEET
(D)
8-98101-864-0
01
1
1511-
●
●
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (B)
8-98060-245-1
01
1
1511-
●
●
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (C)
8-98064-776-0
01
1
1511-
●
●
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1511-
●
●
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1511-
●
●
87
SPACER
(A)
8-98063-786-0
02
1
1511-
●
●
87
SPACER
(B)
8-98063-789-0
02
1
1511-
●
●
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1511-
●
●
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1511-
●
●
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1511-
●
●
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1511-
●
●
174
HARNESS; MIRROR
8-98137-139-0
02
1
1511-
●
●
177
CLIP; HARNESS
L=140
5-09707-031-1
02
1
1511-
●
●
185
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
1511-
●
●
220
HOLDER; CONNECTOR
8-94479-375-0
02
1
1511-
●
●
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1511-
●
●
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1511-
●
●
313
CONNECTOR; MIRROR
8-94479-370-0
02
1
1511-
●
●
220
89
49
313
86
72
174
177
26
185
66
71
71
72
66
66
63
136
145
96
307
87
87
136
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1511-
●
●
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1511-
●
●
49
STAY; MIRROR SIDE
8-98166-201-0
01
1
1511-
●
●
49
STAY; MIRROR SIDE
8-98166-200-0
01
1
1511-
●
●
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1511-
●
●
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
(D)
8-98039-277-2
02
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C)
8-98060-240-0
01
1
1511-
●
●
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B)
8-98092-492-3
01
1
1511-
●
●
72
SHEET
(A)
8-98031-797-0
01
1
1511-
●
●
72
SHEET
(D)
8-98101-865-0
01
1
1511-
●
●
72
SHEET
(A)
8-98031-796-0
01
1
1511-
●
●
72
SHEET
(D)
8-98101-864-0
01
1
1511-
●
●
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (B)
8-98060-245-1
01
1
1511-
●
●
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (C)
8-98064-776-0
01
1
1511-
●
●
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1511-
●
●
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1511-
●
●
87
SPACER
(A)
8-98063-786-0
02
1
1511-
●
●
87
SPACER
(B)
8-98063-789-0
02
1
1511-
●
●
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1511-
●
●
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1511-
●
●
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1511-
●
●
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1511-
●
●
174
HARNESS; MIRROR
8-98137-139-0
02
1
1511-
●
●
177
CLIP; HARNESS
L=140
5-09707-031-1
02
1
1511-
●
●
185
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
1511-
●
●
220
HOLDER; CONNECTOR
8-94479-375-0
02
1
1511-
●
●
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1511-
●
●
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1511-
●
●
313
CONNECTOR; MIRROR
8-94479-370-0
02
1
1511-
●
●
18
1
2
181
181
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MIRROR; ROOM
DARK GRAY
8-98097-534-1
01
1
1511-
●
●
2
SCREW; MIRROR TO BODY
M6X26
8-98033-674-0
02
1
1511-
●
●
18
CLIP; MIRROR
DARK GRAY
8-97408-241-0
01
1
1511-
●
●
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE
8-98076-109-0
01
1
1511-
●
●
181
SEAL; BRKT
(B) 25X25
8-94272-533-0
01
1
1511-
●
●
181
SEAL; BRKT
(A) OD=25 BLACK
1-76798-019-0
01
1
1511-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
