◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#169606) — 10 parça

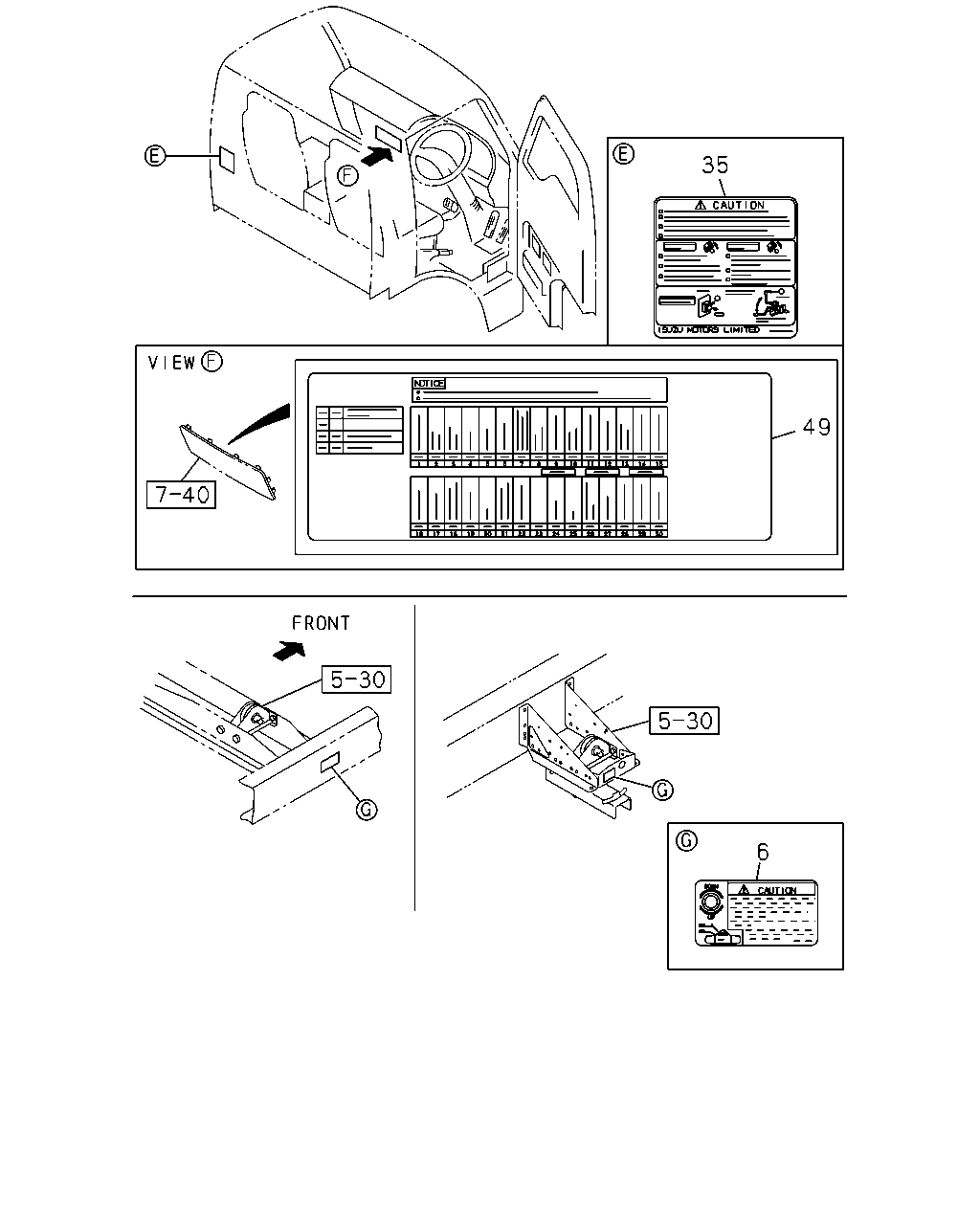

çizim 501145
6 49 35
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1511- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1511- ●
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 1511- ●
35 PLATE; CAUTION,CAB 8-98069-325-0 01 1 1511- ●
49 PLATE; CAUTION,FUSE BOX 8-98305-918-1 01 1 1511- ● ●

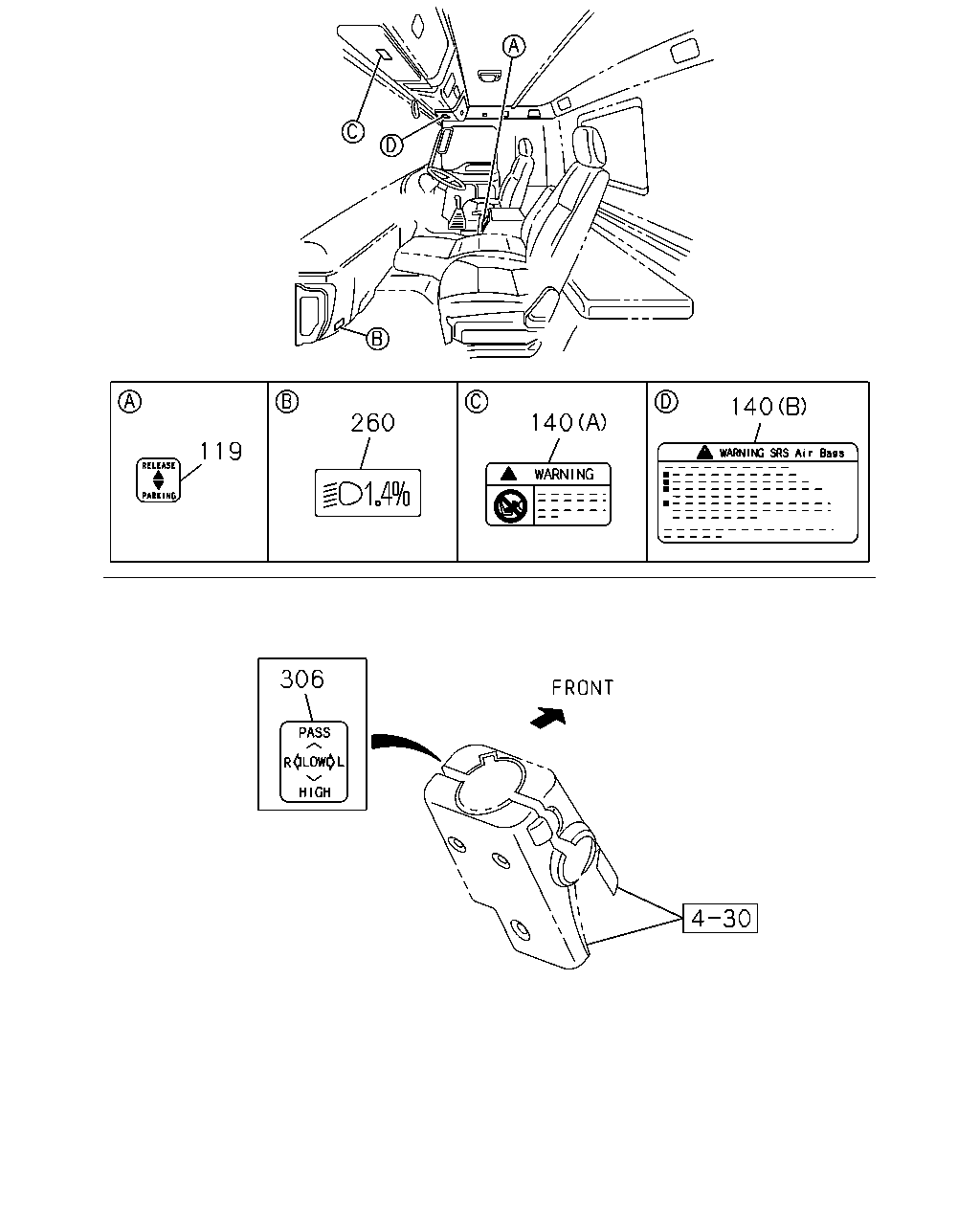

çizim 501538
140 140 260 119 306
BalonParca AdiParca NoAdetTipApplied Date A B
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1511- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 02 1 1511- ● ●
140 PLATE; CAUTION,SRS
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-964-0 01 1 1511- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1511- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1511- ● ●
