6-70 — FLOOR PANEL (#169597) — 185 parça

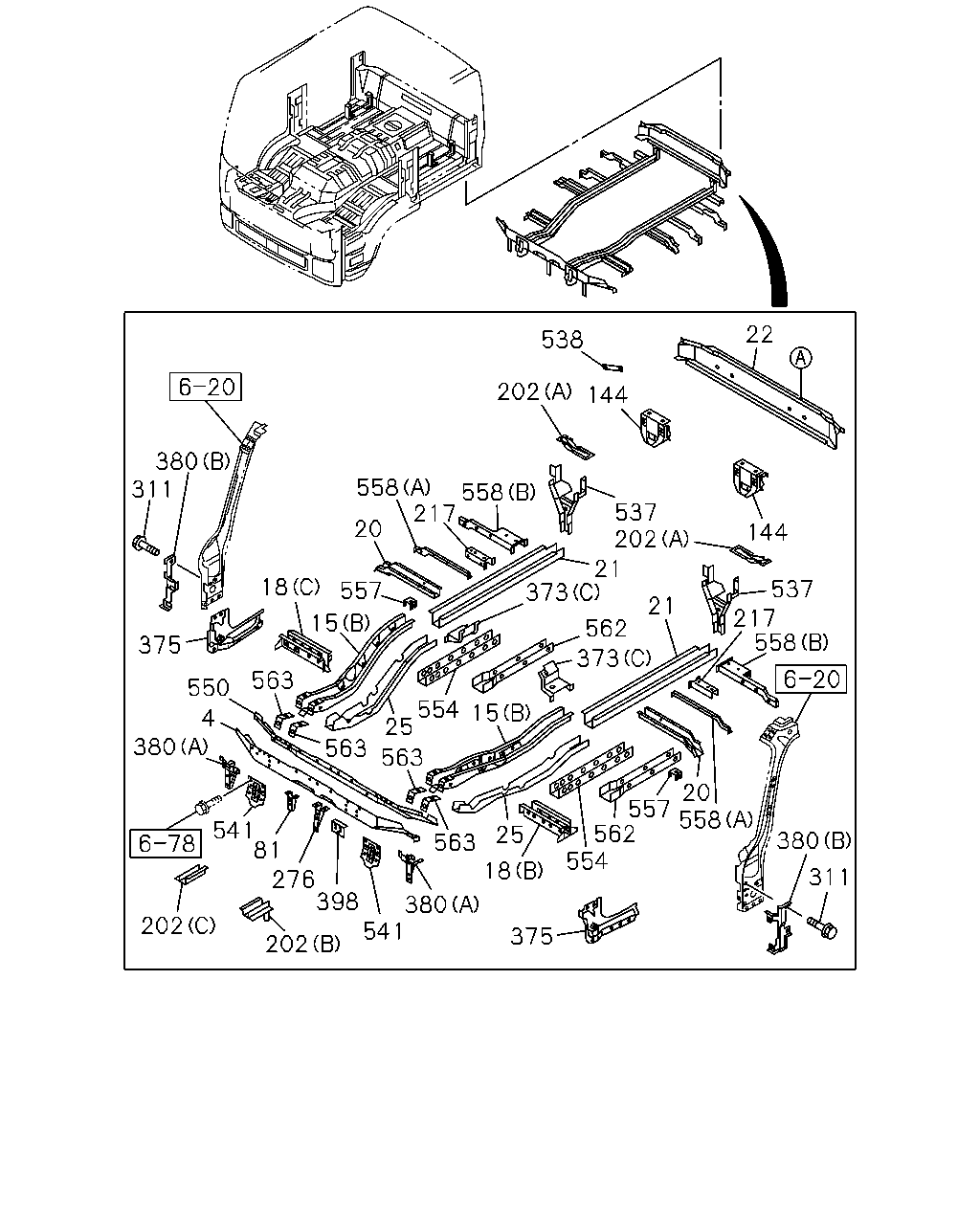

çizim 501139
538 202 558 558 20 18 380 311 557 15 217 537 21 202 373 562 373 217 144 22 537 558 20 557 558 380 311 562 554 18 563 375 380 541 398 202 276 202 541 380 550 375 563 563 563 25 554 15 21 144 25 81 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1511- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 1511- ●
20 FRAME; FLOOR SIDE,REAR 8-97410-978-0 01 1 1511- ●
20 FRAME; FLOOR SIDE,REAR 8-97607-517-0 01 1 1511- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1511- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97410-960-1 01 1 1511- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1511- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1511- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-427-0 02 1 1511- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1511- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1511- ●
217 PANEL; SEAT STAND 8-97410-945-1 02 1 1511- ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1511- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1511- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER 8-97610-064-2 01 1 1511- ●
557 PATCH; SEAT 8-98074-333-0 01 1 1511- ●
557 PATCH; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98306-616-0 01 1 1511- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-202-0 01 1 1511- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-203-0 01 1 1511- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-207-1 01 1 1511- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-210-1 01 1 1511- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1511- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ●
çizim 501561
24 542 542 22 538 144 170 548 549 547 373 544 536 23 380 311 375 15 550 563 380 541 81 276 398 220 220 376 448 18 537 448 15 375 15 380 537 376 546 23 373 544 548 373 549 174 57 3 144 540 539 220 546 545 15 563 563 563 541 380 311 554 545 4 57 18
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
LCT2500 A/T ALLISON(Y5W) 		8-98203-582-0 01 1 1511- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1511- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-359-4 01 1 1511- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1511- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97410-960-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98216-752-0 01 1 1511- ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1511- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1511- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1511- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1511- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1511- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97612-015-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1511- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1511- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1511- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1511- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1511- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1511- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1511- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1511- ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97584-373-1 01 1 1511- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-188-0 01 1 1511- ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1511- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1511- ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1511- ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1511- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1511- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1511- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER 8-97610-064-2 01 1 1511- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ●

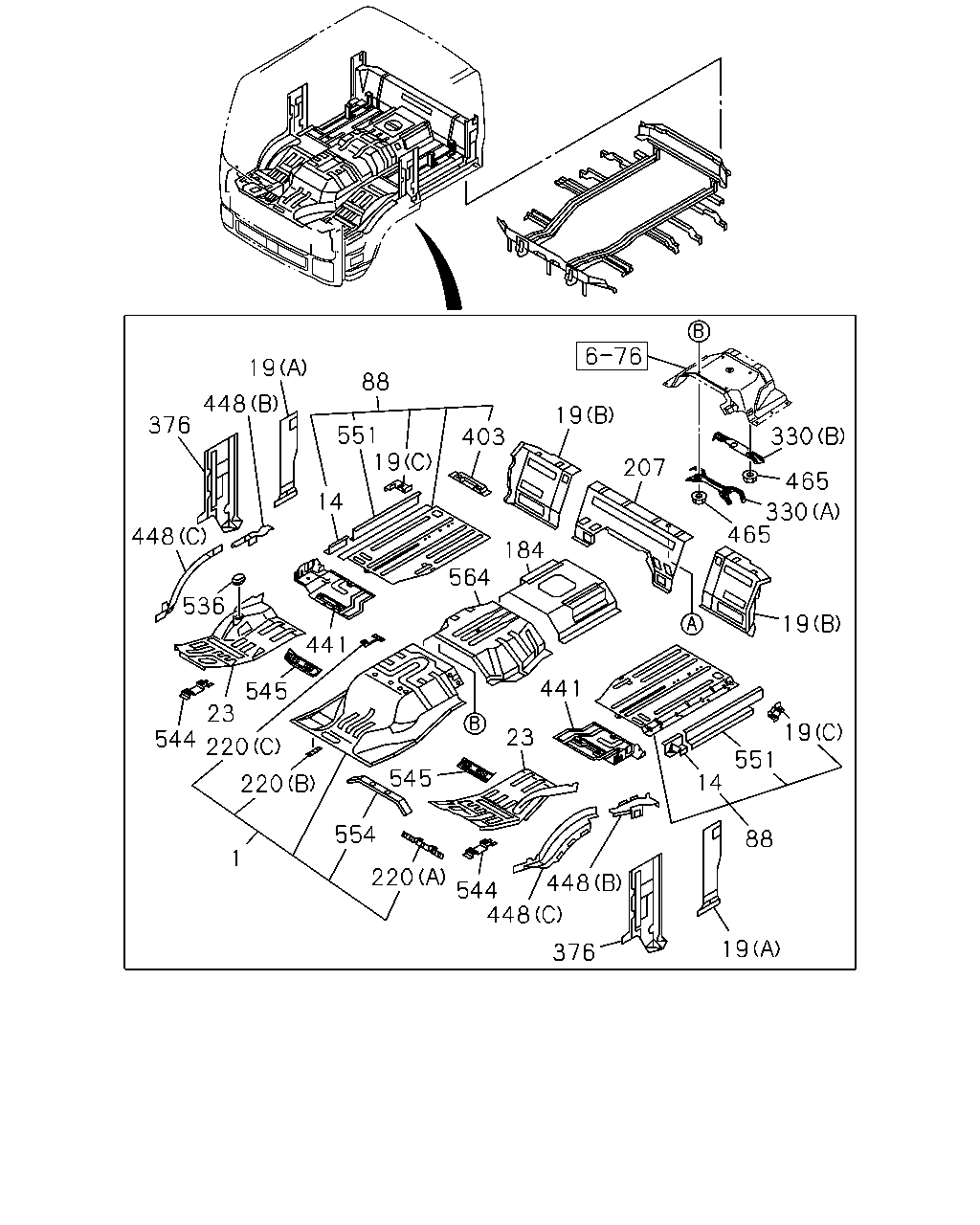

çizim 501866
330 330 465 465 207 19 403 19 551 88 19 448 376 448 536 23 220 220 544 545 554 220 544 448 376 19 88 14 19 19 551 441 23 564 184 14 441 1 545 448
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
LCT2500 A/T ALLISON(Y5W) 		8-98203-641-0 01 1 1511- ●
1 PANEL; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97410-865-7 01 1 1511- ●
1 PANEL; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-815-5 01 1 1511- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1511- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-477-3 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-478-3 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98216-752-0 01 1 1511- ●
88 BOARD ASM; FLOOR 8-97410-918-2 01 1 1511- ●
88 BOARD ASM; FLOOR 8-97410-922-3 01 1 1511- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1511- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1511- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1511- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97612-015-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1511- ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 1511- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-906-2 01 1 1511- ●
441 PANEL; EXTENSION,FLOOR SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97410-912-2 01 1 1511- ●
441 PANEL; EXTENSION,FLOOR SIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98306-400-0 01 1 1511- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1511- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1511- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1511- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1511- ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97584-373-1 01 1 1511- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-188-0 01 1 1511- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1511- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER 8-97610-064-2 01 1 1511- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
