6-66 — HEAD LINING AND TRIM (#169596) — 27 parça

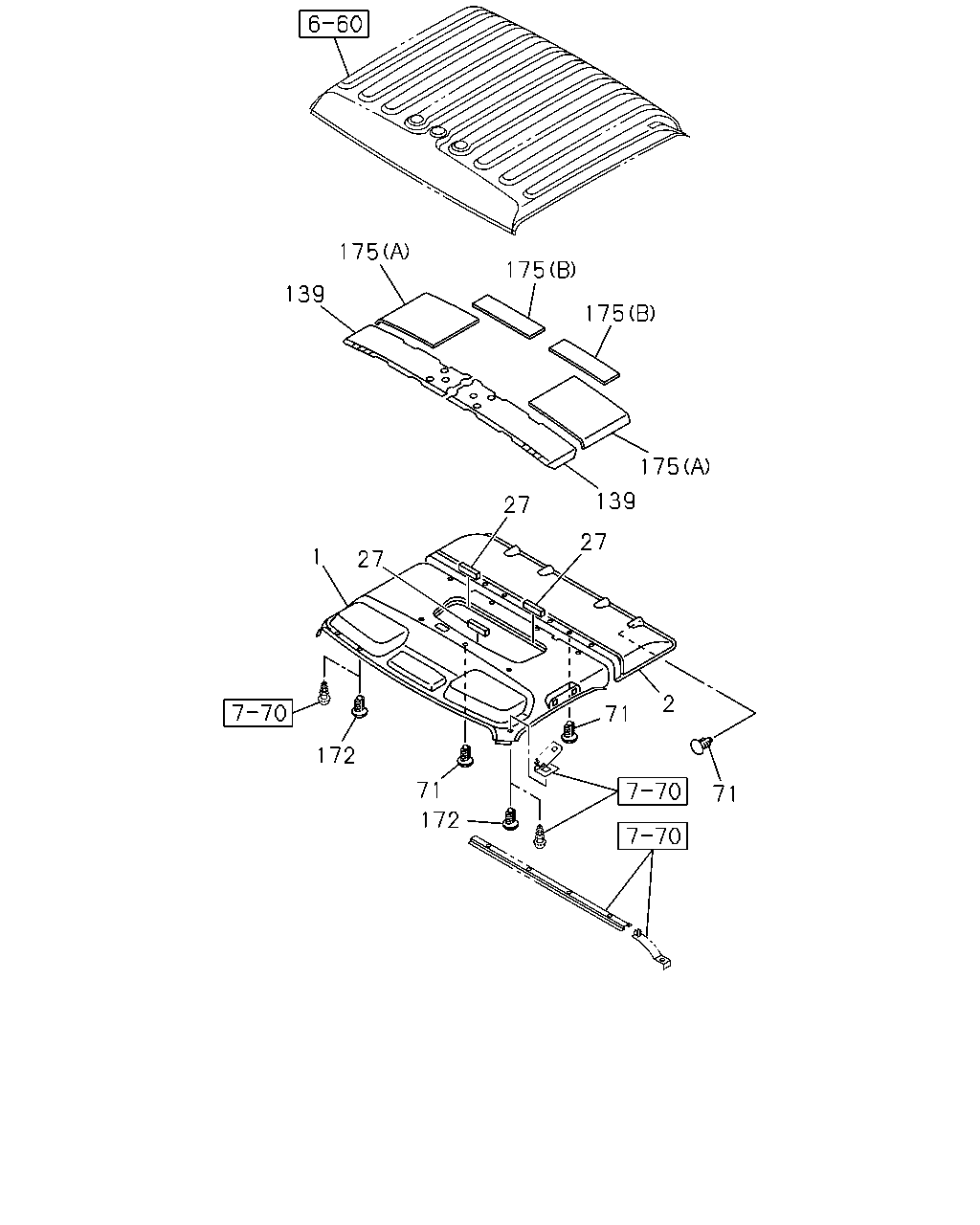

175 139 175 175 175 139 27 27 27 1 172 71 172 71 2 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-741-0	01	1	1511-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-739-0	01	1	1511-		●
2	LINING; HD,ROOF RR ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97427-627-0	01	1	1511-	●
2	LINING; HD,ROOF RR EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-455-5	01	1	1511-	●
2	LINING; HD,ROOF RR DARK GRAY	8-97411-669-1	01	1	1511-		●
27	INSULATION; ROOF INTERIOR FULL TRIM<WM3>	8-98046-638-2	03	1	1511-	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	07	1	1511-	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	03	1	1511-		●
139	SEAL; ROOF	8-98169-116-0	02	1	1511-	●	●
172	RETAINER; HEAD LINING EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97411-875-0	12	1	1511-	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	04	1	1511-		●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	1511-	●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	1511-	●	●

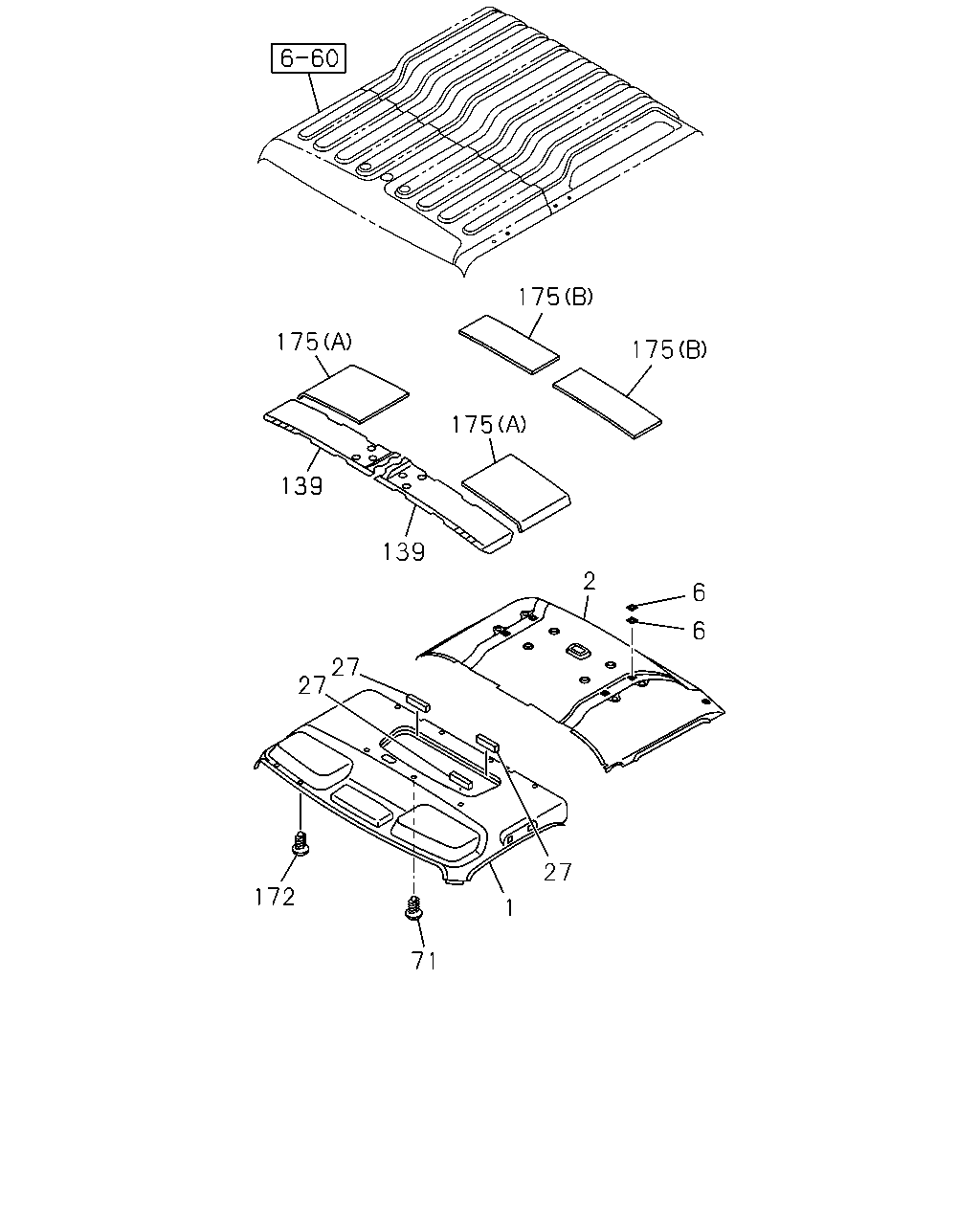

175 175 175 6 6 2 139 139 175 27 1 71 172 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-741-0	01	1	1511-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-739-0	01	1	1511-		●
2	LINING; HD,ROOF RR ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97427-627-0	01	1	1511-	●
2	LINING; HD,ROOF RR EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-455-5	01	1	1511-	●
2	LINING; HD,ROOF RR DARK GRAY	8-97411-669-1	01	1	1511-		●
6	SPACER; HD LINING 1 SET=20 PIECE	8-98100-429-0	04	1	1511-		●
27	INSULATION; ROOF INTERIOR FULL TRIM<WM3>	8-98046-638-2	03	1	1511-	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	07	1	1511-	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	03	1	1511-		●
139	SEAL; ROOF	8-98169-116-0	02	1	1511-	●	●
172	RETAINER; HEAD LINING EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97411-875-0	12	1	1511-	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	04	1	1511-		●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	1511-	●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	1511-	●	●
