◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#169584) — 160 parça

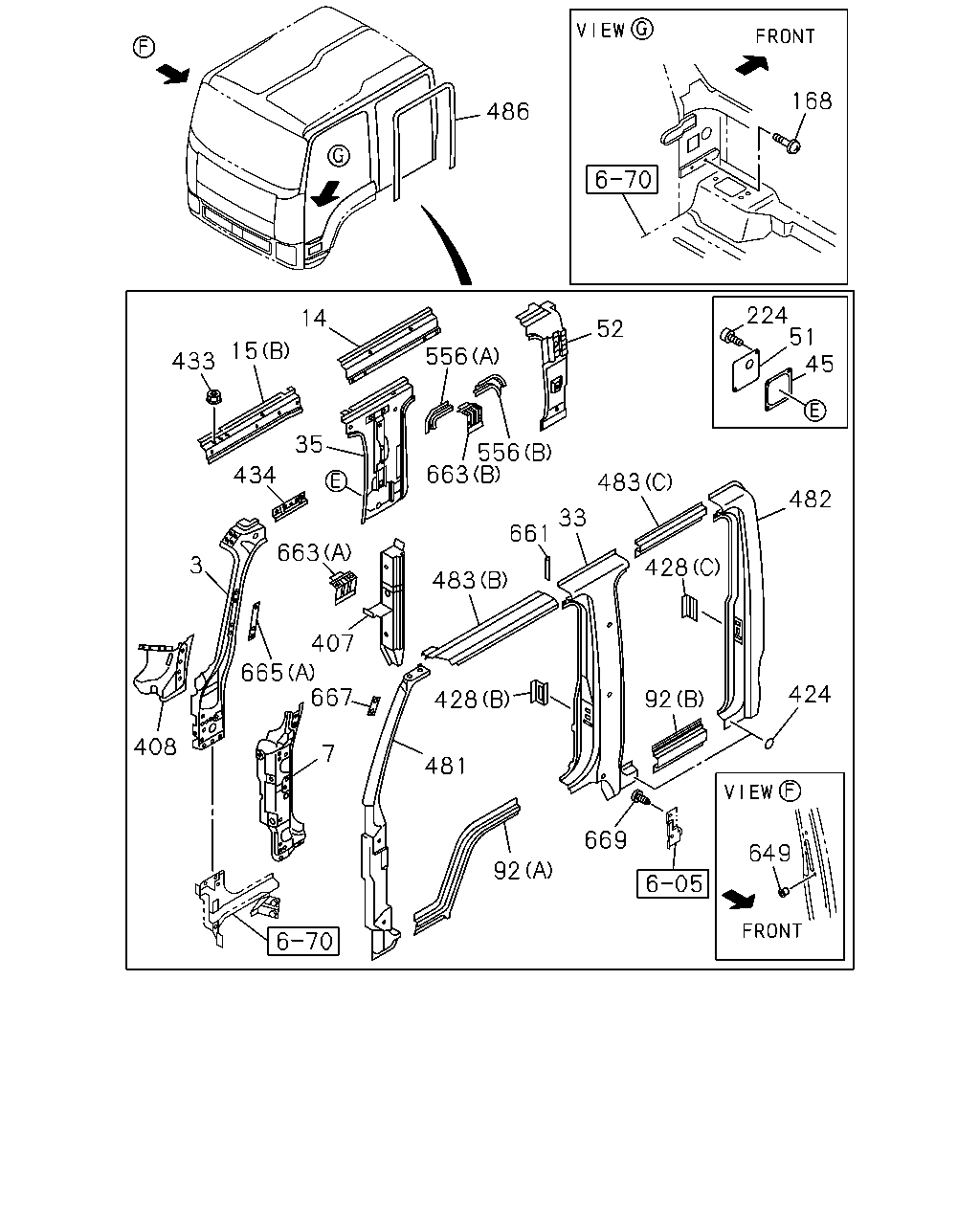

çizim 501872
486 168 224 51 45 482 483 33 661 663 556 556 14 15 433 434 35 663 3 665 667 407 7 408 481 92 669 92 424 428 428 52 483 649
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1511- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1511- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1511- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1511- ● ●
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 02 1 1511- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-293-2 01 1 1511- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 1511- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-740-1 01 1 1511- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-739-1 01 1 1511- ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-091-0 01 1 1511- ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-090-0 01 1 1511- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-456-2 01 1 1511- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-457-2 01 1 1511- ●
45 SEAL; B-C POST 8-97853-731-2 02 1 1511- ●
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1511- ●
52 PANEL; D-POST UPR 8-98306-388-0 01 1 1511- ●
52 PANEL; D-POST UPR 8-98306-387-0 01 1 1511- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1511- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1511- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1511- ●
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1511- ● ●
224 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1511- ●
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1511- ●
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1511- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1511- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1511- ● ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR RMS ORANGE(550) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1511- ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 1511- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1511- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1511- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1511- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1511- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1511- ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 1511- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 1511- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1511- ●
486 SEAL; BODY SIDE 8-98245-050-0 02 1 1511- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1511- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1511- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1511- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1511- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1511- ● ●
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1511- ●
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1511- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1511- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1511- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1511- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1511- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1511- ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1511- ● ●
669 STUD; FENDER
M6X12 		8-98013-112-0 02 1 1511- ●

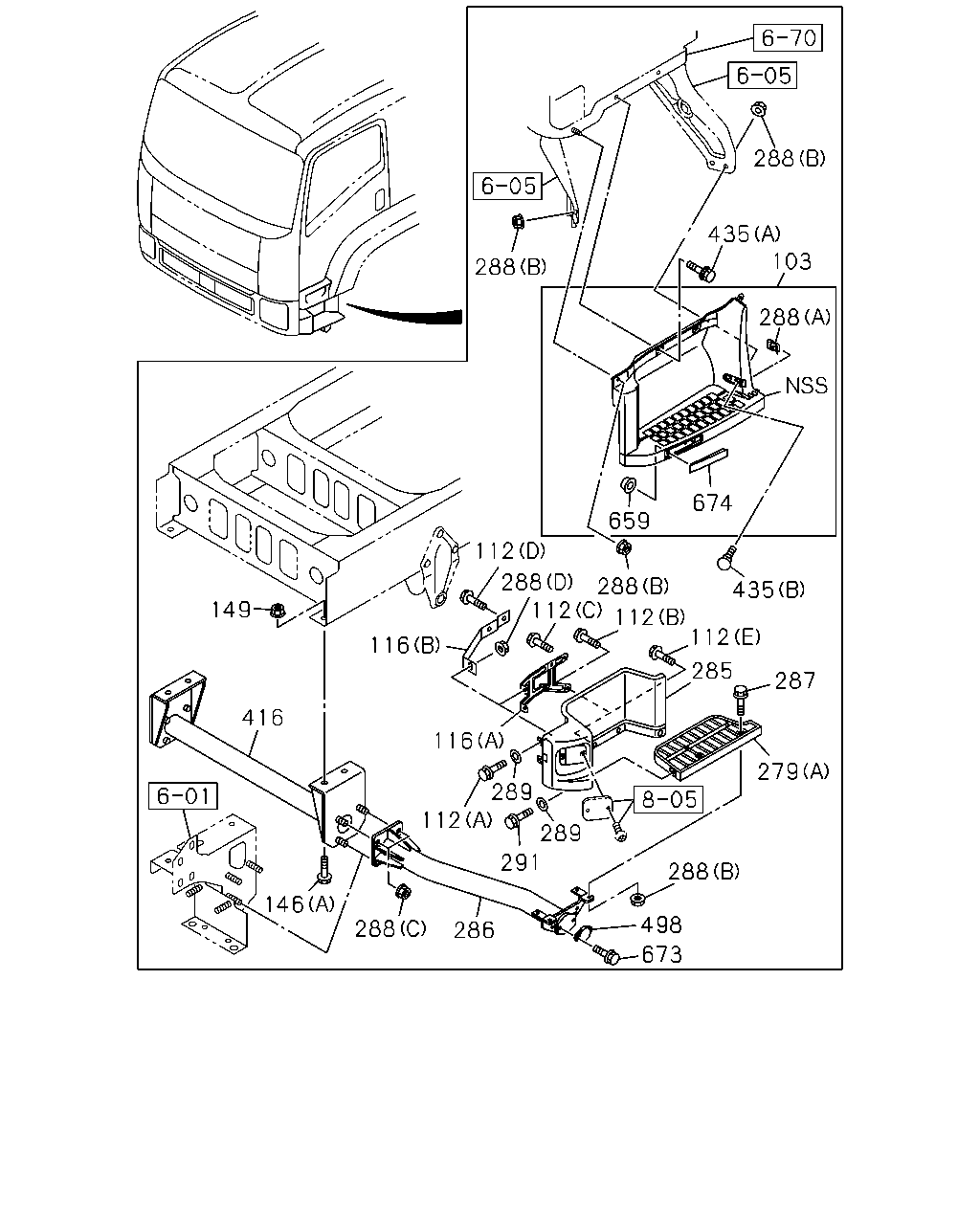

çizim 502752
288 435 288 674 659 288 103 435 112 287 279 285 112 112 288 288 112 116 116 289 289 288 498 286 288 146 673 112 291 416 149
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98069-977-2 01 1 1511- ● ●
103 PLATE; STEP 8-98069-976-2 01 1 1511- ● ●
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (A) M6X16 FLANGE 		0-28050-616-0 04 1 1511- ● ●
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (B) M6X25 FLANGE 		0-28050-625-0 02 1 1511- ● ●
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (C) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (A) M6X16 FLANGE 		0-28050-616-0 02 1 1511- ● ●
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (E) M6X20 FLANGE 		0-28050-620-0 02 1 1511- ● ●
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (D) M8X12 FLANGE 		0-28050-812-0 04 1 1511- ● ●
116 STAY; 1ST STEP,FRT
CORNERING LAMP<T87> (A) 		8-98062-133-1 01 1 1511- ● ●
116 STAY; 1ST STEP,FRT
CORNERING LAMP<T87> (A) 		8-98062-134-1 01 1 1511- ● ●
116 STAY; 1ST STEP,FRT
EXC. CORNERING LAMP<T87> (B) 		8-98196-756-0 02 1 1511- ● ●
146 BOLT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M14X45 FLANGE 		0-28851-445-0 04 1 1511- ● ●
146 BOLT; STEP BRKT
(B) M8X25 FLANGE 		0-28650-825-0 08 1 1511- ●
149 NUT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE 		0-91180-214-0 04 1 1511- ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-181-0 01 1 1511- ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-180-0 01 1 1511- ● ●
279 BOARD; STEP 1ST
(B) 		8-98058-394-3 01 1 1511- ●
279 BOARD; STEP 1ST
(B) 		8-98058-389-3 01 1 1511- ●
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1511- ● ●
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1511- ● ●
286 STEP ASM; 1ST 8-98082-430-2 01 1 1511- ● ●
286 STEP ASM; 1ST 8-98082-431-2 01 1 1511- ● ●
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1511- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1511- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1511- ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 1511- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1511- ● ●
288 NUT; STEP
EXC. CORNERING LAMP<T87> (D) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1511- ● ●
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1511- ● ●
416 BRACKET; ASSIST STEP
A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98079-376-3 01 1 1511- ● ●
416 BRACKET; ASSIST STEP
MANUAL TRANSMISSION<X9C> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98053-542-4 01 1 1511- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1511- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1511- ● ●
498 REFLECTOR 1-82290-011-1 02 1 1511- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1511- ● ●
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1511- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 1511- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 1511- ● ●

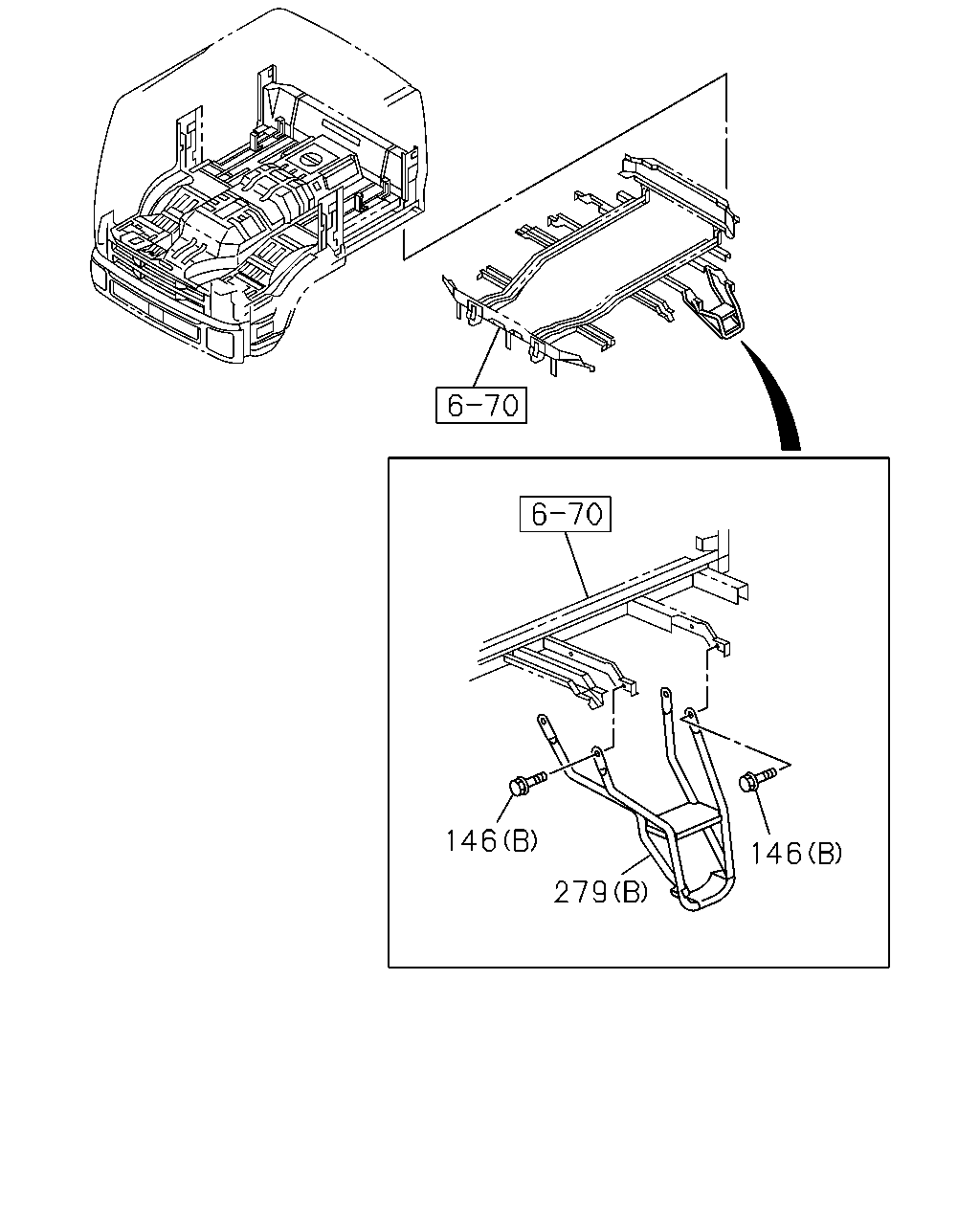

çizim 502802
146 279 146
BalonParca AdiParca NoAdetTipApplied Date A B
146 BOLT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M14X45 FLANGE 		0-28851-445-0 04 1 1511- ● ●
146 BOLT; STEP BRKT
(B) M8X25 FLANGE 		0-28650-825-0 08 1 1511- ●
279 BOARD; STEP 1ST
(A) 		1-53414-181-0 01 1 1511- ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-180-0 01 1 1511- ● ●
279 BOARD; STEP 1ST
(B) 		8-98058-394-3 01 1 1511- ●
279 BOARD; STEP 1ST
(B) 		8-98058-389-3 01 1 1511- ●

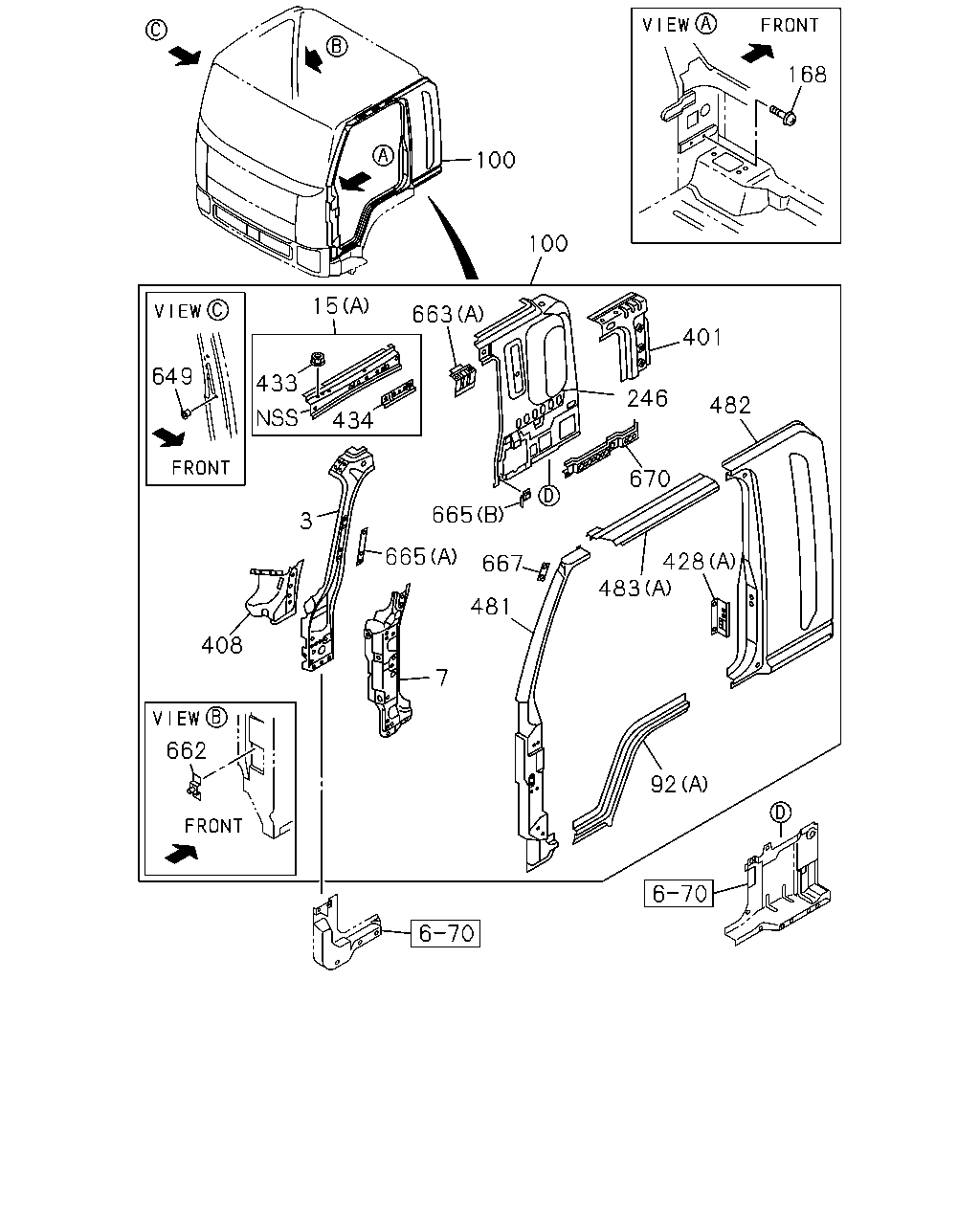

çizim 502891
100 100 168 401 246 482 670 663 15 433 434 649 3 665 665 667 481 483 428 92 7 662 408
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1511- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1511- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1511- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1511- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-293-2 01 1 1511- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 1511- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-740-1 01 1 1511- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-739-1 01 1 1511- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1511- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1511- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1511- ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 1511- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-97586-079-7 01 1 1511- ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-071-6 01 1 1511- ●
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1511- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1511- ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1511- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1511- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1511- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1511- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1511- ● ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 1511- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1511- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1511- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1511- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1511- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1511- ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 1511- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 1511- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1511- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1511- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1511- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1511- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1511- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1511- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1511- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1511- ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1511- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1511- ●
