◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#169582) — 339 parça

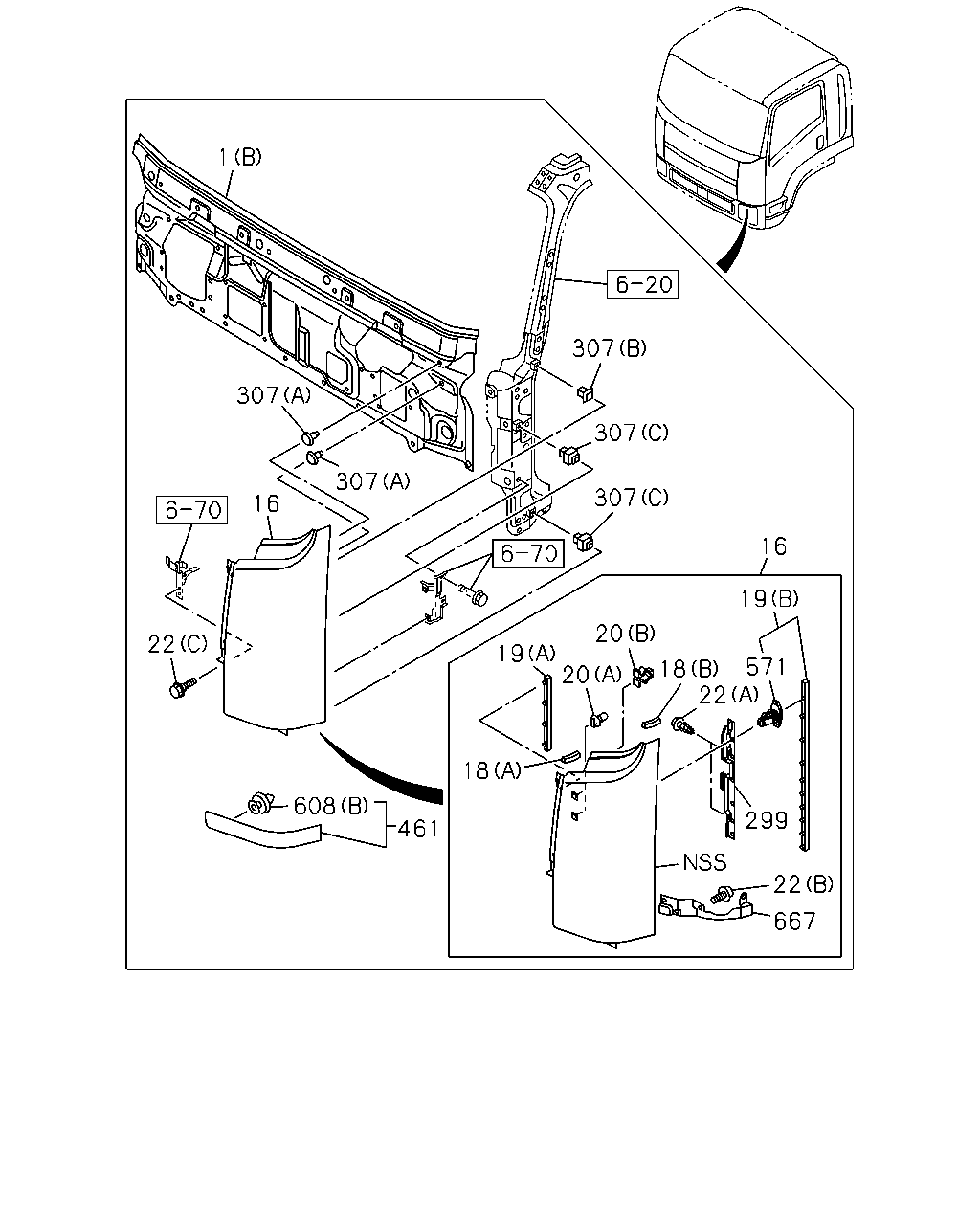

çizim 502702
1 307 307 307 307 307 16 22 608 461 18 19 20 20 18 19 16 571 22 299 22 667
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1511- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-966-4 01 1 1511- ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-965-4 01 1 1511- ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-800-4 01 1 1511- ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-799-4 01 1 1511- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-664-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-769-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-902-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97408-246-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-739-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-734-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97417-667-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-772-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-742-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-737-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-835-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-834-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-666-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-771-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-741-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-736-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-673-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-778-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-671-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-776-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-670-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-775-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-672-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-663-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-665-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-770-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-984-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-983-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-740-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-735-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-743-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-738-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-669-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-774-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-668-4 01 1 1511- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-773-4 01 1 1511- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1511- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1511- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1511- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1511- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1511- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1511- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 1511- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1511- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1511- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1511- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1511- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1511- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1511- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1511- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1511- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1511- ● ●
461 PANEL; FRT SIDE 8-98058-164-2 01 1 1511- ● ●
461 PANEL; FRT SIDE 8-98058-163-2 01 1 1511- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1511- ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1511- ●
608 CLIP
(B) 		8-98282-490-0 02 1 1511- ● ●
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 1511- ● ●
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 1511- ● ●

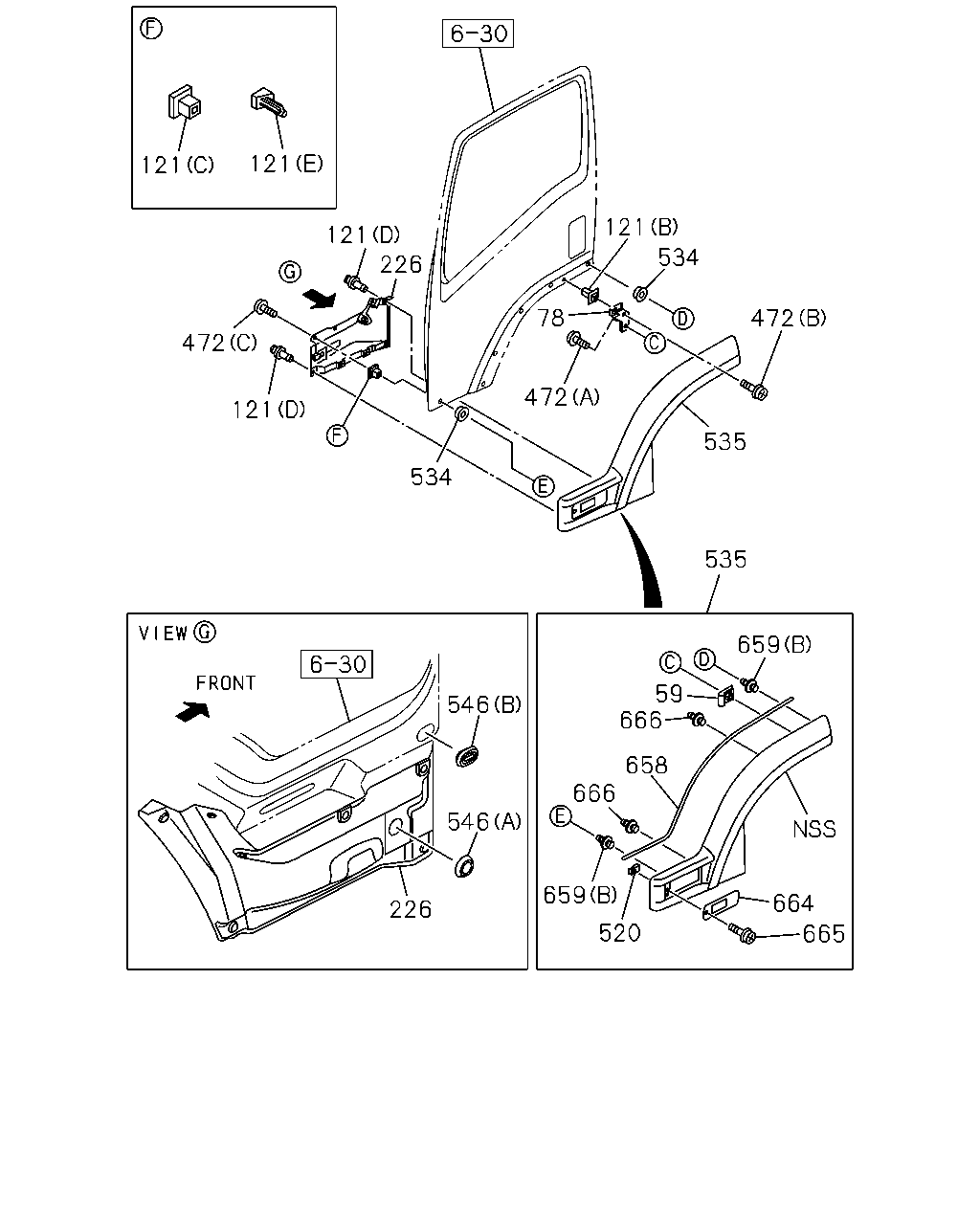

çizim 502703
121 121 121 226 472 121 534 472 78 121 534 472 535 535 659 59 666 658 666 659 520 665 664 226 546 546
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 1511- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1511- ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1511- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1511- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1511- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1511- ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1511- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1511- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1511- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1511- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1511- ● ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 1511- ● ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 1511- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1511- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1511- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1511- ● ●
520 NUT; FENDER 8-94279-501-0 02 1 1511- ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-970-1 01 1 1511- ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-969-1 01 1 1511- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-795-1 01 1 1511- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-805-1 01 1 1511- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-379-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-359-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-384-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-364-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-381-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-361-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-374-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-354-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-382-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-362-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97415-383-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97415-363-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-380-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-360-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-387-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-367-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-376-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-356-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-389-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-369-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-392-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-372-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-745-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-744-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-373-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-353-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-986-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-985-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-391-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-371-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-375-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-355-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-390-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-370-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-377-1 01 1 1511- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-357-1 01 1 1511- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1511- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1511- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1511- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1511- ● ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 1511- ● ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97428-027-0 01 1 1511- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97428-024-0 01 1 1511- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-846-0 01 1 1511- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-845-0 01 1 1511- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-549-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-521-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-497-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-485-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-499-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-487-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-539-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-511-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-503-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-491-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) BEIGE 		8-97421-553-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) BEIGE 		8-97421-525-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-551-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-523-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-505-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-493-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-543-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-515-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-559-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-531-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-563-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-535-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-607-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-605-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-537-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-509-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) ORANGE 		8-97428-026-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) ORANGE 		8-97428-023-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-501-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-489-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-507-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-495-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-596-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-533-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-547-0 01 1 1511- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-519-0 01 1 1511- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1511- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1511- ● ●

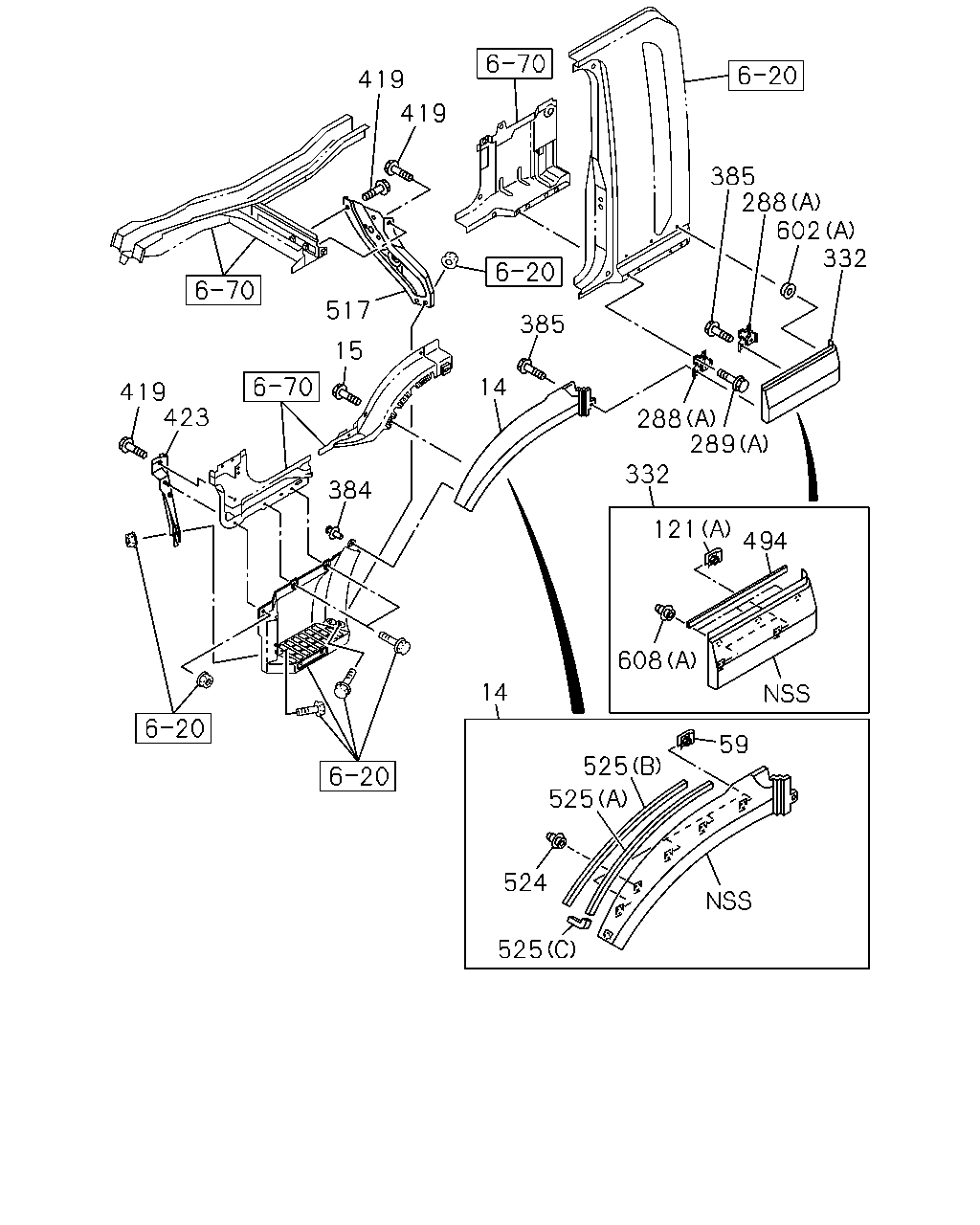

çizim 502822
419 419 385 288 602 332 288 289 332 121 494 608 525 59 525 524 525 14 14 385 15 517 423 419 384
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1511- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1511- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1511- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1511- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1511- ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1511- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1511- ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1511- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1511- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1511- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1511- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1511- ● ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1511- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 1511- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 1511- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1511- ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 1511- ●
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-606-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-596-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-507-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-506-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-310-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-304-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-609-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-599-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-313-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-307-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-819-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-818-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-608-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-598-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-314-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-308-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-615-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-605-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-968-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-967-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-613-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-603-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-612-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-602-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-675-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-674-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-607-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-597-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-958-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-957-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-311-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-305-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-769-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-768-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-315-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-309-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-611-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-601-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-610-2 01 1 1511- ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-600-2 01 1 1511- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1511- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1511- ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1511- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1511- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1511- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1511- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1511- ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1511- ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1511- ● ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1511- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1511- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1511- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1511- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1511- ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1511- ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 1511- ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1511- ●
608 CLIP
(B) 		8-98282-490-0 02 1 1511- ● ●

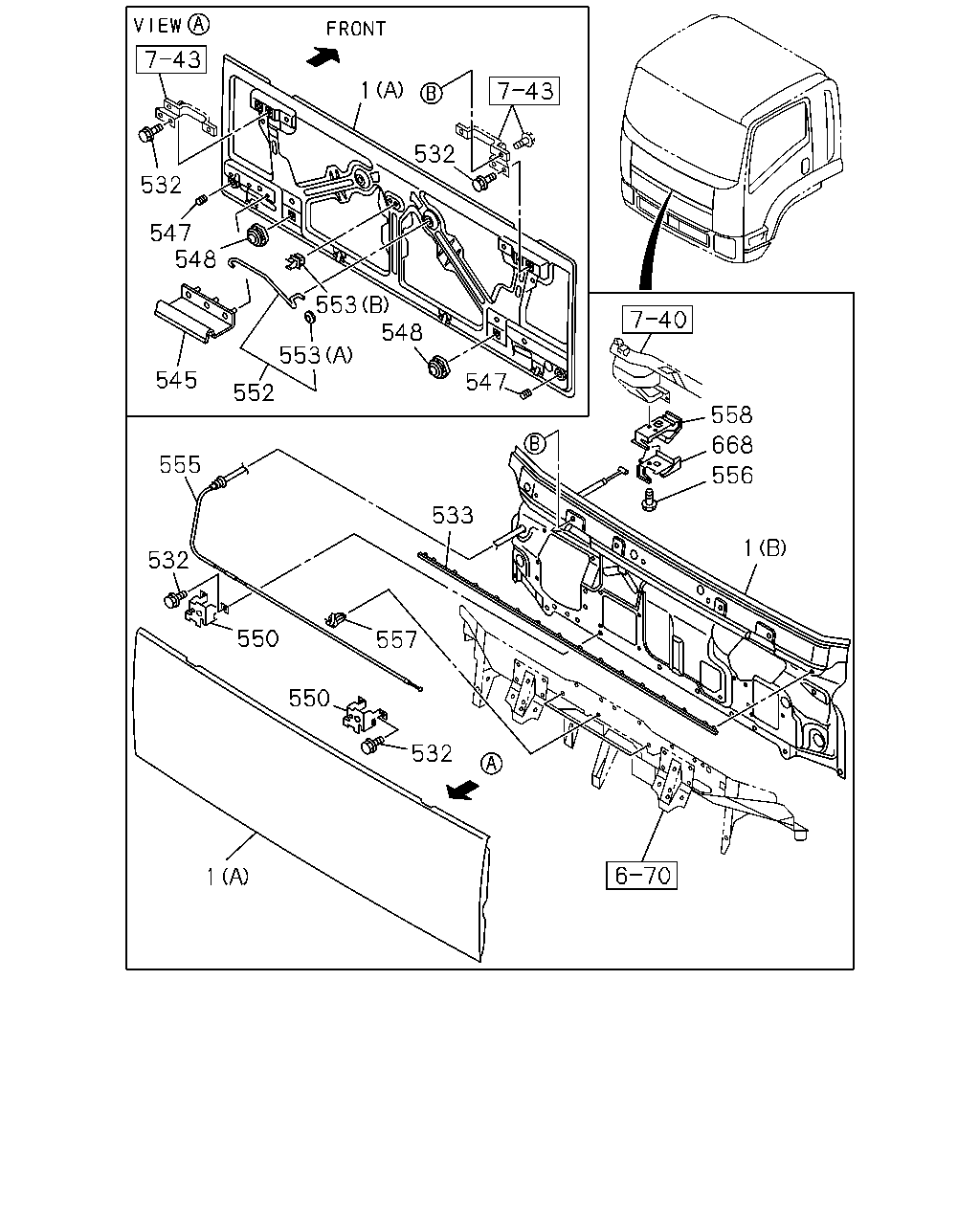

çizim 502839
1 532 550 557 550 532 555 533 556 668 558 547 548 553 553 552 545 548 547 532 1 532 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1511- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1511- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1511- ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1511- ● ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1511- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1511- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1511- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1511- ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 1511- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1511- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1511- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1511- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1511- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1511- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1511- ● ●

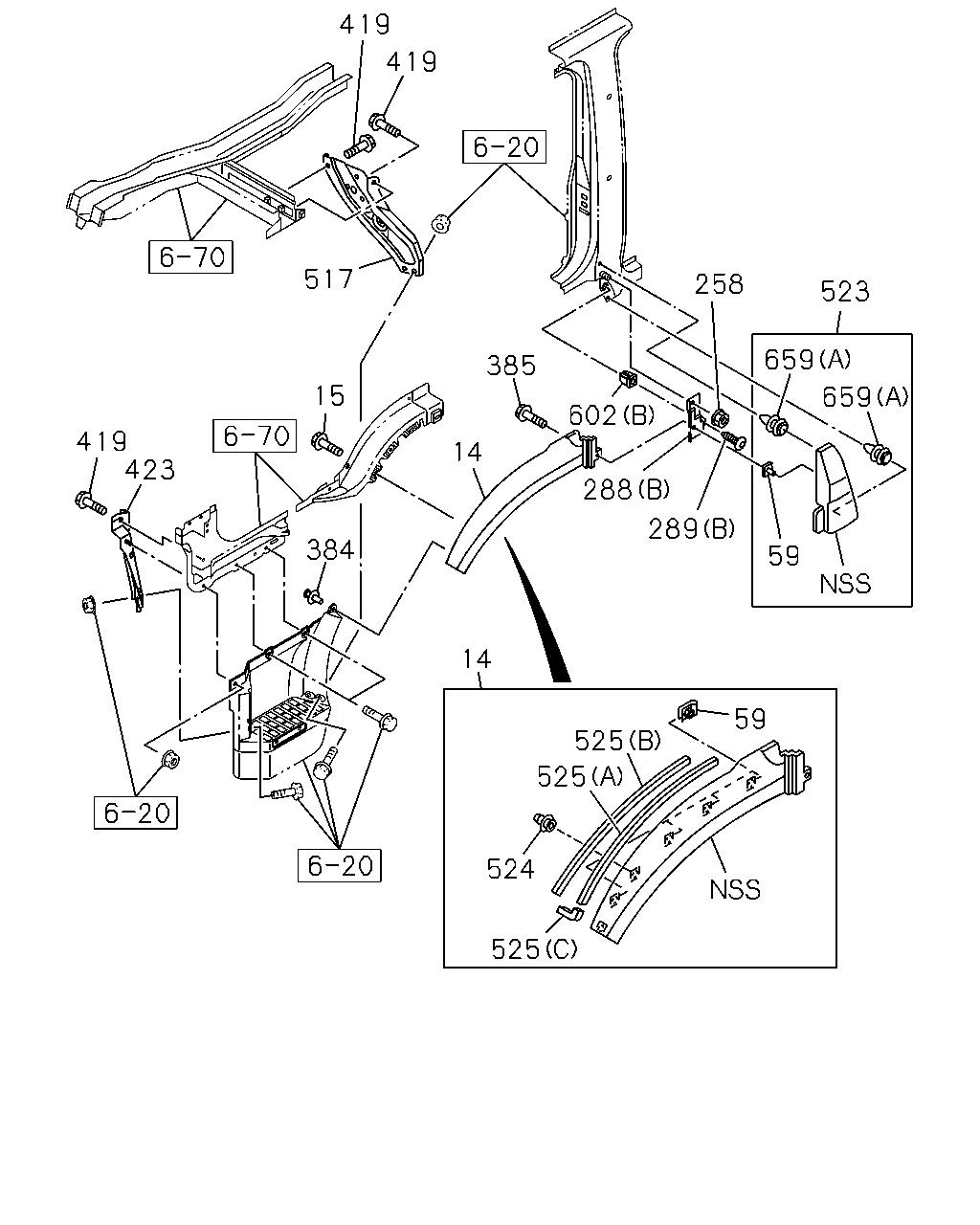

çizim 502913
419 419 517 15 384 423 419 14 14 385 288 602 289 59 659 258 523 659 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1511- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1511- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1511- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1511- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1511- ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1511- ● ●
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1511- ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1511- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 1511- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 1511- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1511- ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 1511- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1511- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1511- ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1511- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1511- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1511- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1511- ● ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1511- ● ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1511- ● ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-447-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-679-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-124-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-117-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-121-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-114-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-450-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-682-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-122-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-115-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-123-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-116-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-449-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-681-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-125-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-118-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-456-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-688-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-454-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-686-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-453-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-685-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-739-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-738-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-448-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-680-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-988-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-987-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-126-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-119-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-120-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-113-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-452-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-684-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-451-1 01 1 1511- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-683-1 01 1 1511- ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1511- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1511- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1511- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1511- ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1511- ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 1511- ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 1511- ● ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 1511- ● ●

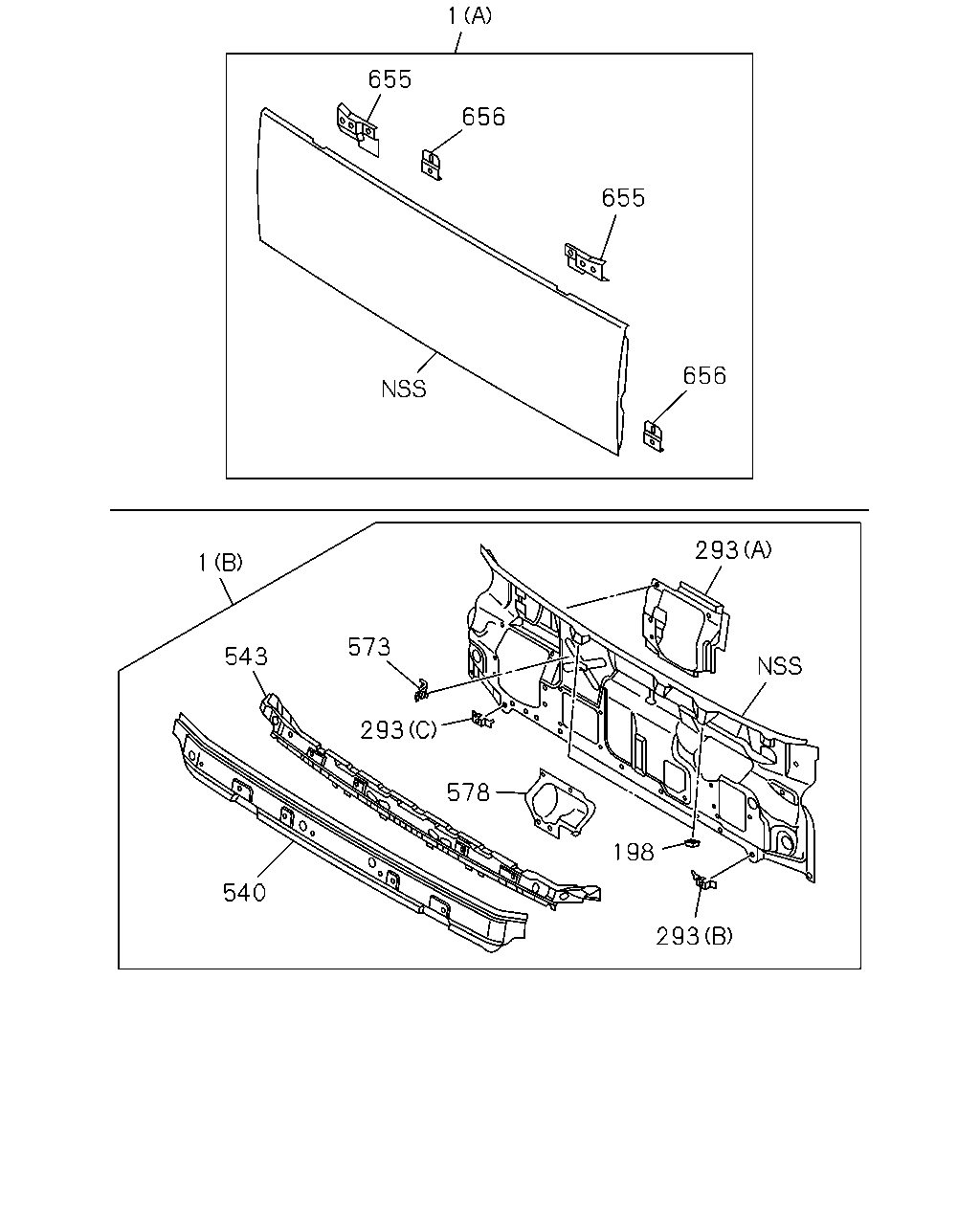

çizim 502988
1 655 655 656 656 293 573 1 543 293 540 578 198 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1511- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1511- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1511- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1511- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1511- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1511- ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1511- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1511- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1511- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1511- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1511- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1511- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
