Sayfa 6-04 - Isuzu EPC

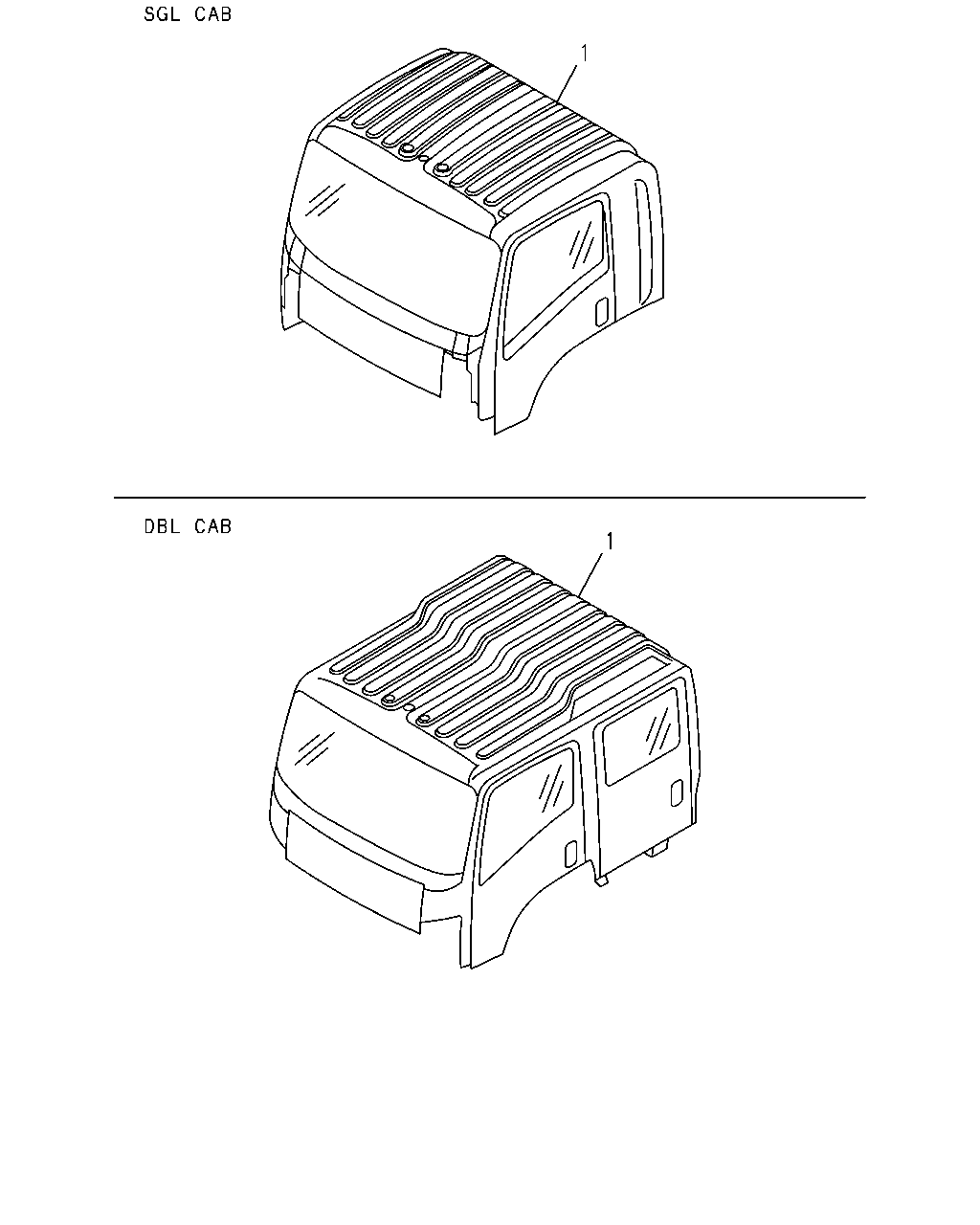

6-04 — CAB ASM (#169581) — 5 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUSTRALIA EQUIPMENT(B13) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ANTI LOCK BRAKE<JE5> LAMPS TWO ROOF MARKER<TEC> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX>	1-61861-329-0	01	1	1511-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) AUSTRALIA EQUIPMENT(B13) LCT2500 A/T ALLISON(Y5W) A/T<X9D> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ANTI LOCK BRAKE<JE5> LAMPS TWO ROOF MARKER<TEC> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX>	1-61861-330-0	01	1	1511-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ANTI LOCK BRAKE<JE5> LAMPS TWO ROOF MARKER<TEC> EXC. ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX>	1-61861-331-0	01	1	1511-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUSTRALIA EQUIPMENT(B13) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ANTI LOCK BRAKE<JE5> LAMPS TWO ROOF MARKER<TEC> EXC. COUNTRY NEW ZEALAND(CX6),MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX>	1-61861-332-0	01	1	1511-		●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) AUSTRALIA EQUIPMENT(B13) LCT2500 A/T ALLISON(Y5W) A/T<X9D> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ANTI LOCK BRAKE<JE5> LAMPS TWO ROOF MARKER<TEC> EXC. COUNTRY NEW ZEALAND(CX6),MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX>	1-61861-333-0	01	1	1511-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
