Isuzu WW
▶
TRUCKS
▶
FVR
▶
11409 - FVR(RHD)EURO1
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#16958) — 18 parça
◀

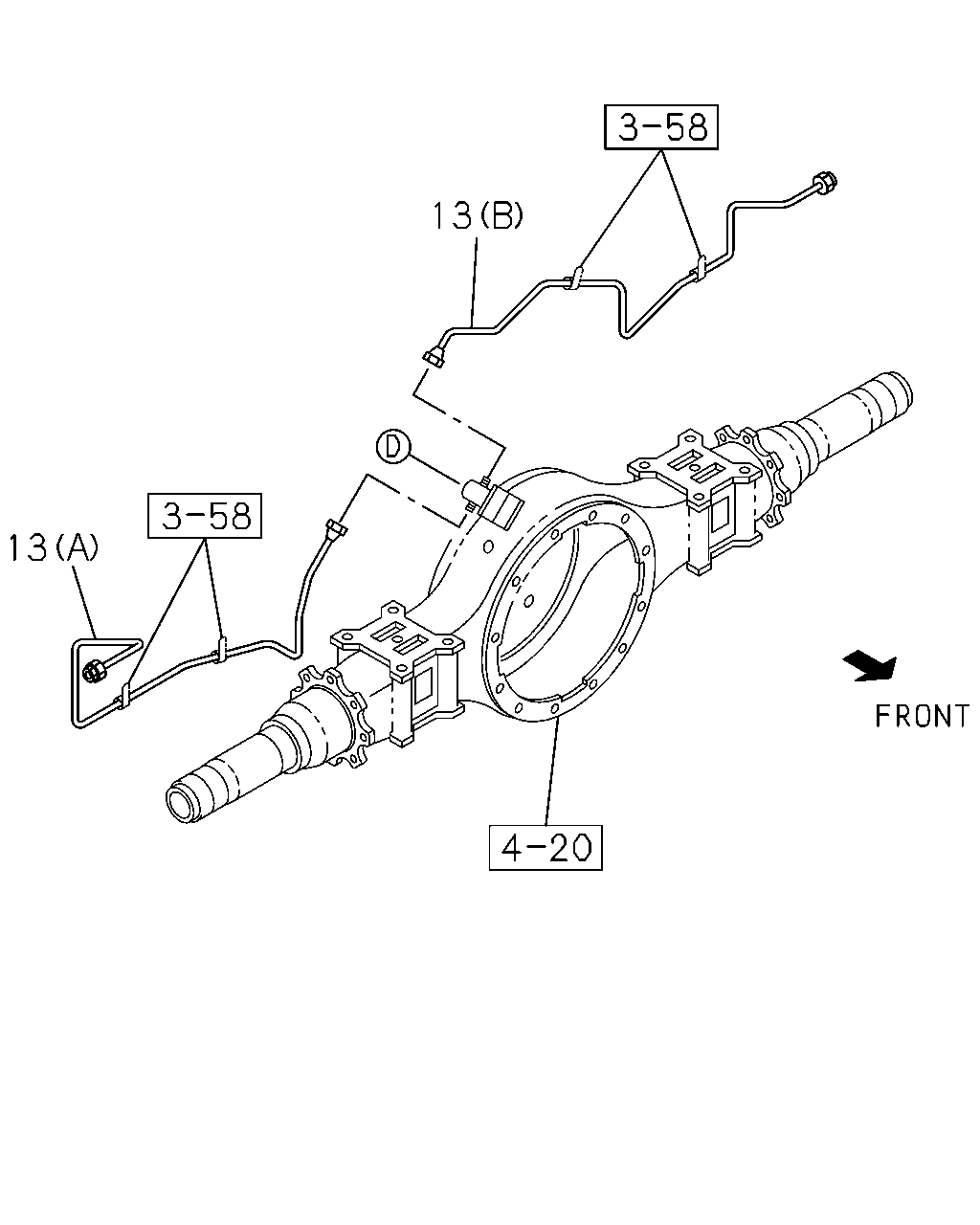

[355A] NO.2 (2 parça)

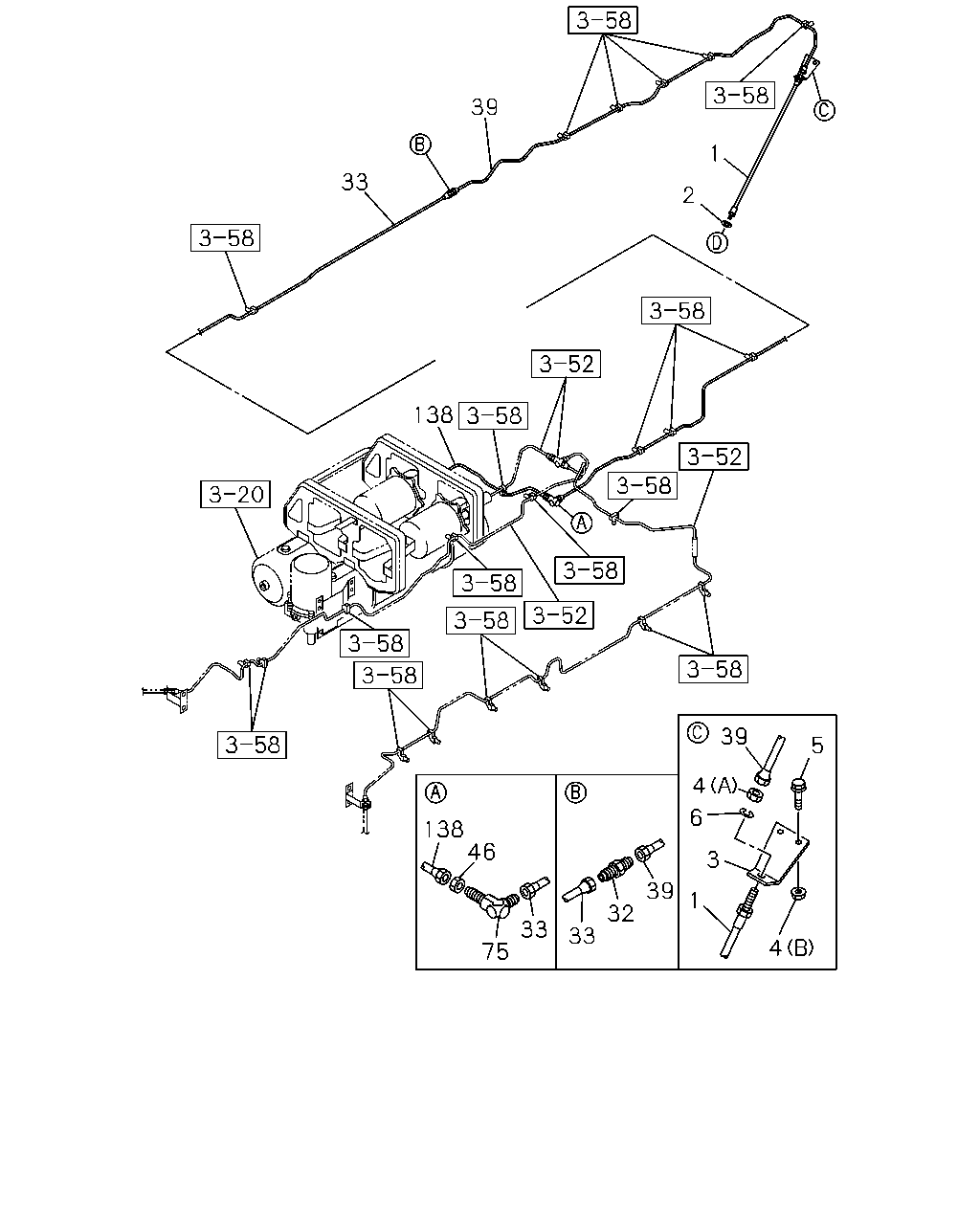

[355A] NO.1 (16 parça)
▶
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; BRK,RR AXLE
(A) L=935
8-98003-970-0
01
1
1110-
13
PIPE; BRK,RR AXLE
(B) L=1212
8-98003-971-0
01
1
1110-
1
33
2
138
39
5
4
6
138
46
3
39
1
32
33
33
4
75
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
1110-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
1110-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
1110-
4
NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE
0-91180-108-0
02
1
1110-
4
NUT; BRKT,FLEX HOSE,RR BRK
(A) M12
9-09840-280-0
01
1
1110-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28650-825-0
02
1
1110-
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-812-0
01
1
1110-
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
1110-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3900MM(39W) L=1007 SERVICED BY L=1100
1-47428-731-0
01
1
1110-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) L=1352 SERVICED BY L=1370
1-47428-734-0
01
1
1110-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) L=1752 SERVICED BY L=1820
1-47428-738-0
01
1
1110-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) L=2152 SERVICED BY L=2200
1-47428-740-0
01
1
1110-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2110 SERVICED BY L=2200
1-47428-740-0
01
1
1110-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
1110-
75
UNION; OIL PIPE
M12 ELBOW
0-92125-206-0
01
1
1110-
138
PIPE; HYDRAULIC UNIT
L=561 SERVICED BY L=600
1-47428-725-0
01
1
1110-
