Isuzu WW
▶
TRUCKS
▶
FTR
▶
11716 - FTR AUST/NZ EURO5
▶
5 - Frame, Cab Mounting
▶

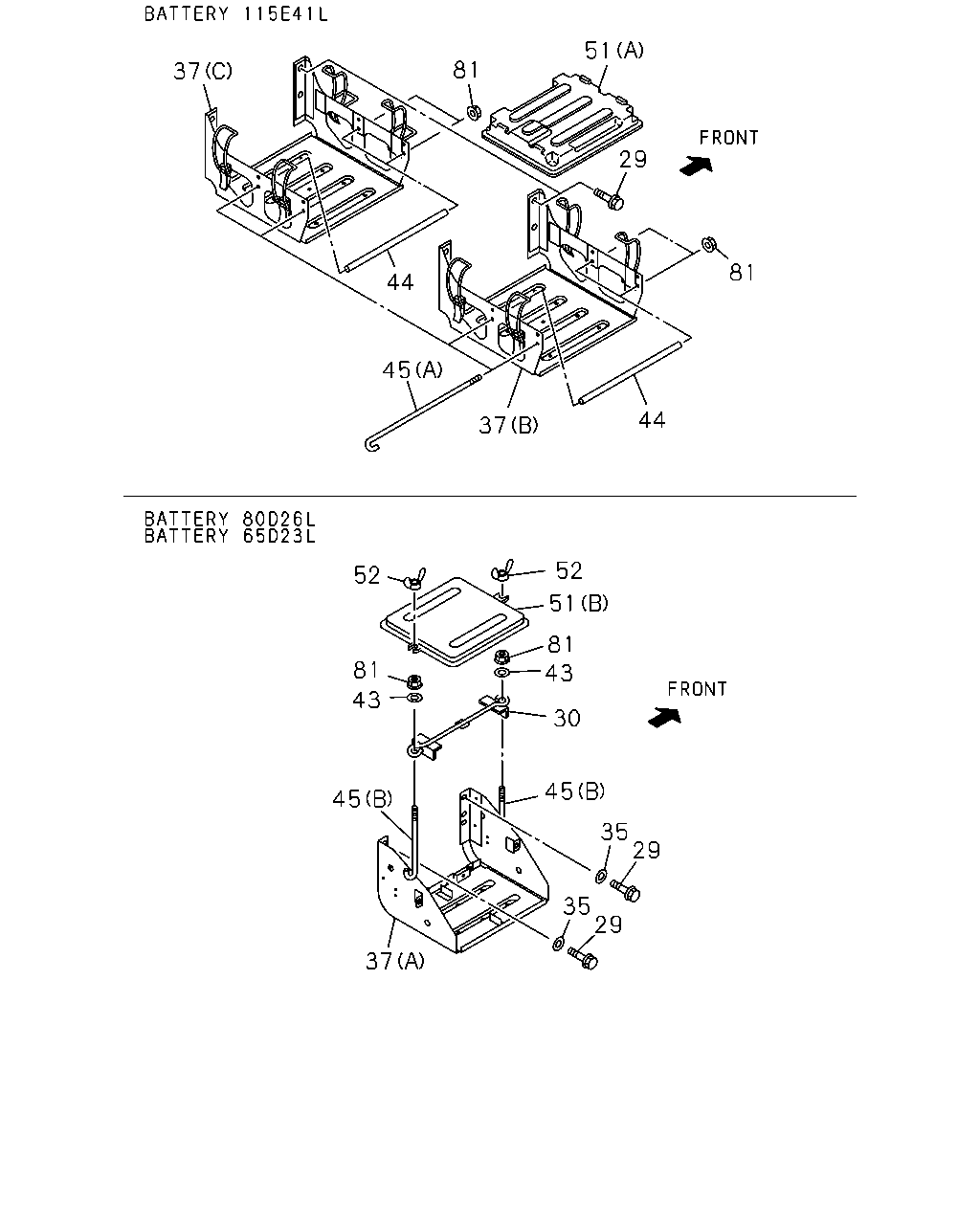

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#169577) — 15 parça
Tümü
A - FGR5MV
B - FGR5WV
51
81
37
44
45
37
44
81
29
52
51
81
43
30
45
35
29
29
35
37
45
43
81
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1511-
●
●
30
PLATE; BATTERY
EXC. BATTERY 115E41L<8MA>
5-53615-004-1
01
1
1511-
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1511-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (C)
8-98261-641-1
01
1
1511-
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1511-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1511-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1511-
●
43
WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22
0-91614-708-0
02
1
1511-
●
●
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1511-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1511-
●
●
45
ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA> (B) L=120
9-53616-615-0
02
1
1511-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1511-
●
●
51
COVER; BATTERY
EXC. BATTERY 115E41L<8MA> (B)
8-97120-747-0
01
1
1511-
●
●
52
NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA> M8 WING NUT
0-91118-408-0
02
1
1511-
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
