5-15 — CAB MOUNTING; CAB SIDE (#169574) — 166 parça

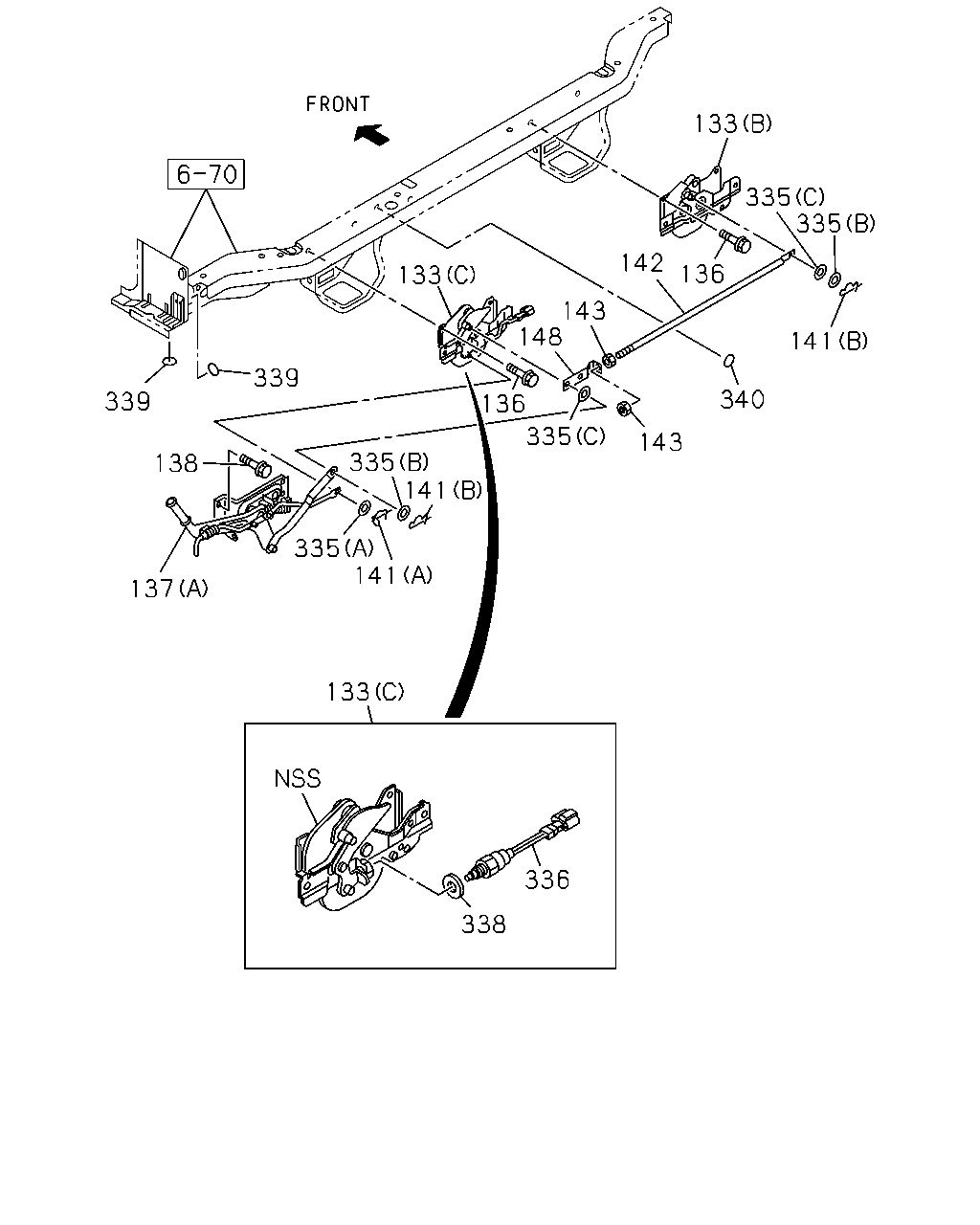

133 335 141 340 143 335 136 143 148 142 136 335 133 339 339 138 137 335 141 133 335 336 338 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	1511-	●	●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	1511-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1511-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1511-	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97587-592-5	01	1	1511-	●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-301-4	01	1	1511-		●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1511-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1511-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1511-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1511-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1511-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1511-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1511-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1511-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1511-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1511-	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1511-	●	●
339	SEAL; TILT HANDLE OD=25 BLACK	1-76798-019-0	04	1	1511-	●
340	SEAL; HOLE OD=25 BLACK	1-76798-019-0	02	1	1511-	●

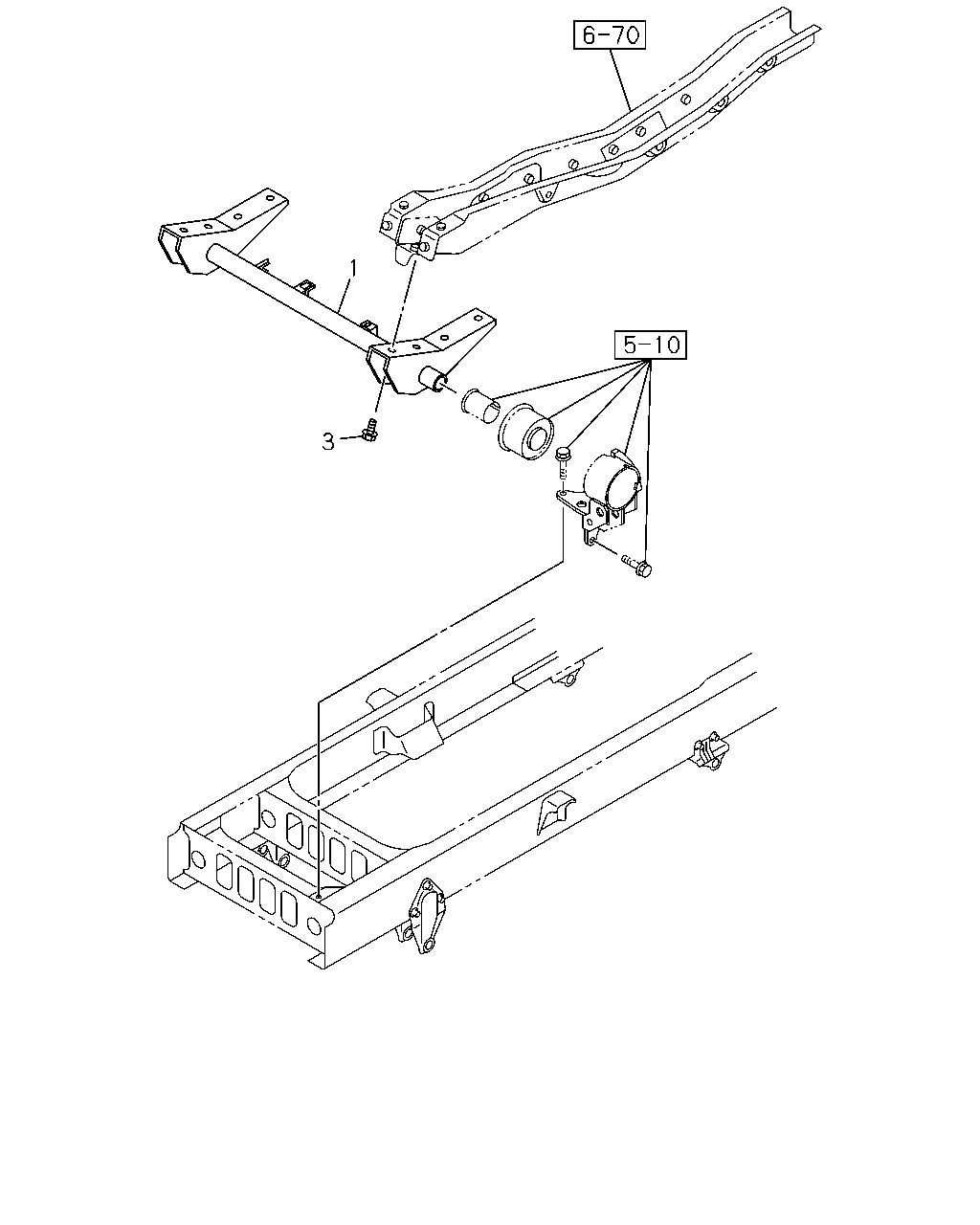

3 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	LEVER; TORSION BAR	8-98010-764-1	01	1	1511-		●
	3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1511-		●

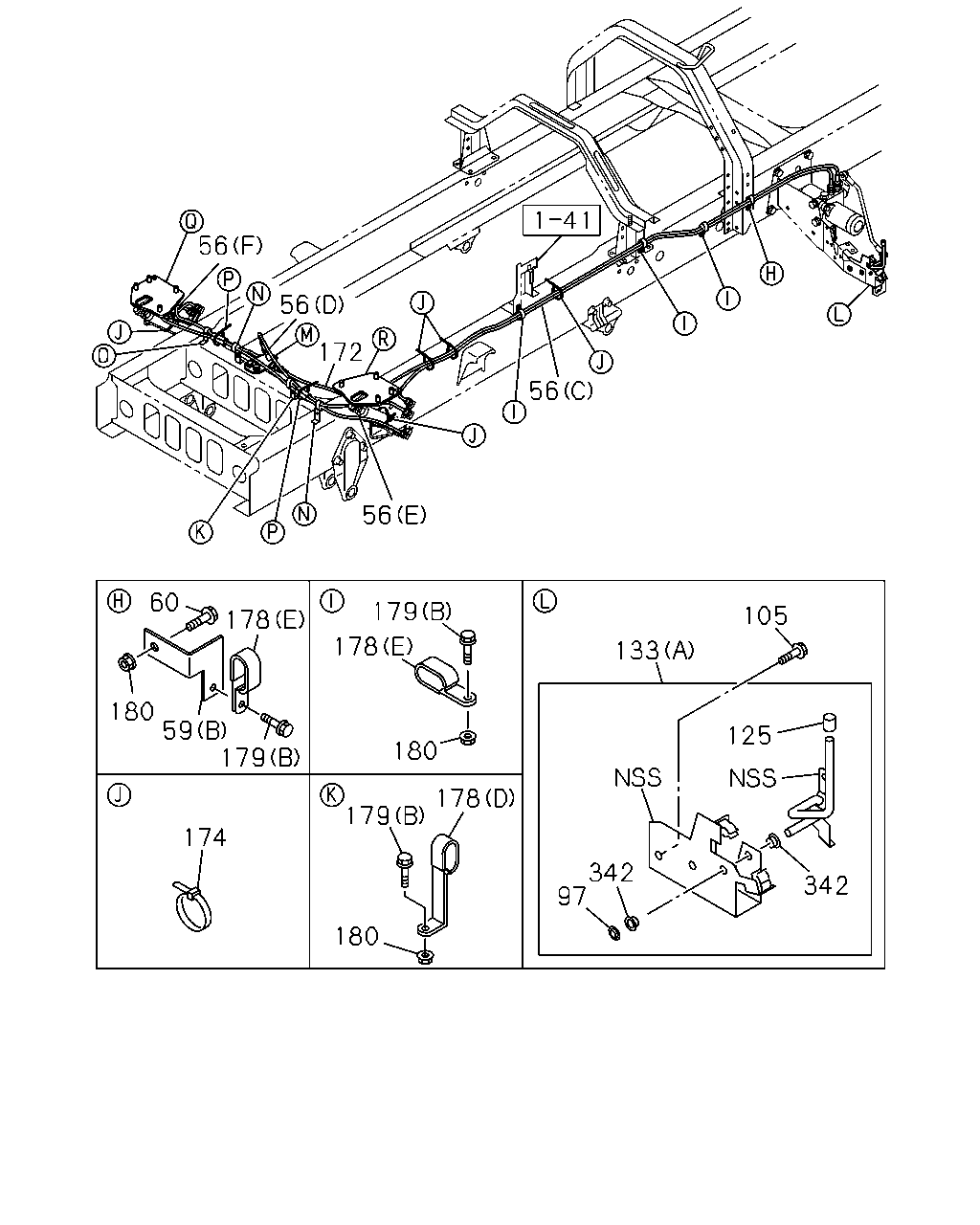

105 133 179 178 60 180 59 178 180 179 180 178 125 342 97 342 179 174 56 56 56 56 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	HOSE; FLEX,OIL PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=2420	8-98328-149-0	01	1	1511-	●
56	HOSE; FLEX,OIL PIPE (B) L=2430	8-98328-150-0	01	1	1511-	●
56	HOSE; FLEX,OIL PIPE (E) L=1500	8-98044-009-2	01	1	1511-		●
56	HOSE; FLEX,OIL PIPE (D) L=935	8-98044-010-2	01	1	1511-		●
56	HOSE; FLEX,OIL PIPE (C) L=2810	8-98044-008-2	01	1	1511-		●
56	HOSE; FLEX,OIL PIPE (F) L=670	8-98044-011-2	01	1	1511-		●
59	BRACKET; CLIP (A)	8-98083-608-1	01	1	1511-	●
59	BRACKET; CLIP (B)	8-98083-609-0	01	1	1511-		●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	1511-	●	●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	1511-	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	1511-	●	●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	1511-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1511-	●	●
172	HOSE; FLEX,OIL TILT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=3010	8-98044-012-2	01	1	1511-		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	1511-	●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	05	1	1511-		●
174	CLIP; BAND,FLEX HOSE HEATER & DEFROSTER(C41) L=140	5-09707-031-1	03	1	1511-		●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	1511-		●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	06	1	1511-	●
178	CLIP; FLEX HOSE (F) ID=19 L=58	1-09700-733-1	01	1	1511-	●
178	CLIP; FLEX HOSE (E) ID=9X2 L=20	0-95324-835-0	04	1	1511-		●
178	CLIP; FLEX HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1511-		●
178	CLIP; FLEX HOSE (D) ID=14X2 H=85 L=30	1-09701-062-0	01	1	1511-		●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	02	1	1511-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28650-820-0	04	1	1511-	●
179	BOLT; CLIP,FLEX HOSE (A) M8X30 FLANGE	0-28650-830-0	03	1	1511-	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	07	1	1511-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X25 FLANGE	0-28050-825-0	01	1	1511-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1511-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1511-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	1511-	●	●

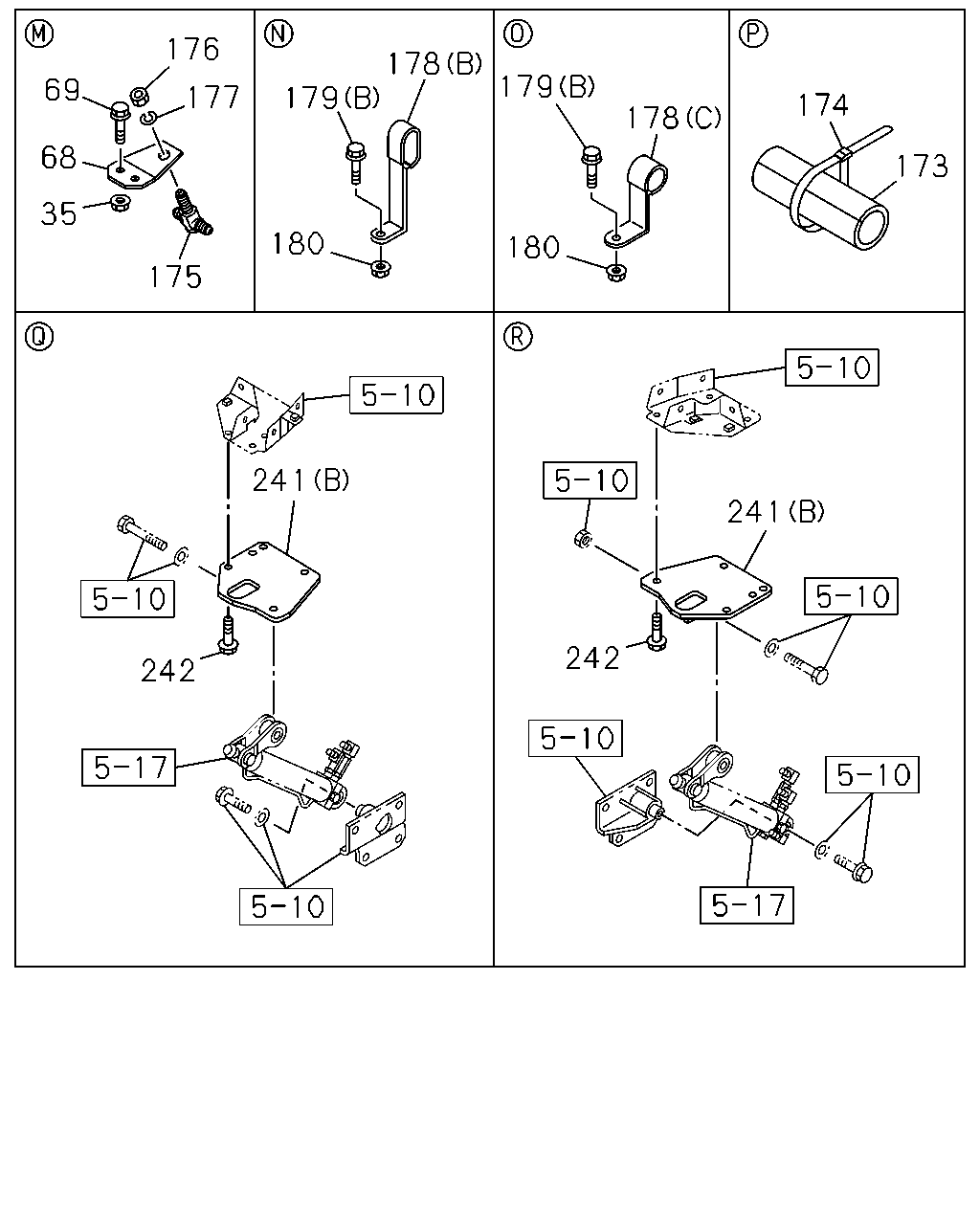

176 177 175 35 68 69 179 178 180 179 178 180 174 173 241 242 241 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-		●
68	BRACKET; UNION	8-98044-029-1	01	1	1511-		●
69	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	1511-	●
173	SLEEVE; RUBBER,FLEX HOSE HEATER & DEFROSTER(C41) ID=17 OD=21 L=40	1-09337-012-0	01	1	1511-		●
173	SLEEVE; RUBBER,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	03	1	1511-		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	1511-	●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	05	1	1511-		●
174	CLIP; BAND,FLEX HOSE HEATER & DEFROSTER(C41) L=140	5-09707-031-1	03	1	1511-		●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	1511-		●
175	UNION; FLEX HOSE M12 L=69	0-92138-506-0	01	1	1511-		●
176	NUT; UNION M12	9-09840-280-0	01	1	1511-		●
177	WASHER; LK,UNION	1-09985-189-0	01	1	1511-		●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	06	1	1511-	●
178	CLIP; FLEX HOSE (F) ID=19 L=58	1-09700-733-1	01	1	1511-	●
178	CLIP; FLEX HOSE (E) ID=9X2 L=20	0-95324-835-0	04	1	1511-		●
178	CLIP; FLEX HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1511-		●
178	CLIP; FLEX HOSE (D) ID=14X2 H=85 L=30	1-09701-062-0	01	1	1511-		●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	02	1	1511-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28650-820-0	04	1	1511-	●
179	BOLT; CLIP,FLEX HOSE (A) M8X30 FLANGE	0-28650-830-0	03	1	1511-	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	07	1	1511-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X25 FLANGE	0-28050-825-0	01	1	1511-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1511-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1511-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
241	BRACKET; POWER CYL UPR,CAB TILT (A)	8-98022-417-1	01	1	1511-	●
241	BRACKET; POWER CYL UPR,CAB TILT (B)	8-98095-154-0	01	1	1511-		●
241	BRACKET; POWER CYL UPR,CAB TILT (B)	8-98095-153-0	01	1	1511-		●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	05	1	1511-	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	08	1	1511-		●

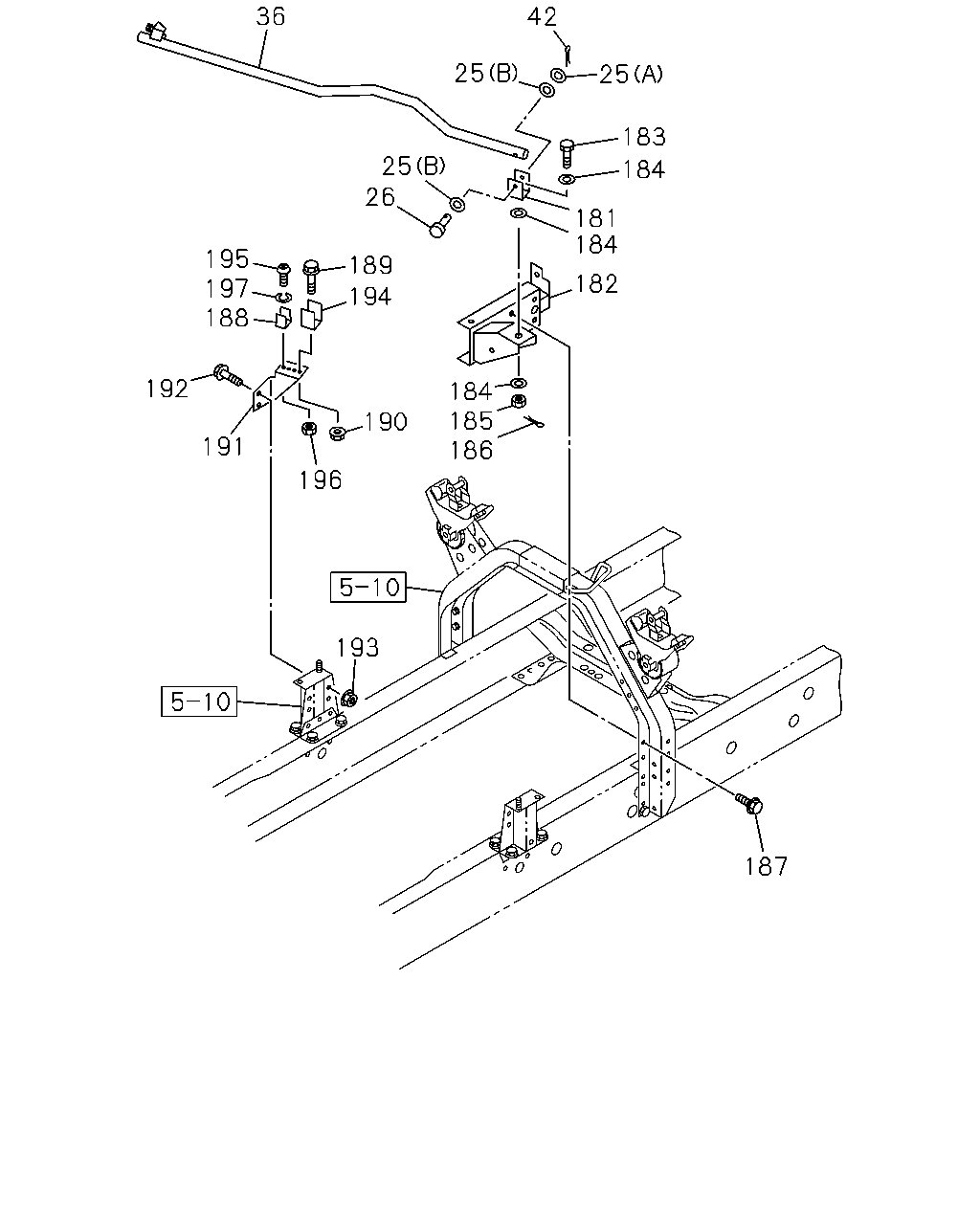

36 42 25 25 183 184 181 184 182 25 26 189 194 195 197 188 192 191 196 190 184 185 186 193 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
25	WASHER; PL,STAY (A) ID=15	0-91610-514-0	01	1	1511-	●
25	WASHER; PL,STAY (B) ID=15	0-91614-614-0	02	1	1511-	●
26	PIN; STAY OD=14 L=62	0-82354-462-0	01	1	1511-	●
36	STAY; OIL TILT	8-98057-730-1	01	1	1511-	●
42	PIN; SPLIT,STAY OD=3.7 L=25	0-81124-025-0	01	1	1511-	●
181	BRACKET; STAY,OIL TILT	1-53719-018-1	01	1	1511-	●
182	BRACKET; STAY BRKT,OIL TILT	8-98100-304-1	01	1	1511-	●
183	BOLT; BRKT M16X40 W/PIN HOLE	1-09042-043-0	01	1	1511-	●
184	WASHER; PL,BRKT ID=17 OD=30	0-91610-516-0	03	1	1511-	●
185	NUT; BRKT M16 SLOTTED	8-98049-689-0	01	1	1511-	●
186	PIN; BRKT OD=3.7 L=25	0-81124-025-0	01	1	1511-	●
187	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	04	1	1511-	●
188	CLIP; STAY,OIL TILT	1-09709-114-0	01	1	1511-	●
189	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	02	1	1511-	●
190	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	1511-	●
191	BRACKET; CLIP,STAY	8-98050-969-1	01	1	1511-	●
192	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1511-	●
193	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●
194	GUIDE; STAY	1-53719-020-0	01	1	1511-	●
195	SCREW; GUIDE M4X12	0-34218-412-0	02	1	1511-	●
196	NUT; GUIDE M4	9-99110-404-0	02	1	1511-	●
197	WASHER; LK,GUIDE ID=4.1	0-91510-504-0	02	1	1511-	●

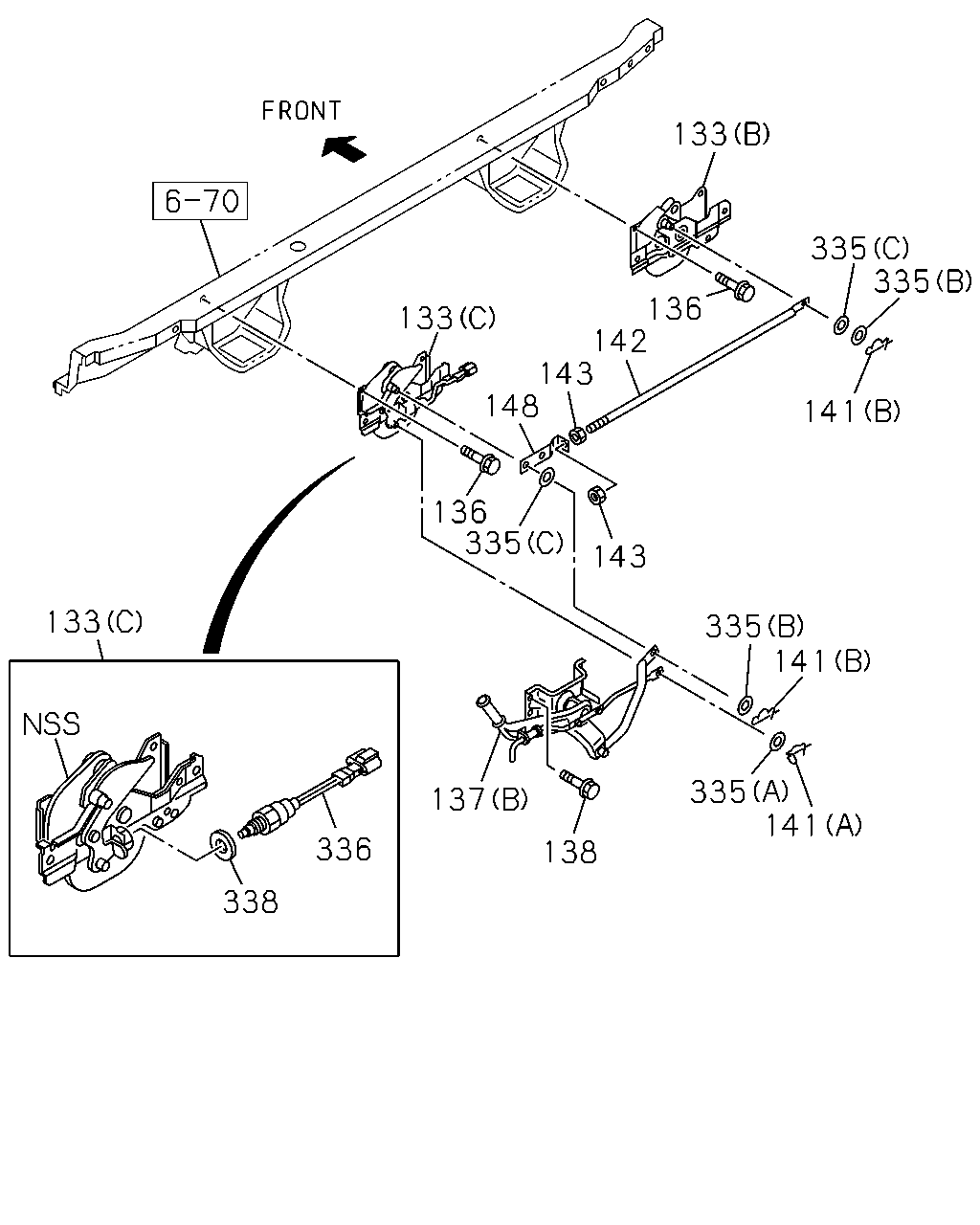

338 336 133 137 138 335 141 141 335 143 335 136 148 143 142 136 141 335 335 133 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	1511-	●	●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	1511-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1511-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1511-	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97587-592-5	01	1	1511-	●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-301-4	01	1	1511-		●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1511-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1511-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1511-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1511-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1511-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1511-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1511-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1511-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1511-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1511-	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1511-	●	●

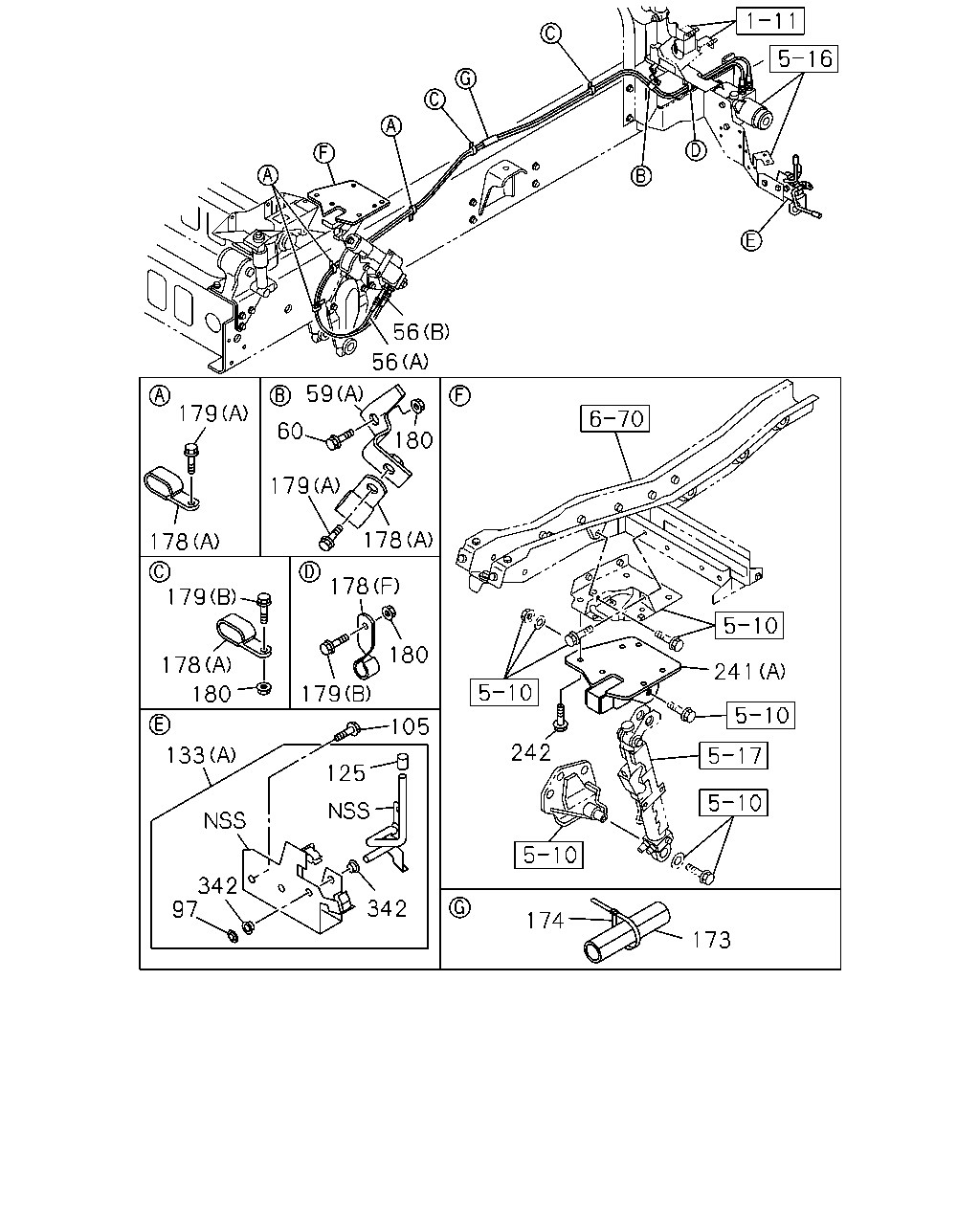

179 178 59 60 179 178 180 56 56 241 242 173 174 342 97 342 125 105 180 179 178 179 178 180 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	HOSE; FLEX,OIL PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=2420	8-98328-149-0	01	1	1511-	●
56	HOSE; FLEX,OIL PIPE (B) L=2430	8-98328-150-0	01	1	1511-	●
56	HOSE; FLEX,OIL PIPE (E) L=1500	8-98044-009-2	01	1	1511-		●
56	HOSE; FLEX,OIL PIPE (D) L=935	8-98044-010-2	01	1	1511-		●
56	HOSE; FLEX,OIL PIPE (C) L=2810	8-98044-008-2	01	1	1511-		●
56	HOSE; FLEX,OIL PIPE (F) L=670	8-98044-011-2	01	1	1511-		●
59	BRACKET; CLIP (A)	8-98083-608-1	01	1	1511-	●
59	BRACKET; CLIP (B)	8-98083-609-0	01	1	1511-		●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	1511-	●	●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	1511-	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	1511-	●	●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	1511-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1511-	●	●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	1511-	●
173	SLEEVE; RUBBER,FLEX HOSE HEATER & DEFROSTER(C41) ID=17 OD=21 L=40	1-09337-012-0	01	1	1511-		●
173	SLEEVE; RUBBER,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	03	1	1511-		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	1511-	●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	05	1	1511-		●
174	CLIP; BAND,FLEX HOSE HEATER & DEFROSTER(C41) L=140	5-09707-031-1	03	1	1511-		●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	1511-		●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	06	1	1511-	●
178	CLIP; FLEX HOSE (F) ID=19 L=58	1-09700-733-1	01	1	1511-	●
178	CLIP; FLEX HOSE (E) ID=9X2 L=20	0-95324-835-0	04	1	1511-		●
178	CLIP; FLEX HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1511-		●
178	CLIP; FLEX HOSE (D) ID=14X2 H=85 L=30	1-09701-062-0	01	1	1511-		●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	02	1	1511-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28650-820-0	04	1	1511-	●
179	BOLT; CLIP,FLEX HOSE (A) M8X30 FLANGE	0-28650-830-0	03	1	1511-	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	07	1	1511-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X25 FLANGE	0-28050-825-0	01	1	1511-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1511-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1511-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
241	BRACKET; POWER CYL UPR,CAB TILT (A)	8-98022-417-1	01	1	1511-	●
241	BRACKET; POWER CYL UPR,CAB TILT (B)	8-98095-154-0	01	1	1511-		●
241	BRACKET; POWER CYL UPR,CAB TILT (B)	8-98095-153-0	01	1	1511-		●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	05	1	1511-	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	08	1	1511-		●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	1511-	●	●
