◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#169568) — 10 parça

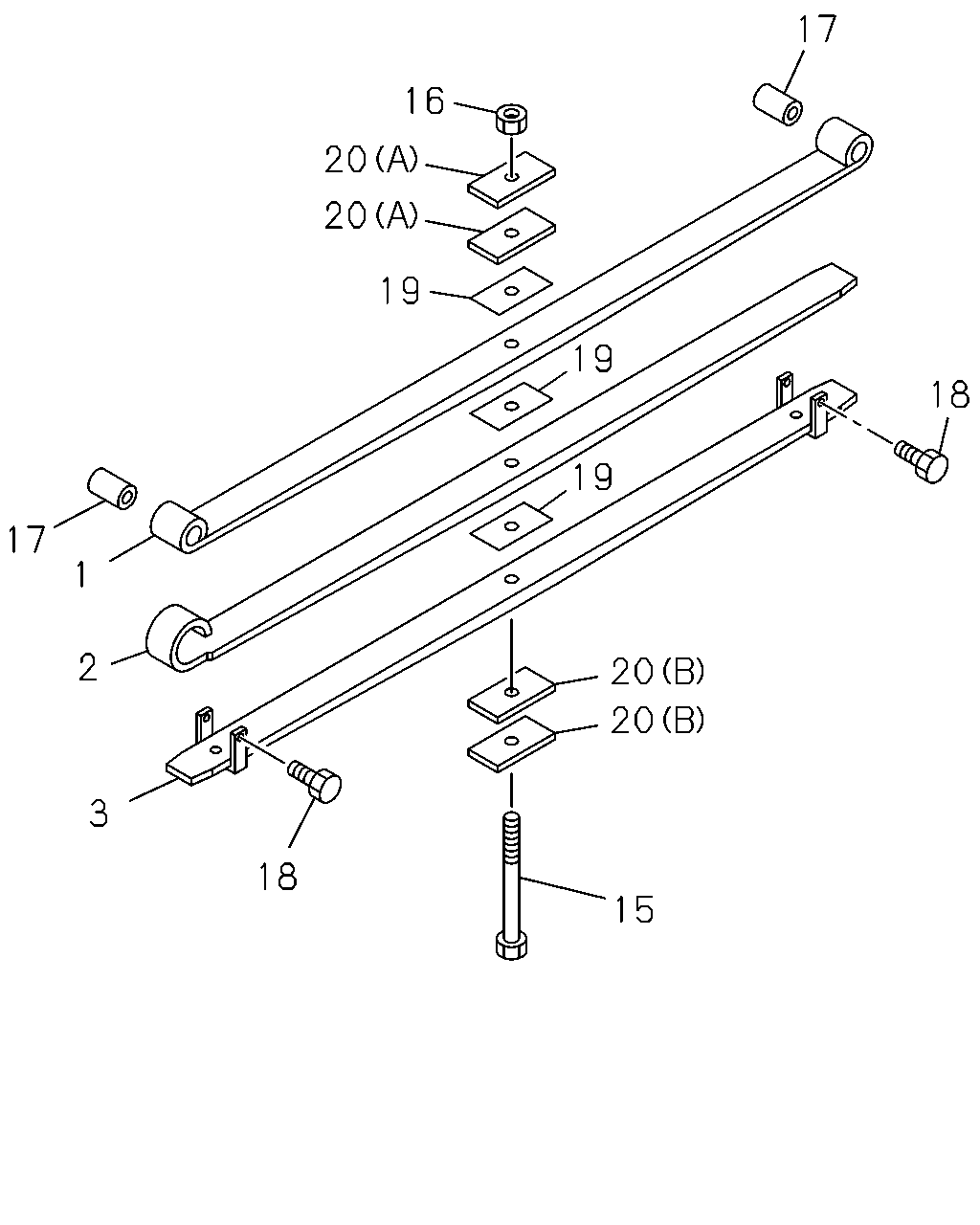

çizim 502393
16 17 18 19 19 20 20 19 17 2 1 3 18 15 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98023-053-0 		8-98031-325-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98023-053-0 		8-98031-326-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98023-053-0 		8-98031-327-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: A = 8-98023-053-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98023-053-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98023-053-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-98023-053-0 		8-98048-523-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98023-053-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=9 ASM PART: A = 8-98023-053-0 		1-51177-114-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=13 ASM PART: A = 8-98023-053-0 		1-51177-181-0 02 1 -
