Isuzu WW
▶
TRUCKS
▶
FTR
▶
11716 - FTR AUST/NZ EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#169567) — 30 parça
Tümü
A - FGR5MV
B - FGR5WV
◀

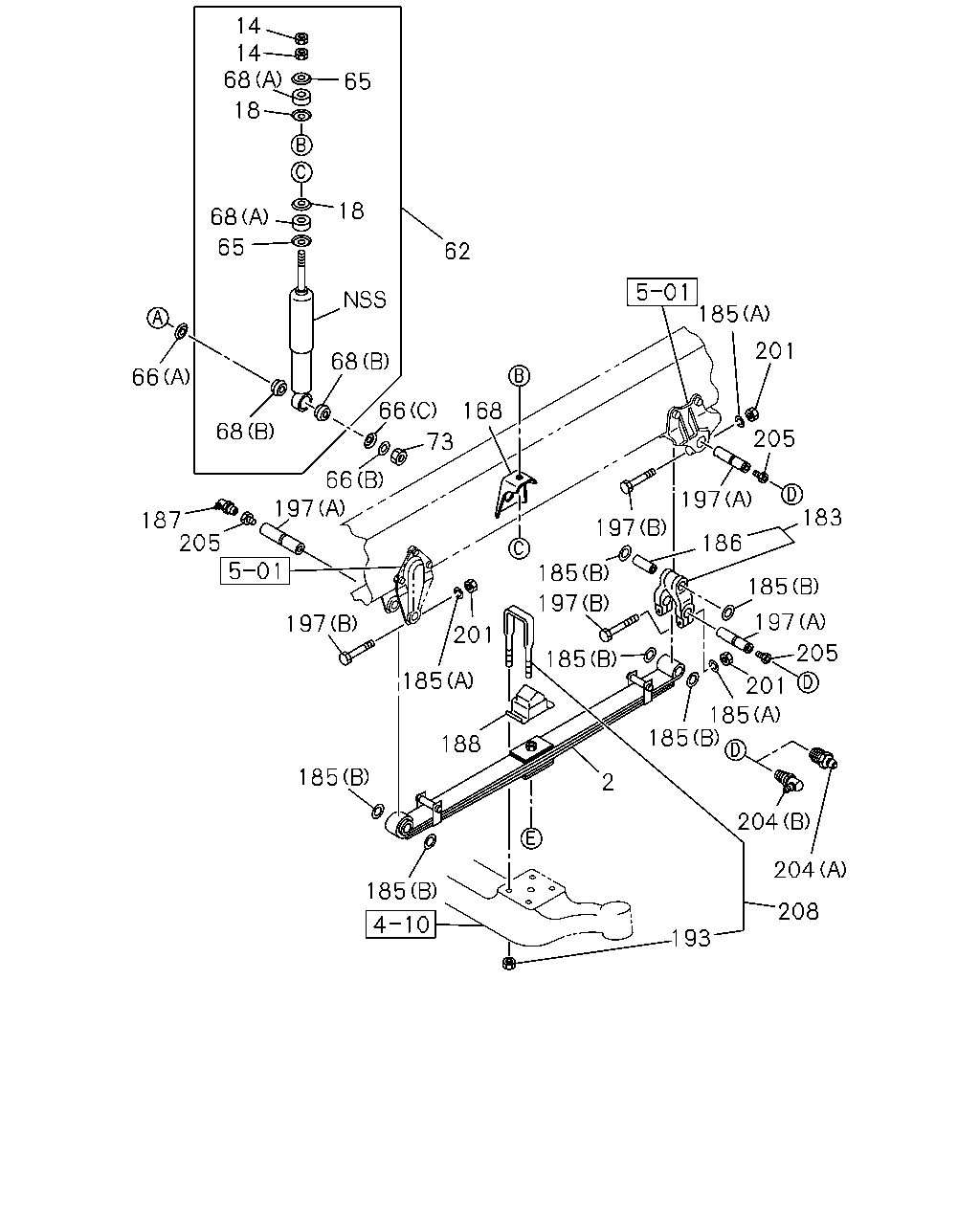

[450A] LEAF SPRING AND SHOCK ABSORBER (26 parça)
[450A] FRONT STABILIZER SHAFT (4 parça)
▶
14
68
65
14
18
18
68
62
185
68
68
187
66
66
66
197
73
168
197
183
185
186
197
205
185
205
197
205
201
185
185
204
204
208
193
185
185
197
185
201
197
185
2
65
201
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98023-053-0
02
1
1511-
●
●
14
NUT; S/ABS,UPR
M12
8-98010-412-0
04
1
1511-
●
●
18
WASHER; CENTERING,S/ABS
ID=16.8
1-51631-022-0
04
1
1511-
●
●
62
ABSORBER ASM; SHOCK,FRT
8-98021-302-0
02
1
1511-
●
●
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1511-
●
●
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1511-
●
●
66
WASHER; LK,S/ABS SETTING
(A) ID=23
1-51631-019-0
02
1
1511-
●
●
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1511-
●
●
68
BUSHING; S/ABS
(B)
1-51631-009-1
04
1
1511-
●
●
68
BUSHING; S/ABS
(A)
9-51631-050-0
04
1
1511-
●
●
73
NUT; BRKT,SHOCK
M16
0-91110-516-0
02
1
1511-
●
●
168
BRACKET; S/ABS,FRT SUSP
1-51681-306-0
02
1
1511-
●
●
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1511-
●
●
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1511-
●
●
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1511-
●
●
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1511-
●
●
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1511-
●
●
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-125-1
02
1
1511-
●
●
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1511-
●
●
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1511-
●
●
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1511-
●
●
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1511-
●
●
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1511-
●
●
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1511-
●
●
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1511-
●
●
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1511-
●
●
140
377
377
138
137
377
140
377
138
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
137
BRACKET; STAB BAR TO FRAME
8-98128-356-1
02
1
1511-
●
●
138
NUT; BRKT
M14
0-91110-514-0
06
1
1511-
●
●
140
BOLT; BRKT
M14X45
9-92061-445-0
06
1
1511-
●
●
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
12
1
1511-
●
●
