◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#169555) — 319 parça

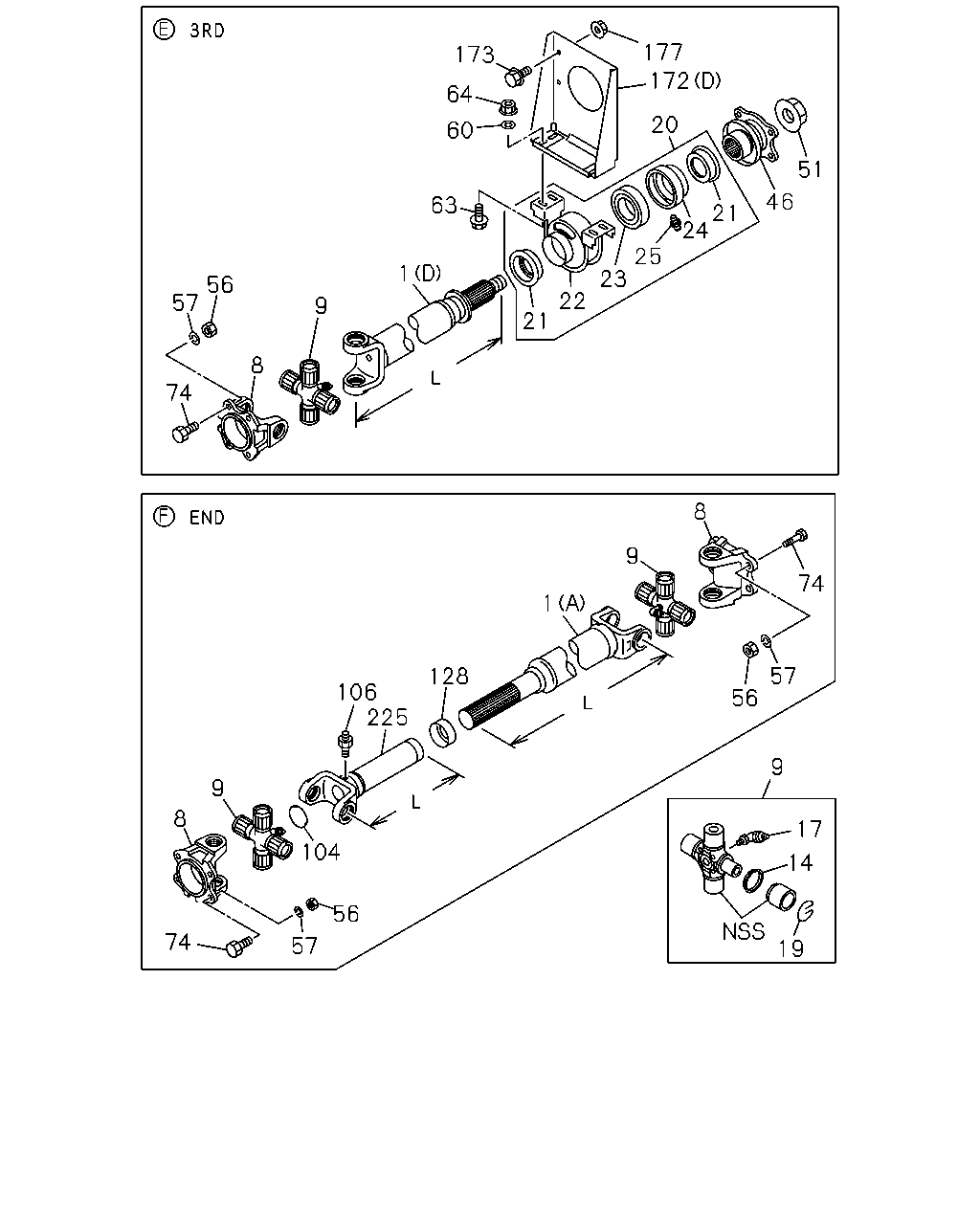

çizim 501222
173 177 20 172 64 63 60 51 46 21 24 25 23 22 21 1 9 56 57 74 8 8 9 1 128 106 225 9 8 74 57 56 104 19 14 9 17 56 74 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=894 		8-98333-139-0 01 1 1511- ●
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=764 		8-98333-140-0 01 1 1511- ●
1 SHAFT; PROP
(A) L=1226 		8-98091-125-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 1511- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 1511- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 1511- ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 1511- ● ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 1511- ● ●
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=1264 		8-98309-758-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 1511- ●
1 SHAFT; PROP
(D) L=1084 		8-98091-088-0 01 1 1511- ●
1 SHAFT; PROP
(C) L=1079 		8-98091-099-0 01 1 1511- ●
1 SHAFT; PROP
(A) L=1301 		8-98091-126-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=736 		1-37153-247-0 01 1 1511- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1511- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1511- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 03 1 1511- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 04 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
LCT2500 A/T ALLISON(Y5W) 1ST 		1-37300-129-0 01 1 1511- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) 1ST 		8-98048-925-1 01 1 1511- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
2ND,3RD 		8-98048-925-1 01 1 1511- ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,3RD 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1511- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1511- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) 1ST 		8-98020-800-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
LCT2500 A/T ALLISON(Y5W) 1ST 		1-37319-012-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
2ND,END 		8-98020-800-0 12 1 1511- ● ●
14 COVER; DUST,SPIDER
2ND,3RD,END 		8-98020-800-0 16 1 1511- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1511- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1511- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND,3RD 		1-37510-105-0 02 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1511- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1511- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1511- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1511- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 1511- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1511- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1511- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 1511- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1511- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1511- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 1511- ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1511- ●
24 RETAINER; CENTER BRG,1ST
2ND,3RD 		1-37529-068-0 02 1 1511- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1511- ● ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1511- ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST 		8-98020-889-0 01 1 1511- ●
25 NIPPLE; GREASE,CENTER BRG
2ND,3RD MT6 STRAIGHT 		1-09380-006-0 02 1 1511- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1511- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1511- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1511- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND,3RD 		1-37245-071-0 02 1 1511- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1511- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1511- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1511- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1511- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 1511- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1511- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1511- ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1511- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1511- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1511- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1511- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1511- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1511- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1511- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1511- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1511- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1511- ● ● ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-071-2 01 1 1511- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-136-0 01 1 1511- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-101-0 01 1 1511- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-102-0 01 1 1511- ● ● ●
172 BRACKET; CENTER BRG
(D) 		1-37515-102-0 01 1 1511- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1511- ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1511- ● ● ● ●

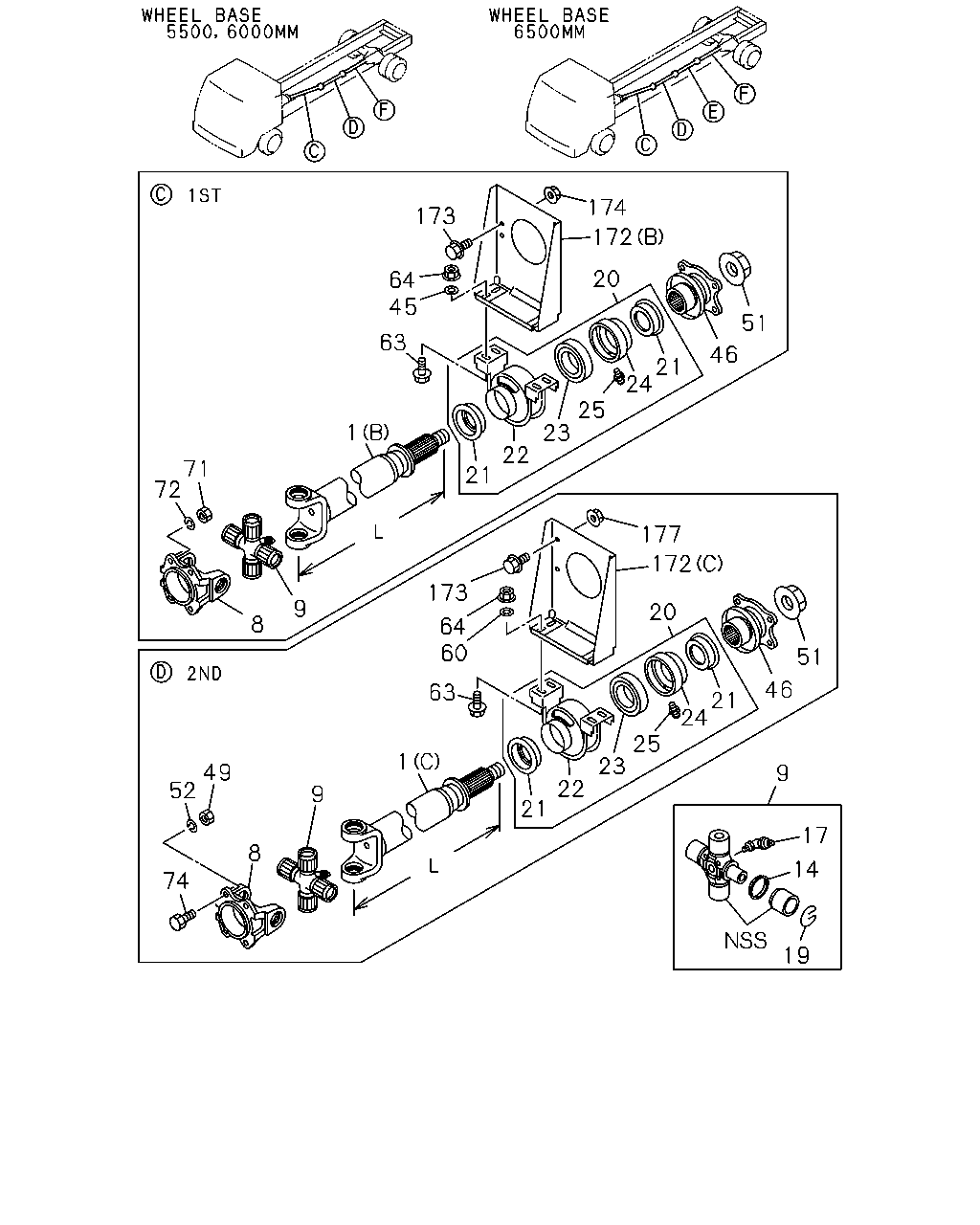

çizim 501441
173 174 64 172 20 51 46 21 24 25 23 22 21 45 63 1 71 72 8 9 173 177 20 51 46 21 24 25 23 22 21 64 60 63 49 52 74 9 9 17 14 19 1 172 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=894 		8-98333-139-0 01 1 1511- ●
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=764 		8-98333-140-0 01 1 1511- ●
1 SHAFT; PROP
(A) L=1226 		8-98091-125-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 1511- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 1511- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 1511- ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 1511- ● ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 1511- ● ●
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=1264 		8-98309-758-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 1511- ●
1 SHAFT; PROP
(D) L=1084 		8-98091-088-0 01 1 1511- ●
1 SHAFT; PROP
(C) L=1079 		8-98091-099-0 01 1 1511- ●
1 SHAFT; PROP
(A) L=1301 		8-98091-126-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=736 		1-37153-247-0 01 1 1511- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1511- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1511- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 03 1 1511- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 04 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
LCT2500 A/T ALLISON(Y5W) 1ST 		1-37300-129-0 01 1 1511- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) 1ST 		8-98048-925-1 01 1 1511- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
2ND,3RD 		8-98048-925-1 01 1 1511- ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,3RD 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1511- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1511- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) 1ST 		8-98020-800-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
LCT2500 A/T ALLISON(Y5W) 1ST 		1-37319-012-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
2ND,END 		8-98020-800-0 12 1 1511- ● ●
14 COVER; DUST,SPIDER
2ND,3RD,END 		8-98020-800-0 16 1 1511- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1511- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1511- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND,3RD 		1-37510-105-0 02 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1511- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1511- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1511- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1511- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 1511- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1511- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1511- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 1511- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1511- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1511- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 1511- ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1511- ●
24 RETAINER; CENTER BRG,1ST
2ND,3RD 		1-37529-068-0 02 1 1511- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1511- ● ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1511- ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST 		8-98020-889-0 01 1 1511- ●
25 NIPPLE; GREASE,CENTER BRG
2ND,3RD MT6 STRAIGHT 		1-09380-006-0 02 1 1511- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1511- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1511- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1511- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1511- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND,3RD 		1-37245-071-0 02 1 1511- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1511- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1511- ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1511- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1511- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1511- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 1511- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1511- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1511- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1511- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1511- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1511- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1511- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1511- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1511- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-071-2 01 1 1511- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-136-0 01 1 1511- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-101-0 01 1 1511- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-102-0 01 1 1511- ● ● ●
172 BRACKET; CENTER BRG
(D) 		1-37515-102-0 01 1 1511- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1511- ●

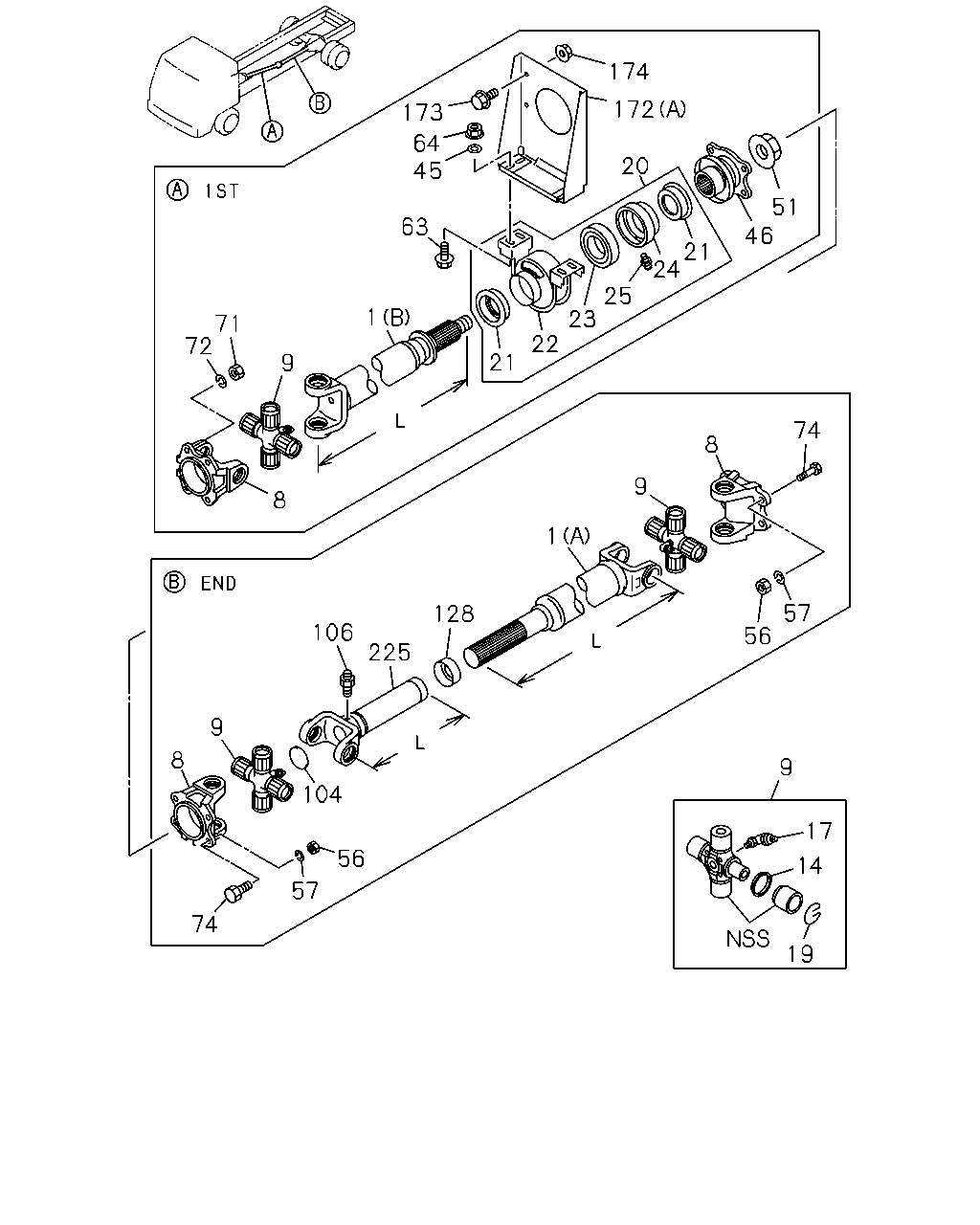

çizim 502027
9 17 14 19 56 57 74 8 104 9 106 225 128 1 9 8 74 57 56 9 71 72 8 1 21 22 23 25 24 21 46 51 20 172 174 173 45 64 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=894 		8-98333-139-0 01 1 1511- ●
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=764 		8-98333-140-0 01 1 1511- ●
1 SHAFT; PROP
(A) L=1226 		8-98091-125-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 1511- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 1511- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 1511- ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 1511- ● ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 1511- ● ●
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=1264 		8-98309-758-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 1511- ●
1 SHAFT; PROP
(D) L=1084 		8-98091-088-0 01 1 1511- ●
1 SHAFT; PROP
(C) L=1079 		8-98091-099-0 01 1 1511- ●
1 SHAFT; PROP
(A) L=1301 		8-98091-126-0 01 1 1511- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) (B) L=736 		1-37153-247-0 01 1 1511- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1511- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1511- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 03 1 1511- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 04 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
LCT2500 A/T ALLISON(Y5W) 1ST 		1-37300-129-0 01 1 1511- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) 1ST 		8-98048-925-1 01 1 1511- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
2ND,3RD 		8-98048-925-1 01 1 1511- ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,3RD 		8-98048-925-1 01 1 1511- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1511- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1511- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) 1ST 		8-98020-800-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
LCT2500 A/T ALLISON(Y5W) 1ST 		1-37319-012-0 04 1 1511- ● ●
14 COVER; DUST,SPIDER
2ND,END 		8-98020-800-0 12 1 1511- ● ●
14 COVER; DUST,SPIDER
2ND,3RD,END 		8-98020-800-0 16 1 1511- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1511- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1511- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1511- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1511- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 1511- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND,3RD 		1-37510-105-0 02 1 1511- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1511- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1511- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1511- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1511- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 1511- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1511- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1511- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 1511- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1511- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1511- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 1511- ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1511- ●
24 RETAINER; CENTER BRG,1ST
2ND,3RD 		1-37529-068-0 02 1 1511- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1511- ● ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1511- ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST 		8-98020-889-0 01 1 1511- ●
25 NIPPLE; GREASE,CENTER BRG
2ND,3RD MT6 STRAIGHT 		1-09380-006-0 02 1 1511- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1511- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1511- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1511- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1511- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND,3RD 		1-37245-071-0 02 1 1511- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1511- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1511- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1511- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1511- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 1511- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1511- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1511- ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1511- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1511- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1511- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1511- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1511- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1511- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1511- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1511- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1511- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1511- ● ● ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-071-2 01 1 1511- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-136-0 01 1 1511- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-101-0 01 1 1511- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-102-0 01 1 1511- ● ● ●
172 BRACKET; CENTER BRG
(D) 		1-37515-102-0 01 1 1511- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1511- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
