◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#169554) — 89 parça

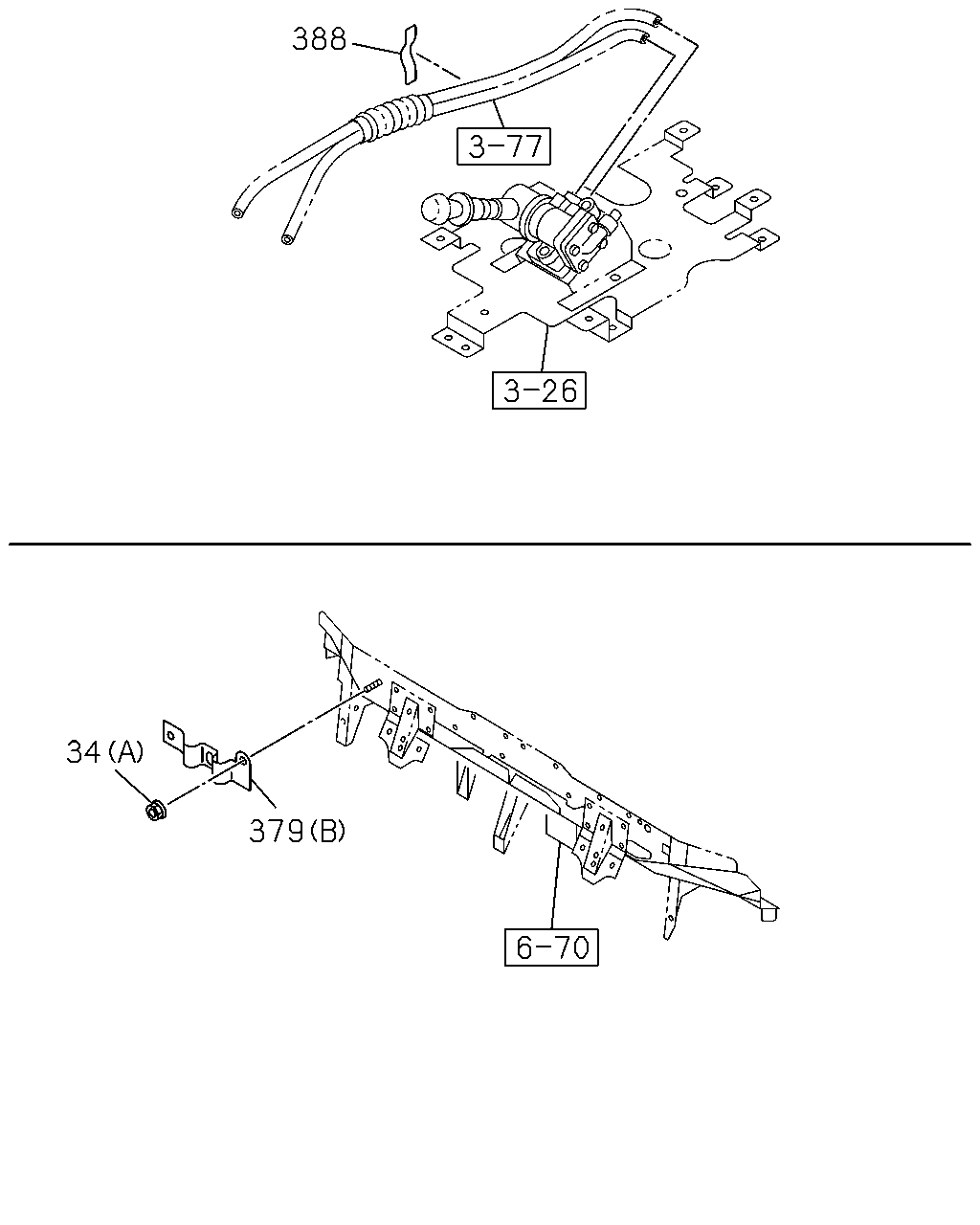

çizim 501266
388 34 379
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(H) 		8-98177-873-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98182-331-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) 		8-98182-760-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98106-046-0 01 1 1511- ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ●
379 BRACKET; NYLON TUBE
(D) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(G) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1511- ● ●
388 SEAL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40 		1-72498-019-1 02 1 1511- ●

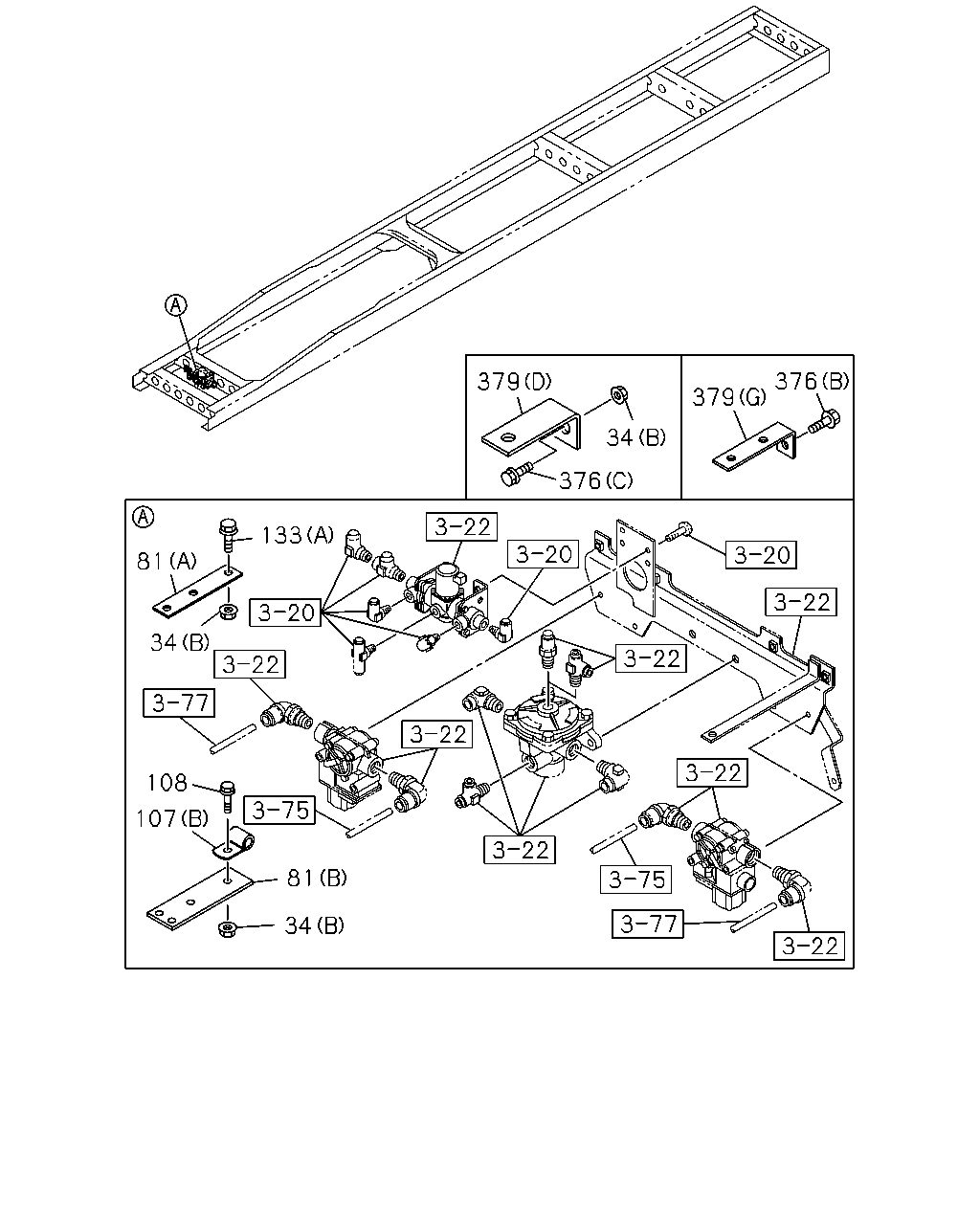

çizim 502432
379 34 376 379 376 133 81 34 108 107 81 34
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1511- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1511- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1511- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1511- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
133 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
133 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
376 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(H) 		8-98177-873-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98182-331-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) 		8-98182-760-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98106-046-0 01 1 1511- ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ●
379 BRACKET; NYLON TUBE
(D) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(G) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●

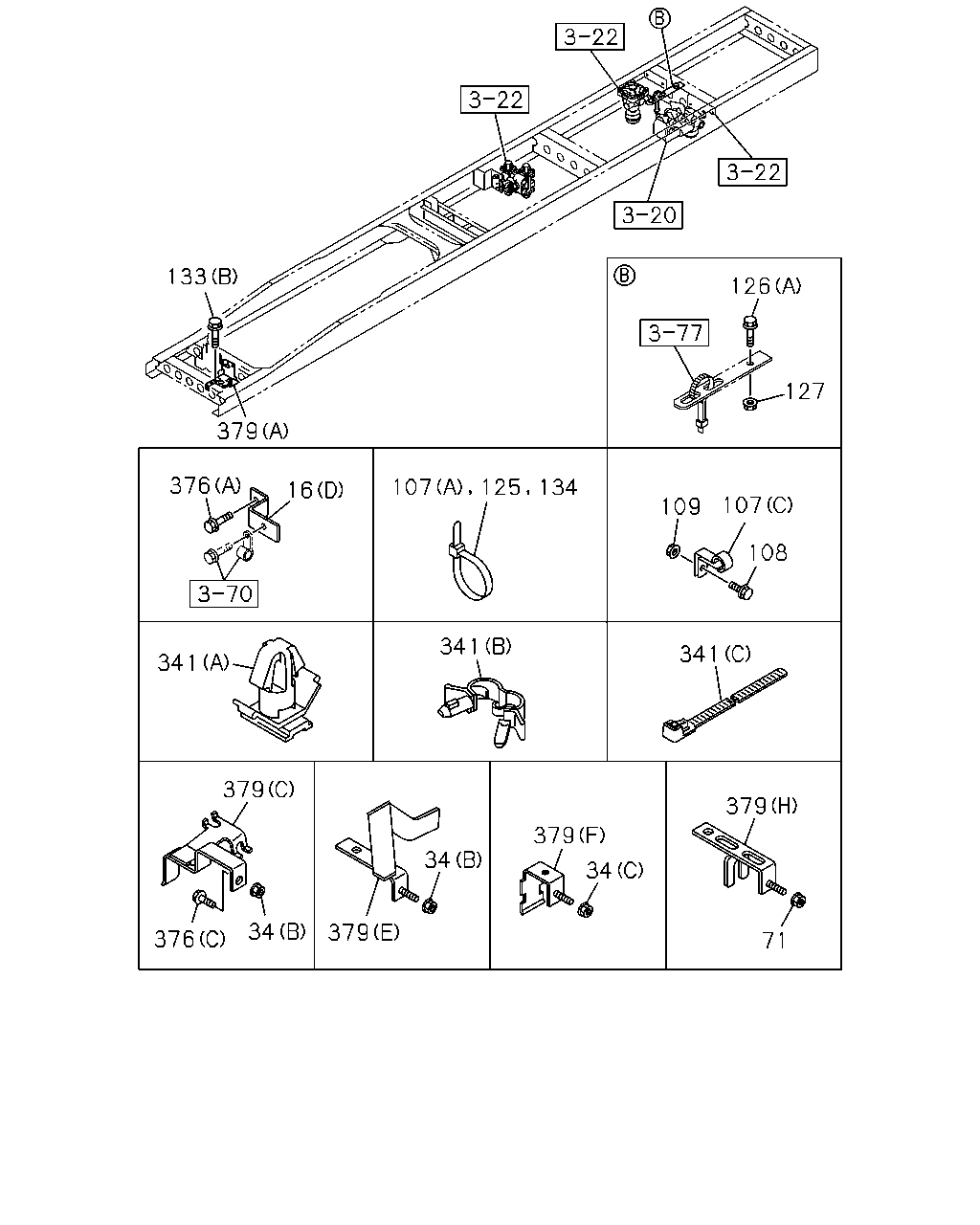

çizim 502500
126 127 109 107 108 341 379 125 107 134 379 133 379 34 34 379 379 376 34 341 376 16 341 71
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) 		1-42129-515-2 01 1 1511- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-42129-516-2 01 1 1511- ● ●
16 BRACKET; PIPE CLIP
(C) 		8-98057-873-0 01 1 1511- ● ●
16 BRACKET; PIPE CLIP
(D) 		1-47475-881-0 01 1 1511- ● ●
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1511- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1511- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) L=350 		1-09707-183-0 16 1 1511- ●
125 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 20 1 1511- ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 20 1 1511- ●
125 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 23 1 1511- ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 11 1 1511- ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 10 1 1511- ●
126 BOLT; CLIP BRKT
(B) M8X16 FLANGE 		0-28050-816-0 10 1 1511- ● ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
133 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
133 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1511- ● ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
341 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
341 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 1511- ● ●
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
376 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(H) 		8-98177-873-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98182-331-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) 		8-98182-760-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98106-046-0 01 1 1511- ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ●
379 BRACKET; NYLON TUBE
(D) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(G) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●

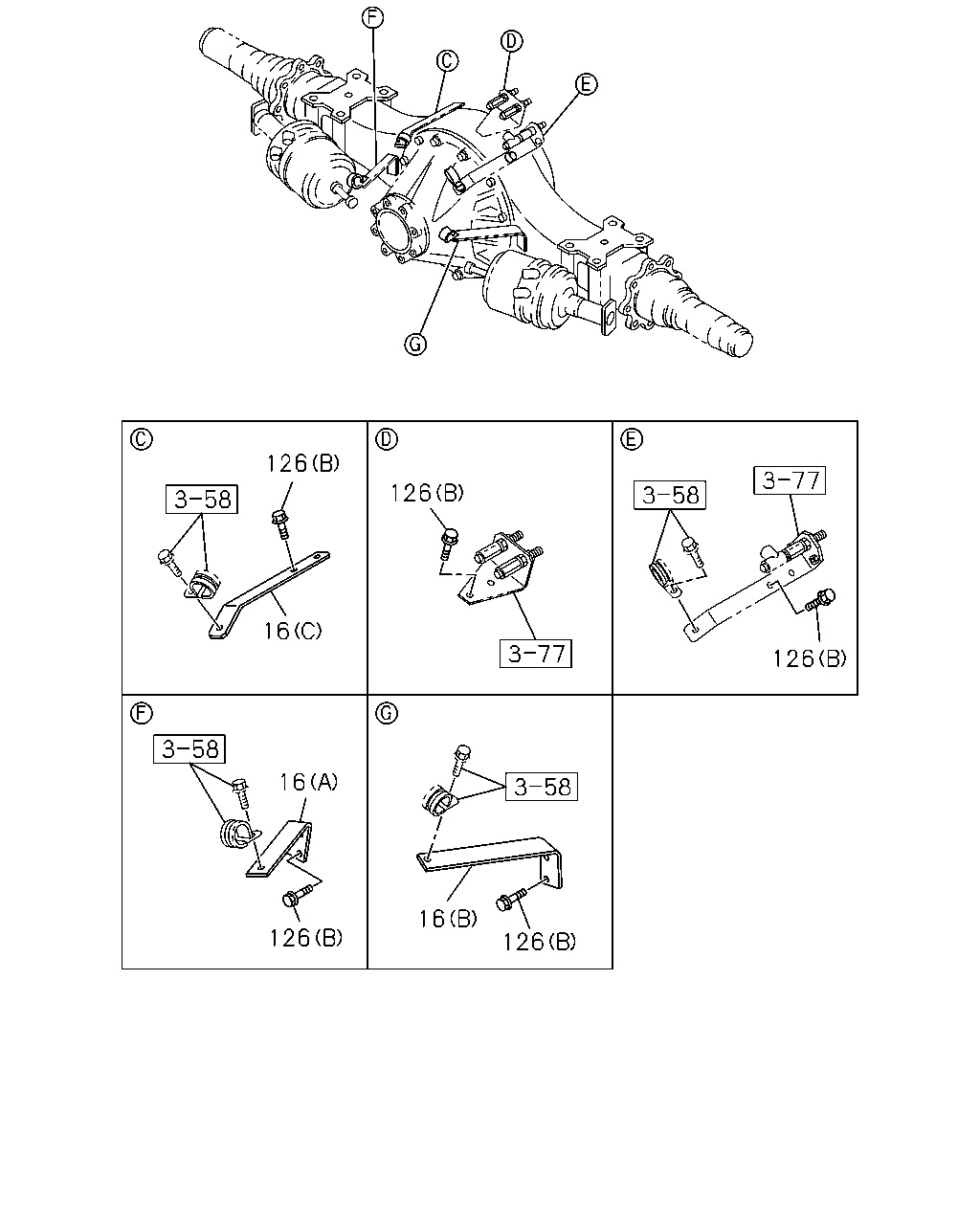

çizim 502547
126 126 126 16 16 126 126 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) 		1-42129-515-2 01 1 1511- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-42129-516-2 01 1 1511- ● ●
16 BRACKET; PIPE CLIP
(C) 		8-98057-873-0 01 1 1511- ● ●
16 BRACKET; PIPE CLIP
(D) 		1-47475-881-0 01 1 1511- ● ●
126 BOLT; CLIP BRKT
(B) M8X16 FLANGE 		0-28050-816-0 10 1 1511- ● ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
