3-77 — BRAKE PIPING; AIR,REAR (#169553) — 108 parça

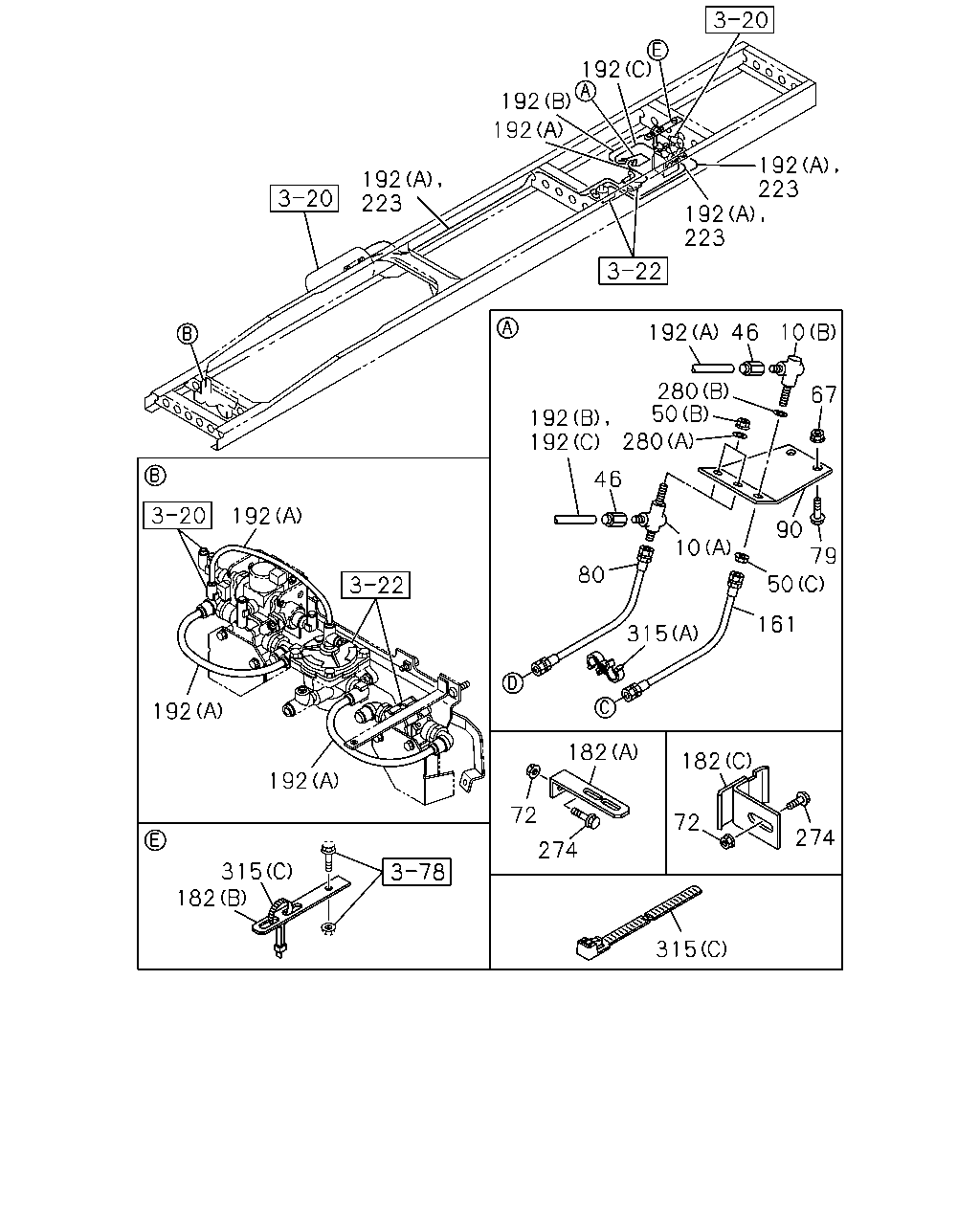

çizim 501396
315 182 72 274 274 72 192 192 192 315 192 192 192 192 192 192 192 192 192 223 223 182 223 280 280 182 10 315 161 50 80 46 50 46 67 90 79 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 1511- ● ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 1511- ● ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 1511- ● ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 1511- ● ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 1511- ● ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
80 HOSE; FLEX,POWER CHAMBER
L=580 		1-09363-772-0 02 1 1511- ● ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 1511- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		1-09363-772-0 01 1 1511- ● ●
182 BRACKET; TUBE CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 1511- ● ●
182 BRACKET; TUBE CLIP
(B) L=215 		1-47479-288-0 01 1 1511- ● ●
182 BRACKET; TUBE CLIP
(C) 		8-98119-184-1 01 1 1511- ● ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 1511- ● ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 1511- ● ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98232-700-2 01 1 1511- ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1511- ● ●
223 TUBE; CORRUGATE
H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 1511- ● ●
223 TUBE; CORRUGATE
H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19 		1-87411-027-0 02 1 1511- ● ●
223 TUBE; CORRUGATE
WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 01 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 01 1 1511- ● ●
223 TUBE; CORRUGATE
EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1511- ● ●
223 TUBE; CORRUGATE
EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15 		1-87411-025-0 03 1 1511- ● ●
223 TUBE; CORRUGATE
EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 04 1 1511- ● ●
274 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
274 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
280 WASHER; LK
(A) ID=12.2 		0-91510-812-0 02 1 1511- ● ●
280 WASHER; LK
(B) ID=16.2 		0-91510-816-0 01 1 1511- ● ●
315 CLIP
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 07 1 1511- ●
315 CLIP
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 10 1 1511- ●
315 CLIP
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 09 1 1511- ● ●
315 CLIP
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 12 1 1511- ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 1511- ● ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 1511- ● ●
315 CLIP
(C) L=350 		1-09707-183-0 02 1 1511- ● ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 1511- ● ●

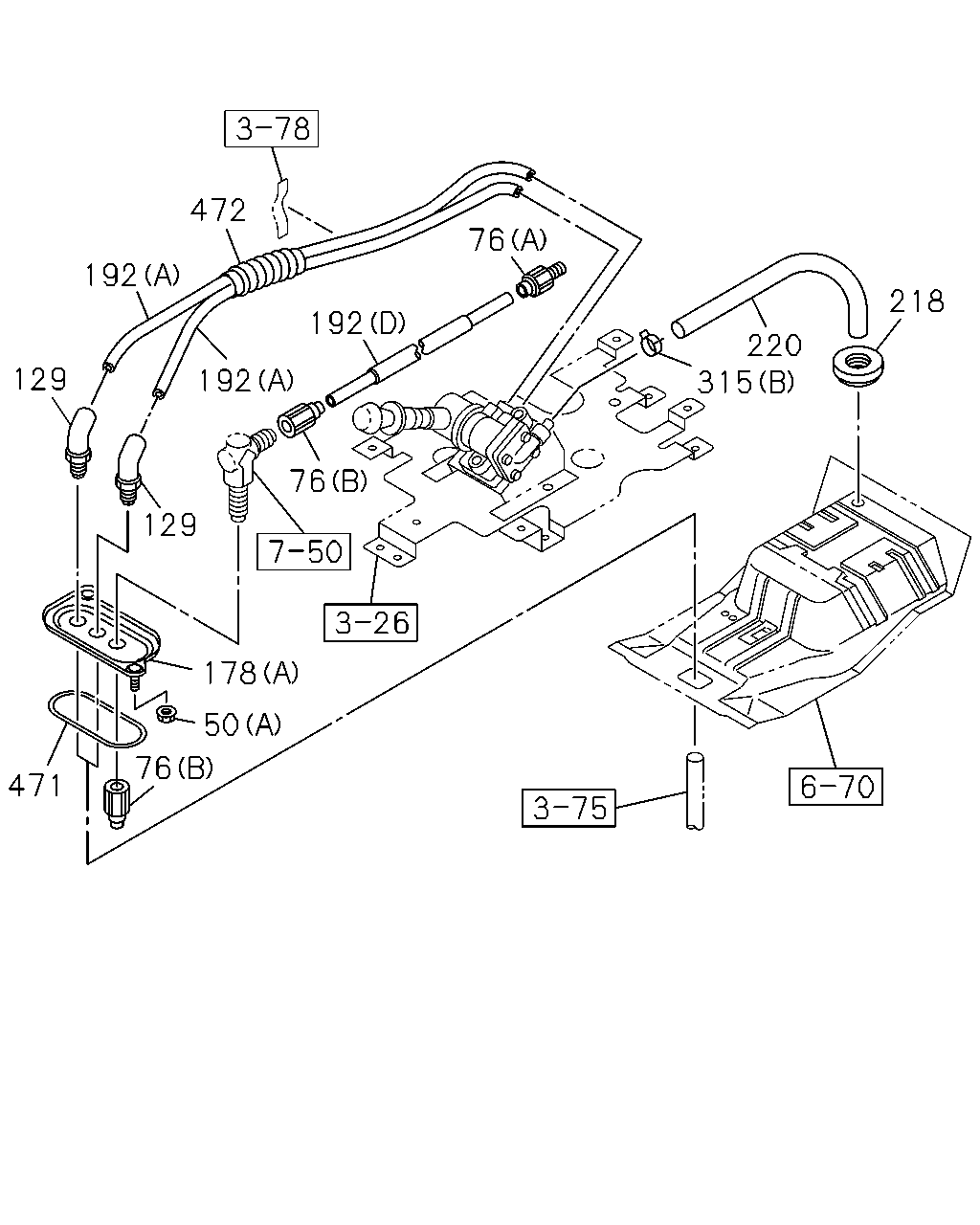

çizim 502455
471 76 50 178 129 129 192 192 76 192 472 76 220 315 218
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 1511- ● ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 1511- ● ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 1511- ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1511- ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1511- ● ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1511- ● ●
178 BRACKET; UNION
(C) 		8-98057-822-0 01 1 1511- ● ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 1511- ● ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 1511- ● ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 1511- ● ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98232-700-2 01 1 1511- ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1511- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1511- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1511- ● ●
315 CLIP
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 07 1 1511- ●
315 CLIP
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 10 1 1511- ●
315 CLIP
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 09 1 1511- ● ●
315 CLIP
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 12 1 1511- ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 1511- ● ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 1511- ● ●
315 CLIP
(C) L=350 		1-09707-183-0 02 1 1511- ● ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 1511- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1511- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1511- ● ●

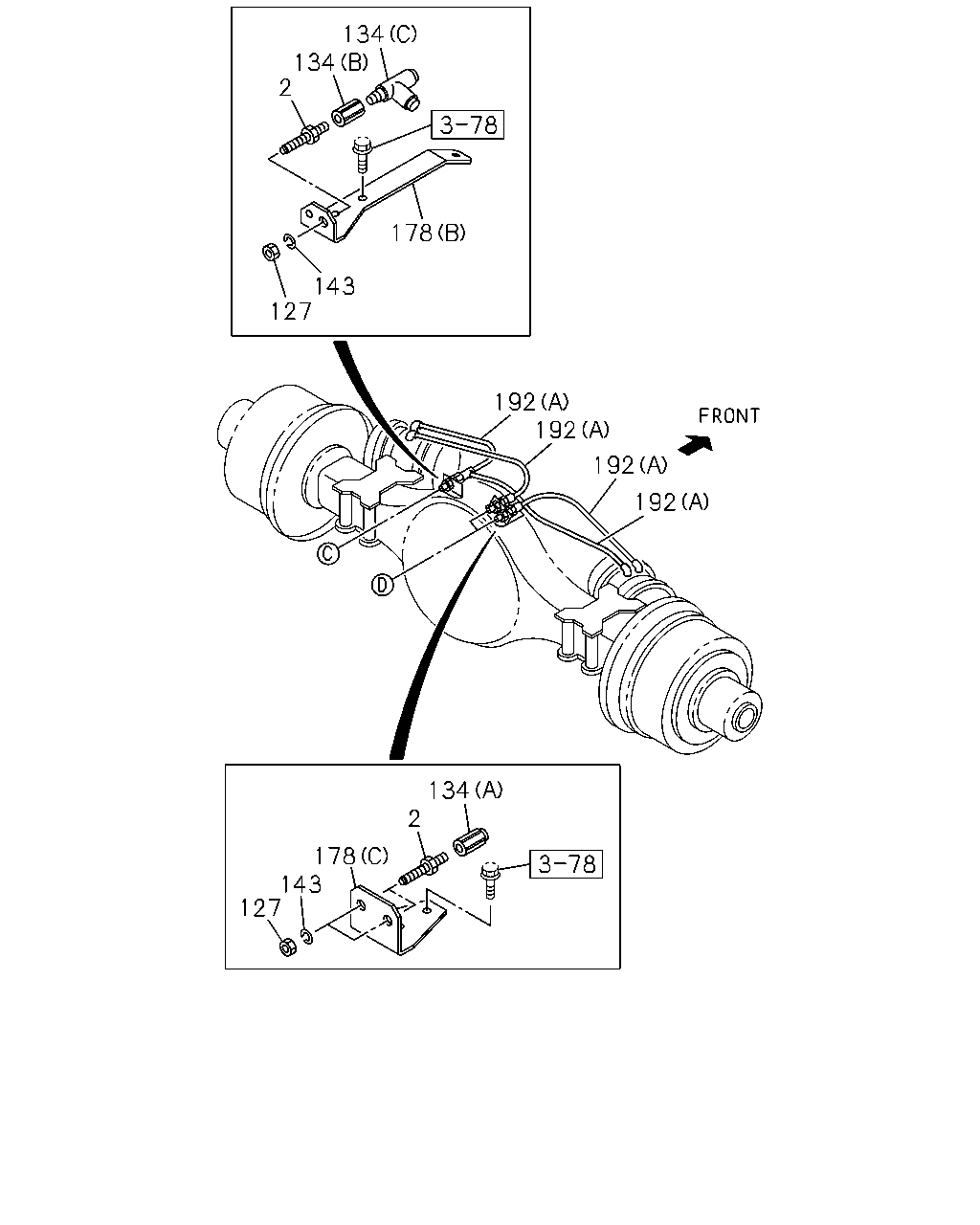

çizim 502565
192 192 192 192 134 178 143 127 2 127 143 178 134 134 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 01 1 1511- ● ●
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 02 1 1511- ● ●
127 NUT; UNION
M16 		0-91111-516-0 01 1 1511- ● ●
127 NUT; UNION
M16 		0-91111-516-0 02 1 1511- ● ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1511- ● ●
134 CONNECTOR
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1511- ● ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1511- ● ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 01 1 1511- ● ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 02 1 1511- ● ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1511- ● ●
178 BRACKET; UNION
(C) 		8-98057-822-0 01 1 1511- ● ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 1511- ● ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 1511- ● ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 1511- ● ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98232-700-2 01 1 1511- ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1511- ● ●
