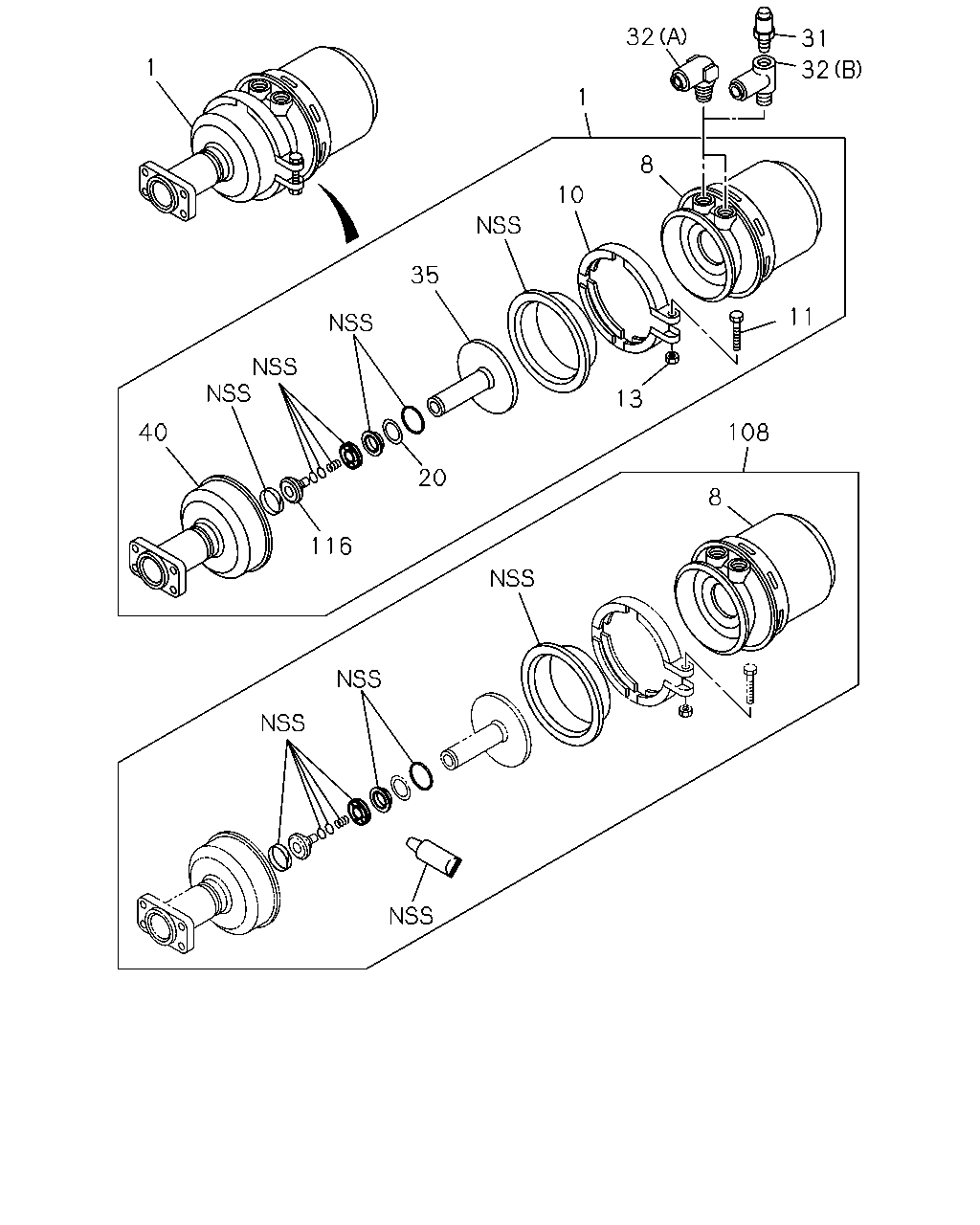

3-41 — REAR BRAKE POWER CHAMBER
(#169548) — 16 parça
Tümü
A - FGR5MV
B - FGR5WV
1
32
31
32
40
35
10
8
11
13
20
116
108
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
8-98236-220-0
01
1
1511-
●
●
1
CHAMBER ASM; SPRING
8-98236-221-0
01
1
1511-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-173-1
01
1
1511-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-174-1
01
1
1511-
●
●
10
RING; CLAMP,SPR CHAMBER
1-48269-231-0
02
1
1511-
●
●
11
BOLT; CLAMP RING
1-48269-232-0
02
1
1511-
●
●
13
NUT; CLAMP RING
1-48269-233-0
02
1
1511-
●
●
20
RING; RET
1-48269-236-0
02
1
1511-
●
●
31
CONNECTOR
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
1511-
●
●
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1511-
●
●
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
01
1
1511-
●
●
35
PLATE; ROD END,SPR CHAMBER
1-48269-253-0
02
1
1511-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-179-0
01
1
1511-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-180-0
01
1
1511-
●
●
108
REPAIR KIT; SPR CHAMBER
1-85576-407-1
02
1
1511-
●
●
116
GUIDE; SPR CHAMBER
1-48269-237-0
02
1
1511-
●
●
