3-05 — REAR WHEEL BRAKE (#169539) — 57 parça

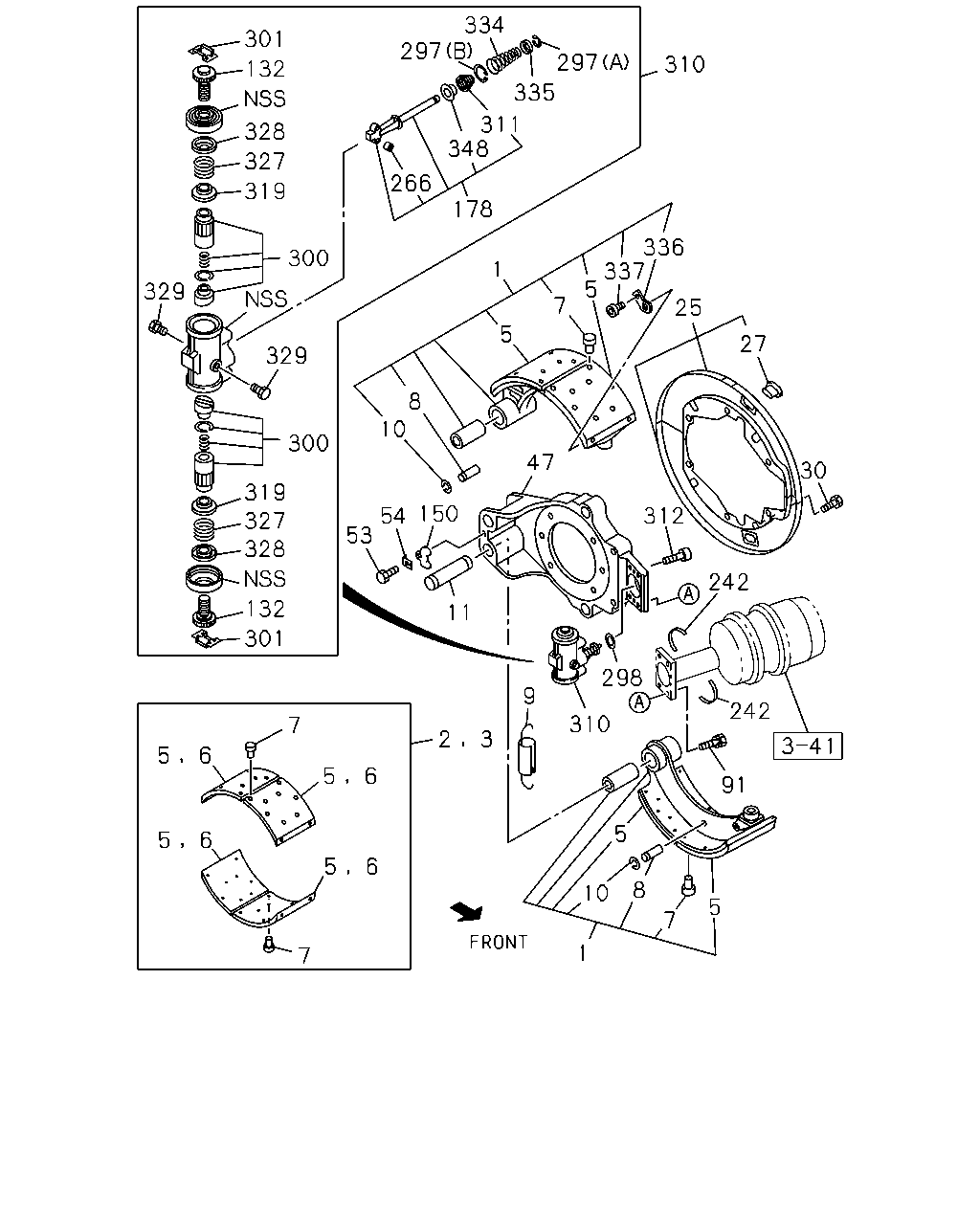

çizim 501993
30 242 312 47 5 1 5 7 337 336 8 10 150 54 53 7 5 6 6 5 6 5 6 5 10 8 7 5 5 91 242 298 310 9 3 2 11 300 319 328 132 301 327 329 300 329 319 327 328 132 301 310 297 335 311 348 266 297 334 178 1 25 27 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
LEADING 		1-47170-504-0 01 1 1511- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-505-0 01 1 1511- ● ●
1 SHOE; BRK,RR
LEADING 		1-47170-506-0 01 1 1511- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-507-0 01 1 1511- ● ●
2 LINING SET; RR BRK,STANDARD 1-88310-773-0 02 1 1511- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-774-0 02 1 1511- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-091-0 08 1 1511- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-092-0 08 1 1511- ● ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 1511- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 1511- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-376-0 02 1 1511- ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 1511- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 1511- ● ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 1511- ● ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 1511- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1511- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1511- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 8-98091-254-1 01 1 1511- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 8-98091-255-1 01 1 1511- ● ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1511- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1511- ● ●
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 1511- ● ●
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 1511- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 1511- ● ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 1511- ● ●
242 SEAL 1-47159-186-0 04 1 1511- ● ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 1511- ● ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1511- ● ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1511- ● ●
298 GASKET 1-48259-231-0 02 1 1511- ● ●
300 SLEEVE 1-47629-247-1 04 1 1511- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1511- ● ●
310 EXPANDER 1-47601-087-0 02 1 1511- ● ●
311 BOOT; WEDGE 1-47649-042-0 02 1 1511- ● ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1511- ● ●
319 RING; DRIVE 1-47629-200-0 04 1 1511- ● ●
327 SPRING; ADJ 1-47629-196-0 04 1 1511- ● ●
328 CAGE; SPRING 1-47629-192-0 04 1 1511- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 1511- ● ●
334 SPRING; ROD 1-47649-041-0 02 1 1511- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 1511- ● ●
336 PLATE; PIVOT 1-47119-152-0 04 1 1511- ● ●
337 BOLT; PLATE 1-47119-153-0 04 1 1511- ● ●
348 CAP; EXPANDER 1-47649-044-0 02 1 1511- ● ●
çizim 502107
346 301 328 327 319 334 297 297 311 335 329 348 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date A B
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1511- ● ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1511- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1511- ● ●
311 BOOT; WEDGE 1-47649-042-0 02 1 1511- ● ●
319 RING; DRIVE 1-47629-200-0 04 1 1511- ● ●
327 SPRING; ADJ 1-47629-196-0 04 1 1511- ● ●
328 CAGE; SPRING 1-47629-192-0 04 1 1511- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 1511- ● ●
334 SPRING; ROD 1-47649-041-0 02 1 1511- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 1511- ● ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1511- ● ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1511- ● ●
348 CAP; EXPANDER 1-47649-044-0 02 1 1511- ● ●
