◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#169538) — 53 parça

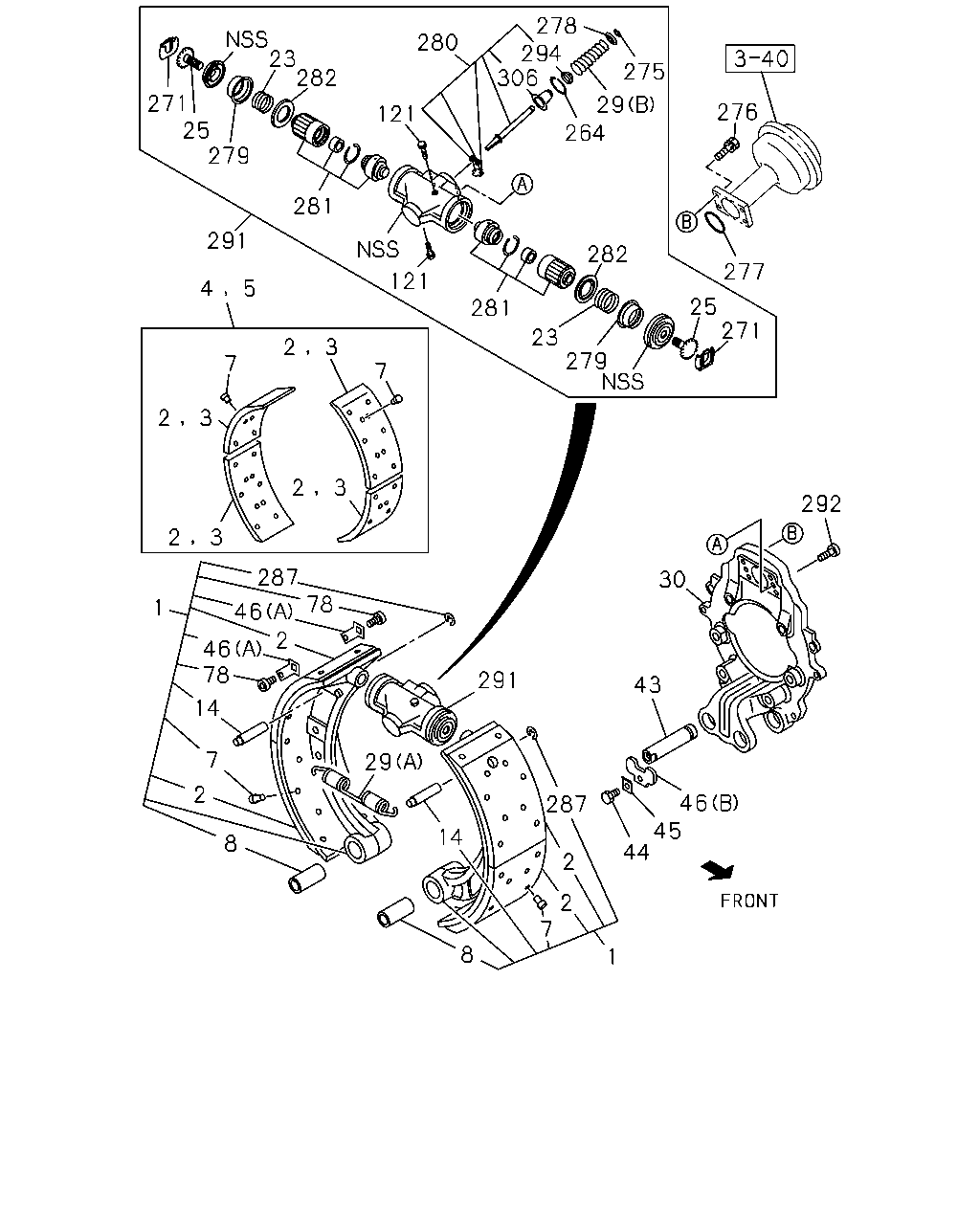

çizim 501673
276 277 271 25 282 264 29 275 278 294 306 280 121 282 23 271 279 25 281 121 23 281 279 292 30 43 46 45 44 2 2 287 291 29 14 7 8 1 8 2 14 7 1 287 78 46 46 78 3 2 7 3 2 7 3 2 3 2 5 4 291 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 1511- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1511- ● ●
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 1511- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 1511- ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1511- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1511- ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1511- ● ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1511- ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1511- ● ●
7 RIVET; LINING,FRT BRK
L=15.5 		1-09732-053-0 80 1 1511- ● ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1511- ● ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1511- ● ●
23 SPRING; COIL 1-47629-196-0 04 1 1511- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1511- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 02 1 1511- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1511- ● ●
30 BRACKET; ANCHOR,FRT 8-98091-252-0 02 1 1511- ● ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1511- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1511- ● ●
45 WASHER; LK 1-47133-011-0 02 1 1511- ● ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1511- ● ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1511- ● ●
78 BOLT; LK,PLATE 1-47119-153-0 04 1 1511- ● ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1511- ● ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1511- ● ●
271 CLIP; ADJ 1-47621-017-0 04 1 1511- ● ●
275 RING; RETAINER 1-47649-031-0 02 1 1511- ● ●
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 1511- ● ●
277 RING; CHAMBER 1-48259-231-0 02 1 1511- ● ●
278 RETAINER; SPRING 1-47649-020-0 02 1 1511- ● ●
279 CAGE; SPRING 1-47629-192-0 04 1 1511- ● ●
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1511- ● ●
281 SLEEVE 1-47629-247-1 04 1 1511- ● ●
282 RING; DRIVE 1-47629-200-0 04 1 1511- ● ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1511- ● ●
291 EXPANDER 1-47601-087-0 02 1 1511- ● ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1511- ● ●
294 BOOT; WEDGE 1-47649-042-0 02 1 1511- ● ●
306 CAP; EXPANDER 1-47649-044-0 02 1 1511- ● ●

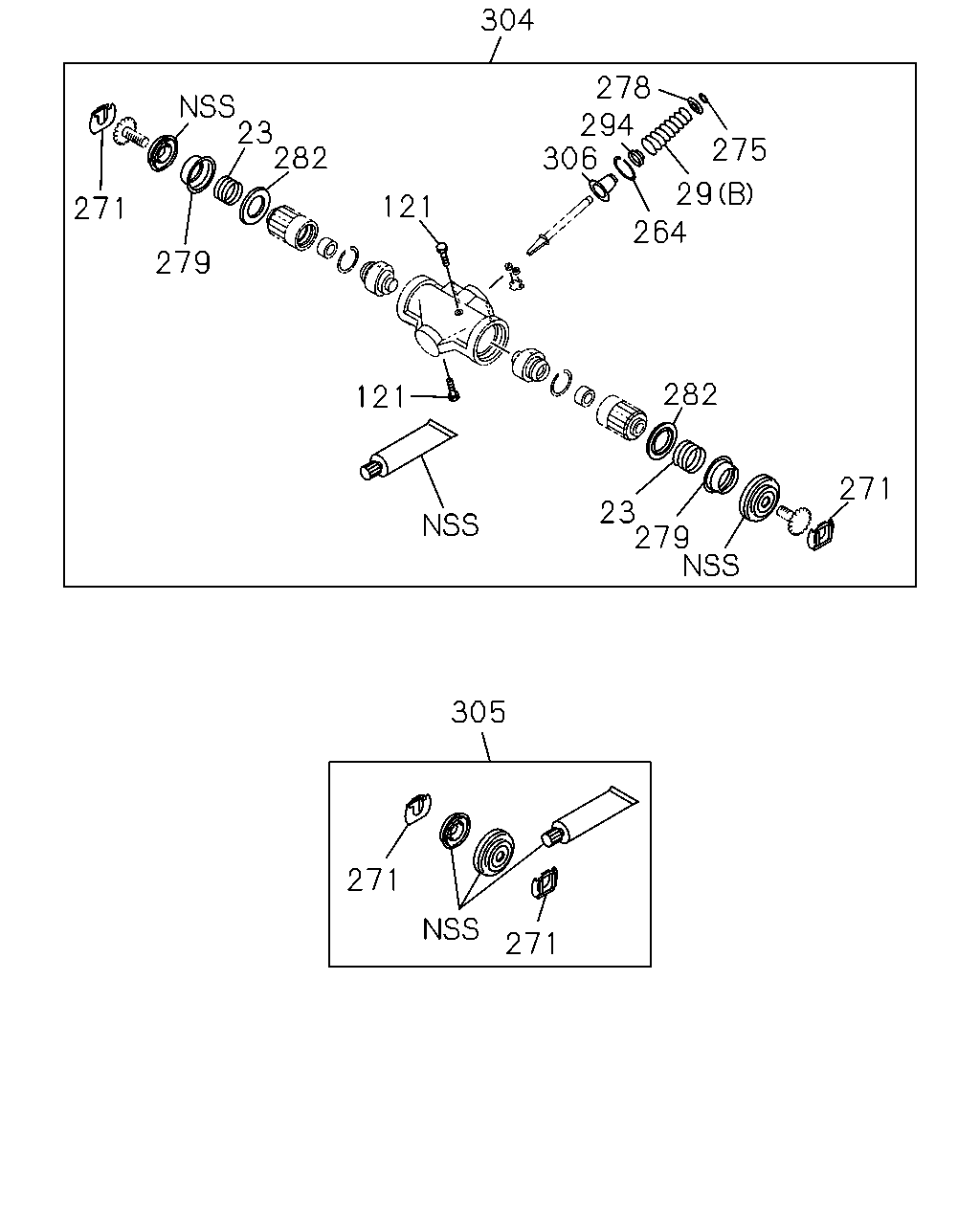

çizim 502159
304 278 275 294 29 306 264 282 271 279 23 121 121 282 23 279 271 305 271 271
BalonParca AdiParca NoAdetTipApplied Date A B
23 SPRING; COIL 1-47629-196-0 04 1 1511- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 02 1 1511- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1511- ● ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1511- ● ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1511- ● ●
271 CLIP; ADJ 1-47621-017-0 04 1 1511- ● ●
275 RING; RETAINER 1-47649-031-0 02 1 1511- ● ●
278 RETAINER; SPRING 1-47649-020-0 02 1 1511- ● ●
279 CAGE; SPRING 1-47629-192-0 04 1 1511- ● ●
282 RING; DRIVE 1-47629-200-0 04 1 1511- ● ●
294 BOOT; WEDGE 1-47649-042-0 02 1 1511- ● ●
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1511- ● ●
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1511- ● ●
306 CAP; EXPANDER 1-47649-044-0 02 1 1511- ● ●
