2-53 — TRANSMISSION OIL COOLER SYSTEM (#169533) — 111 parça

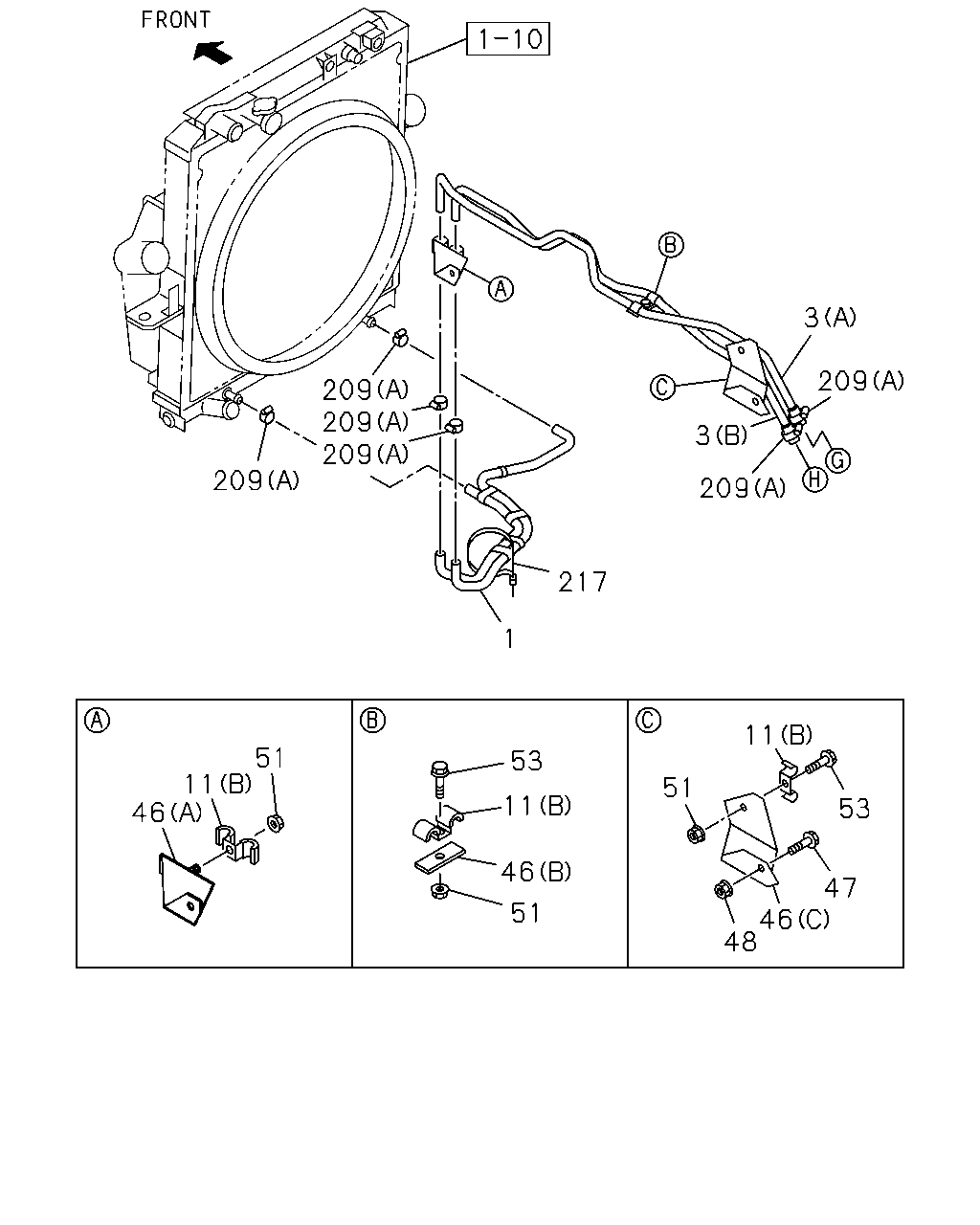

3 209 209 3 217 209 209 209 209 11 53 51 47 46 48 51 11 46 53 51 11 46 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-599-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98096-811-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98096-812-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98158-383-1	01	1	1511-	●	●
11	CLIP; PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1511-	●	●
11	CLIP; PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (A) ID=19 L=20	0-95235-836-0	03	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (B) ID=19 & 19	1-09701-324-0	02	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (B) ID=19 & 19	1-09701-324-0	02	1	1511-	●	●
46	BRACKET; OIL PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=50	1-47475-299-2	01	1	1511-	●	●
46	BRACKET; OIL PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-565-0	01	1	1511-	●	●
46	BRACKET; OIL PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98072-018-0	01	1	1511-	●	●
47	BOLT; BRKT TO FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
48	NUT; BRKT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
51	NUT; CLIP TO BRKT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	05	1	1511-	●	●
209	CLIP; HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-	●	●
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
217	CLIP; BAND,FLEX HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) L=350	1-09707-183-0	01	1	1511-	●	●

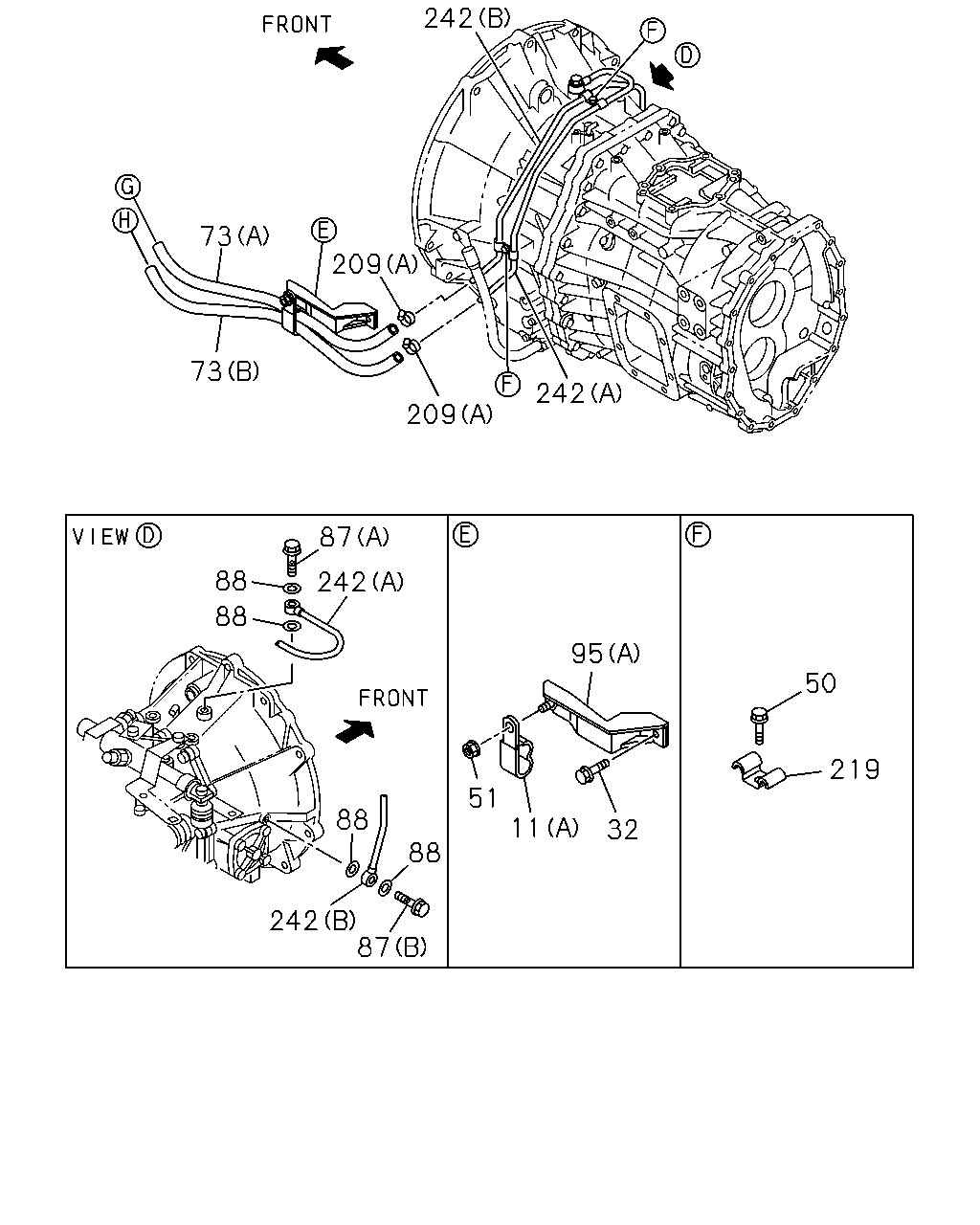

242 242 209 73 73 209 87 242 88 88 95 50 219 32 11 51 88 88 87 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1511-	●	●
11	CLIP; PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (A) ID=19 L=20	0-95235-836-0	03	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (B) ID=19 & 19	1-09701-324-0	02	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (B) ID=19 & 19	1-09701-324-0	02	1	1511-	●	●
32	BOLT; BRKT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X30 FLANGE	0-28650-830-0	03	1	1511-	●	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X30 FLANGE	0-28650-830-0	05	1	1511-	●	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
50	BOLT; CLIP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
51	NUT; CLIP TO BRKT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
73	HOSE; FLEX,TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98081-844-0	01	1	1511-	●	●
73	HOSE; FLEX,TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=500	8-98081-853-0	01	1	1511-	●	●
87	BOLT; EYE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1511-	●	●
87	BOLT; EYE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1511-	●	●
88	GASKET; EYE BOLT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1511-	●	●
95	BRACKET; CLIP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1511-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (B)	1-47479-255-0	03	1	1511-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (C)	8-98089-351-0	02	1	1511-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98269-434-0	01	1	1511-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (D)	8-98311-027-0	01	1	1511-	●	●
209	CLIP; HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-	●	●
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
219	CLIP; ATF PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98097-574-0	01	1	1511-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (D)	8-98113-105-0	01	1	1511-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98258-588-0	01	1	1511-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98269-615-0	01	1	1511-	●	●
242	PIPE; COOLER MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1511-	●	●
242	PIPE; COOLER MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1511-	●	●

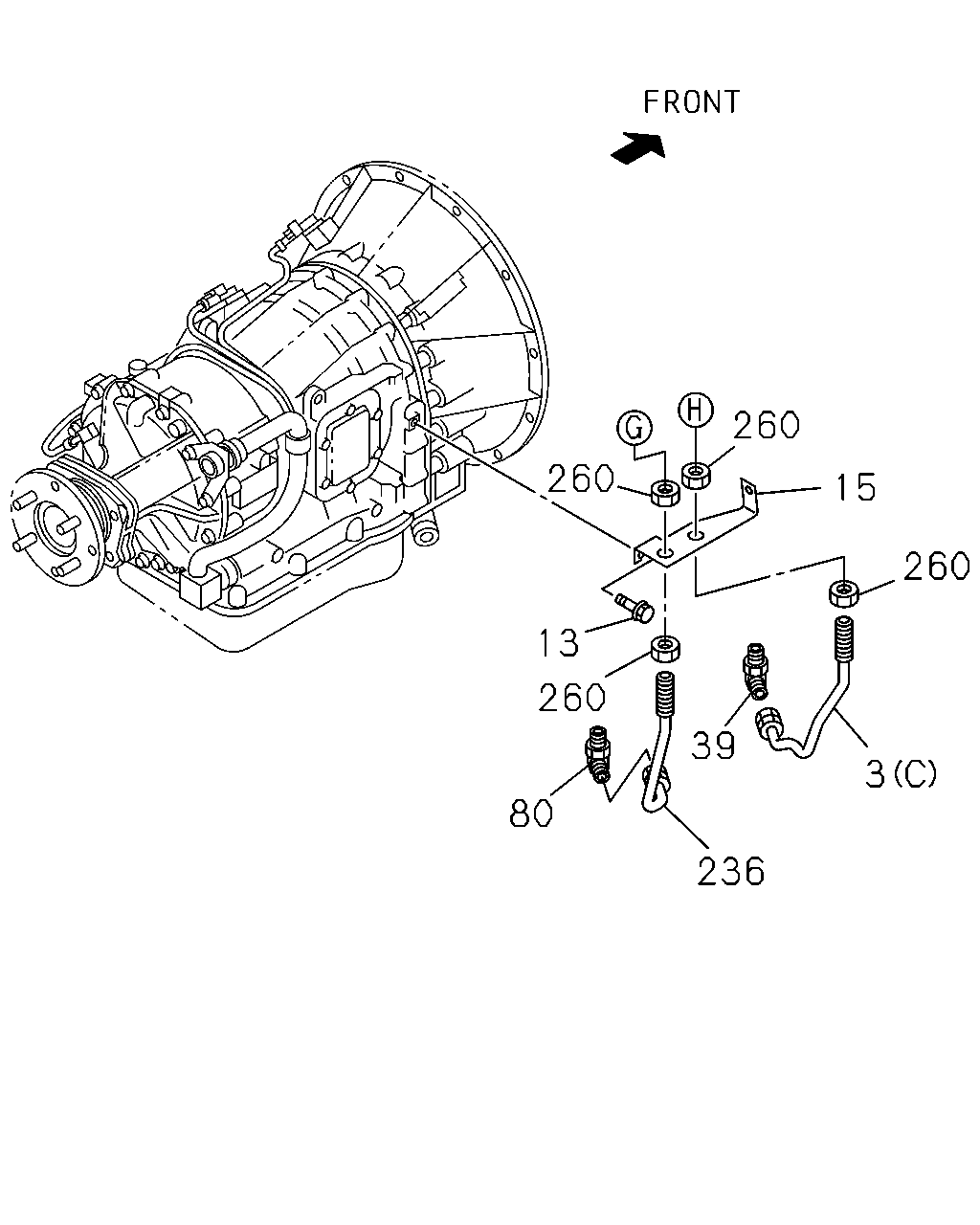

260 3 236 80 260 39 13 260 260 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98096-811-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98096-812-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98158-383-1	01	1	1511-	●	●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	8-98105-048-0	01	1	1511-	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W)	8-98075-836-0	01	1	1511-	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1511-	●	●
80	UNION; FLEX HOSE LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1511-	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W)	8-98158-384-1	01	1	1511-	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) M30	1-09400-166-0	04	1	1511-	●	●

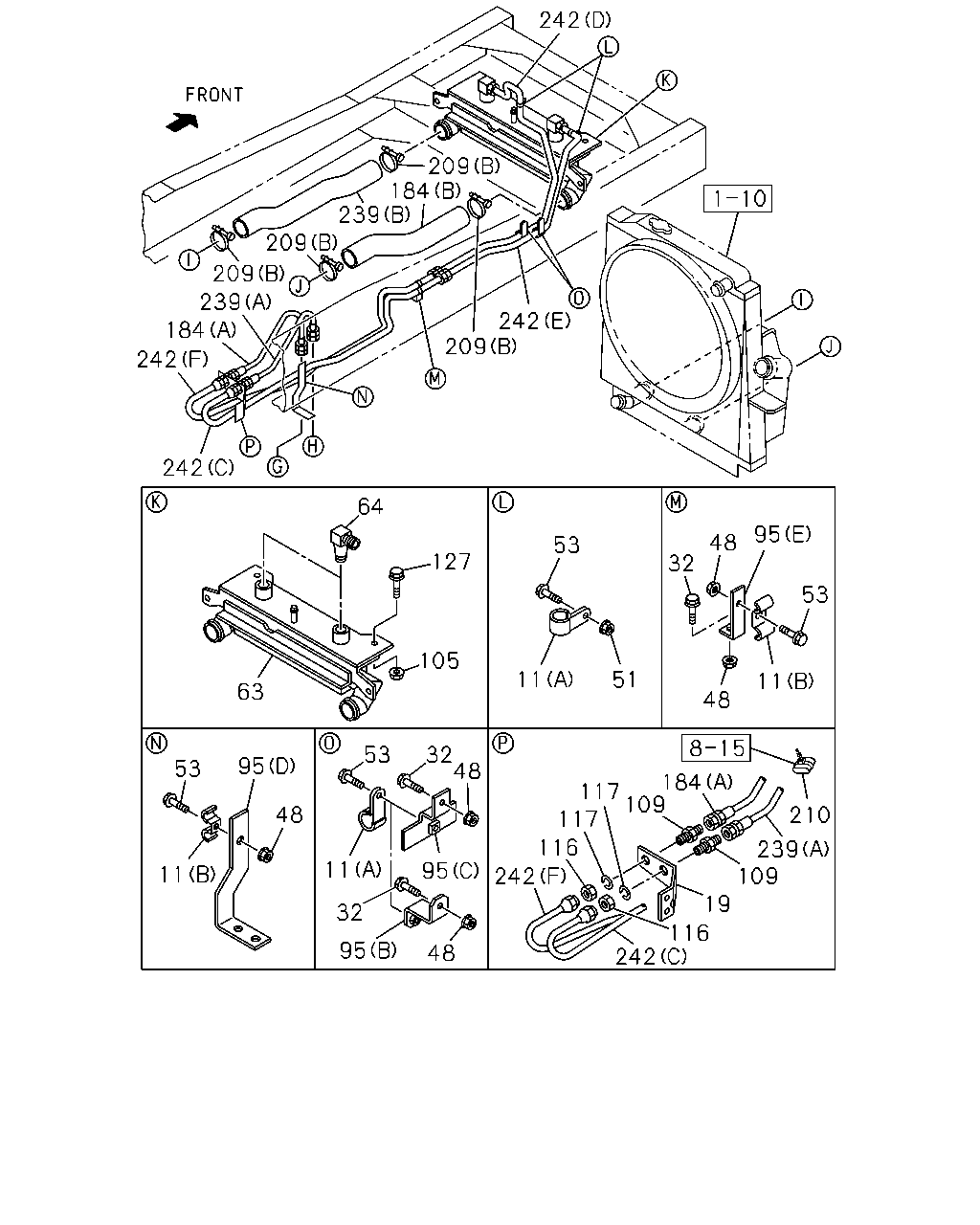

95 53 11 48 32 48 210 239 109 19 116 184 109 117 117 116 242 242 48 95 11 32 32 48 53 95 11 53 95 48 11 51 53 105 127 63 242 209 242 242 184 239 209 209 239 184 209 242 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1511-	●	●
11	CLIP; PIPE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (A) ID=19 L=20	0-95235-836-0	03	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (B) ID=19 & 19	1-09701-324-0	02	1	1511-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (B) ID=19 & 19	1-09701-324-0	02	1	1511-	●	●
19	BRACKET; FLEX HOSE LCT2500 A/T ALLISON(Y5W)	8-98330-419-0	01	1	1511-	●	●
32	BOLT; BRKT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X30 FLANGE	0-28650-830-0	03	1	1511-	●	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X30 FLANGE	0-28650-830-0	05	1	1511-	●	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
48	NUT; BRKT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
51	NUT; CLIP TO BRKT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	05	1	1511-	●	●
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98329-299-0	01	1	1511-	●	●
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98329-298-0	01	1	1511-	●	●
64	CONNECTOR; OIL COOLER LCT2500 A/T ALLISON(Y5W)	9-09903-722-0	02	1	1511-	●	●
95	BRACKET; CLIP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1511-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (B)	1-47479-255-0	03	1	1511-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (C)	8-98089-351-0	02	1	1511-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98269-434-0	01	1	1511-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (D)	8-98311-027-0	01	1	1511-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
109	UNION LCT2500 A/T ALLISON(Y5W) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1511-	●	●
116	NUT; BRKT,FLEX HOSE LCT2500 A/T ALLISON(Y5W) M30	9-09840-252-1	02	1	1511-	●	●
117	WASHER; LK,FLEX HOSE LCT2500 A/T ALLISON(Y5W) ID=30.5	9-09150-530-0	02	1	1511-	●	●
127	BOLT; COOLER FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D> M8X30 FLANGE	0-28650-830-0	04	1	1511-	●	●
127	BOLT; COOLER A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER LCT2500 A/T ALLISON(Y5W) (A)	8-98260-532-0	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER LCT2500 A/T ALLISON(Y5W) (B)	8-98295-929-0	01	1	1511-	●	●
209	CLIP; HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-	●	●
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
210	BAND; FLEX HOSE LCT2500 A/T ALLISON(Y5W) L=175	1-09707-178-0	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE LCT2500 A/T ALLISON(Y5W) (A)	8-98090-843-0	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE LCT2500 A/T ALLISON(Y5W) (B)	8-98295-928-0	01	1	1511-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98097-574-0	01	1	1511-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (D)	8-98113-105-0	01	1	1511-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98258-588-0	01	1	1511-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98269-615-0	01	1	1511-	●	●
242	PIPE; COOLER MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1511-	●	●
242	PIPE; COOLER MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1511-	●	●

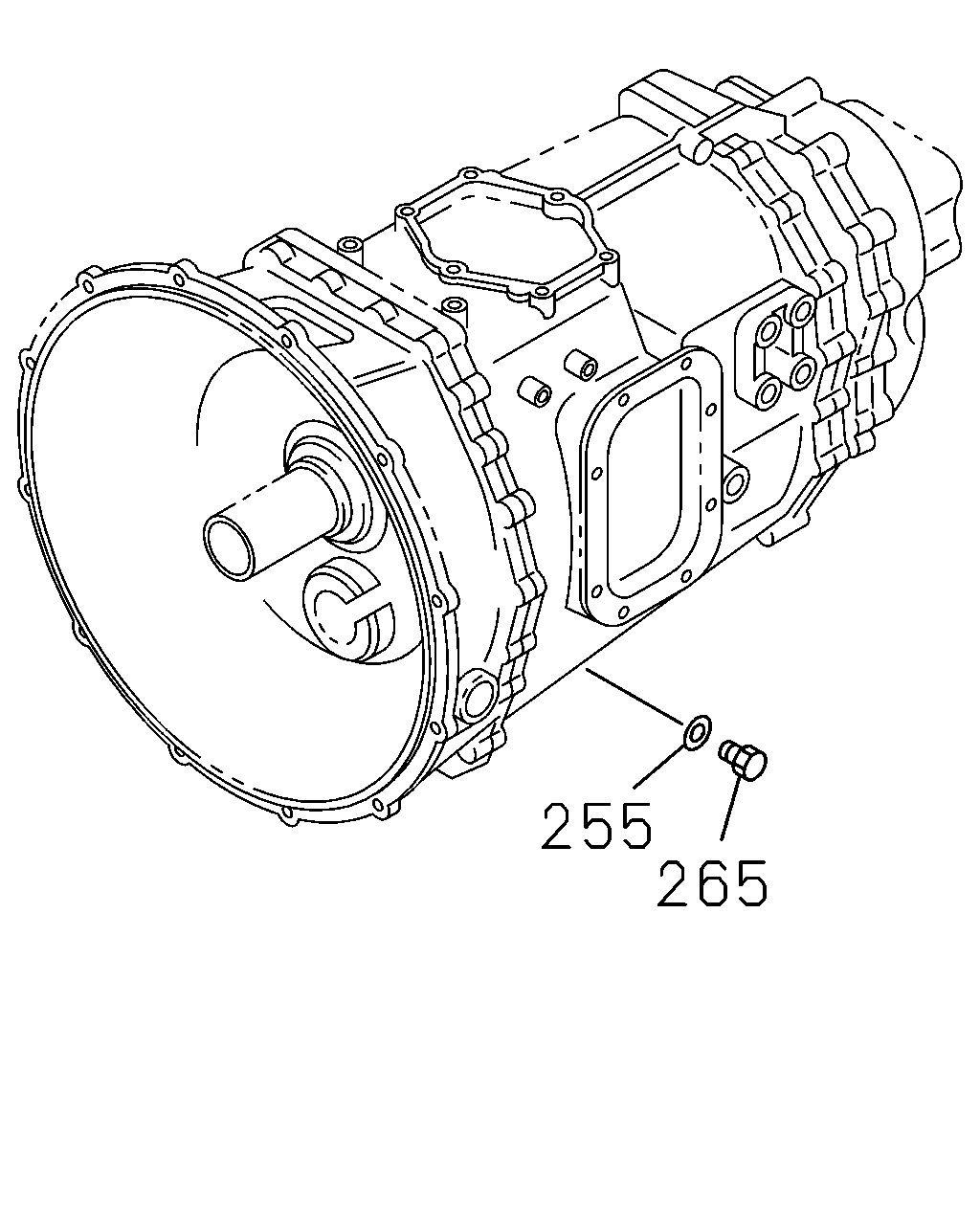

265 255

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1511-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1511-	●	●
