2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#169526) — 88 parça

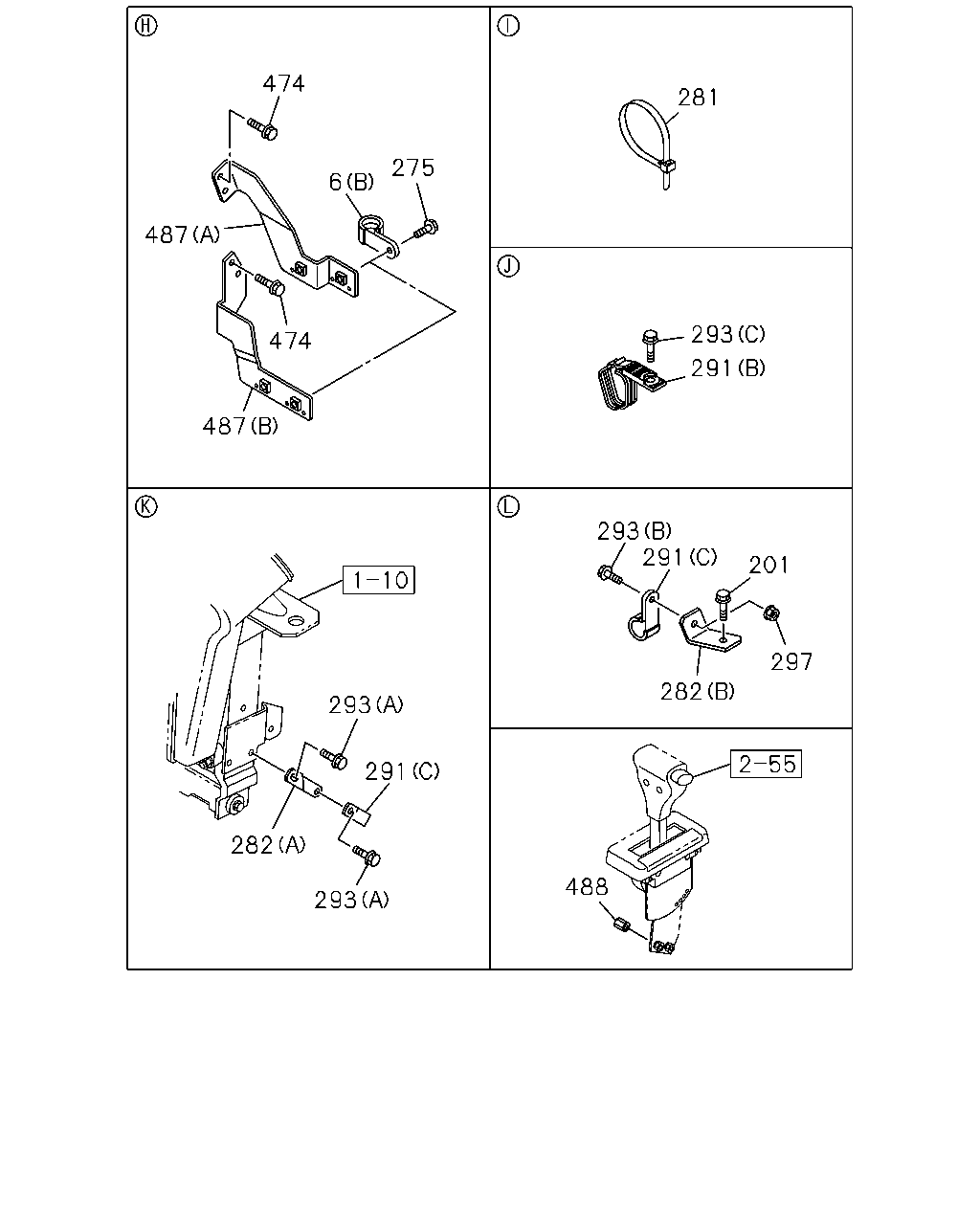

474 275 6 487 487 474 293 291 293 282 488 282 297 201 291 293 291 293 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE LCT2500 A/T ALLISON(Y5W) (B) ID=13 L=20	0-95235-236-0	01	1	1511-	●	●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1511-	●	●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
201	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
275	BOLT; CONT CABLE CLIP LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER	0-51640-825-0	01	1	1511-	●	●
281	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=300	1-09707-001-1	01	1	1511-	●	●
282	BRACKET; TRANS SIDE ASSISTOR SHIFT CONTROL<WX8> (A)	8-98010-418-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE ASSISTOR SHIFT CONTROL<WX8> (C)	8-98171-762-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE LCT2500 A/T ALLISON(Y5W) (B)	1-82699-199-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE LCT2500 A/T ALLISON(Y5W) (A)	8-98010-418-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (A) ID=11X2 L=16	0-95325-026-0	02	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (C) ID=11 L=24	0-95235-045-0	03	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
297	NUT; CLIP LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
297	NUT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
474	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER	0-51640-825-0	02	1	1511-	●	●
474	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	03	1	1511-	●	●
487	BRACKET; CONT CABLE ASSISTOR SHIFT CONTROL<WX8> (B)	8-98180-729-0	01	1	1511-	●
487	BRACKET; CONT CABLE LCT2500 A/T ALLISON(Y5W) (B)	8-98180-729-0	01	1	1511-	●
487	BRACKET; CONT CABLE ASSISTOR SHIFT CONTROL<WX8> (A)	8-98183-009-0	01	1	1511-		●
487	BRACKET; CONT CABLE EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98183-009-0	01	1	1511-		●
488	NUT; CABLE LCT2500 A/T ALLISON(Y5W)	5-09400-048-0	02	1	1511-	●	●

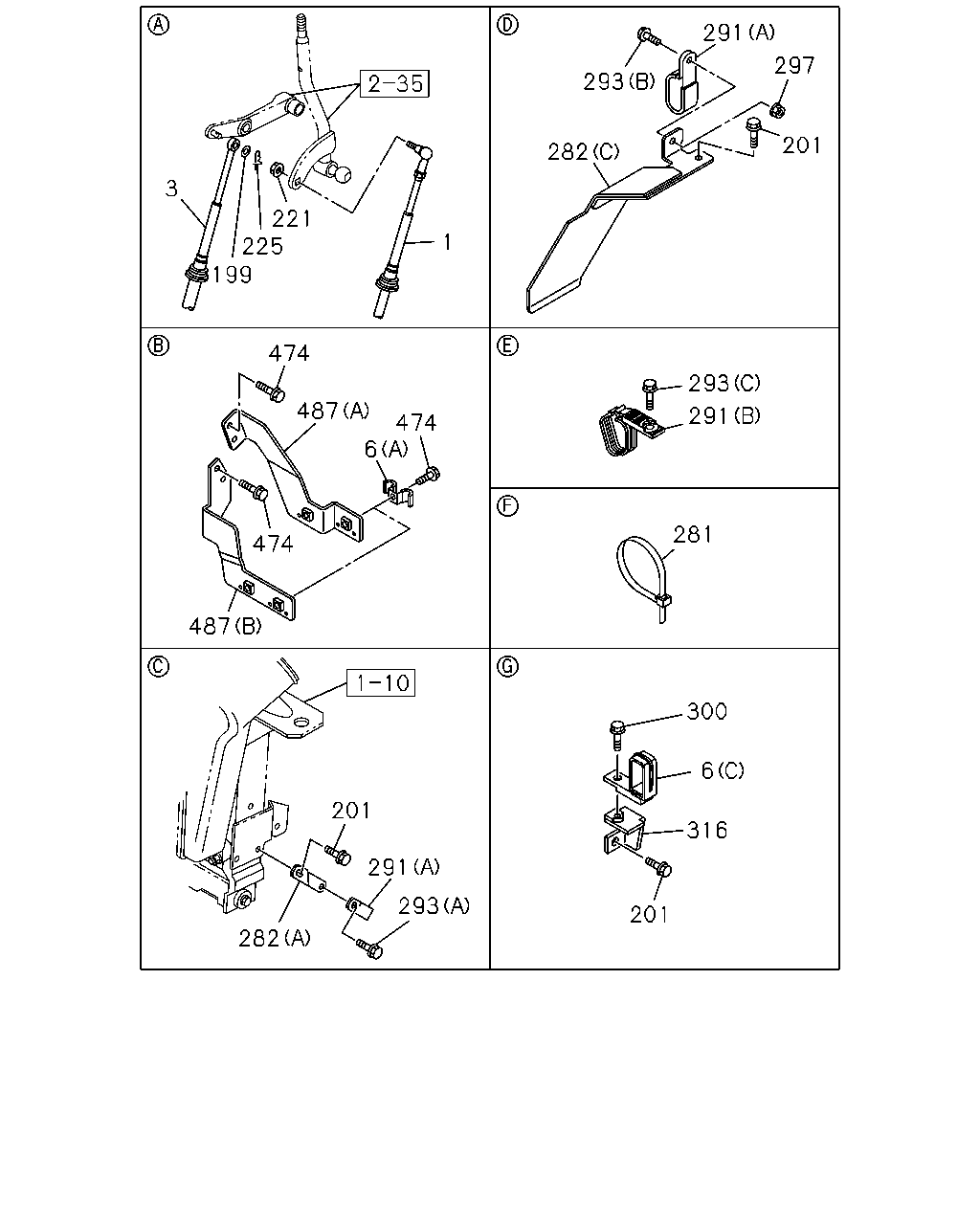

291 201 297 293 282 3 221 1 225 199 474 487 474 6 474 487 293 291 281 201 291 293 282 300 6 316 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550	8-98010-435-4	01	1	1511-	●
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485	8-98010-434-4	01	1	1511-		●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755	8-98010-475-2	01	1	1511-	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690	8-98010-474-2	01	1	1511-		●
6	CLIP; CABLE LCT2500 A/T ALLISON(Y5W) (B) ID=13 L=20	0-95235-236-0	01	1	1511-	●	●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1511-	●	●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
199	WASHER; PL,SELECT ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16	0-91614-508-0	01	1	1511-	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
201	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
221	NUT; SHIFT WIRE TO LEVER ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	1511-	●	●
225	PIN; SELECT CABLE ASSISTOR SHIFT CONTROL<WX8> L=27.7	8-94111-137-0	01	1	1511-	●	●
281	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=300	1-09707-001-1	01	1	1511-	●	●
282	BRACKET; TRANS SIDE ASSISTOR SHIFT CONTROL<WX8> (A)	8-98010-418-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE ASSISTOR SHIFT CONTROL<WX8> (C)	8-98171-762-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE LCT2500 A/T ALLISON(Y5W) (B)	1-82699-199-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE LCT2500 A/T ALLISON(Y5W) (A)	8-98010-418-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (A) ID=11X2 L=16	0-95325-026-0	02	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (C) ID=11 L=24	0-95235-045-0	03	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
297	NUT; CLIP LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
297	NUT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
300	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
316	BRACKET; CLIP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98073-017-1	01	1	1511-	●	●
474	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER	0-51640-825-0	02	1	1511-	●	●
474	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	03	1	1511-	●	●
487	BRACKET; CONT CABLE ASSISTOR SHIFT CONTROL<WX8> (B)	8-98180-729-0	01	1	1511-	●
487	BRACKET; CONT CABLE LCT2500 A/T ALLISON(Y5W) (B)	8-98180-729-0	01	1	1511-	●
487	BRACKET; CONT CABLE ASSISTOR SHIFT CONTROL<WX8> (A)	8-98183-009-0	01	1	1511-		●
487	BRACKET; CONT CABLE EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98183-009-0	01	1	1511-		●

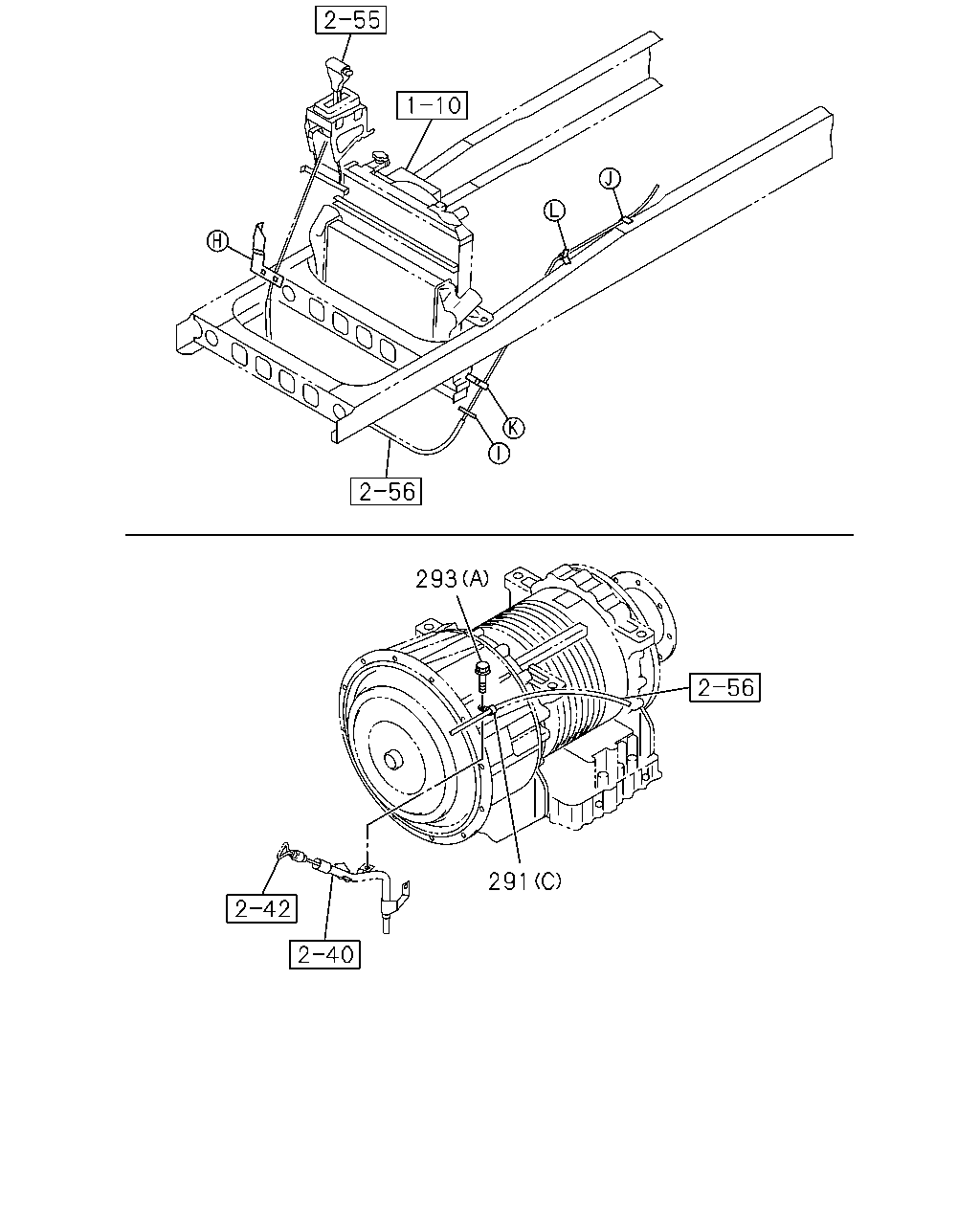

291 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (A) ID=11X2 L=16	0-95325-026-0	02	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (C) ID=11 L=24	0-95235-045-0	03	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●

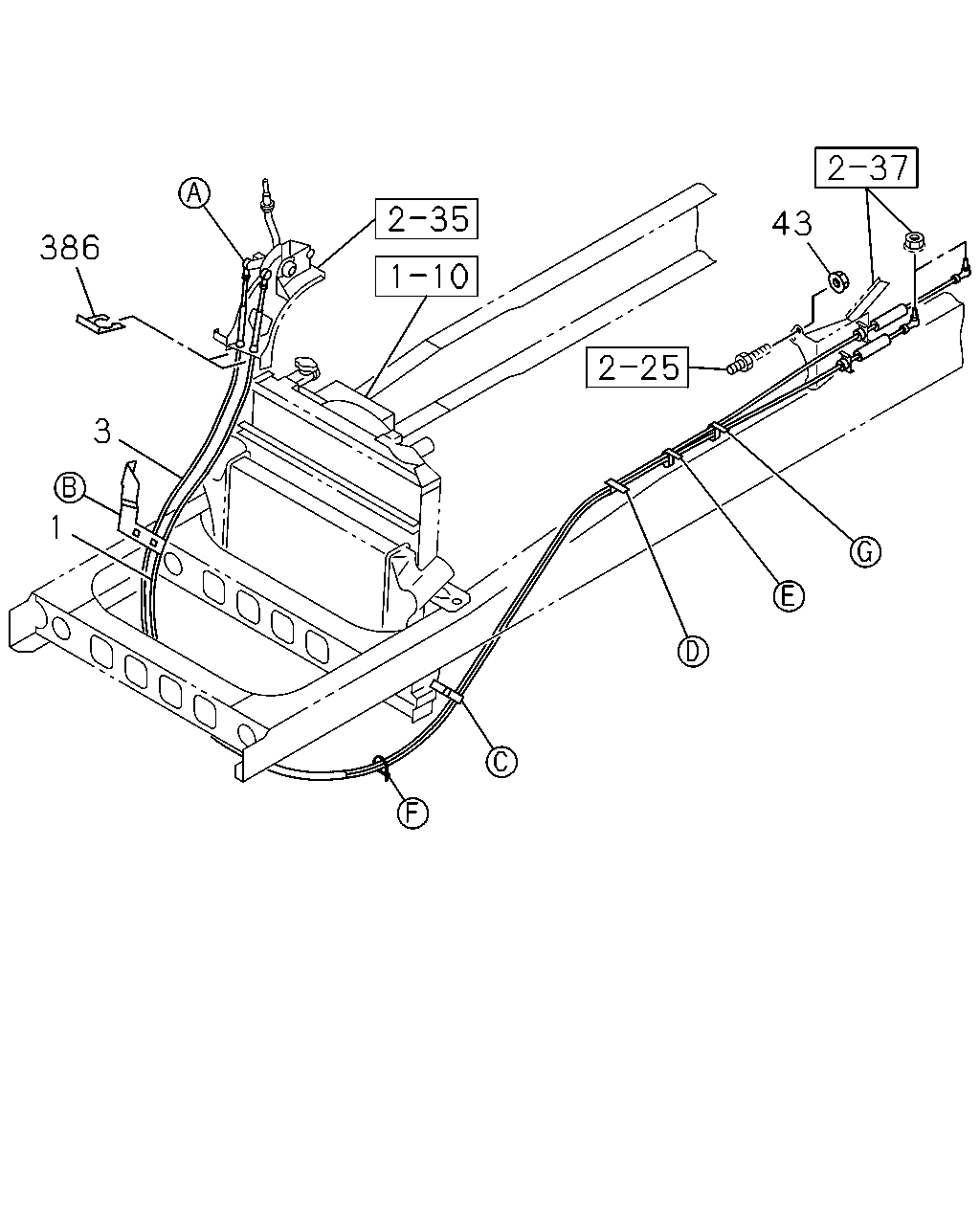

43 386 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550	8-98010-435-4	01	1	1511-	●
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485	8-98010-434-4	01	1	1511-		●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755	8-98010-475-2	01	1	1511-	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690	8-98010-474-2	01	1	1511-		●
43	NUT; BRKT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
386	CLIP; CONT CABLE & TUBE ASSISTOR SHIFT CONTROL<WX8>	1-09700-966-1	02	1	1511-	●	●
