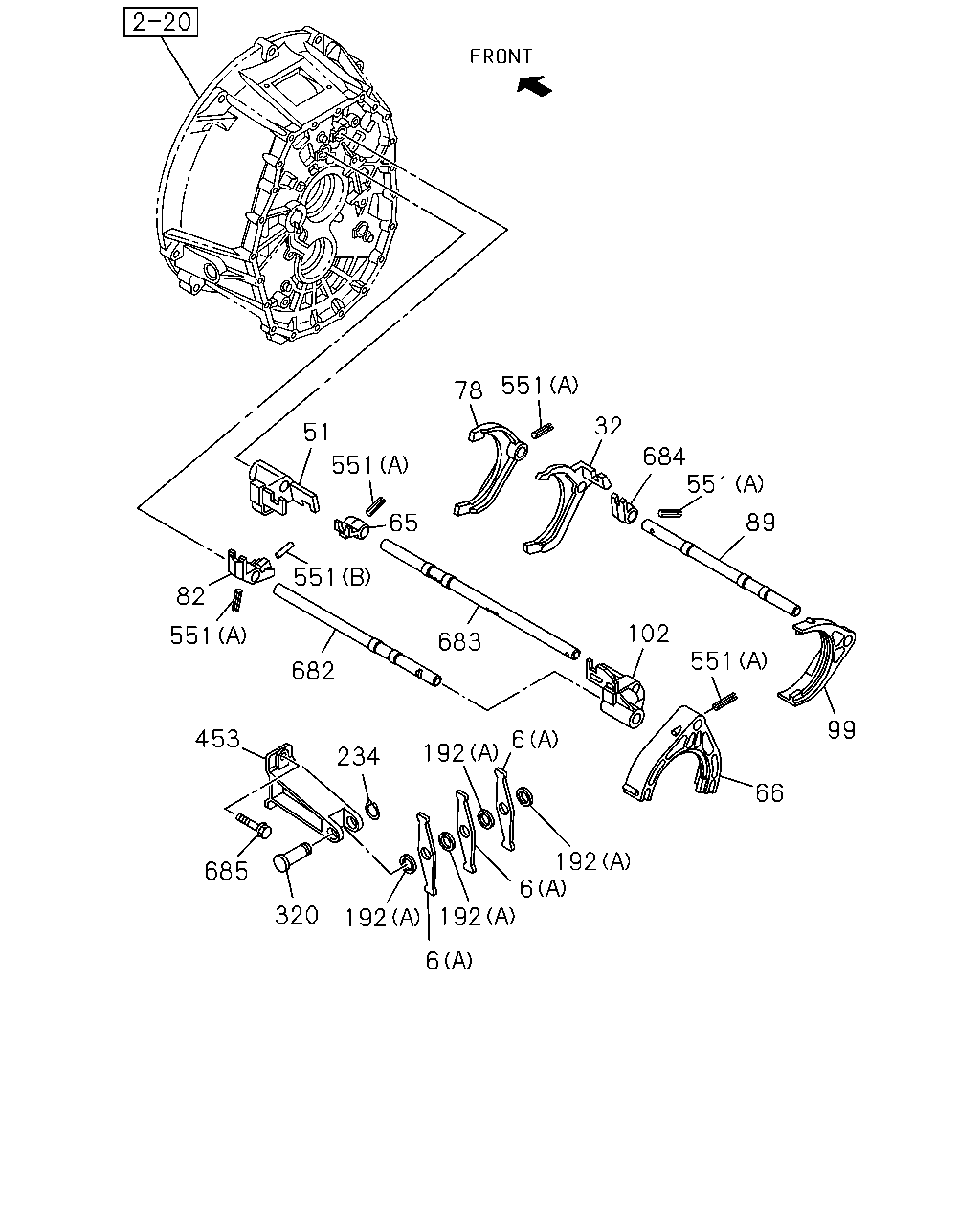

2-30A — GEAR SHIFTER AND QUADRANT BOX (#169524) — 167 parça

78 551 684 32 551 89 99 102 551 66 6 683 192 192 6 192 6 192 320 685 234 682 551 551 51 65 82 551 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1511-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1511-
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	1511-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1511-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1511-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1511-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1511-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1511-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1511-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1511-
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1511-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1511-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1511-
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	1511-
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	1511-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1511-
320	SHAFT; LEVER	8-97377-928-0	01	1	1511-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1511-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1511-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1511-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	1511-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1511-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1511-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1511-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1511-

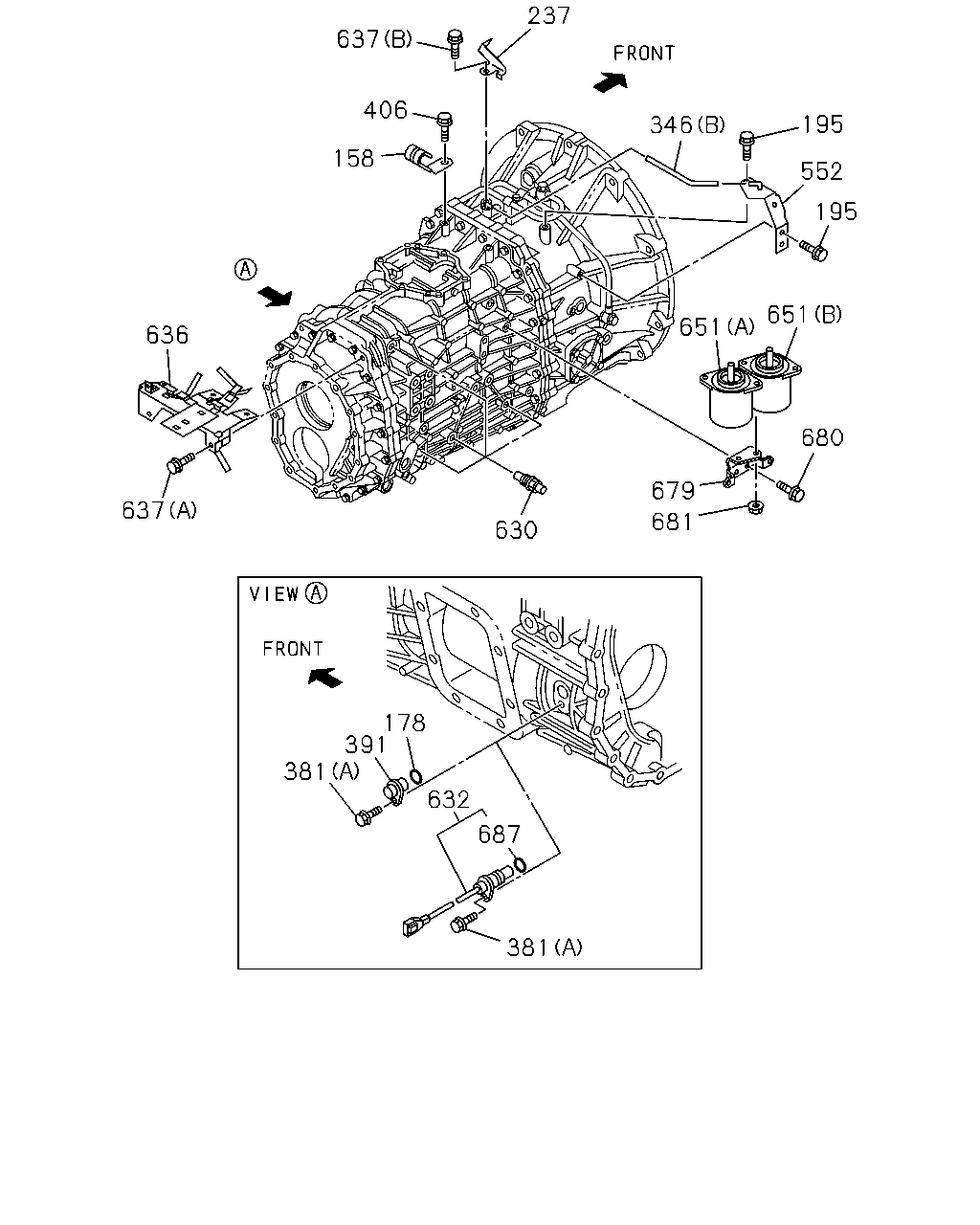

346 237 195 552 195 651 680 651 679 681 630 381 178 391 632 687 381 637 636 158 406 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1511-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	9-09567-113-0	01	1	1511-
195	BOLT EXC. 15" CLUTCH(RE9) M8X20 FLANGE	0-28650-820-0	02	1	1511-
237	BRACKET; CABLE,TRANS EXC. 15" CLUTCH(RE9)	8-98009-307-1	01	1	1511-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1511-
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	1511-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	1-33739-842-0	04	1	1511-
391	PLUG; SW HOLE 15" CLUTCH(RE9)	8-97300-273-1	01	1	1511-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1511-
552	BRACKET EXC. 15" CLUTCH(RE9)	8-98005-329-1	01	1	1511-
630	DETENT ASM	8-98019-536-0	04	1	1511-
632	SENSOR; TRANS,REV EXC. 15" CLUTCH(RE9)	8-97315-604-1	01	1	1511-
636	BRACKET; CLIP	8-97610-096-2	01	1	1511-
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-
637	BOLT; BRACKET EXC. 15" CLUTCH(RE9) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (A)	8-98048-497-1	01	1	1511-
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (B)	8-98048-498-1	01	1	1511-
679	BRACKET; HEAT PROTECTOR EXC. 15" CLUTCH(RE9)	8-98005-332-0	01	1	1511-
680	BOLT; FLANGE EXC. 15" CLUTCH(RE9) M10X20 FLANGE	0-28761-020-0	02	1	1511-
681	NUT; FLANGE EXC. 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	02	1	1511-
687	GASKET; SENSOR EXC. 15" CLUTCH(RE9)	9-09567-113-0	01	1	1511-

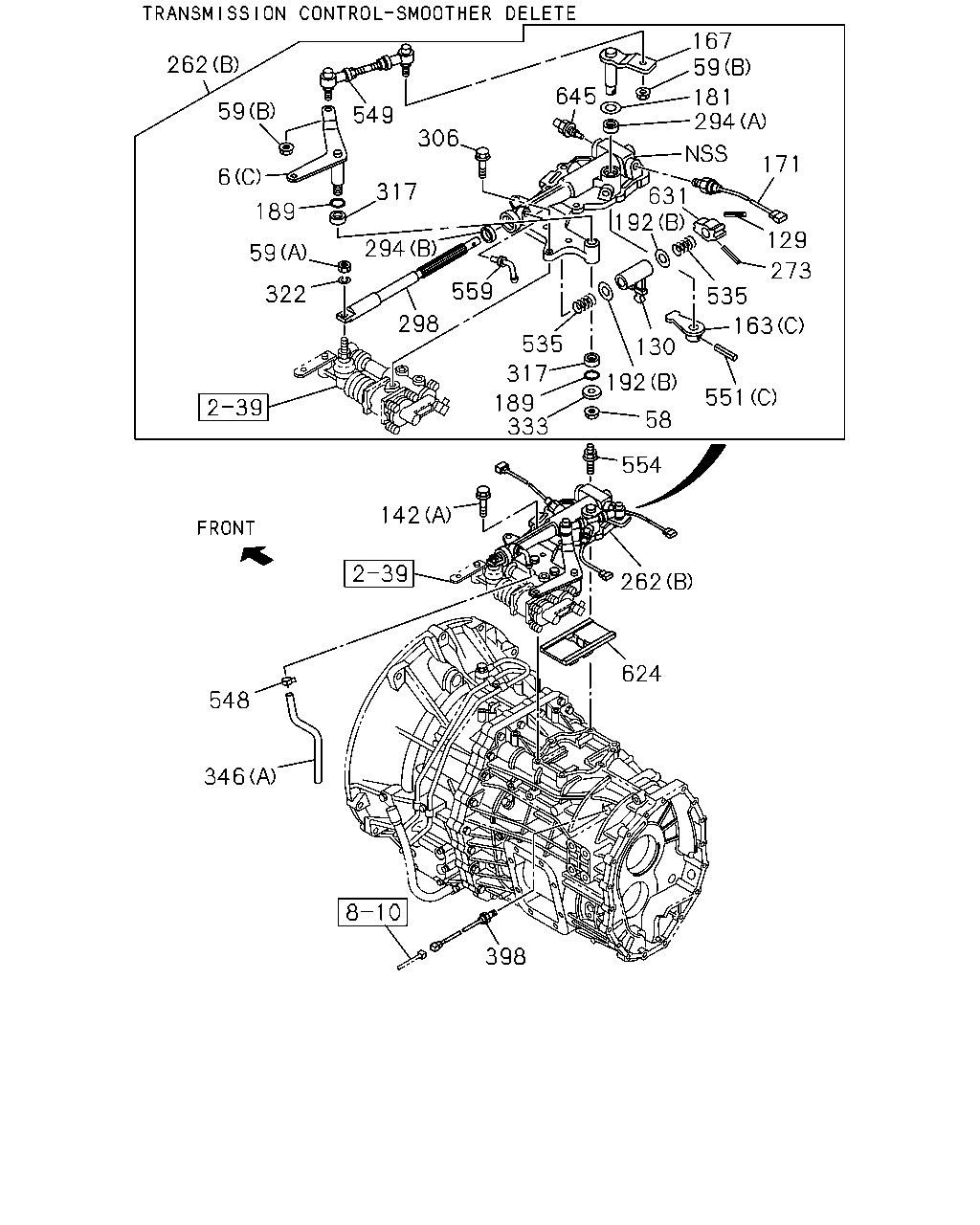

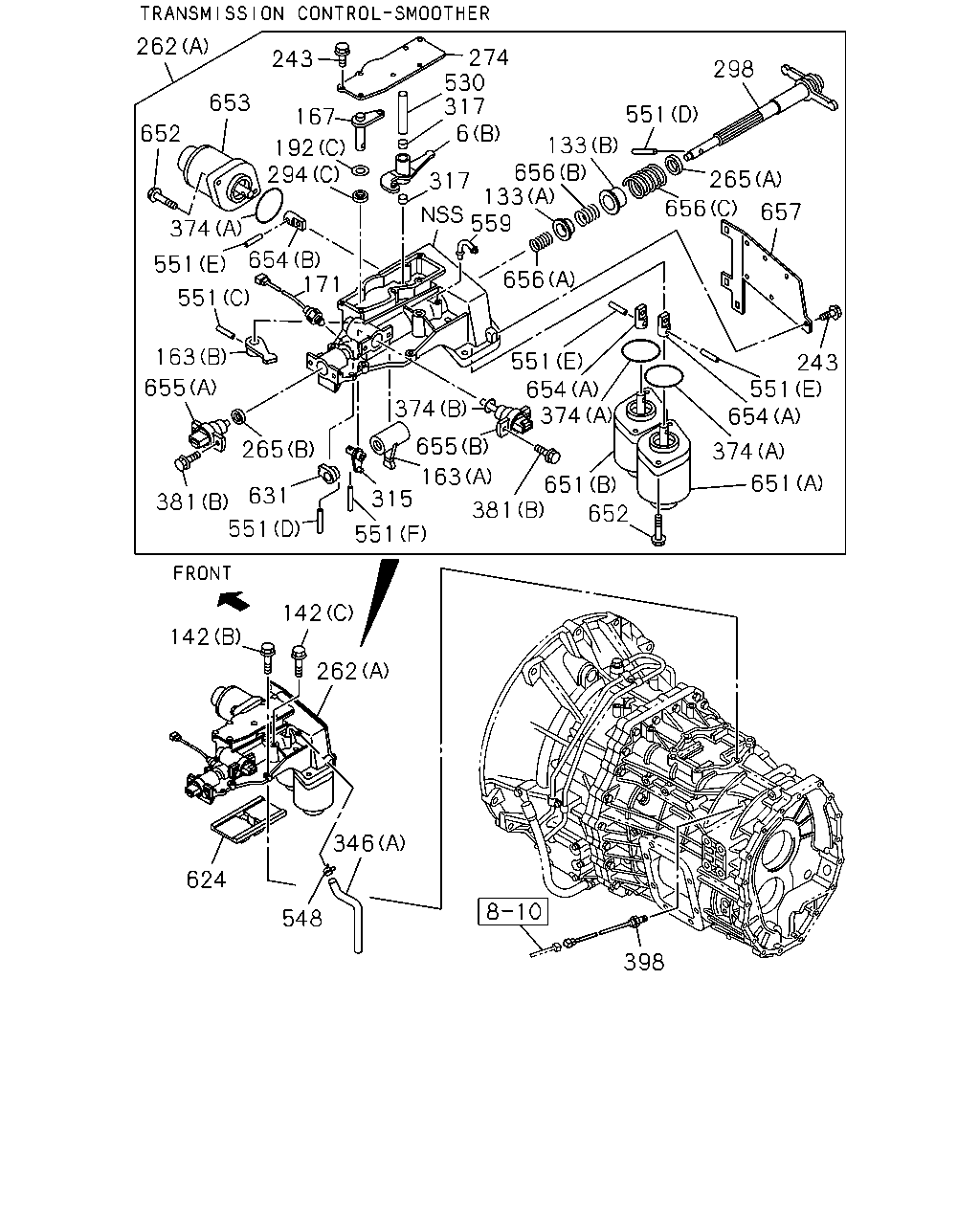

262 243 653 652 167 192 294 374 551 654 551 163 655 171 265 631 381 551 274 530 317 6 317 559 133 656 133 551 298 265 656 657 243 551 654 651 374 652 381 651 163 315 551 655 374 374 654 551 398 548 346 624 262 142 142 656

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1511-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1511-
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	1511-
133	SEAT; SPR EXC. 15" CLUTCH(RE9) (A)	8-97379-988-0	01	1	1511-
133	SEAT; SPR EXC. 15" CLUTCH(RE9) (B)	8-97379-989-0	01	1	1511-
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	1511-
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	1511-
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	1511-
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	1511-
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	1511-
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	1511-
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1511-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1511-
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	1511-
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	1511-
243	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X12 FLANGE	1-33739-842-0	11	1	1511-
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98331-686-0	01	1	1511-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98305-335-1	01	1	1511-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97363-225-0	01	1	1511-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97379-981-0	01	1	1511-
274	COVER; SHAFT,QUAD BOX EXC. 15" CLUTCH(RE9)	8-98020-711-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	1511-
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9)	8-98305-342-0	01	1	1511-
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	1511-
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-98296-526-0	01	1	1511-
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	1511-
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	1511-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1511-
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	1511-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97349-571-0	03	1	1511-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97349-573-0	01	1	1511-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	1-33739-842-0	04	1	1511-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1511-
530	SHAFT; SELECT EXC. 15" CLUTCH(RE9)	8-97379-996-0	01	1	1511-
548	CLIP; HOSE	8-97031-674-0	01	1	1511-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1511-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1511-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	1511-
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1511-
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	1511-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1511-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1511-
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	1511-
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (A)	8-98048-497-1	01	1	1511-
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (B)	8-98048-498-1	01	1	1511-
652	BOLT; SORENOID EXC. 15" CLUTCH(RE9) M10X25 FLANGE	0-28151-025-0	06	1	1511-
653	SOLENOID ASM; SELECT EXC. 15" CLUTCH(RE9)	8-98002-761-0	01	1	1511-
654	JOINT; SOLENOID,CASE EXC. 15" CLUTCH(RE9) (A)	8-97349-473-0	02	1	1511-
654	JOINT; SOLENOID,CASE EXC. 15" CLUTCH(RE9) (B)	8-97380-419-0	01	1	1511-
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (A)	8-98107-823-0	01	1	1511-
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (B)	8-98107-824-0	01	1	1511-
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (A)	8-97379-985-0	01	1	1511-
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (B)	8-97379-986-0	01	1	1511-
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (C)	8-97379-987-0	01	1	1511-
657	PLATE; SIDE EXC. 15" CLUTCH(RE9)	8-98020-712-0	01	1	1511-

262 59 6 59 322 317 306 549 294 298 559 645 167 59 181 294 171 129 273 535 163 130 192 551 58 554 333 189 317 535 192 631 262 624 398 346 548 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1511-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1511-
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	1511-
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	1511-
59	NUT 15" CLUTCH(RE9) (A) M12	0-91110-512-0	01	1	1511-
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	1511-
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	1511-
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9)	8-97306-647-0	01	1	1511-
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	1511-
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	1511-
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	1511-
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	1511-
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	1511-
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	1511-
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1511-
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	1511-
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	1511-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1511-
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	1511-
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	1511-
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98331-686-0	01	1	1511-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98305-335-1	01	1	1511-
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	1511-
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9)	8-98305-342-0	01	1	1511-
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	1511-
306	BOLT; SHIFT ASSISTOR 15" CLUTCH(RE9) M10X50 FLANGE	0-28051-050-0	03	1	1511-
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	1511-
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	1511-
322	WASHER; LK 15" CLUTCH(RE9)	8-98031-750-0	01	1	1511-
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	1511-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1511-
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	1511-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1511-
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	1511-
548	CLIP; HOSE	8-97031-674-0	01	1	1511-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1511-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1511-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1511-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	1511-
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	1511-
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	1511-
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1511-
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	1511-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1511-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1511-
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	1511-
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	1511-
