◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26A - MANUAL TRANSMISSION GEAR ▶
2-26A — MANUAL TRANSMISSION GEAR (#169523) — 116 parça

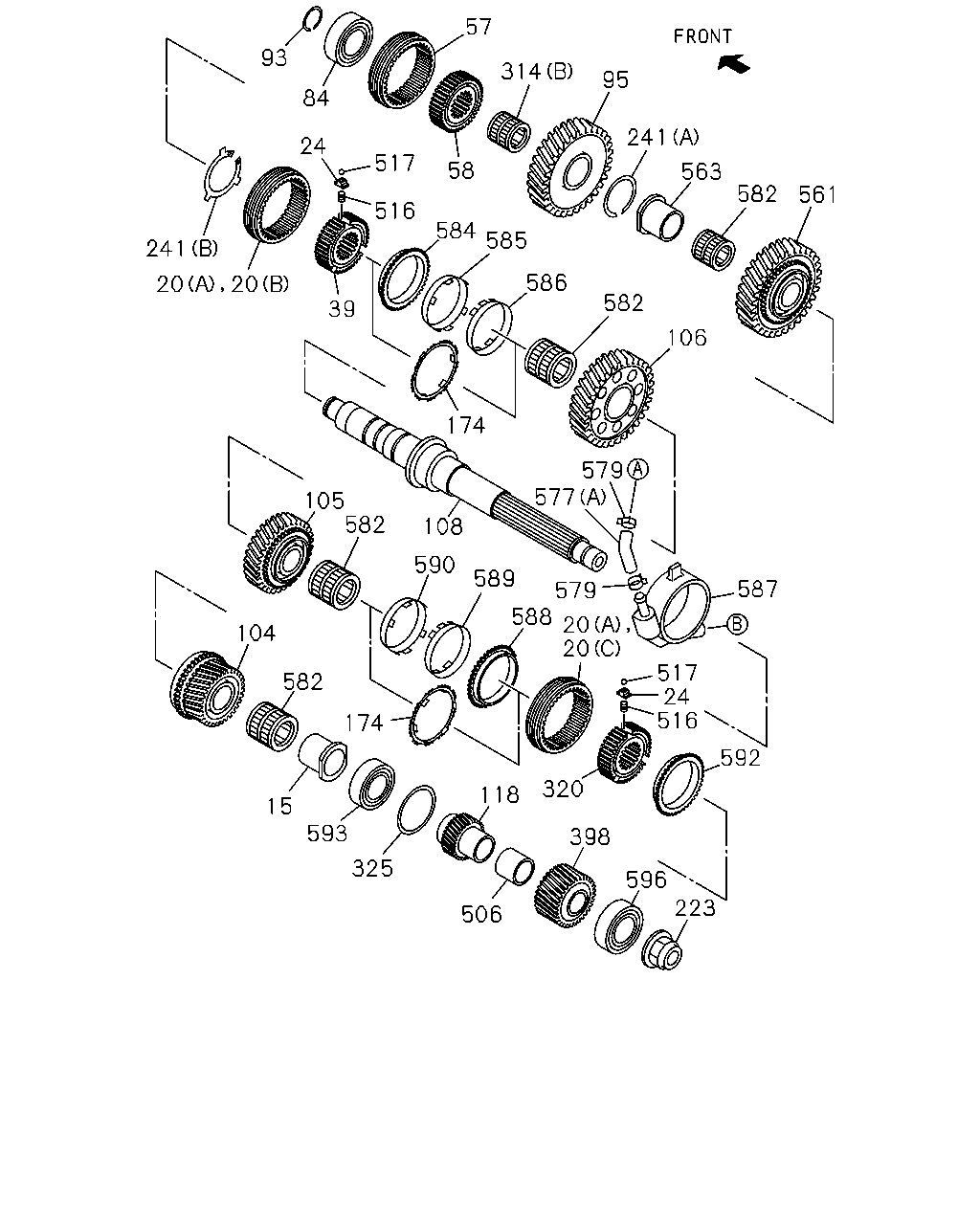

çizim 501599
223 596 398 320 118 506 174 325 593 15 582 104 582 105 108 590 589 588 20 20 579 517 24 516 592 587 579 577 174 39 516 517 24 84 93 58 585 584 20 20 241 586 106 582 582 561 563 241 95 314 57
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1511-
20 SLEEVE
15" CLUTCH(RE9) (A) Z=45 		8-98258-279-0 03 1 1511-
20 SLEEVE
EXC. 15" CLUTCH(RE9) (B) Z=45 		8-98034-769-0 01 1 1511-
20 SLEEVE
EXC. 15" CLUTCH(RE9) (C) Z=45 		8-98258-279-0 02 1 1511-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1511-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1511-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1511-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1511-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1511-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1511-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1511-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1511-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1511-
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1511-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1511-
174 SYNCHRONIZER ASM; 2ND-3RD
15" CLUTCH(RE9) 		8-98315-823-2 02 1 1511-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1511-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1511-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1511-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1511-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1511-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1511-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1511-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1511-
516 SPRING; SYNCHRO,INDEX
15" CLUTCH(RE9) 		8-98032-197-0 09 1 1511-
516 SPRING; SYNCHRO,INDEX
EXC. 15" CLUTCH(RE9) 		8-98054-981-0 09 1 1511-
517 BALL; SYNCHRO,INDEX
15" CLUTCH(RE9) 		8-97252-935-0 09 1 1511-
517 BALL; SYNCHRO,INDEX
EXC. 15" CLUTCH(RE9) 		8-97252-935-0 10 1 1511-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1511-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1511-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1511-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1511-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1511-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1511-
584 RING; BLOCK,2ND
EXC. 15" CLUTCH(RE9) Z=45 		8-98034-770-0 01 1 1511-
585 RING; OUTSIDE,2ND
EXC. 15" CLUTCH(RE9) 		8-97241-309-1 01 1 1511-
586 RING; INSIDE,2ND
EXC. 15" CLUTCH(RE9) 		8-97241-312-1 01 1 1511-
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1511-
588 RING; BLOCK,3RD
EXC. 15" CLUTCH(RE9) Z=45 		8-97241-306-1 01 1 1511-
589 RING; OUTSIDE,3RD
EXC. 15" CLUTCH(RE9) 		8-97241-309-1 01 1 1511-
590 RING; INSIDE,3RD
EXC. 15" CLUTCH(RE9) 		8-97241-312-1 01 1 1511-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1511-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1511-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1511-

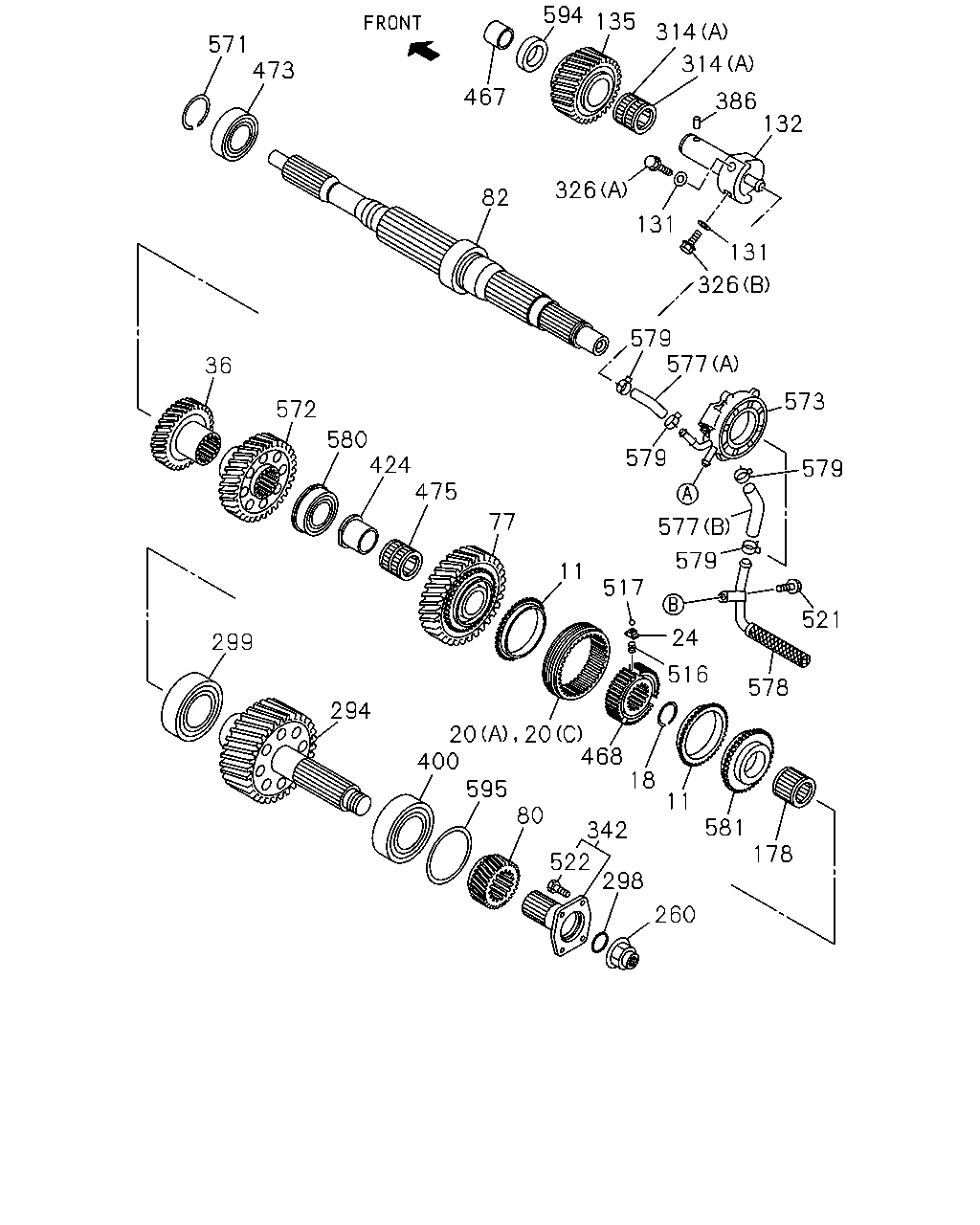

çizim 501640
571 473 594 135 314 314 386 132 467 326 82 131 131 326 579 577 573 579 579 577 579 521 36 572 580 424 475 77 11 517 24 516 578 299 294 20 20 468 18 11 581 178 400 595 80 342 298 522 260
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1511-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1511-
20 SLEEVE
15" CLUTCH(RE9) (A) Z=45 		8-98258-279-0 03 1 1511-
20 SLEEVE
EXC. 15" CLUTCH(RE9) (B) Z=45 		8-98034-769-0 01 1 1511-
20 SLEEVE
EXC. 15" CLUTCH(RE9) (C) Z=45 		8-98258-279-0 02 1 1511-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1511-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1511-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1511-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1511-
82 SHAFT; MAIN,TRANS
EXC. 15" CLUTCH(RE9) Z=14-13-21-19-26 		8-98292-396-0 01 1 1511-
82 SHAFT; MAIN,TRANS
15" CLUTCH(RE9) Z=13-21-19-26 		8-98245-057-0 01 1 1511-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1511-
132 SHAFT; REV 8-98009-372-0 01 1 1511-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1511-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1511-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1511-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1511-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1511-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1511-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1511-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1511-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1511-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1511-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1511-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1511-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1511-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1511-
467 COLLAR; SHAFT
EXC. 15" CLUTCH(RE9) 		8-97255-183-1 01 1 1511-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1511-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1511-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1511-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1511-
516 SPRING; SYNCHRO,INDEX
15" CLUTCH(RE9) 		8-98032-197-0 09 1 1511-
516 SPRING; SYNCHRO,INDEX
EXC. 15" CLUTCH(RE9) 		8-98054-981-0 09 1 1511-
517 BALL; SYNCHRO,INDEX
15" CLUTCH(RE9) 		8-97252-935-0 09 1 1511-
517 BALL; SYNCHRO,INDEX
EXC. 15" CLUTCH(RE9) 		8-97252-935-0 10 1 1511-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1511-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1511-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1511-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1511-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1511-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1511-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1511-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1511-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1511-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1511-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1511-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1511-
