2-20A — MANUAL TRANSMISSION ASM AND CASE (#169520) — 85 parça

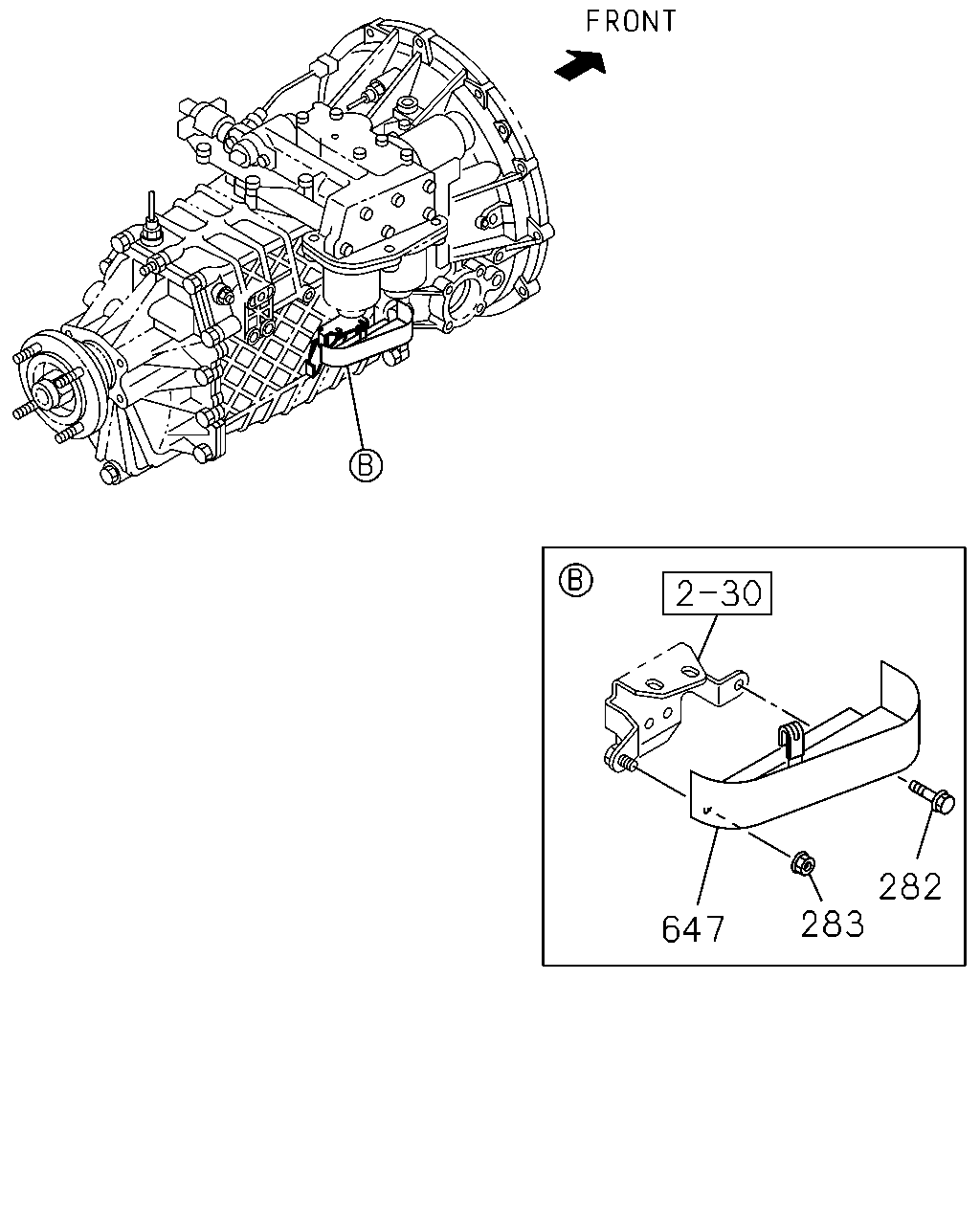

647 283 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1511-
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1511-
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1511-

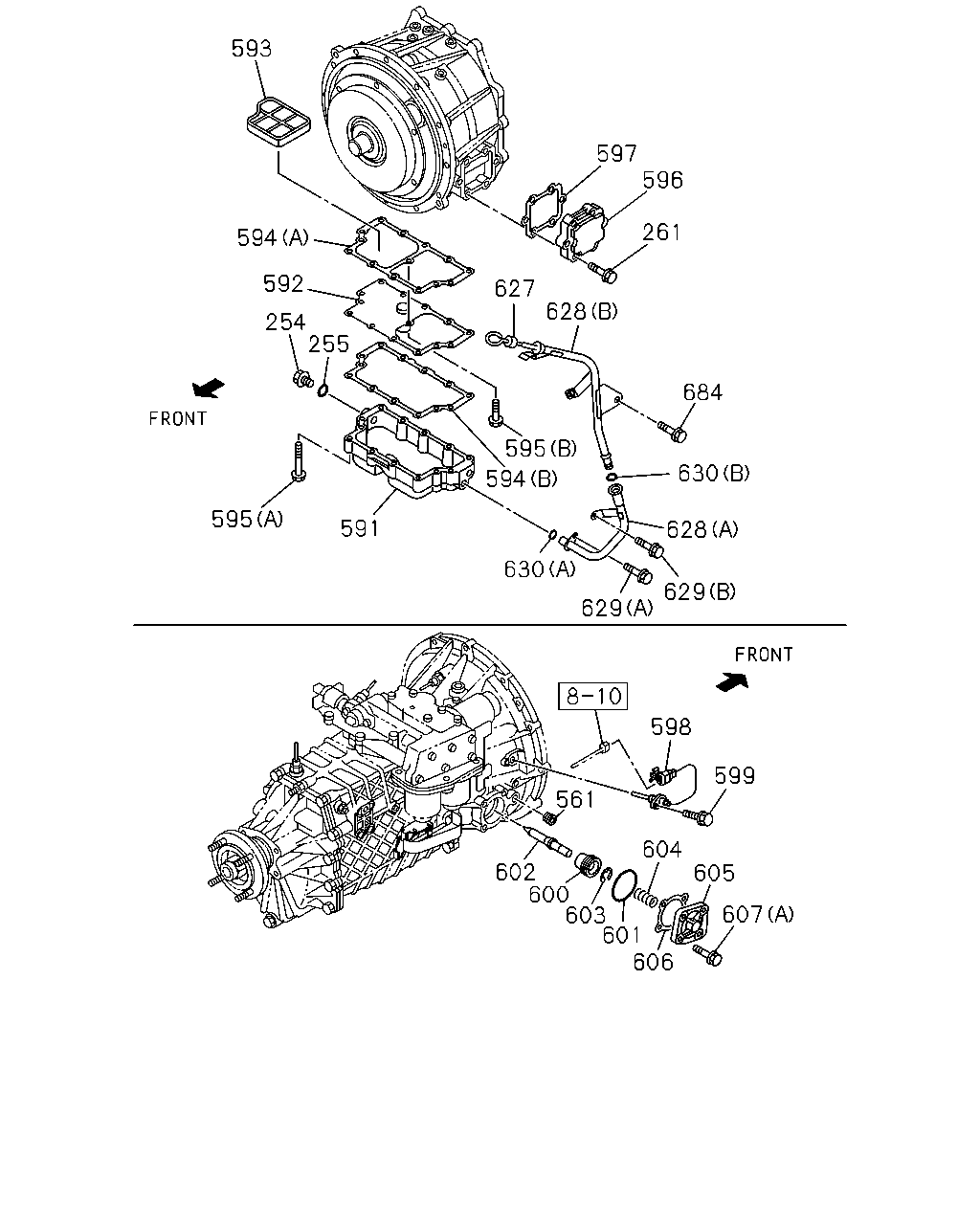

593 594 592 255 254 591 595 630 594 595 627 261 628 596 597 684 630 628 629 629 598 599 605 604 561 607 606 601 603 600 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
254	PLUG; DRAIN,OIL EXC. 15" CLUTCH(RE9)	8-97365-374-0	01	1	1511-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) ID=17	8-97115-712-0	01	1	1511-
261	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X35 FLANGE	0-28650-635-0	06	1	1511-
561	PLUG EXC. 15" CLUTCH(RE9)	8-97320-204-0	01	1	1511-
591	PAN; OIL EXC. 15" CLUTCH(RE9)	8-97256-429-2	01	1	1511-
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97289-771-1	01	1	1511-
593	FILTER; STRAINER EXC. 15" CLUTCH(RE9)	8-97256-438-1	01	1	1511-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97256-430-1	01	1	1511-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97289-772-0	01	1	1511-
595	BOLT; OIL PAN EXC. 15" CLUTCH(RE9) (B) M6X16 FLANGE	0-28650-616-0	01	1	1511-
595	BOLT; OIL PAN EXC. 15" CLUTCH(RE9) (A) M6X35 FLANGE	0-28650-635-0	13	1	1511-
596	COVER; OIL PAN EXC. 15" CLUTCH(RE9)	8-97289-773-0	01	1	1511-
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97289-774-0	01	1	1511-
598	SENSOR; TURBINE EXC. 15" CLUTCH(RE9)	8-97316-495-1	01	1	1511-
599	BOLT; SENSOR EXC. 15" CLUTCH(RE9) M6X16 FLANGE	0-28650-616-0	01	1	1511-
600	PISTON; BRAKE EXC. 15" CLUTCH(RE9)	8-97254-652-1	01	1	1511-
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97254-755-0	01	1	1511-
602	PLUNGER; BRAKE EXC. 15" CLUTCH(RE9)	8-98009-306-1	01	1	1511-
603	RING; SNAP EXC. 15" CLUTCH(RE9) ID=8	9-09185-008-0	01	1	1511-
604	SPRING; PISTON EXC. 15" CLUTCH(RE9)	8-97371-467-0	01	1	1511-
605	COVER; CYLINDER EXC. 15" CLUTCH(RE9)	8-97254-756-0	01	1	1511-
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97254-757-0	01	1	1511-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1511-
607	BOLT; COVER EXC. 15" CLUTCH(RE9) (A) M8X30 FLANGE	0-28650-830-0	04	1	1511-
627	GAUGE; OIL LEVEL SGL CAB(FG*M) EXC. 15" CLUTCH(RE9)	8-98024-424-0	01	1	1511-
627	GAUGE; OIL LEVEL DBL CAB(FG*W) EXC. 15" CLUTCH(RE9)	8-98010-240-0	01	1	1511-
628	TUBE; OIL FILLER EXC. 15" CLUTCH(RE9) (A)	8-98003-673-0	01	1	1511-
628	TUBE; OIL FILLER SGL CAB(FG*M) EXC. 15" CLUTCH(RE9) (B)	8-98005-327-0	01	1	1511-
628	TUBE; OIL FILLER DBL CAB(FG*W) EXC. 15" CLUTCH(RE9) (B)	8-98005-328-0	01	1	1511-
629	BOLT; OIL FILLER EXC. 15" CLUTCH(RE9) (B) M10X16 FLANGE	0-28151-016-0	01	1	1511-
629	BOLT; OIL FILLER EXC. 15" CLUTCH(RE9) (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A) ID=15.8	8-97305-656-0	01	1	1511-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B) ID=12.3	8-97313-558-0	01	1	1511-
684	BOLT; OIL FILLER TUBE SGL CAB(FG*M) EXC. 15" CLUTCH(RE9) M10X16 FLANGE	0-28151-016-0	02	1	1511-
684	BOLT; OIL FILLER TUBE DBL CAB(FG*W) EXC. 15" CLUTCH(RE9) M10X16 FLANGE	0-28151-016-0	01	1	1511-

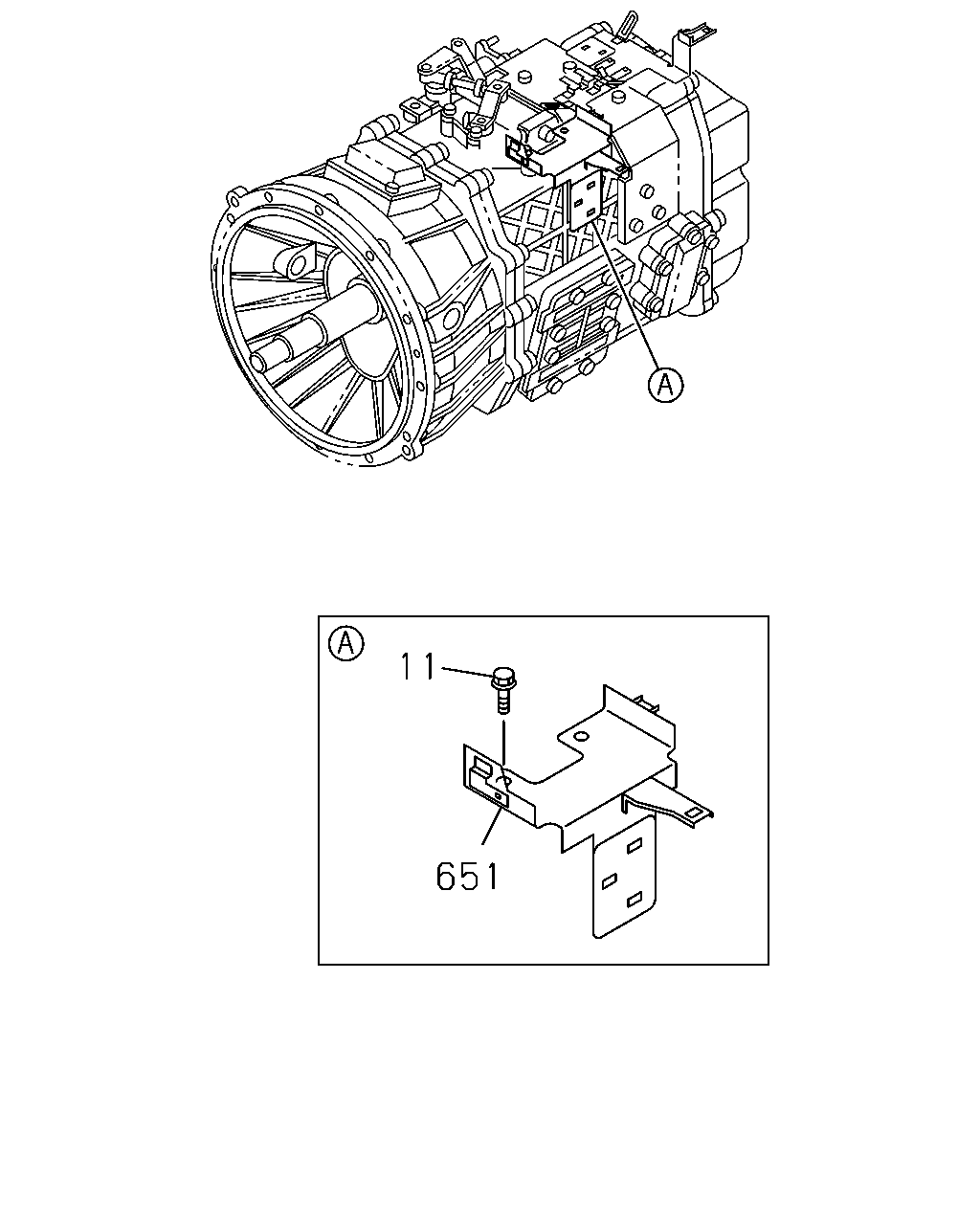

11 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	1511-
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	1511-
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97610-090-3	01	1	1511-

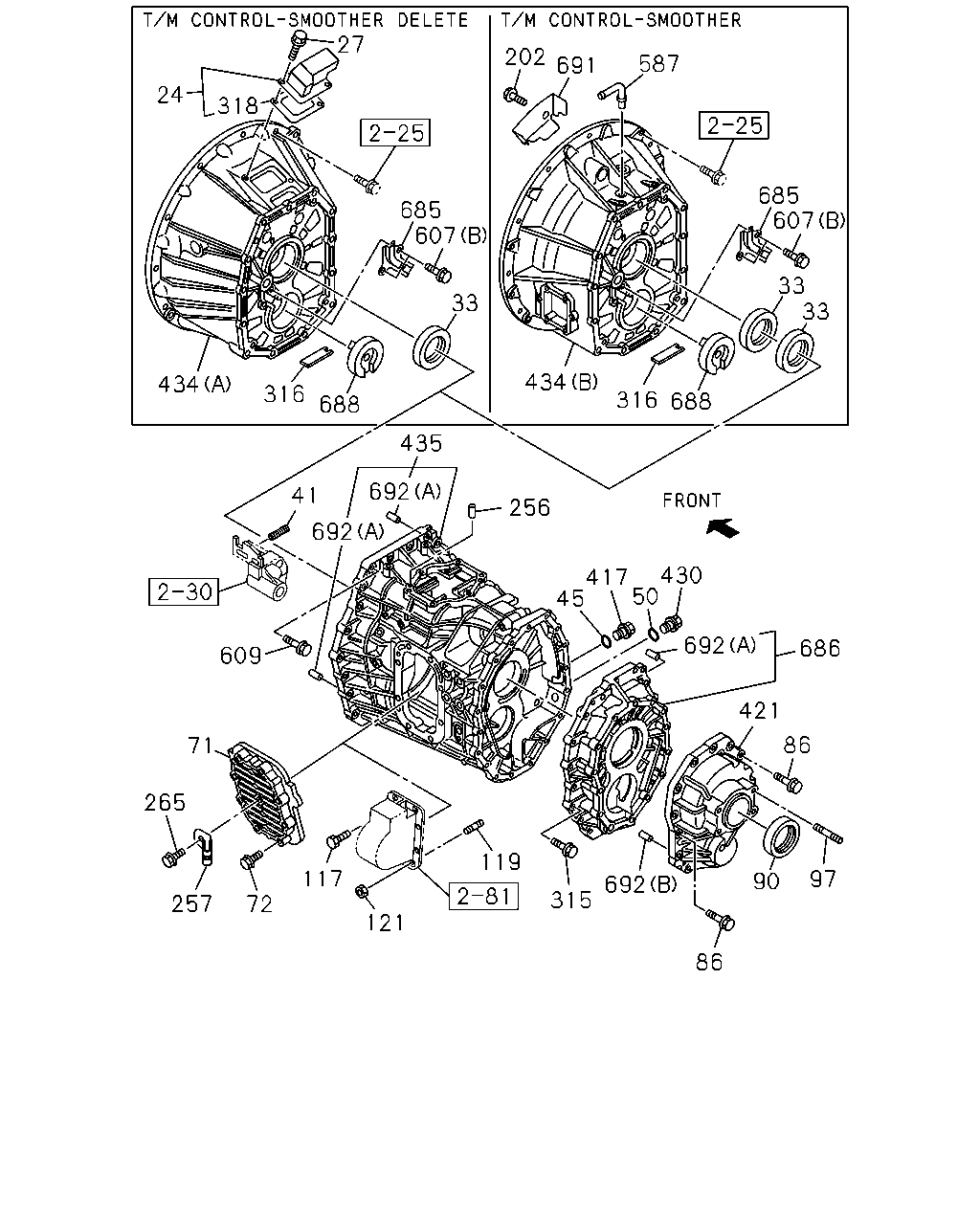

24 434 316 33 688 607 685 27 318 202 691 587 685 33 33 607 688 316 434 435 256 692 692 41 430 50 417 45 692 686 421 86 90 97 86 692 315 119 121 117 72 257 265 71 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	8-98283-062-0	01	1	1511-
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X16 FLANGE	0-28050-816-0	02	1	1511-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	8-97377-947-0	01	1	1511-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97255-187-0	02	1	1511-
41	SPRING; DETENT BALL EXC. 15" CLUTCH(RE9)	8-98071-140-0	01	1	1511-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1511-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1511-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1511-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1511-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1511-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1511-
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1511-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1511-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1511-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1511-
202	BOLT; PLATE EXC. 15" CLUTCH(RE9) M8X20 FLANGE	0-28650-820-0	01	1	1511-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1511-
257	CLIP; HARNESS EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	1511-
265	BOLT; CLIP EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	1511-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1511-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1511-
318	GASKET; COVER 15" CLUTCH(RE9)	1-31139-023-0	01	1	1511-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1511-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1511-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1511-
434	HOUSING; CLU 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	1511-
434	HOUSING; CLU EXC. 15" CLUTCH(RE9) (B)	8-98100-982-1	01	1	1511-
435	CASE; TRANS	8-98236-421-1	01	1	1511-
587	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-97358-318-0	01	1	1511-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1511-
607	BOLT; COVER EXC. 15" CLUTCH(RE9) (A) M8X30 FLANGE	0-28650-830-0	04	1	1511-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1511-
685	COVER; OIL PORT	8-98018-864-1	01	1	1511-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1511-
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1511-
691	PLATE; BREATHER EXC. 15" CLUTCH(RE9)	8-98044-428-0	01	1	1511-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1511-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1511-

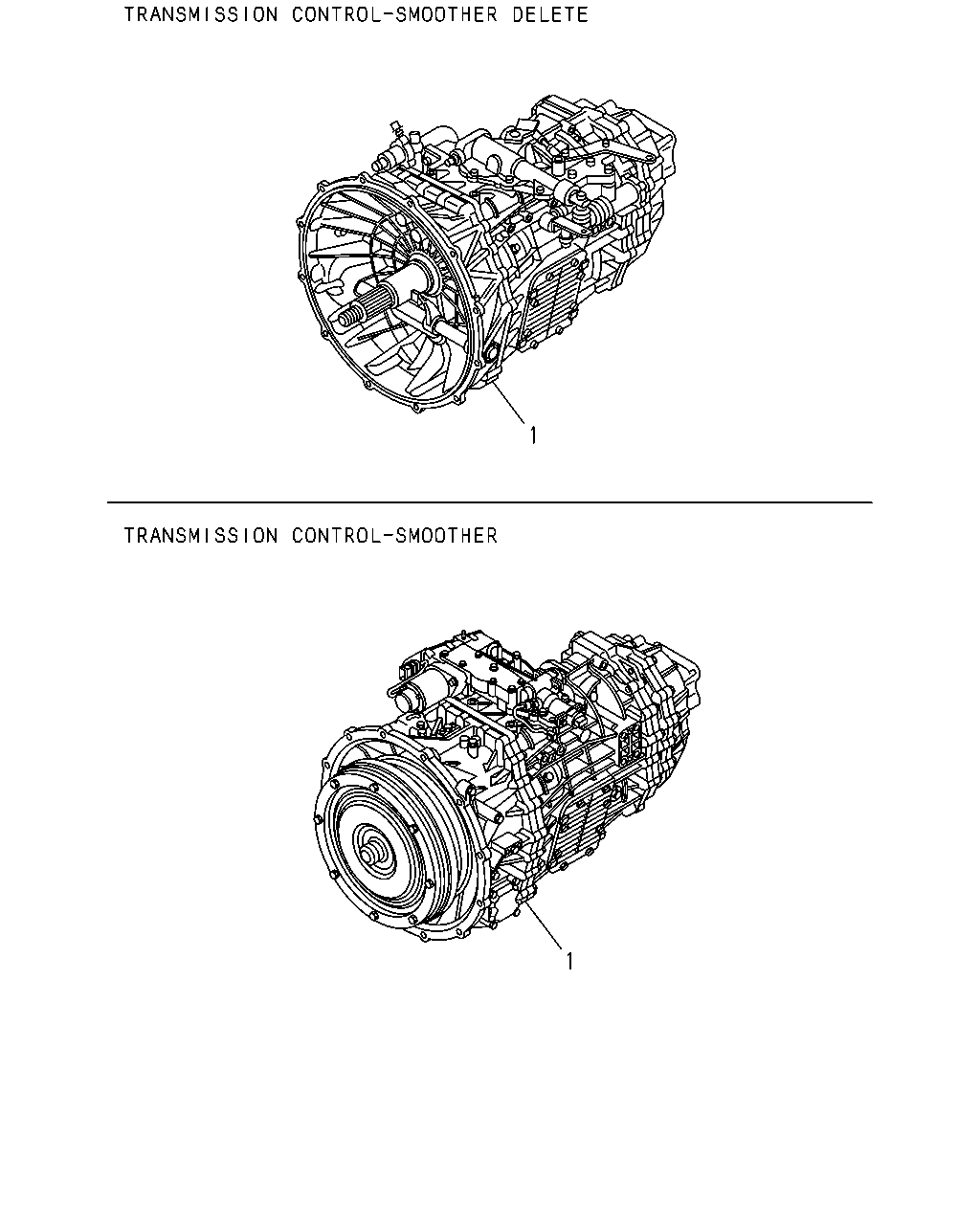

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1511-
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-520-0	01	1	1511-
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-568-0	01	1	1511-
1	TRANSMISSION ASM; MANUAL SGL CAB(FG*M) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>	8-98134-568-0	01	1	1511-
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-569-0	01	1	1511-
1	TRANSMISSION ASM; MANUAL DBL CAB(FG*W) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>	8-98134-569-0	01	1	1511-
