2-05 — CLUTCH PIPING (#169516) — 34 parça

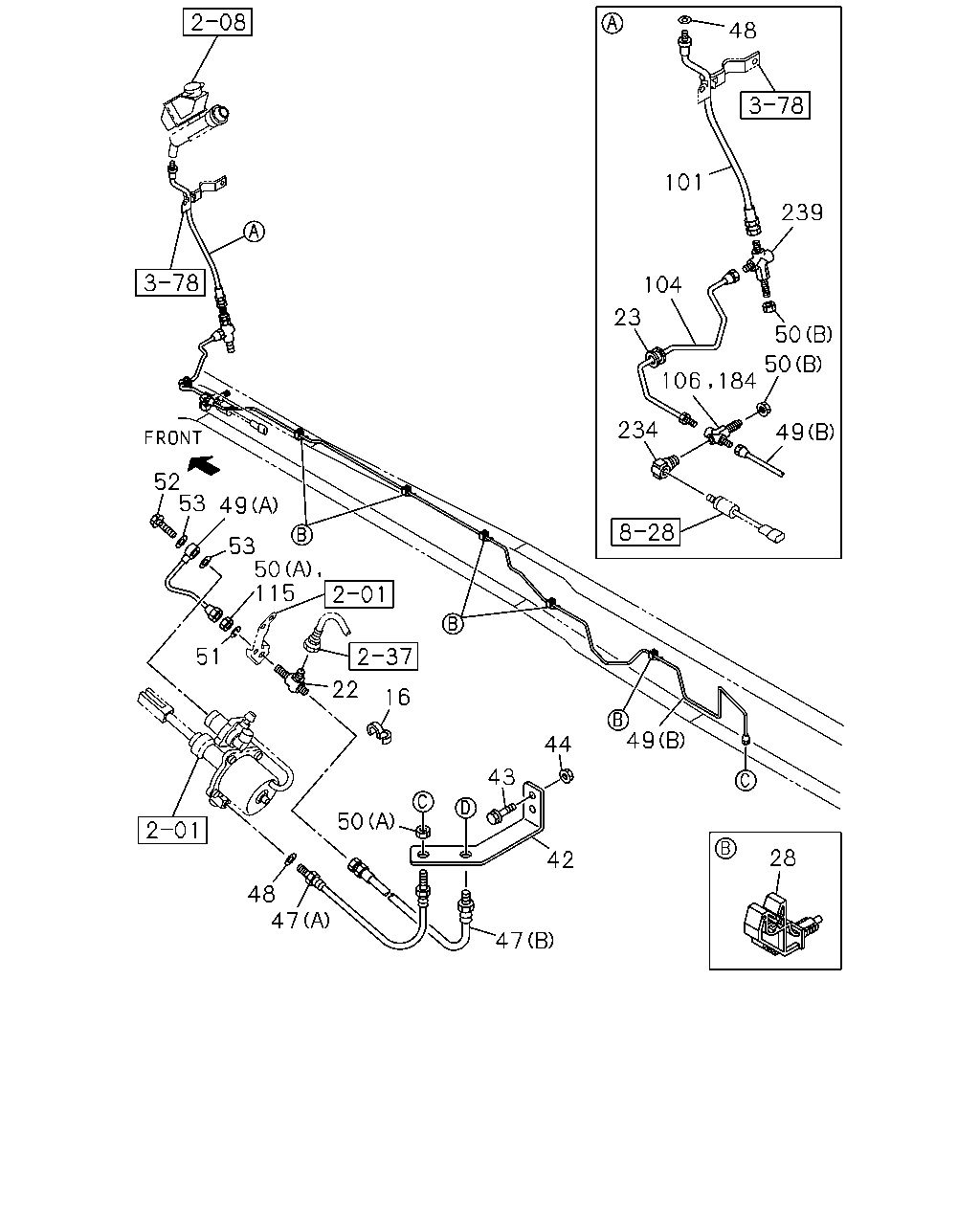

çizim 500797
52 53 53 49 50 115 51 22 16 43 50 48 47 47 42 44 49 28 106 234 23 104 101 48 239 50 50 184 49
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12 		1-09709-278-1 01 1 1511- ● ●
22 UNION; CLU PIPE
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1511- ● ●
23 GROMMET; CLU PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ●
28 CLIP; OIL PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=6.35 		1-09701-247-1 05 1 1511- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98105-654-0 01 1 1511- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=375 		1-09364-407-0 01 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (B) L=380 		1-09363-884-0 01 1 1511- ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (B) L=360 		1-09363-823-0 01 1 1511- ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> ID=10.2 OD=16.0 		9-09571-410-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=2738 		8-98152-246-0 01 1 1511- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=2726 SERVICED BY L=2900 		1-47428-744-0 01 1 1511- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) L=239 		1-49117-401-0 01 1 1511- ● ●
50 NUT; UNION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1511- ● ●
50 NUT; UNION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1511- ● ●
50 NUT; UNION
MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12 		9-09840-280-0 01 1 1511- ● ●
50 NUT; UNION
MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12 		9-09840-280-0 01 1 1511- ● ●
51 WASHER; LK
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1511- ● ●
52 BOLT; EYE,AIR PIPE
MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1511- ● ●
53 GASKET; JOINT BOLT
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1511- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440 		8-98072-346-0 01 1 1511- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=554 		8-98114-452-0 01 1 1511- ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 3WAY 		8-98051-113-0 01 1 1511- ● ●
115 NUT; FLEX HOSE,CLU CONT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		9-09840-280-0 01 1 1511- ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1511- ● ●
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/8 ELBOW 		8-94338-418-1 01 1 1511- ● ●
239 UNION; CLU HOSE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY 		1-09654-059-2 01 1 1511- ● ●

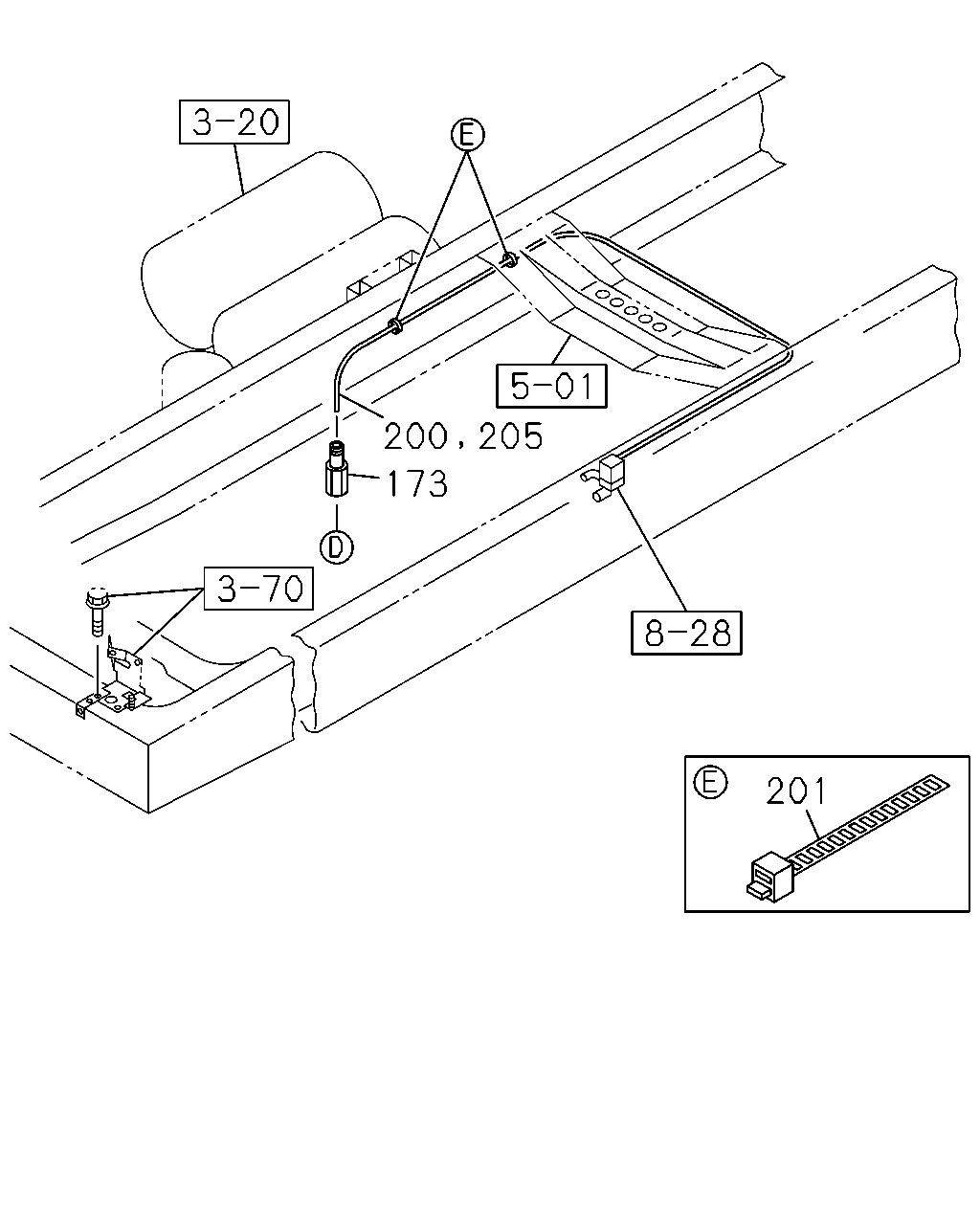

çizim 500923
201 173 205 200
BalonParca AdiParca NoAdetTipApplied Date A B
173 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511- ● ●
200 TUBE; NYLON
ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1511- ● ●
201 CLIP; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1511- ●
201 CLIP; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 02 1 1511- ●
205 TUBE; CORRUGATE
ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
