◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01A - CLUTCH ▶
2-01A — CLUTCH (#169514) — 68 parça

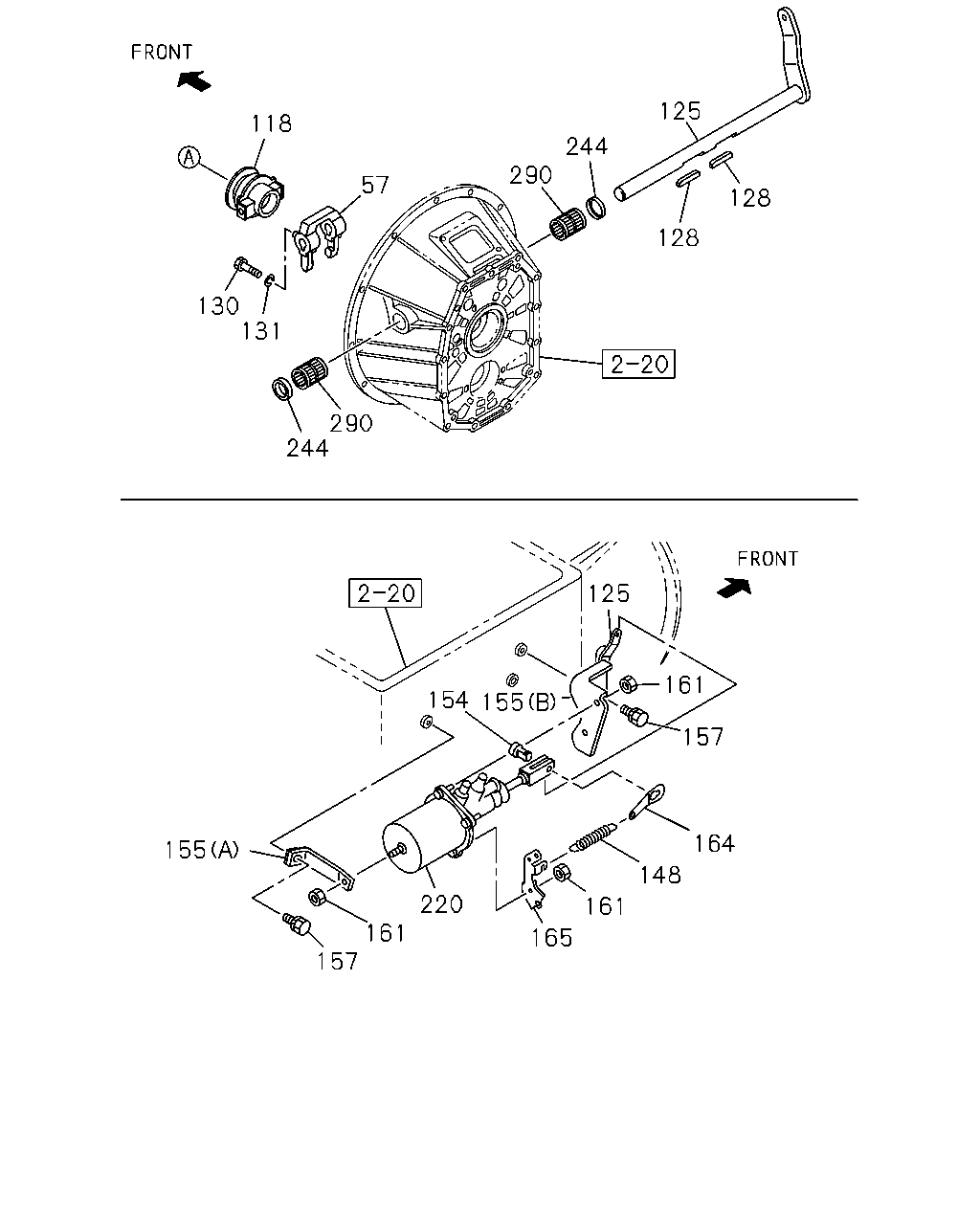

çizim 500793
125 128 128 244 290 57 118 130 290 244 125 161 157 164 148 161 165 220 161 157 155 154 155 131
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU
15" CLUTCH(RE9) 		1-31341-048-2 01 1 1511-
118 BEARING; CLU RELEASE
15" CLUTCH(RE9) 		1-31310-026-0 01 1 1511-
118 BEARING; CLU RELEASE
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-109-0 01 1 1511-
125 SHAFT; CLU
15" CLUTCH(RE9) 		1-31342-335-0 01 1 1511-
128 KEY; FEATHER,CLU SHAFT
15" CLUTCH(RE9) 		9-09867-008-0 02 1 1511-
130 SCREW; SHIFT FORK
15" CLUTCH(RE9) M8X14 		0-61200-814-0 01 1 1511-
131 WASHER; LK,SHIFT FORK
15" CLUTCH(RE9) ID=8.2 		0-91510-508-0 01 1 1511-
148 SPRING; CLU RETURN
15" CLUTCH(RE9) L=135 		1-09583-305-0 01 1 1511-
154 PIN; JAW JOINT
15" CLUTCH(RE9) 		1-31424-009-0 01 1 1511-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (A) 		1-31429-475-1 01 1 1511-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (B) 		1-31429-478-0 01 1 1511-
157 BOLT; BRKT
15" CLUTCH(RE9) M10X25 FLANGE 		0-28751-025-0 03 1 1511-
161 NUT; BRKT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 05 1 1511-
164 EYE; SPRING
15" CLUTCH(RE9) 		1-31426-041-0 01 1 1511-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE
15" CLUTCH(RE9) 		1-47477-789-0 01 1 1511-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) 		1-31800-511-2 01 1 1511-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-089-0 01 1 1511-
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) 		1-09625-002-0 02 1 1511-
290 BEARING; NEEDLE
15" CLUTCH(RE9) NTN 		1-09811-002-1 02 1 1511-

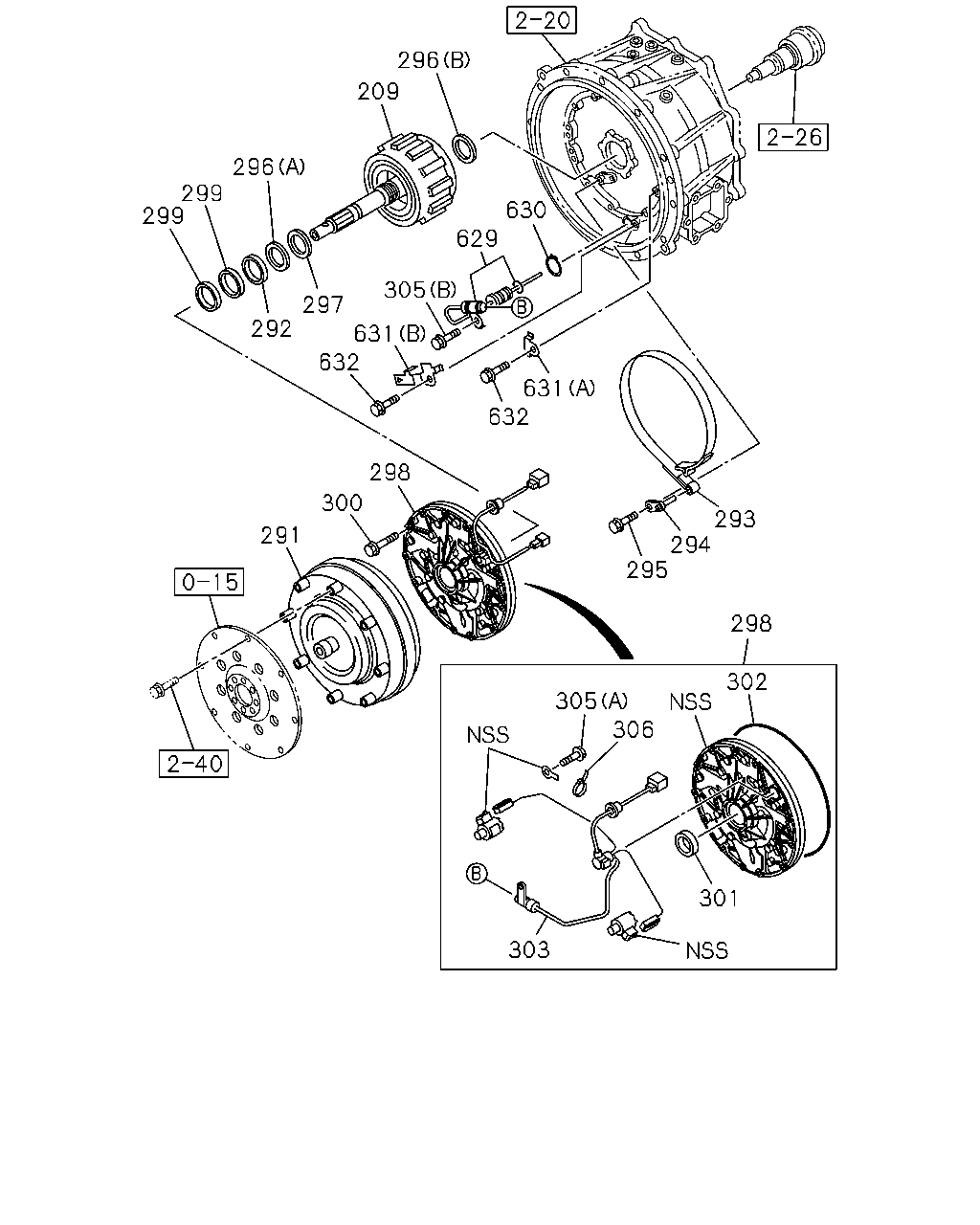

çizim 500796
296 209 296 299 299 292 297 632 631 305 629 630 631 632 298 300 291 295 294 293 298 302 305 306 301 303
BalonParca AdiParca NoAdetTipApplied Date
209 CLUTCH ASM
EXC. 15" CLUTCH(RE9) 		8-98275-315-0 01 1 1511-
291 COUPLING; FLUID
EXC. 15" CLUTCH(RE9) 		8-98248-560-1 01 1 1511-
292 RING; SEAL
EXC. 15" CLUTCH(RE9) 		8-97255-329-0 01 1 1511-
293 BAND; BRAKE
EXC. 15" CLUTCH(RE9) 		8-97254-651-0 01 1 1511-
294 PIN; ANCHOR
EXC. 15" CLUTCH(RE9) 		8-97255-703-0 01 1 1511-
295 BOLT; ANCHOR PIN
EXC. 15" CLUTCH(RE9) M8X20 FLANGE 		0-28650-820-0 01 1 1511-
296 BEARING; THRUST
EXC. 15" CLUTCH(RE9) (A) 		8-97255-688-0 01 1 1511-
296 BEARING; THRUST
EXC. 15" CLUTCH(RE9) (B) 		8-97255-689-0 01 1 1511-
297 WASHER; THRUST
EXC. 15" CLUTCH(RE9) 		8-97300-070-0 01 1 1511-
298 PUMP ASM; OIL
EXC. 15" CLUTCH(RE9) 		8-98107-925-2 01 1 1511-
299 RING; SEAL
EXC. 15" CLUTCH(RE9) 		8-97255-330-0 02 1 1511-
300 BOLT; OIL PUMP
EXC. 15" CLUTCH(RE9) M8X45 FLANGE 		0-28050-845-0 11 1 1511-
301 SEAL; OIL PUMP
EXC. 15" CLUTCH(RE9) 		8-97289-811-0 01 1 1511-
302 RING; OIL PUMP
EXC. 15" CLUTCH(RE9) 		8-97255-188-0 01 1 1511-
303 HARNESS ASM; OIL PUMP
EXC. 15" CLUTCH(RE9) 		8-98020-613-1 01 1 1511-
305 BOLT; BRACKET
EXC. 15" CLUTCH(RE9) (A) M6X12 FLANGE 		0-28050-612-0 01 1 1511-
305 BOLT; BRACKET
EXC. 15" CLUTCH(RE9) (B) M6X16 FLANGE 		0-28650-616-0 01 1 1511-
306 CLIP; BAND
EXC. 15" CLUTCH(RE9) L=100 		8-94279-939-0 02 1 1511-
629 SENSOR; OIL TEMP
EXC. 15" CLUTCH(RE9) 		8-98021-895-0 01 1 1511-
630 RING; SNAP
EXC. 15" CLUTCH(RE9) ID=17.5 		9-09180-019-0 01 1 1511-
631 PLATE; HARNESS
EXC. 15" CLUTCH(RE9) (A) 		8-98021-285-0 02 1 1511-
631 PLATE; HARNESS
EXC. 15" CLUTCH(RE9) (B) 		8-98023-254-0 01 1 1511-
632 BOLT; HARNESS
EXC. 15" CLUTCH(RE9) M8X20 FLANGE 		0-28650-820-0 03 1 1511-

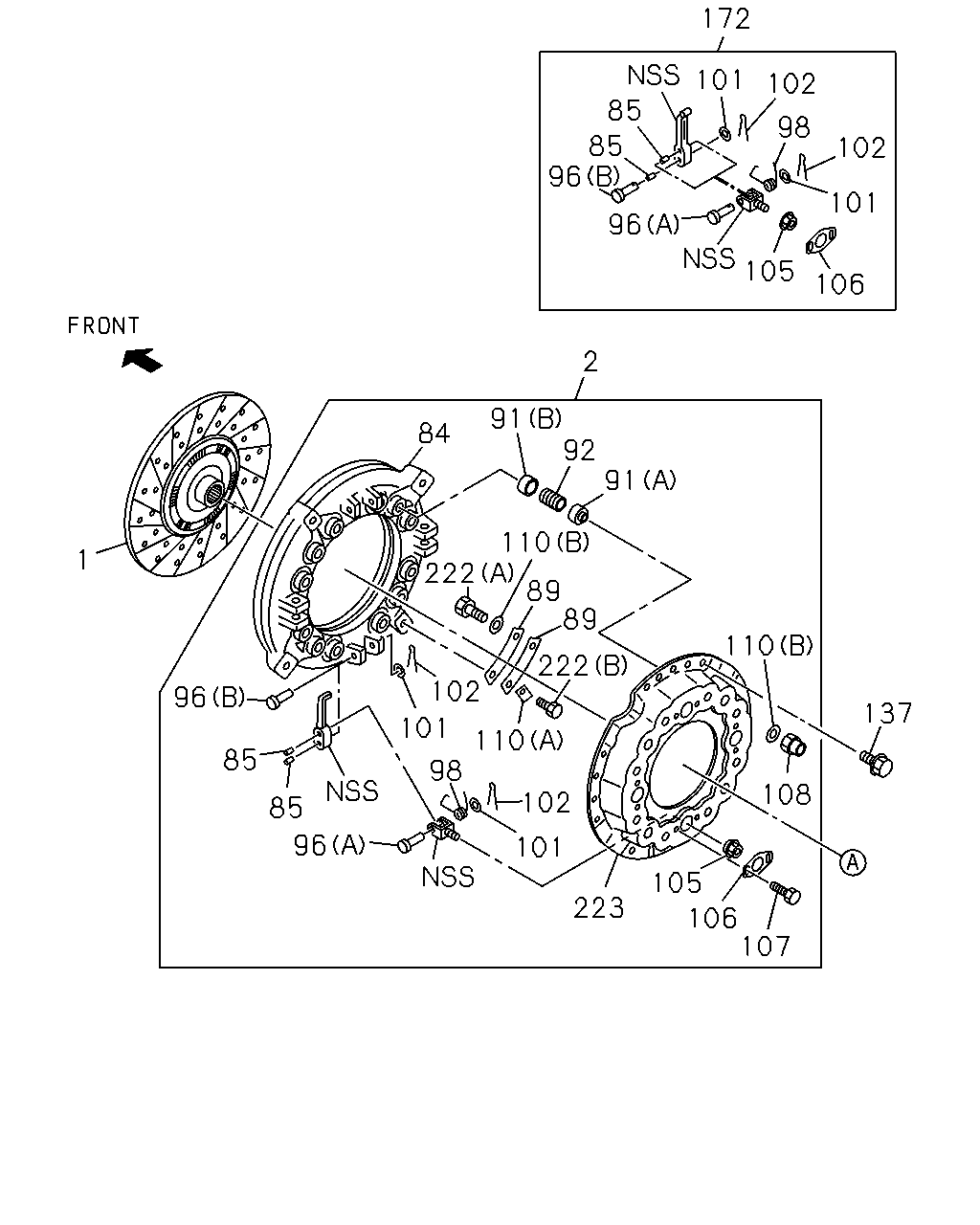

çizim 501470
172 102 101 102 98 85 85 96 96 105 106 2 91 84 92 110 91 110 137 108 105 106 107 223 101 102 110 102 101 98 96 85 85 96 1 222 89 89 222 101
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH(RE9) 15" 		1-31240-851-2 01 1 1511-
1 DISC; CLUTCH
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-119-0 01 1 1511-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) 		1-31220-377-2 01 1 1511-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-146-0 01 1 1511-
84 PLATE; PRESSURE
15" CLUTCH(RE9) 15" 		1-31221-100-0 01 1 1511-
85 BUSHING; RELEASE LEVER
15" CLUTCH(RE9) 		9-31239-116-0 08 1 1511-
89 PLATE; STRAP
15" CLUTCH(RE9) 		1-31229-050-0 16 1 1511-
91 SEAT; SPR
15" CLUTCH(RE9) (A) ID=37 H=25 		1-31219-012-0 12 1 1511-
91 SEAT; SPR
15" CLUTCH(RE9) (B) ID=37 H=15 		1-31219-013-0 12 1 1511-
92 SPRING; CLU
15" CLUTCH(RE9) 		1-31214-066-0 12 1 1511-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9) (A) L=49.0 		1-31232-005-0 04 1 1511-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9) (B) L=57.0 		1-31232-014-0 04 1 1511-
98 SPRING; RETURN
15" CLUTCH(RE9) 		1-31233-003-0 04 1 1511-
101 WASHER; RELEASE LEVER
15" CLUTCH(RE9) 		1-31239-058-0 08 1 1511-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH(RE9) OD=2.7 L=22 		9-08103-022-0 08 1 1511-
105 NUT; SUPPORT
15" CLUTCH(RE9) 		1-31235-014-0 04 1 1511-
106 PLATE; LK,LEVER SUPPORT
15" CLUTCH(RE9) 		1-31239-019-0 04 1 1511-
107 BOLT; LK PLATE
15" CLUTCH(RE9) 		1-31239-061-0 08 1 1511-
108 NUT; STRAP
15" CLUTCH(RE9) 		1-09449-036-0 04 1 1511-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (A) T=1.2 		1-31229-009-0 04 1 1511-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (B) T=3.2 		8-97374-512-0 08 1 1511-
137 BOLT; CLU COVER
15" CLUTCH(RE9) M10X20 FLANGE 		0-28151-020-0 12 1 1511-
172 LEVER KIT; RELEASE,CLU
15" CLUTCH(RE9) 		1-87831-170-1 01 1 1511-
222 BOLT; STRAP
15" CLUTCH(RE9) (B) M10X23.2 		1-09040-042-0 04 1 1511-
222 BOLT; STRAP
15" CLUTCH(RE9) (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1511-
223 COVER; CLU
15" CLUTCH(RE9) 		1-31211-019-1 01 1 1511-
