1-50 — EXHAUST PIPE AND SILENCER (#169511) — 75 parça

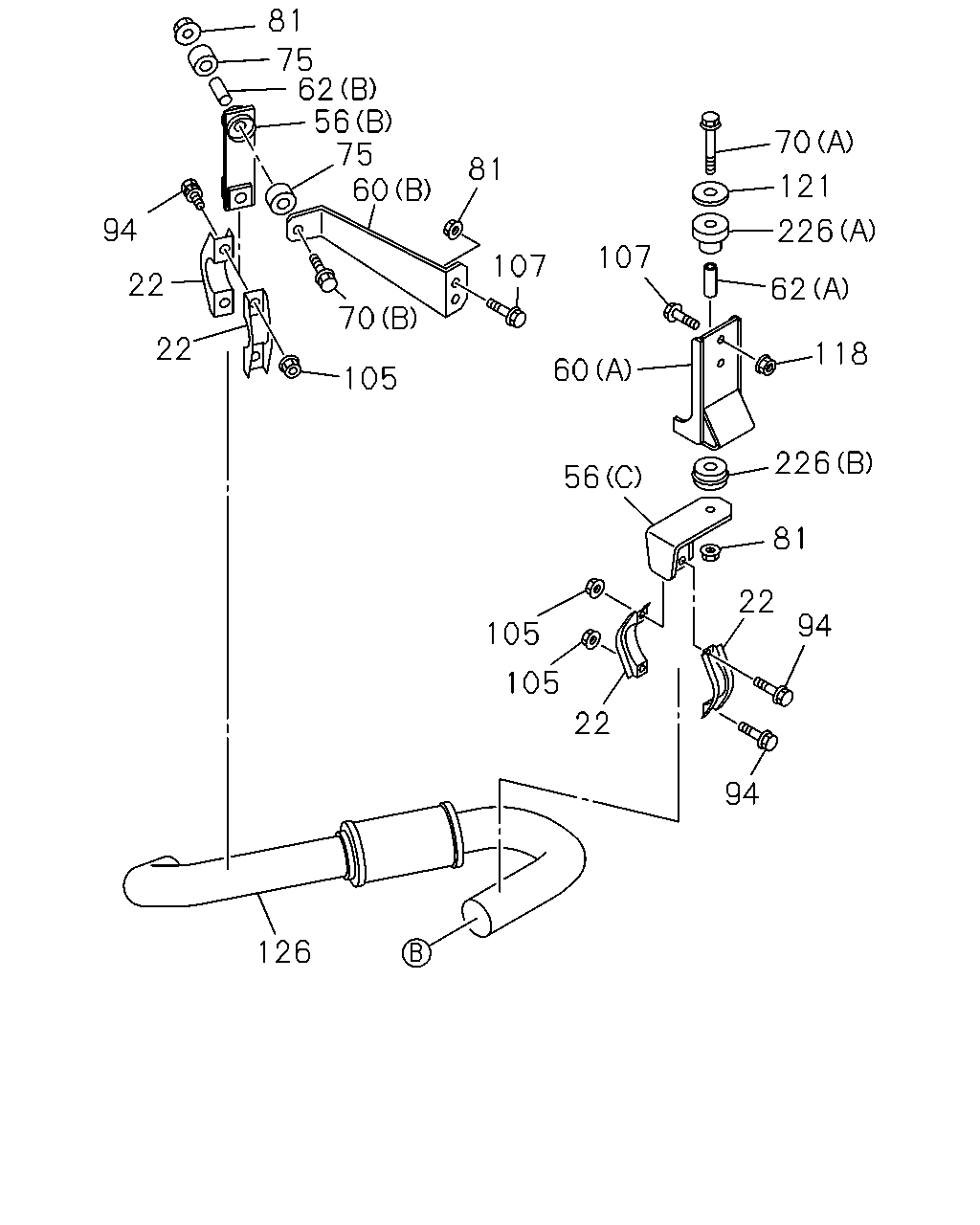

çizim 500755
70 121 226 62 118 226 81 22 94 94 22 105 105 56 60 107 126 105 70 107 81 60 75 56 62 75 81 94 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1511- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22152-324-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98245-536-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1511- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1511- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1511- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1511- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1511- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1511- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1511- ● ●
126 PIPE; EXH,RR 8-98307-022-0 01 1 1511- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1511- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1511- ● ●

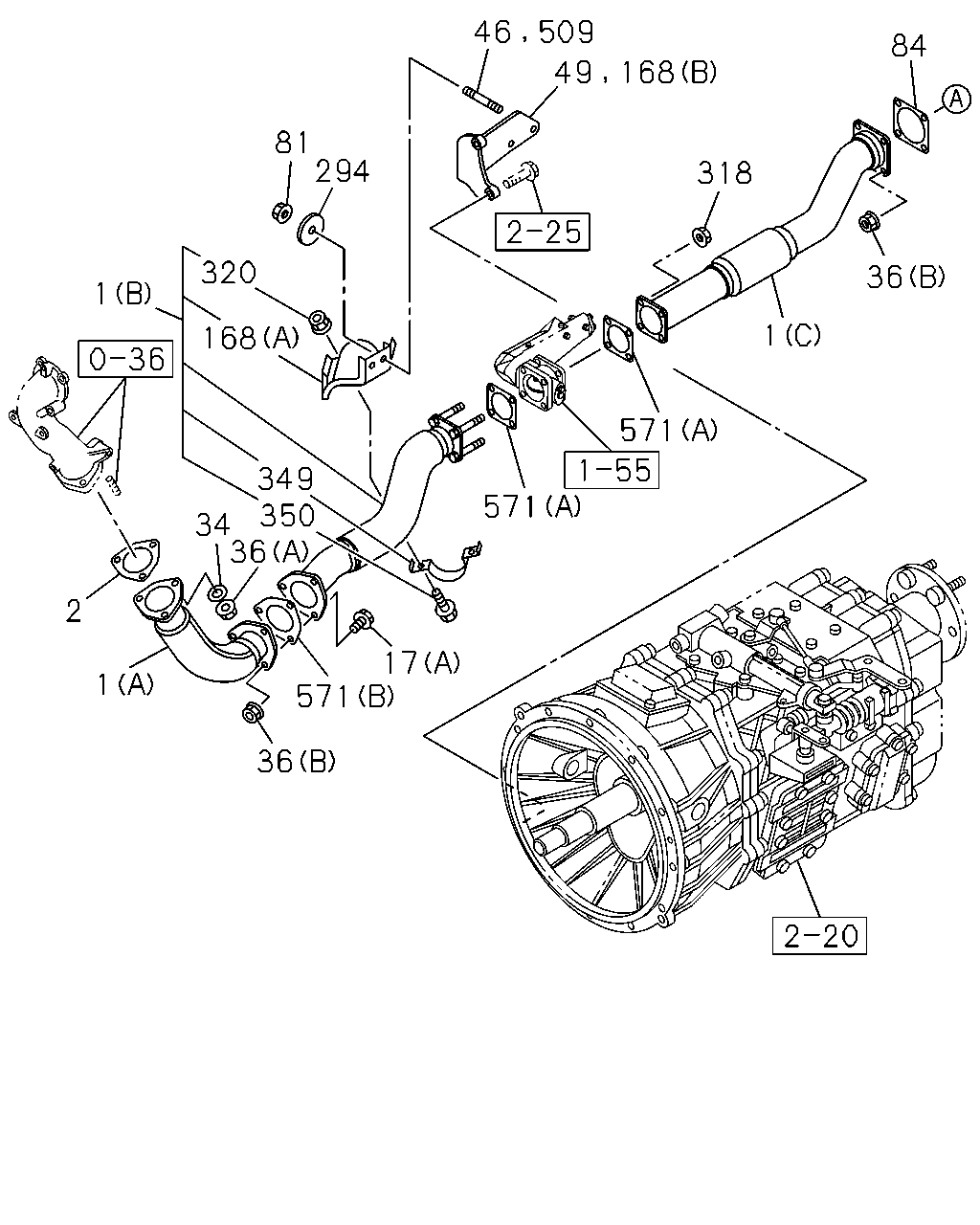

çizim 500757
84 36 318 168 49 509 46 1 571 571 294 81 320 168 1 2 1 34 349 350 36 17 571 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) 		8-98234-516-1 01 1 1511- ● ●
1 PIPE; EXH
(C) 		8-98096-668-2 01 1 1511- ● ●
1 PIPE; EXH
(A) 		8-98234-511-0 01 1 1511- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
46 BOLT; BRKT,EXH PIPE
MZW6P M/T(RSZ) M10X25 L=40 		0-44011-025-0 02 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-493-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-495-0 01 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
84 GASKET; EXH PIPE 8-98096-305-0 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
(A) 		8-98221-369-1 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
LCT2500 A/T ALLISON(Y5W) (B) 		8-98123-998-0 01 1 1511- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1511- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1511- ● ●
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ●
509 STUD; BRKT
LCT2500 A/T ALLISON(Y5W) M10X25 L=40 		0-44011-025-0 02 1 1511- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1511- ● ●
çizim 500768
175 562 60 17 81 107 81 121 226 62 226 56 36 70
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22152-324-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98245-536-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1511- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1511- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1511- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1511- ● ●
175 CONVERTER; CATALYST 8-98236-535-0 01 1 1511- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1511- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1511- ● ●
562 PLATE; STUD,BOLT
M12X35 		1-22131-963-0 02 1 1511- ● ●
