1-41 — FUEL PIPING; CHASSIS (#169509) — 171 parça

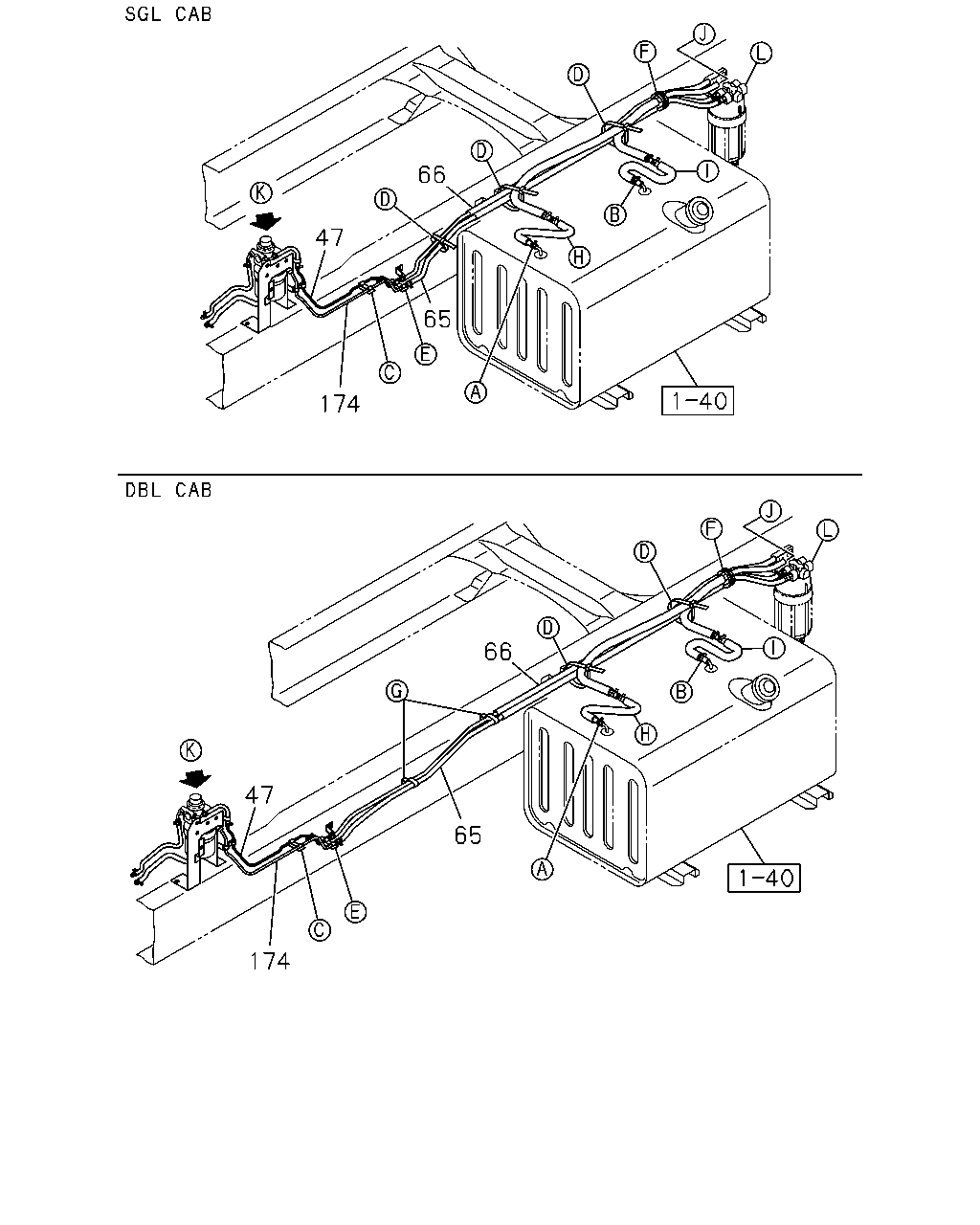

çizim 500560
65 174 47 174 47 66 65 66
BalonParca AdiParca NoAdetTipApplied Date A B
47 PIPE; FUEL,RETURN
L=699 		8-98286-297-0 01 1 1511- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=2060 		8-98311-198-0 01 1 1511- ●
65 HOSE; FUEL,DELIVERY PIPE
L=1260 		8-98311-197-0 01 1 1511- ●
66 HOSE; FUEL,RETURN PIPE
L=1230 		8-98331-906-0 01 1 1511- ●
66 HOSE; FUEL,RETURN PIPE
L=2030 		8-98311-307-0 01 1 1511- ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1511- ● ●
çizim 500576
279 228 345 304 345 39 39 41 41 65 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(G) 		8-98331-905-0 01 1 1511- ●
29 HOSE; FUEL
(F) 		8-98331-050-0 01 1 1511- ● ●
29 HOSE; FUEL
(E) 		8-98331-904-0 02 1 1511- ● ●
29 HOSE; FUEL
(C) 		8-98331-046-0 01 1 1511- ●
29 HOSE; FUEL
(G) 		8-98331-047-0 01 1 1511- ●
29 HOSE; FUEL
(C) 		8-98312-665-0 01 1 1511- ●
29 HOSE; FUEL
(D) 		8-98317-265-0 01 1 1511- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1511- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1511- ● ●
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=24 & 24 L=49 		1-09701-018-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=2060 		8-98311-198-0 01 1 1511- ●
65 HOSE; FUEL,DELIVERY PIPE
L=1260 		8-98311-197-0 01 1 1511- ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1511- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M10X60 FLANGE 		0-28051-060-0 02 1 1511- ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1511- ● ●

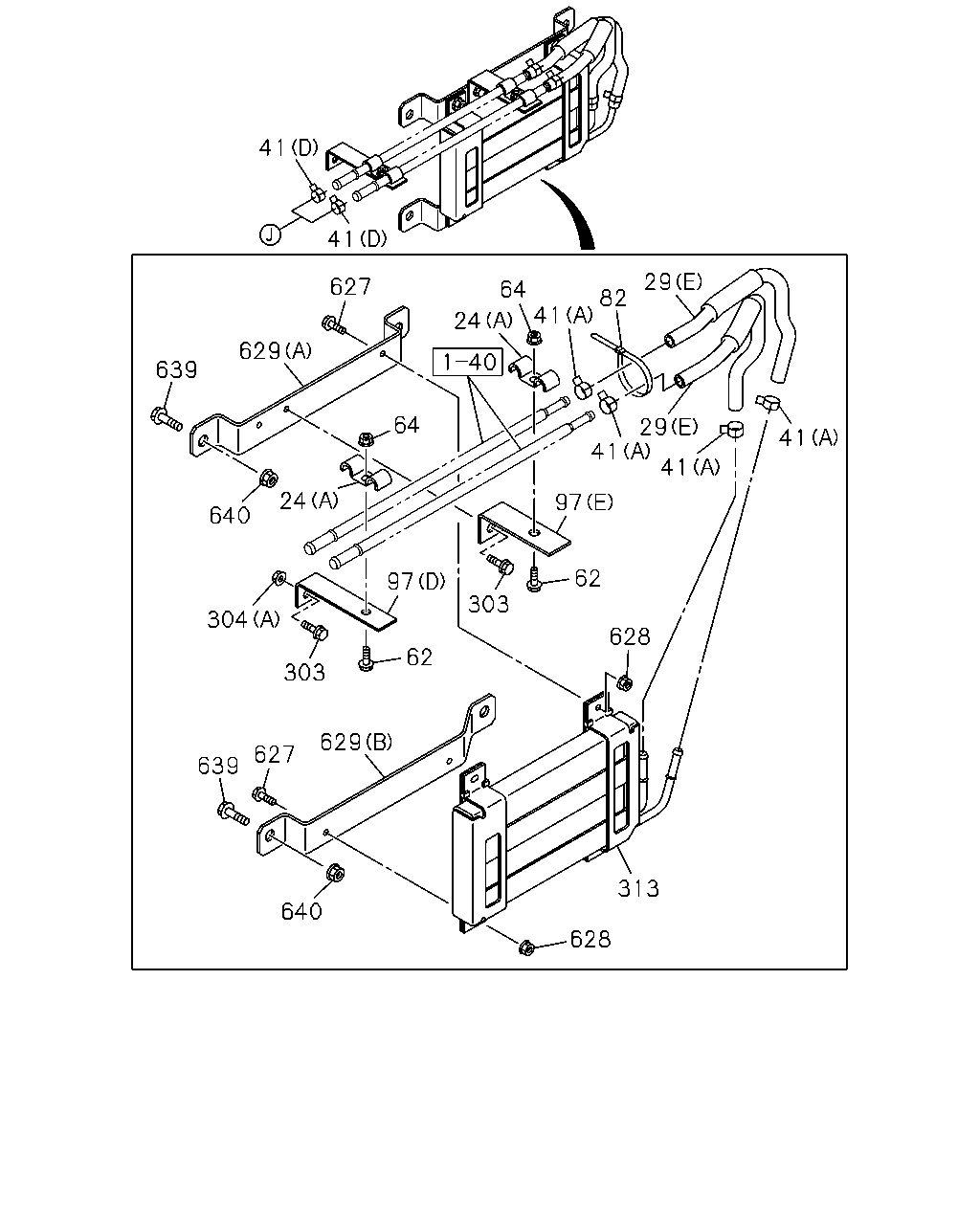

çizim 500733
41 41 627 629 639 640 24 64 24 64 41 82 29 29 41 41 41 97 62 628 303 97 62 303 629 627 639 640 628 313 304
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1511- ● ●
24 CLIP; FUEL HOSE
(B) ID=15 & 19 H=33 L=25 		1-09701-317-0 02 1 1511- ●
29 HOSE; FUEL
(G) 		8-98331-905-0 01 1 1511- ●
29 HOSE; FUEL
(F) 		8-98331-050-0 01 1 1511- ● ●
29 HOSE; FUEL
(E) 		8-98331-904-0 02 1 1511- ● ●
29 HOSE; FUEL
(C) 		8-98331-046-0 01 1 1511- ●
29 HOSE; FUEL
(G) 		8-98331-047-0 01 1 1511- ●
29 HOSE; FUEL
(C) 		8-98312-665-0 01 1 1511- ●
29 HOSE; FUEL
(D) 		8-98317-265-0 01 1 1511- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1511- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=24 & 24 L=49 		1-09701-018-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
82 CLIP; FUEL HOSE
L=250 		5-09707-030-1 01 1 1511- ● ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1511- ● ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1511- ● ●
97 BRACKET; CLIP
(C) 		8-98129-922-0 01 1 1511- ● ●
97 BRACKET; CLIP
(D) 		8-98153-352-0 01 1 1511- ● ●
97 BRACKET; CLIP
(E) 		8-98311-190-0 01 1 1511- ● ●
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
303 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
313 COOLER ASM; FUEL 8-98227-679-1 01 1 1511- ● ●
627 BOLT; FUEL CLR
M6X25 FLANGE 		0-28650-625-0 04 1 1511- ● ●
628 NUT; FUEL CLR
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
629 BRACKET; FUEL CLR
(A) 		8-98306-517-0 01 1 1511- ●
629 BRACKET; FUEL CLR
WHEEL BASE 6000MM(60W) (A) 		8-98306-517-0 01 1 1511- ●
629 BRACKET; FUEL CLR
(B) 		8-98312-587-0 01 1 1511- ● ●
639 BOLT; BRKT,FUEL CLR
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ●
640 NUT; BRKT,FUEL CLR
WHEEL BASE 4200MM(42W) M10 FLANGE 		0-91180-210-0 02 1 1511- ●
640 NUT; BRKT,FUEL CLR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 03 1 1511- ●
640 NUT; BRKT,FUEL CLR
WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●

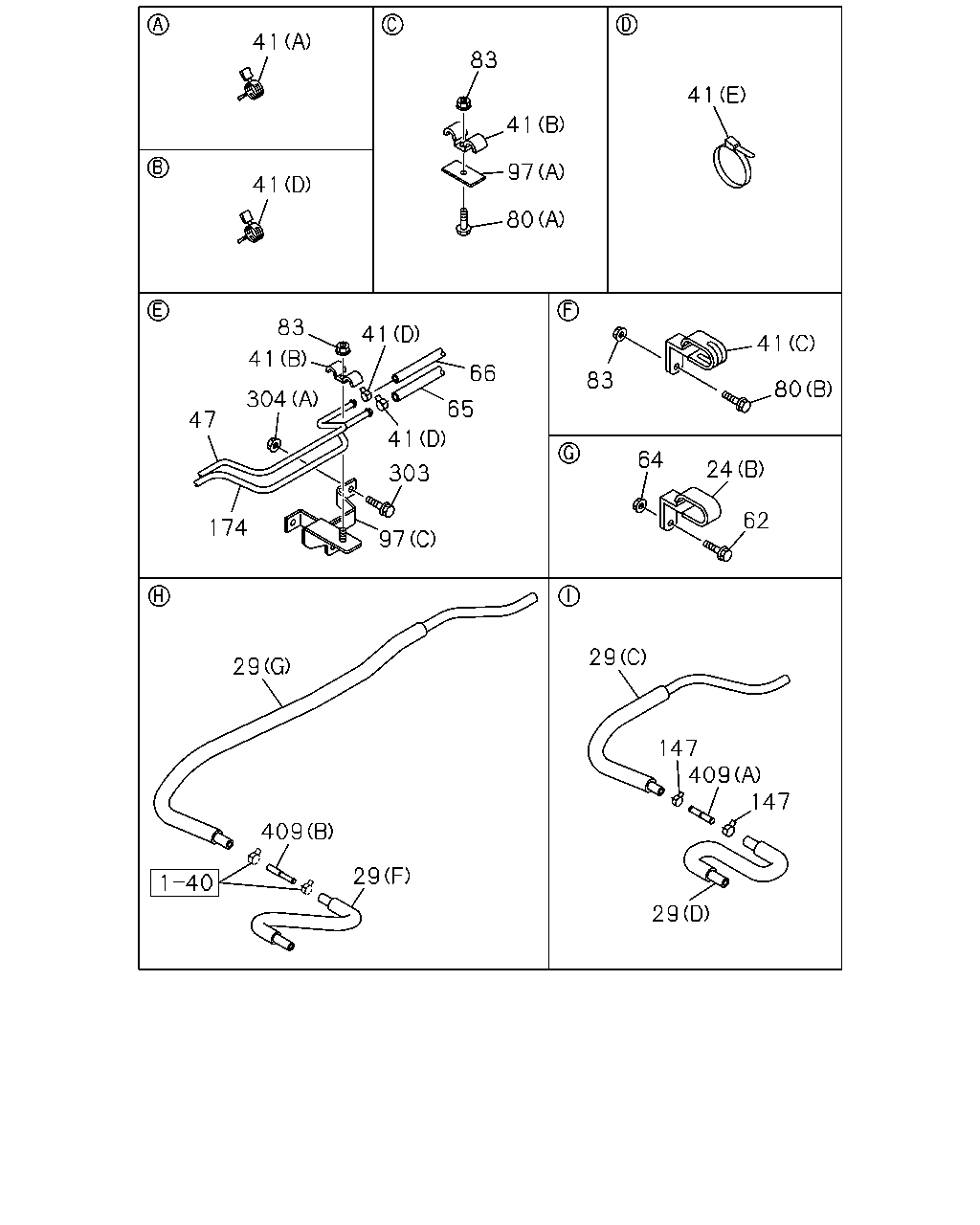

çizim 500750
29 147 409 147 29 62 24 64 80 41 83 80 97 41 41 41 41 83 41 41 66 65 41 97 303 174 47 304 29 409 29 83
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1511- ● ●
24 CLIP; FUEL HOSE
(B) ID=15 & 19 H=33 L=25 		1-09701-317-0 02 1 1511- ●
29 HOSE; FUEL
(G) 		8-98331-905-0 01 1 1511- ●
29 HOSE; FUEL
(F) 		8-98331-050-0 01 1 1511- ● ●
29 HOSE; FUEL
(E) 		8-98331-904-0 02 1 1511- ● ●
29 HOSE; FUEL
(C) 		8-98331-046-0 01 1 1511- ●
29 HOSE; FUEL
(G) 		8-98331-047-0 01 1 1511- ●
29 HOSE; FUEL
(C) 		8-98312-665-0 01 1 1511- ●
29 HOSE; FUEL
(D) 		8-98317-265-0 01 1 1511- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1511- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=24 & 24 L=49 		1-09701-018-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
47 PIPE; FUEL,RETURN
L=699 		8-98286-297-0 01 1 1511- ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
65 HOSE; FUEL,DELIVERY PIPE
L=2060 		8-98311-198-0 01 1 1511- ●
65 HOSE; FUEL,DELIVERY PIPE
L=1260 		8-98311-197-0 01 1 1511- ●
66 HOSE; FUEL,RETURN PIPE
L=1230 		8-98331-906-0 01 1 1511- ●
66 HOSE; FUEL,RETURN PIPE
L=2030 		8-98311-307-0 01 1 1511- ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1511- ● ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1511- ● ●
97 BRACKET; CLIP
(C) 		8-98129-922-0 01 1 1511- ● ●
97 BRACKET; CLIP
(D) 		8-98153-352-0 01 1 1511- ● ●
97 BRACKET; CLIP
(E) 		8-98311-190-0 01 1 1511- ● ●
147 CLIP; FUEL PIPE TO HOSE
ID=16 		8-98008-098-0 02 1 1511- ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1511- ● ●
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
303 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
409 JOINT; PIPE
(A) 		8-97353-668-0 01 1 1511- ● ●
409 JOINT; PIPE
(B) 		8-98009-438-1 01 1 1511- ● ●

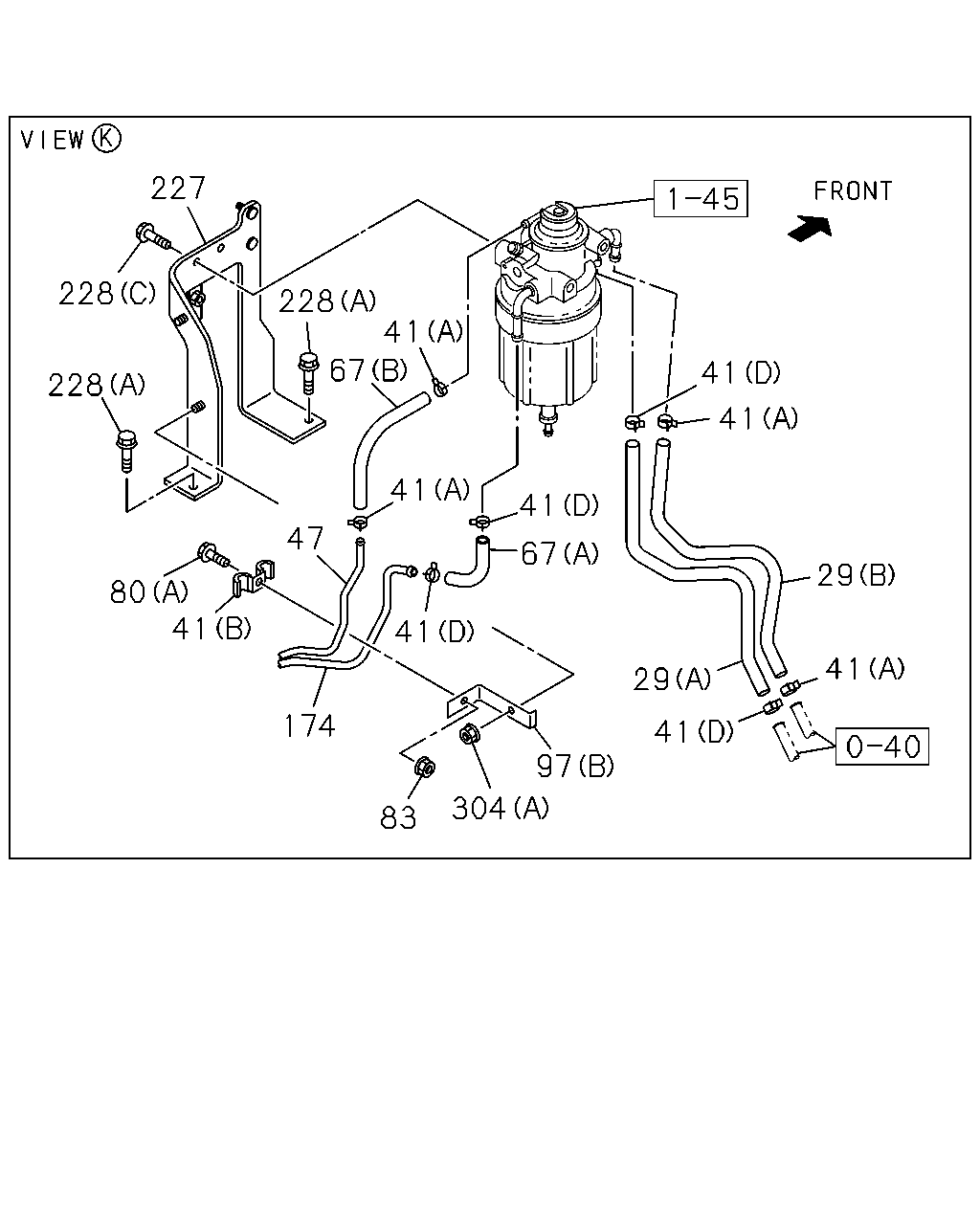

çizim 500752
227 228 228 80 41 174 41 47 41 67 228 41 41 67 29 41 97 304 83 41 41 29 41
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(G) 		8-98331-905-0 01 1 1511- ●
29 HOSE; FUEL
(F) 		8-98331-050-0 01 1 1511- ● ●
29 HOSE; FUEL
(E) 		8-98331-904-0 02 1 1511- ● ●
29 HOSE; FUEL
(C) 		8-98331-046-0 01 1 1511- ●
29 HOSE; FUEL
(G) 		8-98331-047-0 01 1 1511- ●
29 HOSE; FUEL
(C) 		8-98312-665-0 01 1 1511- ●
29 HOSE; FUEL
(D) 		8-98317-265-0 01 1 1511- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1511- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=24 & 24 L=49 		1-09701-018-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
47 PIPE; FUEL,RETURN
L=699 		8-98286-297-0 01 1 1511- ● ●
67 HOSE; FUEL,DELIVERY
(B) L=180 SERVICED BY L=3000 		0-01558-300-0 01 1 1511- ● ●
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01859-300-0 01 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1511- ● ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1511- ● ●
97 BRACKET; CLIP
(C) 		8-98129-922-0 01 1 1511- ● ●
97 BRACKET; CLIP
(D) 		8-98153-352-0 01 1 1511- ● ●
97 BRACKET; CLIP
(E) 		8-98311-190-0 01 1 1511- ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1511- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1511- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1511- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M10X60 FLANGE 		0-28051-060-0 02 1 1511- ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
