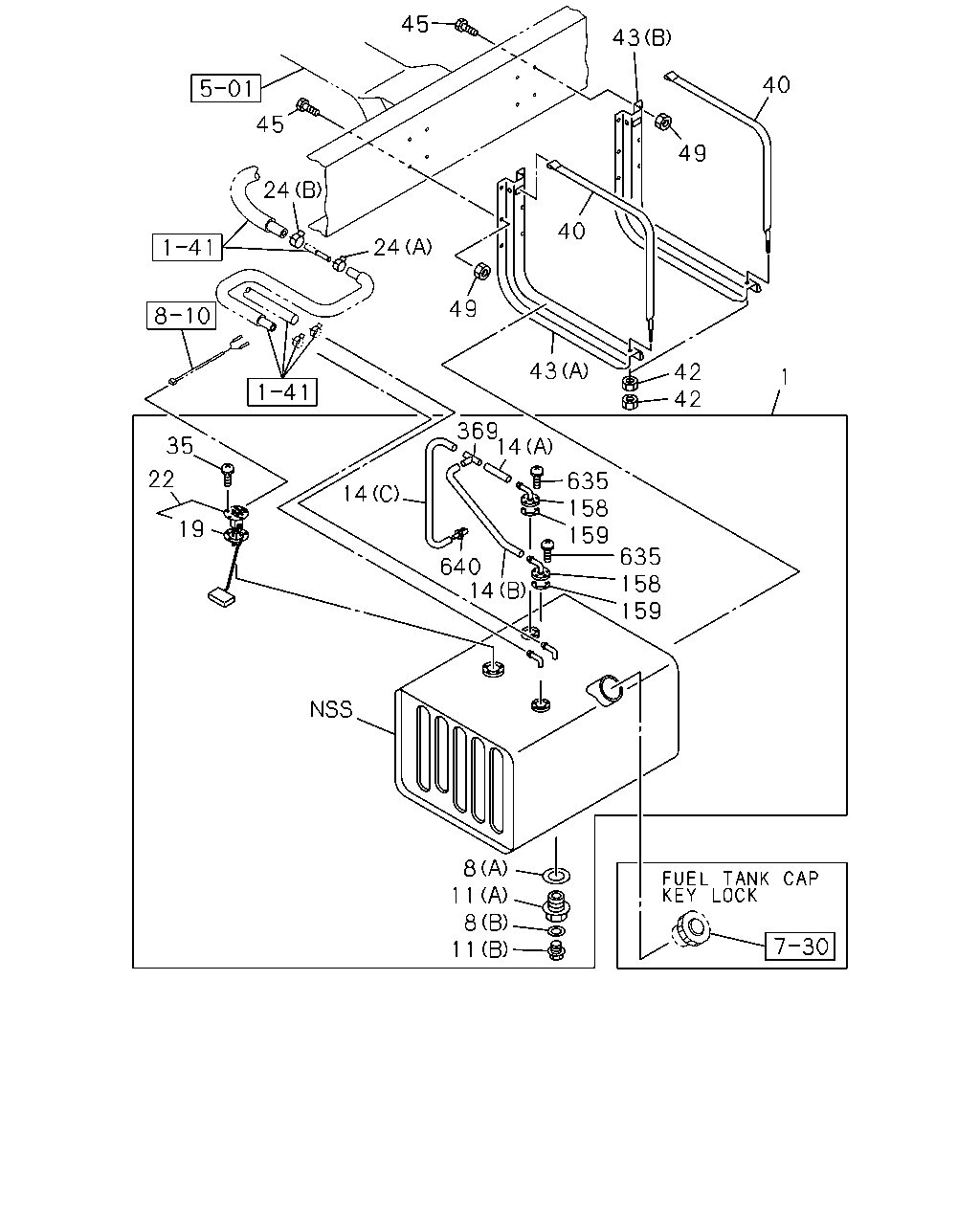

1-40 — FUEL TANK (#169508) — 26 parça

11 8 11 8 159 635 635 159 158 158 14 369 640 14 14 35 22 19 42 42 1 43 49 24 24 45 40 49 40 43 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL 855X603X453 200L	8-98328-501-0	01	1	1511-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=30	8-98067-041-0	01	1	1511-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	1511-	●	●
11	PLUG; DRAIN,FUEL TANK (A) M30	8-98067-038-0	01	1	1511-	●	●
11	PLUG; DRAIN,FUEL TANK (B) M14X14	9-09862-156-0	01	1	1511-	●	●
14	HOSE; BREATHER,OUTLET (A) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	1511-	●	●
14	HOSE; BREATHER,OUTLET (C) L=170 SERVICED BY L=3000	0-01256-300-0	01	1	1511-	●	●
14	HOSE; BREATHER,OUTLET (B) L=540 SERVICED BY L=3000	0-01256-300-0	01	1	1511-	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1511-	●	●
22	UNIT; FUEL TANK	8-98099-321-0	01	1	1511-	●	●
24	JOINT; BREATHER HOSE,SUB (A) ID=13	8-97173-220-0	01	1	1511-	●	●
24	JOINT; BREATHER HOSE,SUB (B) ID=16	8-98008-098-0	01	1	1511-	●	●
35	SCREW; FUEL TANK UNIT M5X12 W/LK WASHER	0-36220-512-0	05	1	1511-	●	●
40	BELT; SUPPORT,FUEL TANK L=1070	8-98067-501-1	02	1	1511-	●	●
42	NUT; SUPPORT BELT M12	0-91110-512-0	04	1	1511-	●	●
43	BRACKET; FUEL TANK (A)	8-98010-733-0	01	1	1511-	●	●
43	BRACKET; FUEL TANK (B)	8-98122-884-0	01	1	1511-	●	●
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28651-235-0	08	1	1511-	●	●
49	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M12 FLANGE	0-91180-212-0	08	1	1511-	●	●
49	NUT; BRKT MZW6P M/T(RSZ) M12 FLANGE	0-91180-212-0	04	1	1511-	●	●
158	VALVE; ROLL OVER & FLOAT	8-98067-039-0	02	1	1511-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	02	1	1511-	●	●
369	JOINT; HOSE	8-98067-080-0	01	1	1511-	●	●
635	SCREW; ROLL OVER & FLOAT VALVE M5X12 W/LK WASHER	0-36220-512-0	10	1	1511-	●	●
640	VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	1511-	●	●

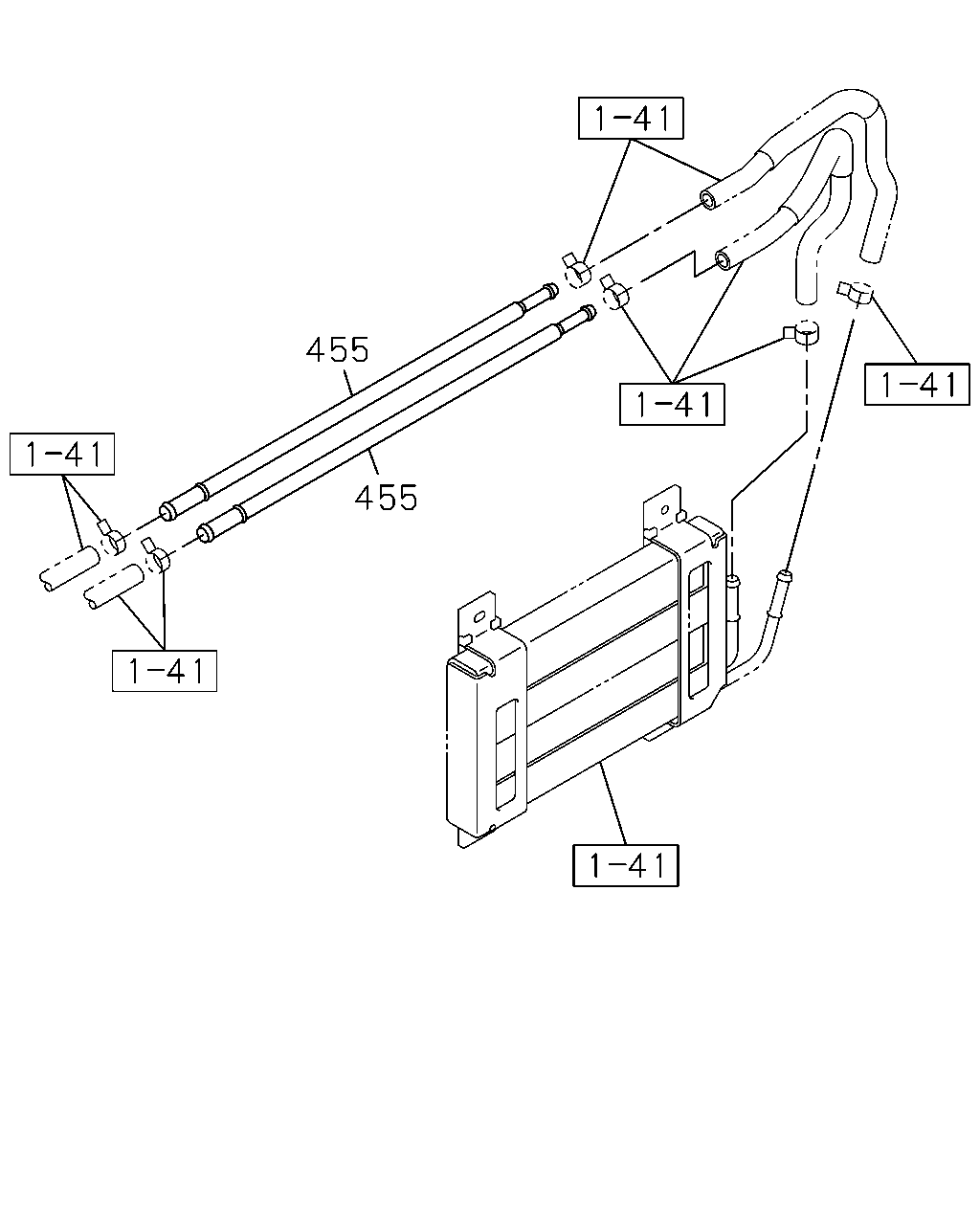

455 455

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	455	PIPE; FUEL,RETURN L=355	8-98286-482-0	02	1	1511-	●	●
