1-31 — AIR DUCT (#169506) — 104 parça

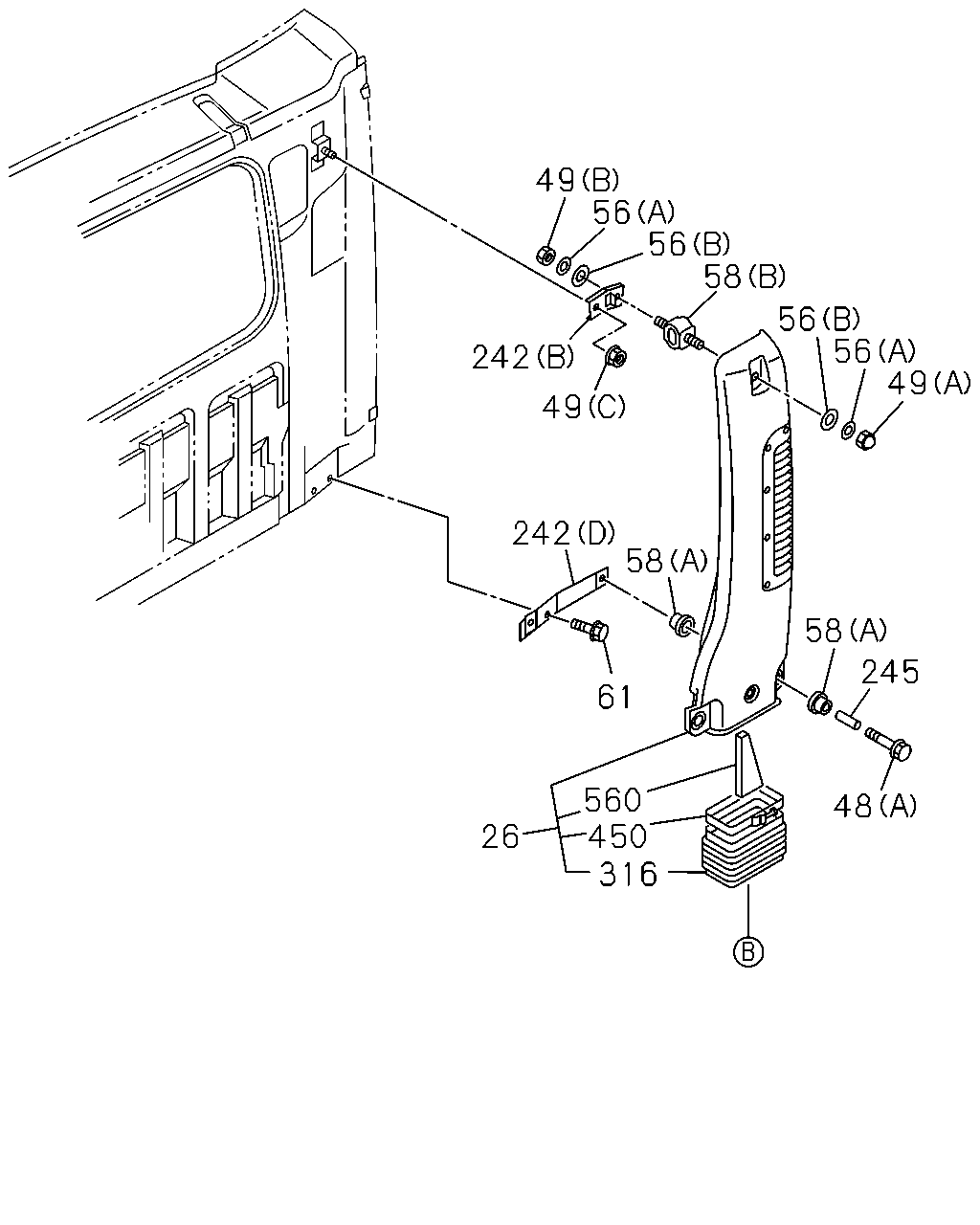

çizim 500708
316 450 560 26 48 245 58 61 58 242 49 242 49 56 56 58 56 56 49
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1511-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1511-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1511-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1511-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1511-
49 NUT; AIR DUCT
SGL CAB(FG**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1511-
49 NUT; AIR DUCT
DBL CAB(FG**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1511-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1511-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1511-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1511-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1511-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1511-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1511-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 1511-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 1511-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1511-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1511-
450 CLAMP; HOSE 9-09915-504-1 01 1 1511-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1511-

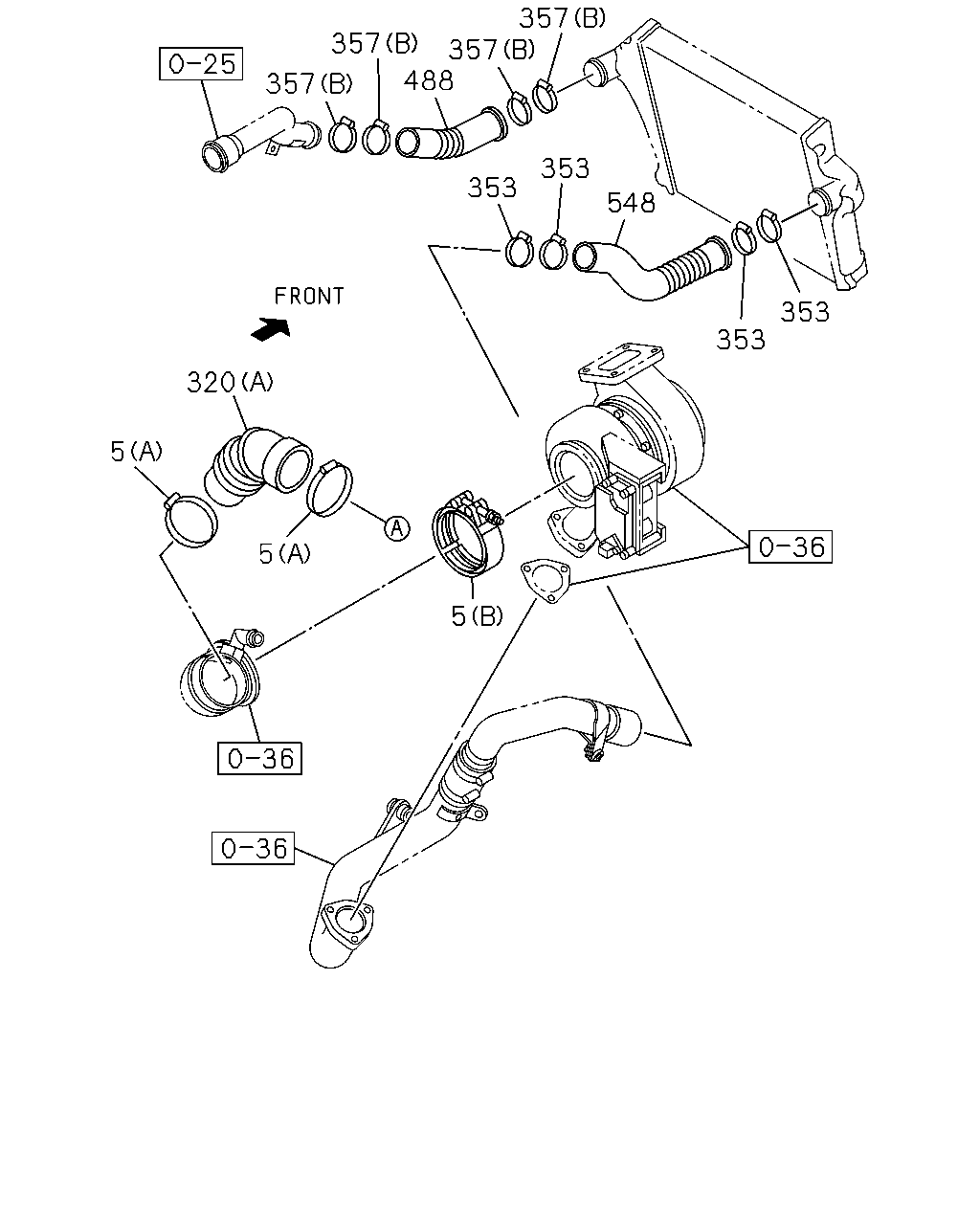

çizim 500710
357 357 488 357 357 353 353 548 353 353 5 5 5 320
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1511-
5 CLIP; AIR DUCT
SGL CAB(FG**M*) (A) ID=104-142 		1-09707-139-0 01 1 1511-
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1511-
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 03 1 1511-
320 HOSE; CONN,ACL
SGL CAB(FG**M*) (A) 		8-98012-859-2 01 1 1511-
320 HOSE; CONN,ACL
DBL CAB(FG**W*) (B) 		8-98092-944-1 01 1 1511-
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 04 1 1511-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1511-
357 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 04 1 1511-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1511-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 1511-

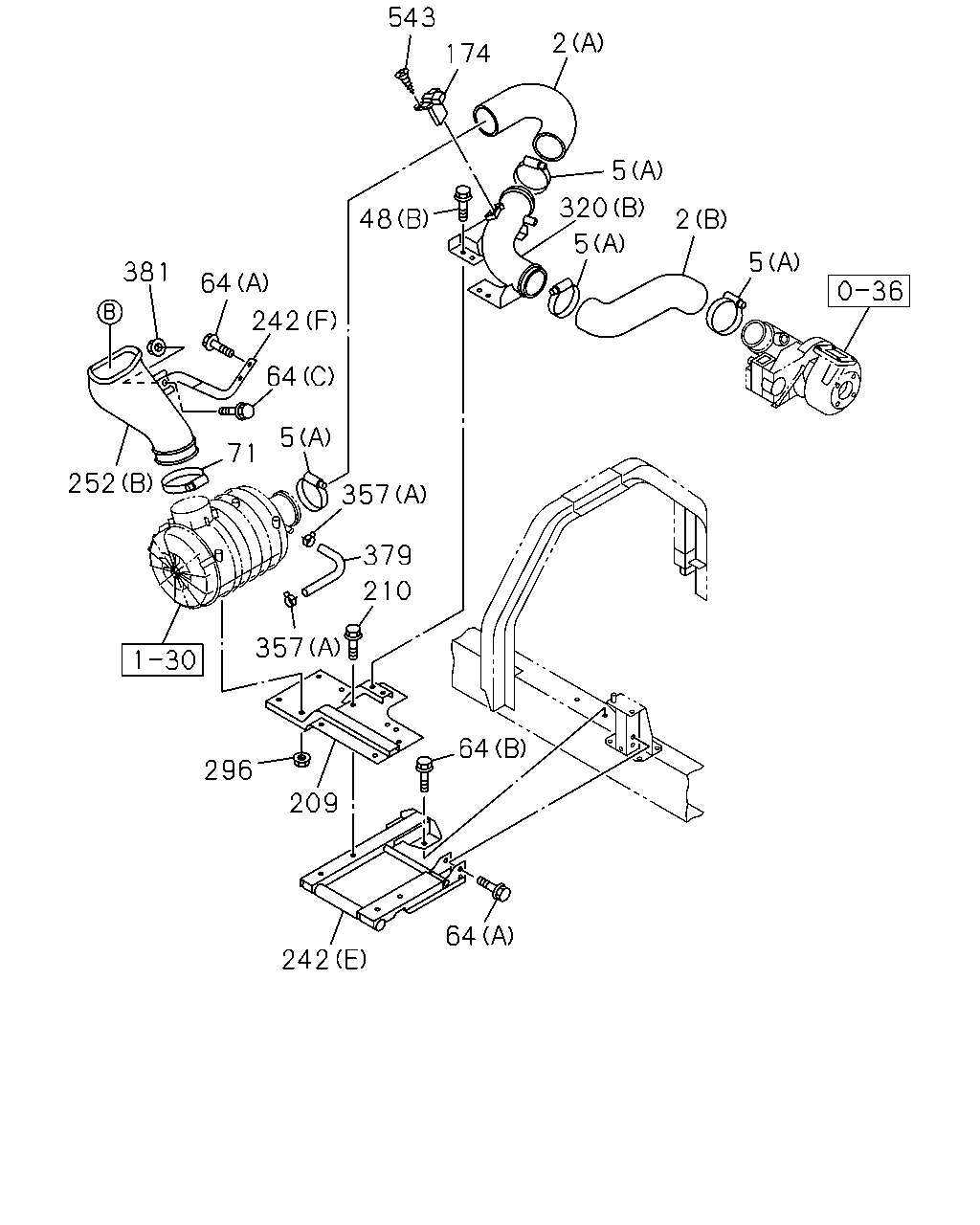

çizim 500715
543 174 2 5 2 5 320 5 48 64 381 242 64 5 71 252 357 379 210 357 296 209 64 64 242
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL
DBL CAB(FG**W*) (A) 		8-98050-682-0 01 1 1511-
2 HOSE; ACL
DBL CAB(FG**W*) (B) 		8-98068-254-0 01 1 1511-
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1511-
5 CLIP; AIR DUCT
SGL CAB(FG**M*) (A) ID=104-142 		1-09707-139-0 01 1 1511-
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1511-
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 03 1 1511-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1511-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1511-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (A) M10X25 FLANGE 		0-28651-025-0 05 1 1511-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (B) M10X35 FLANGE 		0-28651-035-0 02 1 1511-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1511-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1511-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1511-
209 BRACKET; ACL
SGL CAB(FG**M*) 		8-98021-995-1 01 1 1511-
209 BRACKET; ACL
DBL CAB(FG**W*) 		8-98089-455-1 01 1 1511-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1511-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 1511-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 1511-
252 DUCT; AIR INT
SGL CAB(FG**M*) (A) 		8-98012-861-1 01 1 1511-
252 DUCT; AIR INT
DBL CAB(FG**W*) (B) 		8-98050-681-0 01 1 1511-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1511-
320 HOSE; CONN,ACL
SGL CAB(FG**M*) (A) 		8-98012-859-2 01 1 1511-
320 HOSE; CONN,ACL
DBL CAB(FG**W*) (B) 		8-98092-944-1 01 1 1511-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1511-
357 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 04 1 1511-
379 HOSE; RUBBER
SGL CAB(FG**M*) 		8-98077-469-0 01 1 1511-
379 HOSE; RUBBER
DBL CAB(FG**W*) 		8-98081-489-0 01 1 1511-
381 NUT; BRKT,AIR DUCT
DBL CAB(FG**W*) M8 FLANGE 		0-91180-108-0 01 1 1511-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1511-

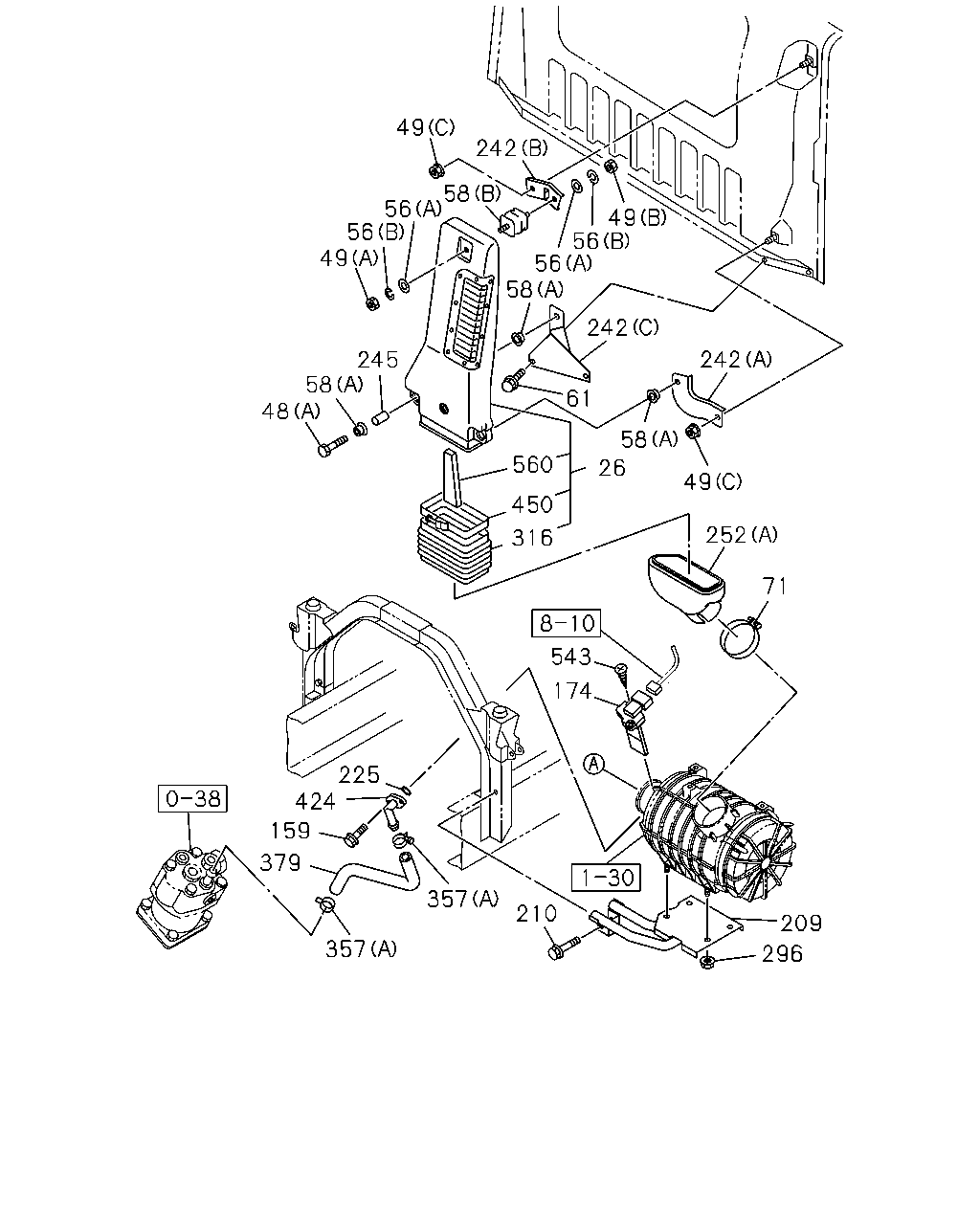

çizim 501786
296 210 357 357 379 424 159 225 174 71 543 316 560 58 26 450 49 252 242 242 61 245 58 48 49 56 56 49 58 242 56 56 58 49 209
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1511-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1511-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1511-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1511-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1511-
49 NUT; AIR DUCT
SGL CAB(FG**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1511-
49 NUT; AIR DUCT
DBL CAB(FG**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1511-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1511-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1511-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1511-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1511-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1511-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1511-
159 BOLT; AIR PIPE
SGL CAB(FG**M*) M6X16 FLANGE 		0-28050-616-0 02 1 1511-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1511-
209 BRACKET; ACL
SGL CAB(FG**M*) 		8-98021-995-1 01 1 1511-
209 BRACKET; ACL
DBL CAB(FG**W*) 		8-98089-455-1 01 1 1511-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1511-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1511-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 1511-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 1511-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 1511-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1511-
252 DUCT; AIR INT
SGL CAB(FG**M*) (A) 		8-98012-861-1 01 1 1511-
252 DUCT; AIR INT
DBL CAB(FG**W*) (B) 		8-98050-681-0 01 1 1511-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1511-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1511-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1511-
357 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 04 1 1511-
379 HOSE; RUBBER
SGL CAB(FG**M*) 		8-98077-469-0 01 1 1511-
379 HOSE; RUBBER
DBL CAB(FG**W*) 		8-98081-489-0 01 1 1511-
424 PIPE; AIR,INL
SGL CAB(FG**M*) 		8-98081-834-0 01 1 1511-
450 CLAMP; HOSE 9-09915-504-1 01 1 1511-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1511-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1511-
