3-11 — PARKING BRAKE CONTROL
(#16950) — 37 parça
◀

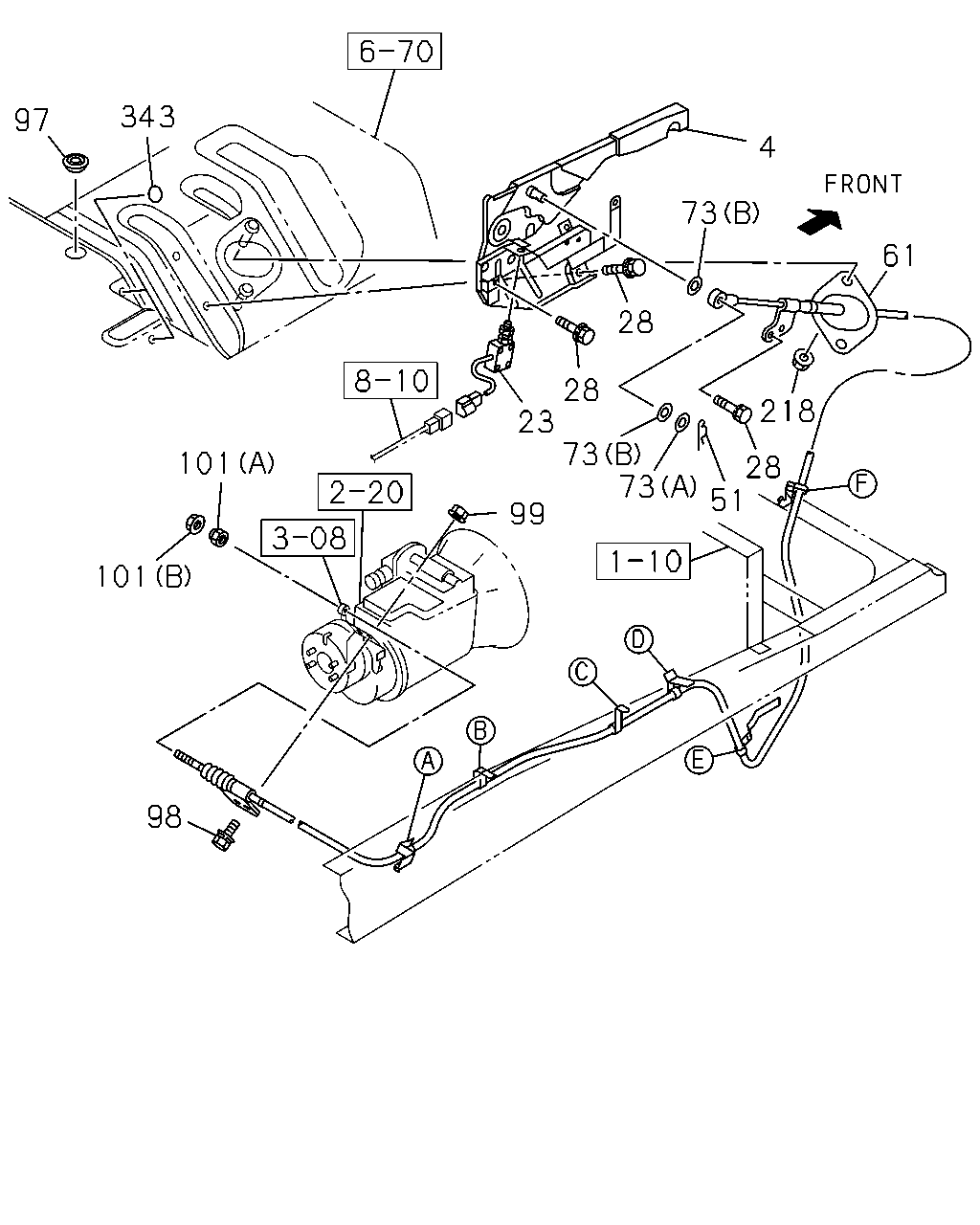

[311A] NO.2 (22 parça)

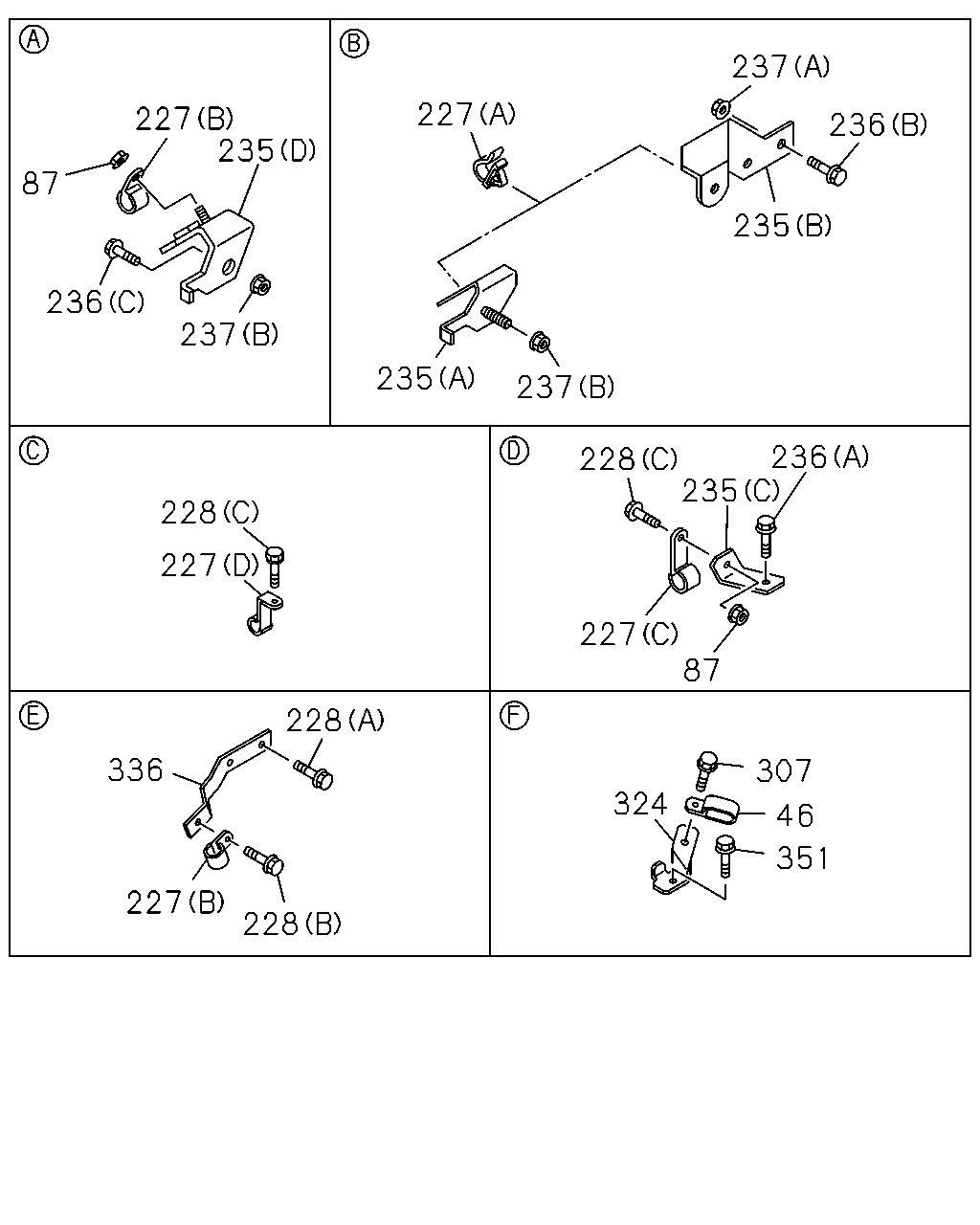

[311A] NO.1 (15 parça)
▶
237
227
227
235
236
87
235
236
237
235
237
228
236
235
228
227
227
87
228
336
307
324
46
351
227
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1110-
87
NUT
M8 FLANGE
0-91180-108-0
02
1
1110-
227
CLIP; RAD
(B) ID=13 L=20
0-95235-235-0
02
1
1110-
227
CLIP; RAD
(C) ID=12 L=70
1-09700-097-1
01
1
1110-
227
CLIP; RAD
(D) ID=16 H=30 L=30
1-09701-080-0
01
1
1110-
227
CLIP; RAD
(A) ID=9.5
5-09709-020-0
02
1
1110-
228
BOLT; CLIP RAD MTG
(B) M8X16 FLANGE
0-28050-816-0
01
1
1110-
228
BOLT; CLIP RAD MTG
(C) M8X25 FLANGE
0-28650-825-0
02
1
1110-
228
BOLT; CLIP RAD MTG
(A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1110-
235
BRACKET; CONT CABLE TO FRAME
(C)
1-82699-199-0
01
1
1110-
235
BRACKET; CONT CABLE TO FRAME
(D)
8-98077-903-2
01
1
1110-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98100-152-0
01
1
1110-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98126-934-0
01
1
1110-
236
BOLT; BRKT TO FRAME
(A) M8X25 FLANGE
0-28650-825-0
01
1
1110-
236
BOLT; BRKT TO FRAME
(B) M8X30 FLANGE
0-28650-830-0
02
1
1110-
236
BOLT; BRKT TO FRAME
(C) M10X35 FLANGE
0-28651-035-0
01
1
1110-
237
NUT; BRKT TO FRAME
(A) M8 FLANGE
0-91180-108-0
02
1
1110-
237
NUT; BRKT TO FRAME
(B) M10 FLANGE
0-91180-210-0
02
1
1110-
307
BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER
0-51640-825-0
01
1
1110-
324
BRACKET
8-98067-482-1
01
1
1110-
336
BRACKET; RADIATOR
8-98044-680-0
01
1
1110-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1110-
343
97
4
73
61
28
28
23
73
73
218
101
28
51
99
101
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-549-0
01
1
1110-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1110-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1110-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1110-
61
CABLE; PARKING BRK
MLD6A M/T(X5N) L=4564
8-98145-645-0
01
1
1110-
61
CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4621
8-98107-768-0
01
1
1110-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1110-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1110-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
1110-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
1110-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
1110-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
1110-
101
NUT; CABLE TO LEVER
(A)
1-46259-007-0
01
1
1110-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
02
1
1110-
343
SEAL
OD=25 BLACK
1-76798-019-0
04
1
1110-
