8-45 — HEATER PIPING (#1695) — 16 parça

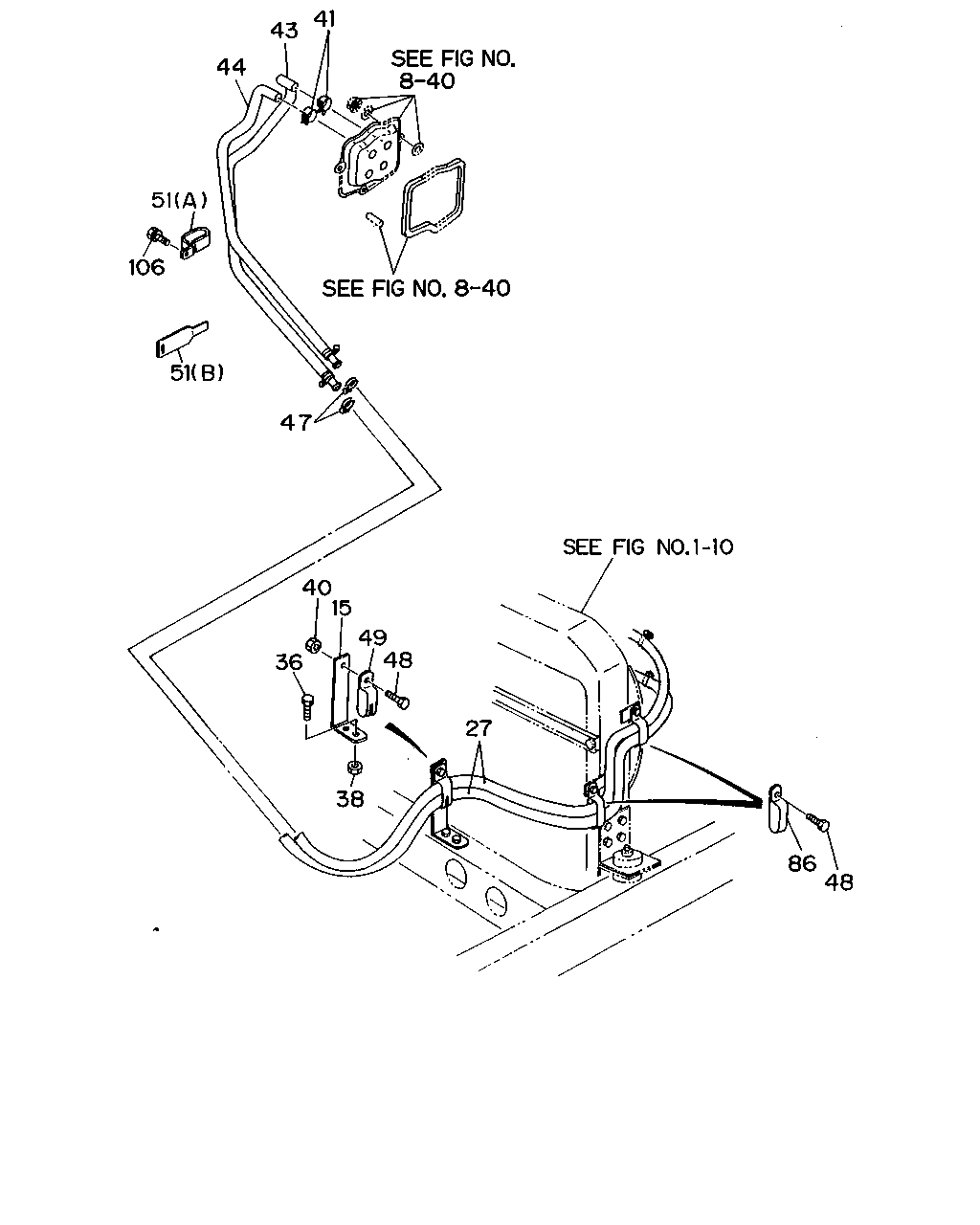

çizim 94693
41 43 44 51 106 51 36 40 15 49 48 38 27 86 48 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E
15 BRACKET; WATER HOSE
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> 		1-83571-385-1 01 1 9207- ● ● ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B) L=445+205 		1-83565-400-2 01 1 9207- ● ● ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) L=525+215 		1-83565-401-1 01 1 9207- ● ● ● ● ●
36 BOLT; BRKT
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ● ●
38 NUT; BRKT
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M8 		9-09110-408-0 02 1 9207- ● ● ● ● ●
40 NUT; CLIP
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M8 		9-09110-408-0 01 1 9207- ● ● ● ● ●
41 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=26 		1-09704-090-1 02 1 9207- ● ● ● ● ●
43 HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> 		1-83565-410-1 01 1 9207- ● ● ● ● ●
44 HOSE; WATER,HTR,INL
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> 		1-83565-409-1 01 1 9207- ● ● ● ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=26 		1-09704-090-1 04 1 9207- ● ● ● ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M8X20 FLANGE 		0-28080-820-0 03 1 9207- ● ● ● ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=24X2 L=25 		1-09700-710-0 01 1 9207- ● ● ● ● ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) 		1-09700-625-0 02 1 9207- ● ● ● ● ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B) 		1-83574-139-0 02 1 9207- ● ● ● ● ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> 		9-09917-380-0 02 1 9207- ● ● ● ● ●
106 BOLT; CLIP,WATER HOSE,HTR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9207- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
