Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11716 - FTR AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#169499) — 45 parça

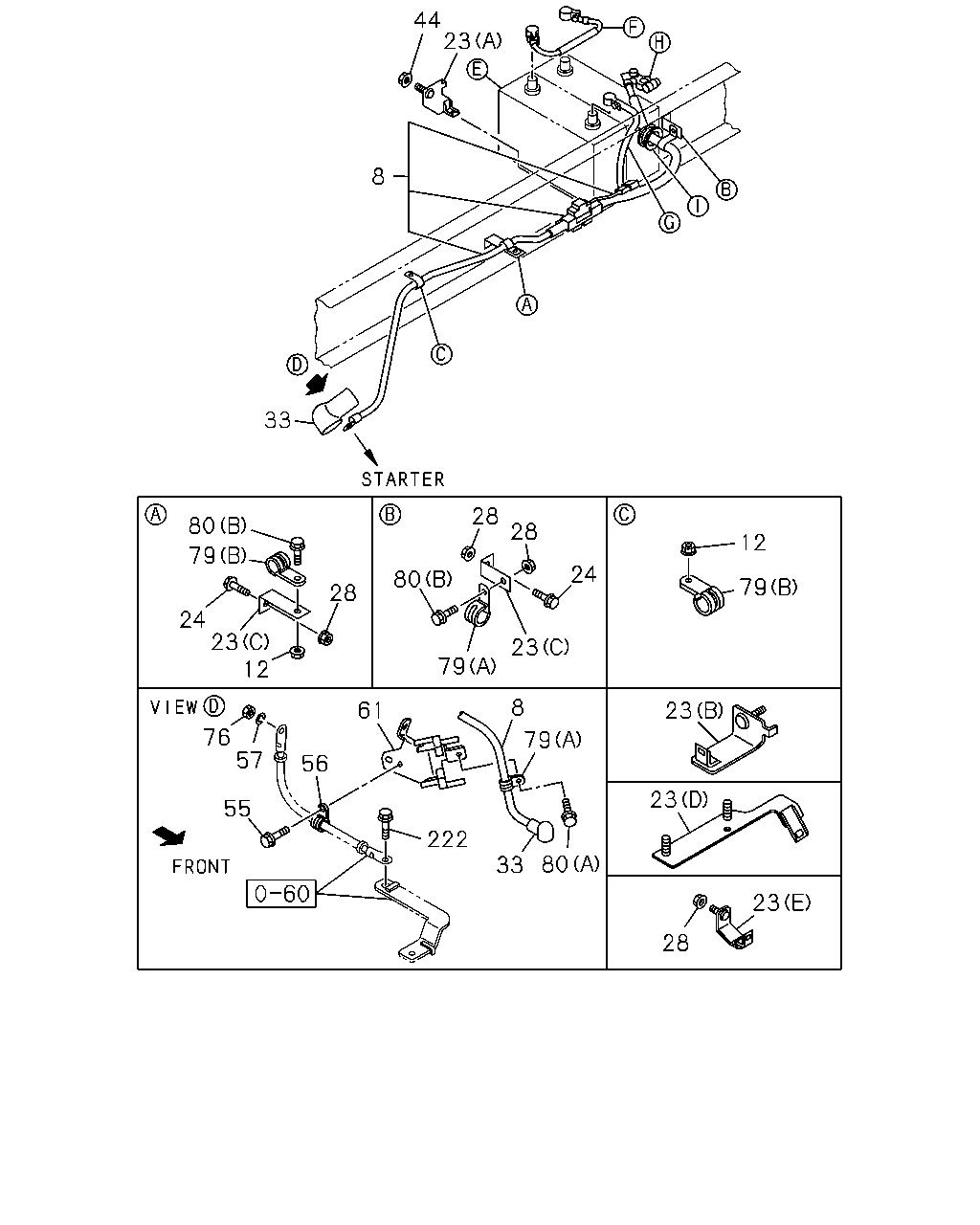

44 23 8 33 12 79 24 28 28 80 79 23 80 79 24 23 12 28 76 57 55 56 61 222 33 80 79 8 23 23 23 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98306-499-0	01	1	1511-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98306-500-0	01	1	1511-	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98306-505-0	01	1	1511-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98306-506-0	01	1	1511-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1511-		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	1511-	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98201-025-0	01	1	1511-	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1511-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	1511-		●
23	BRACKET; CABLE CLIP TO FRAME (E)	8-97612-957-1	01	1	1511-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98091-358-0	01	1	1511-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1511-	●
24	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28650-830-0	02	1	1511-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1511-	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1511-	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1511-		●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	01	1	1511-		●
33	CAP; INSULATOR	1-82699-431-0	01	1	1511-	●	●
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1511-	●	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1511-	●	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1511-	●	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	1511-	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1511-	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	1511-		●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-		●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1511-	●	●

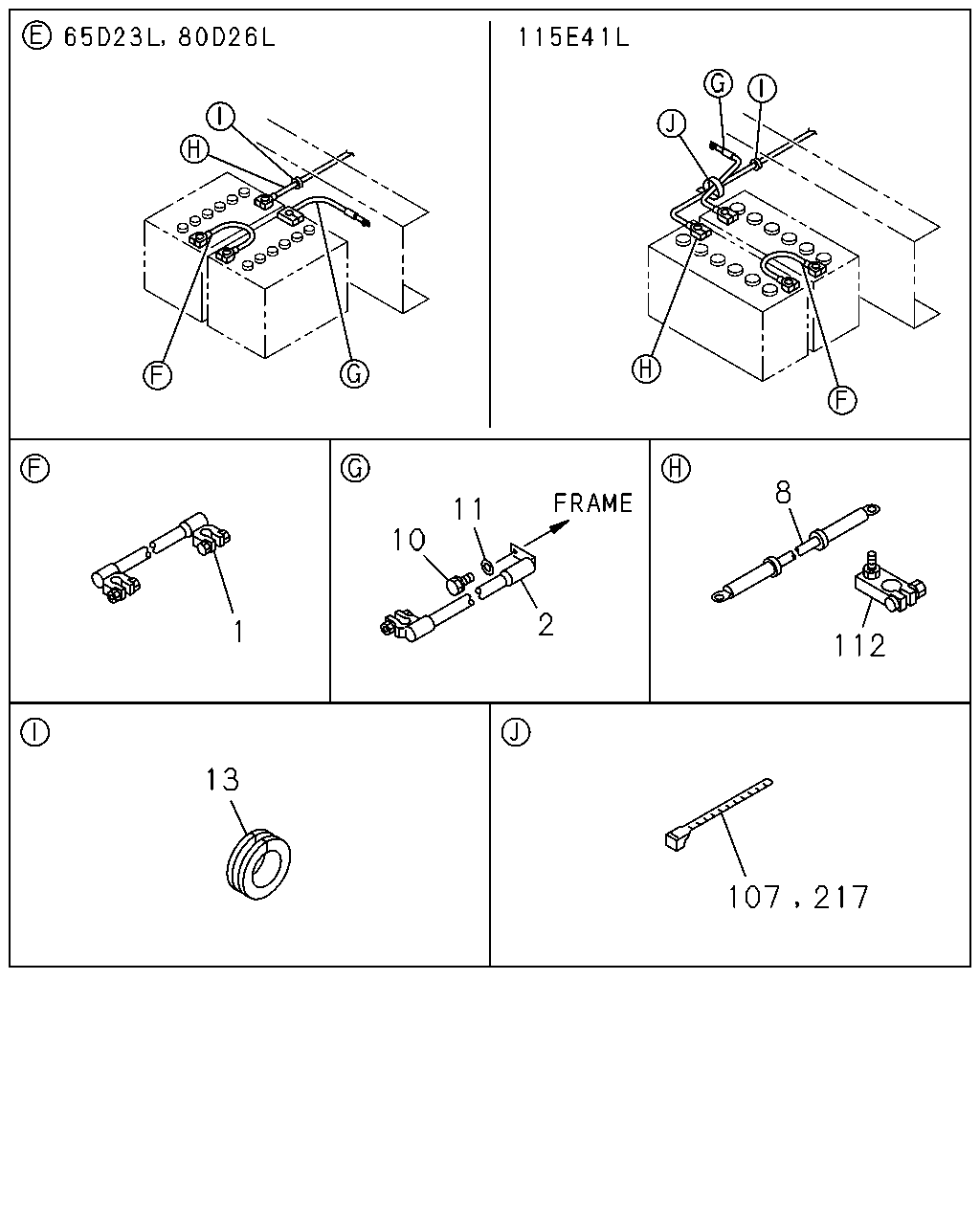

1 10 11 2 112 8 107 217 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1511-	●	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-1	01	1	1511-	●	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	1511-	●	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98306-499-0	01	1	1511-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98306-500-0	01	1	1511-	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98306-505-0	01	1	1511-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98306-506-0	01	1	1511-		●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1511-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1511-	●	●
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	1511-	●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	1511-	●	●
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1511-	●	●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	1511-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
