0-60 — ENGINE ELECTRICAL CONTROL PARTS (#169498) — 59 parça

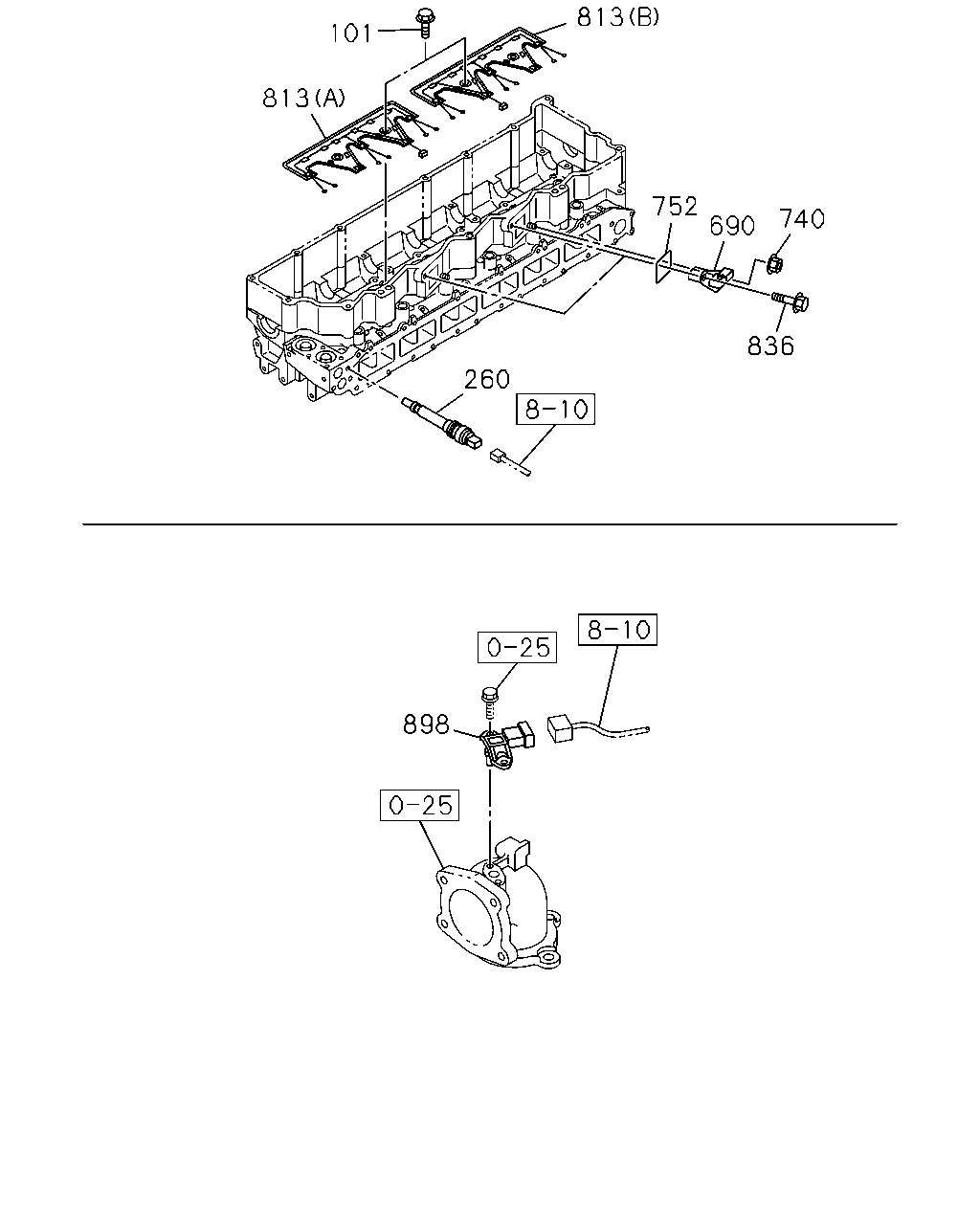

çizim 500426
752 740 690 836 260 813 101 813 898
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 1511- ● ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1511- ● ●
690 CONNECTOR 8-94390-858-1 02 1 1511- ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1511- ● ●
813 HARNESS; INJECTOR
(A) FROMT 		8-98204-717-0 01 1 1511- ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1511- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1511- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1511- ● ●

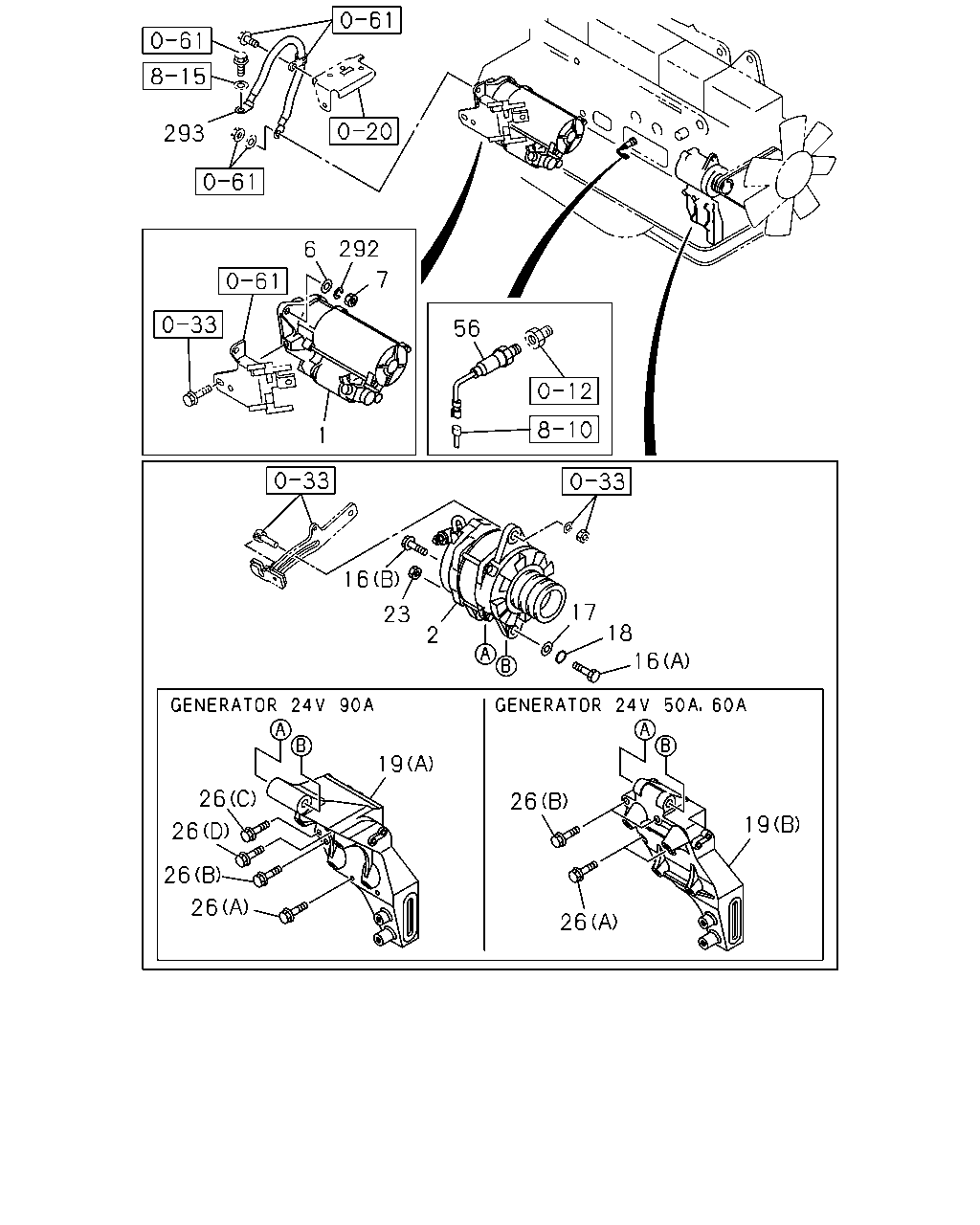

çizim 500451
17 18 16 19 26 26 19 26 26 26 26 6 292 7 56 1 16 23 2 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1511- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98330-087-0 01 1 1511- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 1511- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 1511- ● ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1511- ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1511- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1511- ● ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1511- ● ●
16 BOLT; GEN
HEATER & DEFROSTER(C41) (B) M6X10 FLANGE 		0-28050-610-0 01 1 1511- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1511- ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1511- ● ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 1511- ● ●
19 BRACKET; GEN
GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 1511- ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 1511- ● ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1511- ● ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1511- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (C) M10X25 FLANGE 		0-28151-025-0 01 1 1511- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (D) M10X135 		8-94397-139-1 01 1 1511- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1511- ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 1511- ● ●
293 CABLE; STARTER EARTH
L=430 		8-97621-357-0 01 1 1511- ● ●

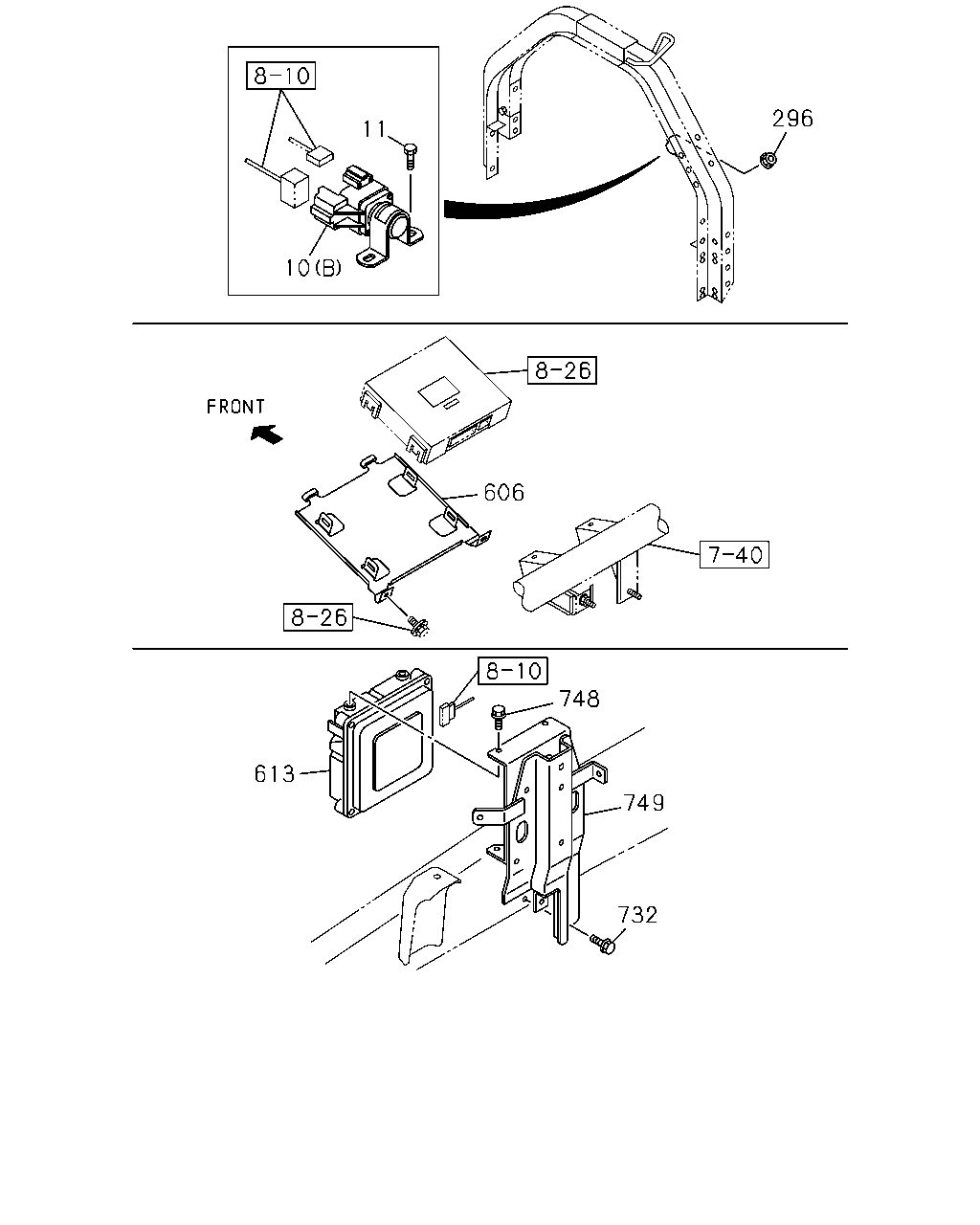

çizim 500462
11 10 606 296 613 748 749 732
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1511- ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1511- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
606 BRACKET; CONT UNIT 8-98109-198-0 01 1 1511- ● ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-183-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-181-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-182-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-186-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-184-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-185-1 01 1 1511- ●
613 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) A/T<X9D> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-291-1 01 1 1511- ●
613 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98305-191-1 01 1 1511- ●
613 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98305-190-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-285-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-283-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-284-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-176-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-175-1 01 1 1511- ●
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-286-1 01 1 1511- ●
613 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) A/T<X9D> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-289-1 01 1 1511- ●
613 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98305-288-1 01 1 1511- ●
613 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98305-287-1 01 1 1511- ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1511- ● ●
748 BOLT; CONT UNIT
M6X12 FLANGE 		0-28050-612-0 04 1 1511- ● ●
749 STAY; CONT UNIT 8-98329-389-0 01 1 1511- ● ●

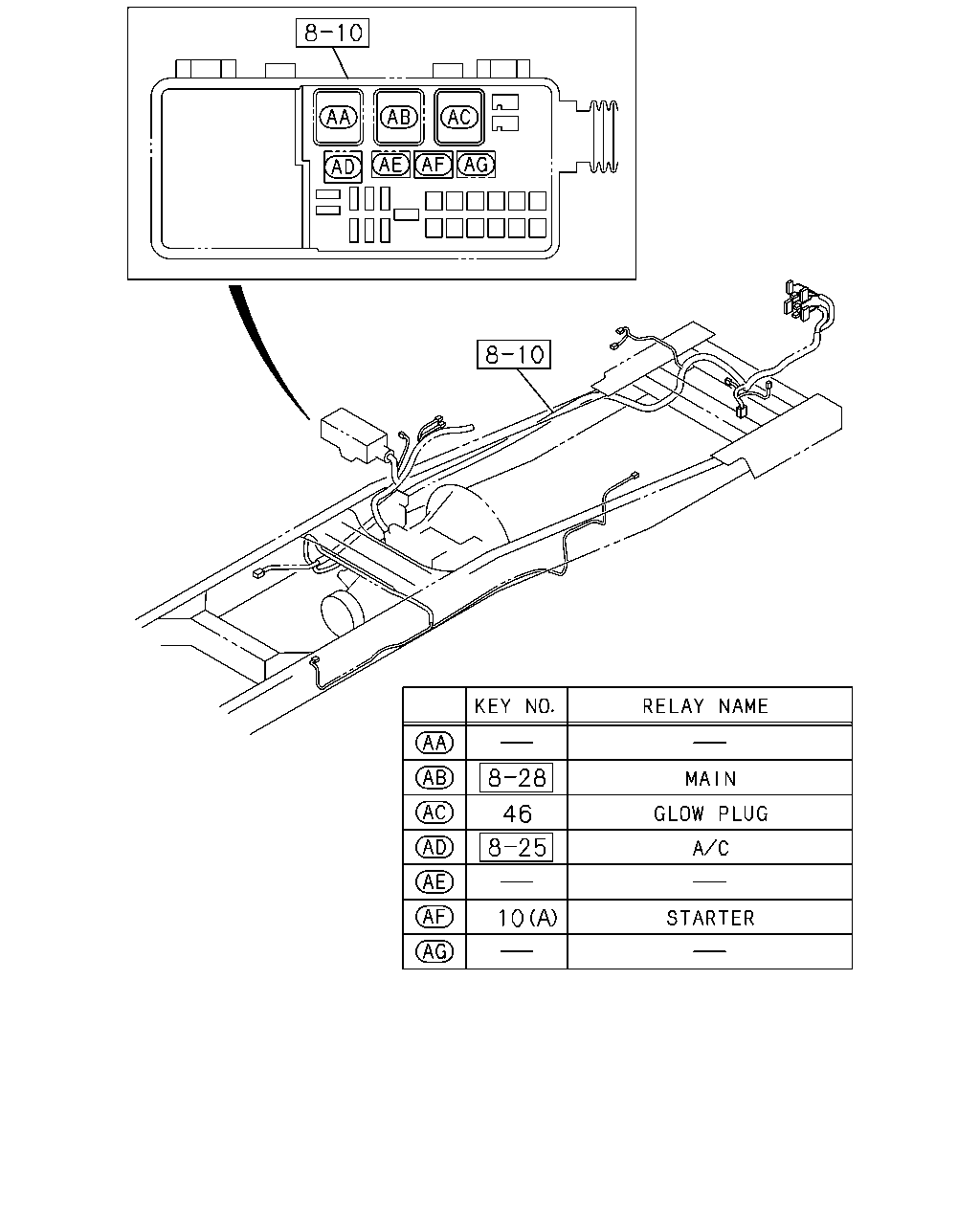

çizim 501482
46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1511- ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1511- ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1511- ● ●
