3-08 — PARKING BRAKE (#16948) — 50 parça

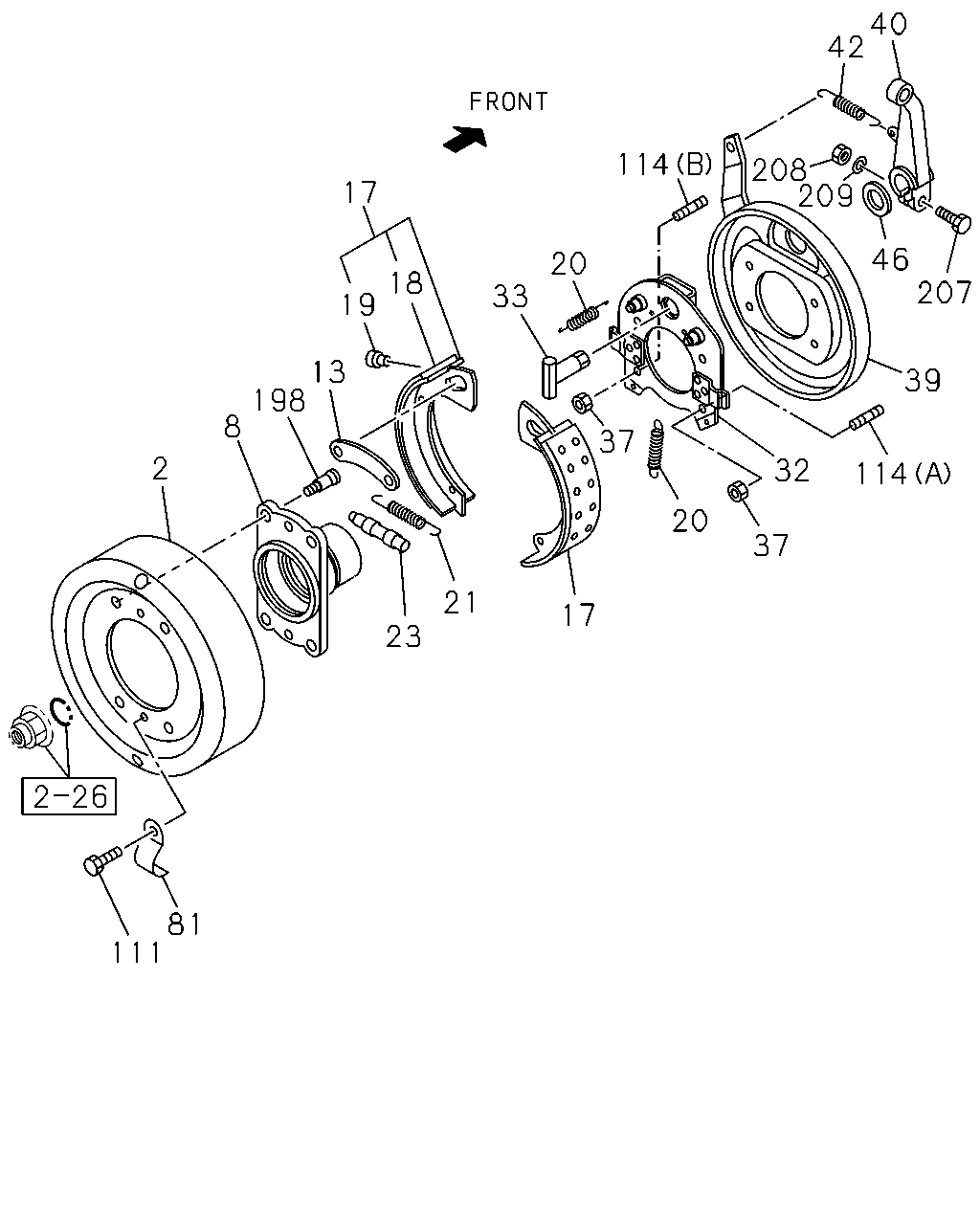

40 42 114 208 209 17 46 207 20 18 33 19 13 198 39 8 37 2 32 114 20 37 21 17 23 81 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK	1-46211-019-0	01	1	1110-	●	●
8	FLANGE; PARKING BRK	8-98153-193-0	01	1	1110-	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	1110-	●	●
17	SHOE; PARKING BRK	1-46220-022-1	02	1	1110-	●	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	1110-	●	●
19	RIVET; LINING,PARKING BRK	1-09732-058-0	32	1	1110-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	1110-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	1110-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	1110-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	1110-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-010-0	01	1	1110-	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1110-	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	1110-	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-046-0	01	1	1110-	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	1110-	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	1110-	●	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-030-0	02	1	1110-	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1110-	●	●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1110-	●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1110-	●
198	BOLT; KNURL M16X55	8-98023-172-0	04	1	1110-	●
207	BOLT; LEVER	8-98061-595-0	01	1	1110-	●
208	NUT; LEVER M10	0-91111-510-0	01	1	1110-	●
209	WASHER; SP,LEVER ID=10.2	0-91510-510-0	01	1	1110-	●

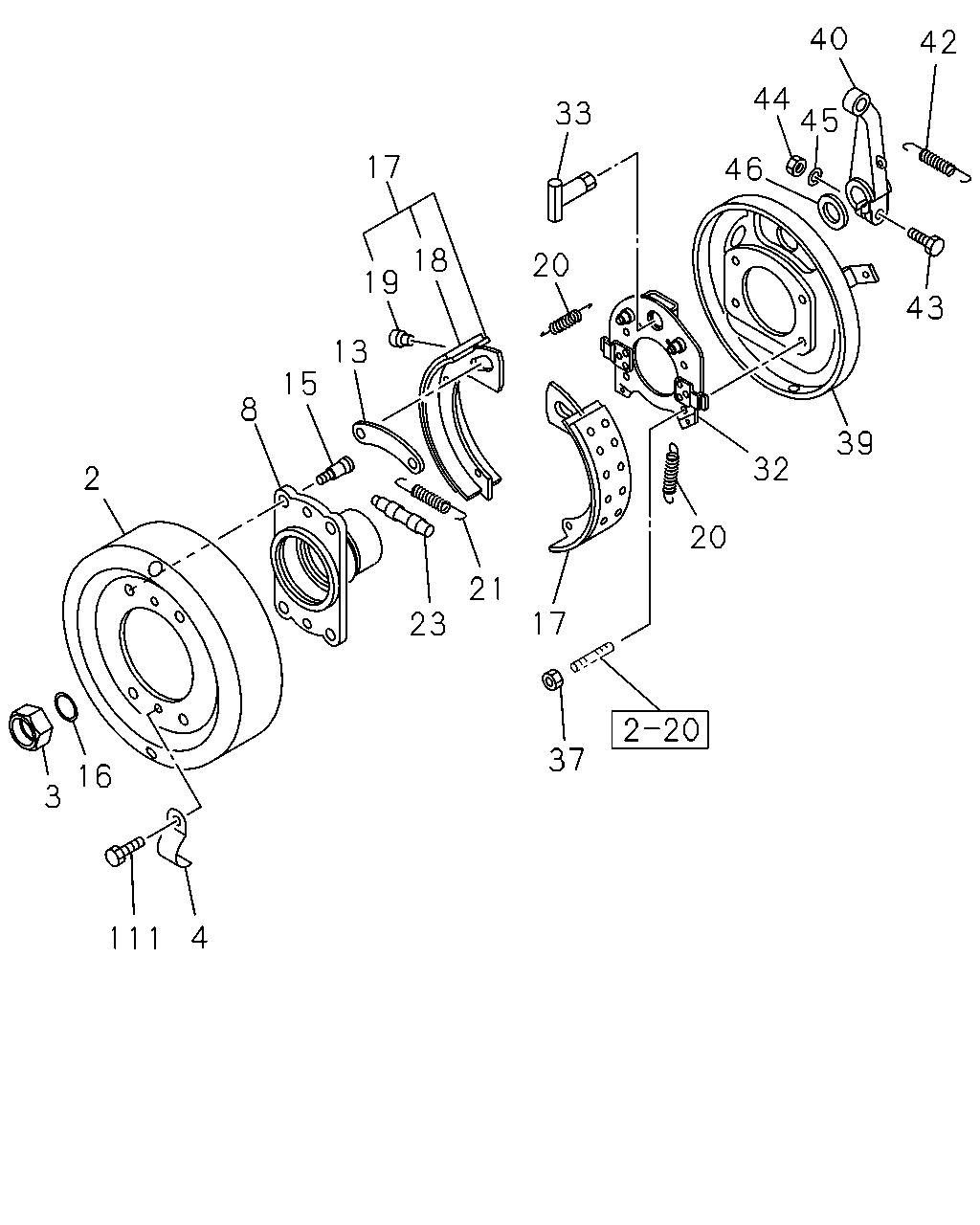

40 42 44 45 33 17 46 18 20 19 43 13 15 8 39 32 2 20 21 17 23 37 16 3 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK	1-46211-019-0	01	1	1110-	●	●
3	NUT; LK M36 FLANGE	8-98014-140-0	01	1	1110-		●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	1110-		●
8	FLANGE; PARKING BRK	8-98153-193-0	01	1	1110-	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	1110-	●	●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	1110-		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1110-		●
17	SHOE; PARKING BRK	1-46220-022-1	02	1	1110-	●	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	1110-	●	●
19	RIVET; LINING,PARKING BRK	1-09732-058-0	32	1	1110-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	1110-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	1110-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	1110-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	1110-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-010-0	01	1	1110-	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1110-	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	1110-	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-046-0	01	1	1110-	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	1110-	●	●
43	BOLT; LEVER TO CM/SHF	8-98061-595-0	01	1	1110-		●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	1110-		●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	0-91510-510-0	01	1	1110-		●
46	WASHER; LEVER	9-09855-362-0	01	1	1110-	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1110-	●	●

130 197

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	130	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1110-	●
	197	BRACKET; CENTER BRAKE CABLE	8-98009-002-1	01	1	1110-	●
