0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#169478) — 79 parça

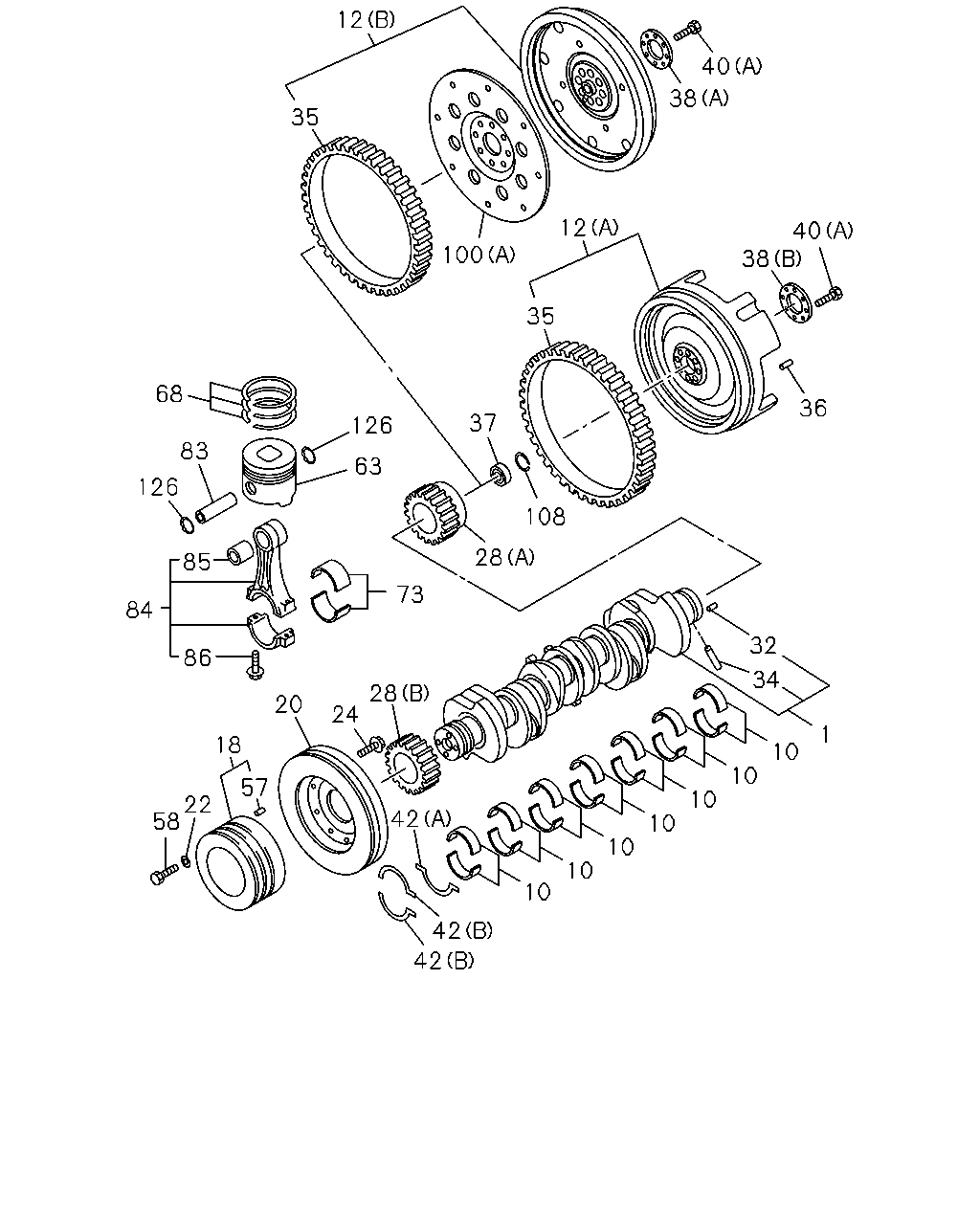

12 35 100 12 38 40 35 37 126 63 68 83 126 85 84 86 58 22 18 20 24 28 73 57 42 42 42 10 10 10 10 10 10 10 1 34 32 36 40 38 108 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-004-0	01	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1511-
12	FLYWHEEL LCT2500 A/T ALLISON(Y5W) (C)	8-97610-681-1	01	1	1511-
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97602-463-2	01	1	1511-
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97604-545-2	01	1	1511-
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1511-
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1511-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1511-
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1511-
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1511-
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1511-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1511-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1511-
35	GEAR; RING Z=140	8-94396-784-1	01	1	1511-
36	PIN; FLYWHEEL LCT2500 A/T ALLISON(Y5W) OD=6 L=24	9-09878-532-0	01	1	1511-
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1511-
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	1511-
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-157-0	01	1	1511-
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1511-
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=55 OD=110	8-94397-496-1	01	1	1511-
40	BOLT; FLYWHEEL (A) M16X62	8-94393-070-2	08	1	1511-
40	BOLT; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (B) M12X30	8-11505-501-0	12	1	1511-
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1511-
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1511-
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1511-
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1511-
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98215-307-0	06	1	1511-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1511-
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1511-
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1511-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1511-
84	ROD ASM; CONN	8-98018-425-3	06	1	1511-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1511-
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1511-
100	PLATE; FLEX LCT2500 A/T ALLISON(Y5W) (B)	8-97500-320-0	01	1	1511-
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98148-782-1	01	1	1511-
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1511-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1511-

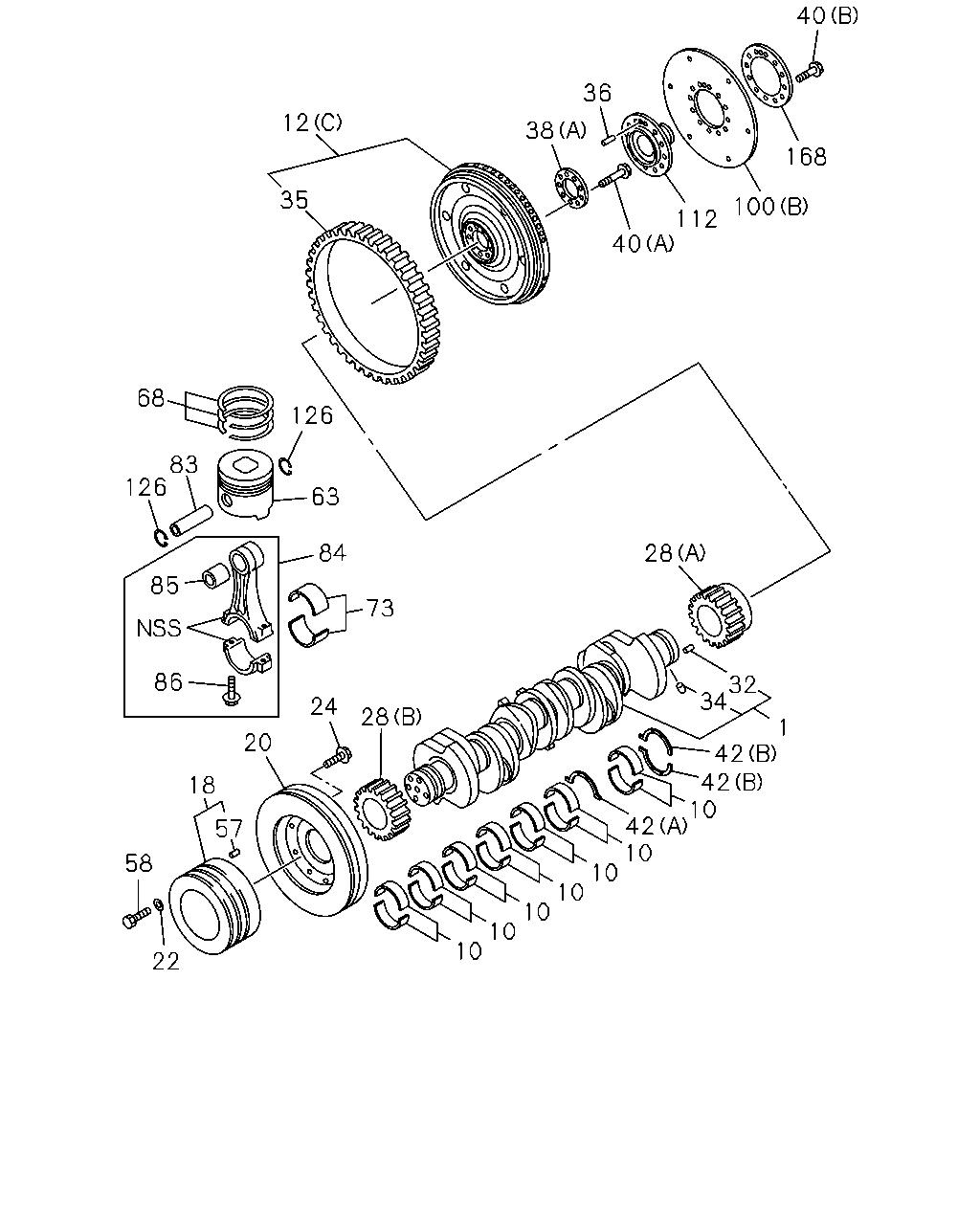

28 24 20 18 57 58 22 10 10 10 10 10 10 42 10 42 42 34 1 32 28 73 84 63 83 126 85 86 126 68 12 35 38 36 40 112 100 168 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-004-0	01	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1511-
12	FLYWHEEL LCT2500 A/T ALLISON(Y5W) (C)	8-97610-681-1	01	1	1511-
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97602-463-2	01	1	1511-
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97604-545-2	01	1	1511-
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1511-
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1511-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1511-
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1511-
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1511-
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1511-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1511-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1511-
35	GEAR; RING Z=140	8-94396-784-1	01	1	1511-
36	PIN; FLYWHEEL LCT2500 A/T ALLISON(Y5W) OD=6 L=24	9-09878-532-0	01	1	1511-
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1511-
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1511-
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=55 OD=110	8-94397-496-1	01	1	1511-
40	BOLT; FLYWHEEL (A) M16X62	8-94393-070-2	08	1	1511-
40	BOLT; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (B) M12X30	8-11505-501-0	12	1	1511-
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1511-
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1511-
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1511-
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1511-
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98215-307-0	06	1	1511-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1511-
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1511-
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1511-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1511-
84	ROD ASM; CONN	8-98018-425-3	06	1	1511-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1511-
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1511-
100	PLATE; FLEX LCT2500 A/T ALLISON(Y5W) (B)	8-97500-320-0	01	1	1511-
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98148-782-1	01	1	1511-
112	ADAPTER; FLEX PLATE LCT2500 A/T ALLISON(Y5W)	8-97500-319-0	01	1	1511-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1511-
168	PLATE; WEAR LCT2500 A/T ALLISON(Y5W) ID=119 OD=177	8-29538-157-0	01	1	1511-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
