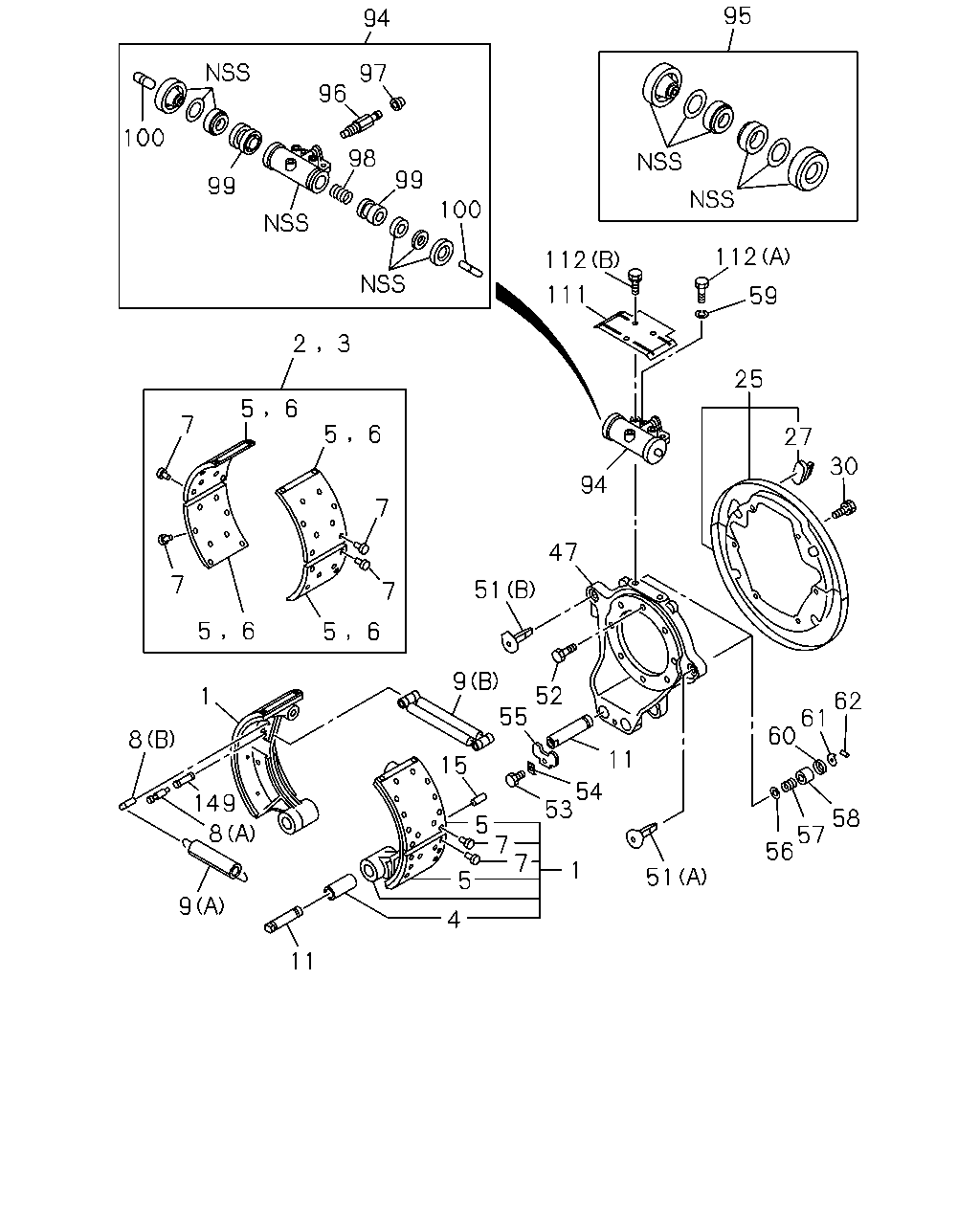

1 |
SHOE; BRK,RR
|
1-47170-442-0 |
04 |
1 |
1110- |
| |
2 |
LINING SET; RR BRK,STANDARD
T=16
|
1-88311-359-1 |
02 |
1 |
1110- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
T=17
|
1-88311-360-1 |
02 |
1 |
1110- |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
|
1-47112-012-0 |
04 |
1 |
1110- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47126-760-0 |
08 |
1 |
1110- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
T=17
|
1-47126-761-0 |
08 |
1 |
1110- |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
1110- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A)
|
1-09744-051-0 |
04 |
1 |
1110- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(B)
|
1-47119-025-0 |
04 |
1 |
1110- |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-09583-175-0 |
02 |
1 |
1110- |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-210-0 |
02 |
1 |
1110- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
L=121.5
|
1-47131-039-0 |
04 |
1 |
1110- |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
|
1-47116-002-0 |
04 |
1 |
1110- |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-461-1 |
02 |
1 |
1110- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1110- |
| |
30 |
BOLT; DRUM COVER
M10X12
|
1-47159-187-0 |
12 |
1 |
1110- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
|
1-47137-151-0 |
02 |
1 |
1110- |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
(A)
|
1-47165-058-1 |
02 |
1 |
1110- |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
(B)
|
1-47165-059-1 |
02 |
1 |
1110- |
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
02 |
1 |
1110- |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20851-016-0 |
02 |
1 |
1110- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
1110- |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
1110- |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
|
1-47169-033-0 |
04 |
1 |
1110- |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
|
1-47169-046-0 |
04 |
1 |
1110- |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
|
1-47169-034-0 |
04 |
1 |
1110- |
| |
59 |
WASHER; LK,RR WHEEL CYL
ID=14.2
|
0-91510-514-0 |
04 |
1 |
1110- |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
|
1-47169-031-0 |
04 |
1 |
1110- |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
|
1-47169-032-1 |
04 |
1 |
1110- |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
|
1-47169-030-0 |
04 |
1 |
1110- |
| |
94 |
CYLINDER; WHEEL,RR BRK
|
1-47601-125-0 |
02 |
1 |
1110- |
| |
95 |
CUP SET; RR WHEEL CYL
|
1-87830-720-0 |
02 |
1 |
1110- |
| |
96 |
SCREW; BLEEDER,RR BRK
|
1-47615-002-0 |
02 |
1 |
1110- |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
OD=12
|
1-47619-011-0 |
02 |
1 |
1110- |
| |
98 |
SPRING; RR WHEEL CYL
|
1-09580-019-0 |
02 |
1 |
1110- |
| |
99 |
PISTON; RR WHEEL CYL
|
1-47624-391-0 |
04 |
1 |
1110- |
| |
100 |
ROD; PUSH,RR WHEEL CYL
|
1-47621-009-0 |
04 |
1 |
1110- |
| |
111 |
COVER; WHEEL CYL
|
1-47159-081-0 |
02 |
1 |
1110- |
| |
112 |
BOLT; WHEEL CYL SETTING
(A)
M14X35
|
0-20851-435-0 |
04 |
1 |
1110- |
| |
112 |
BOLT; WHEEL CYL SETTING
(B)
M8X16 W/LK WASHER
|
0-50540-816-0 |
06 |
1 |
1110- |
| |
149 |
PIN; GUIDE RETURN
|
1-47119-024-0 |
04 |
1 |
1110- |
