8-60 — HEATER UNIT; FRONT (#169463) — 148 parça

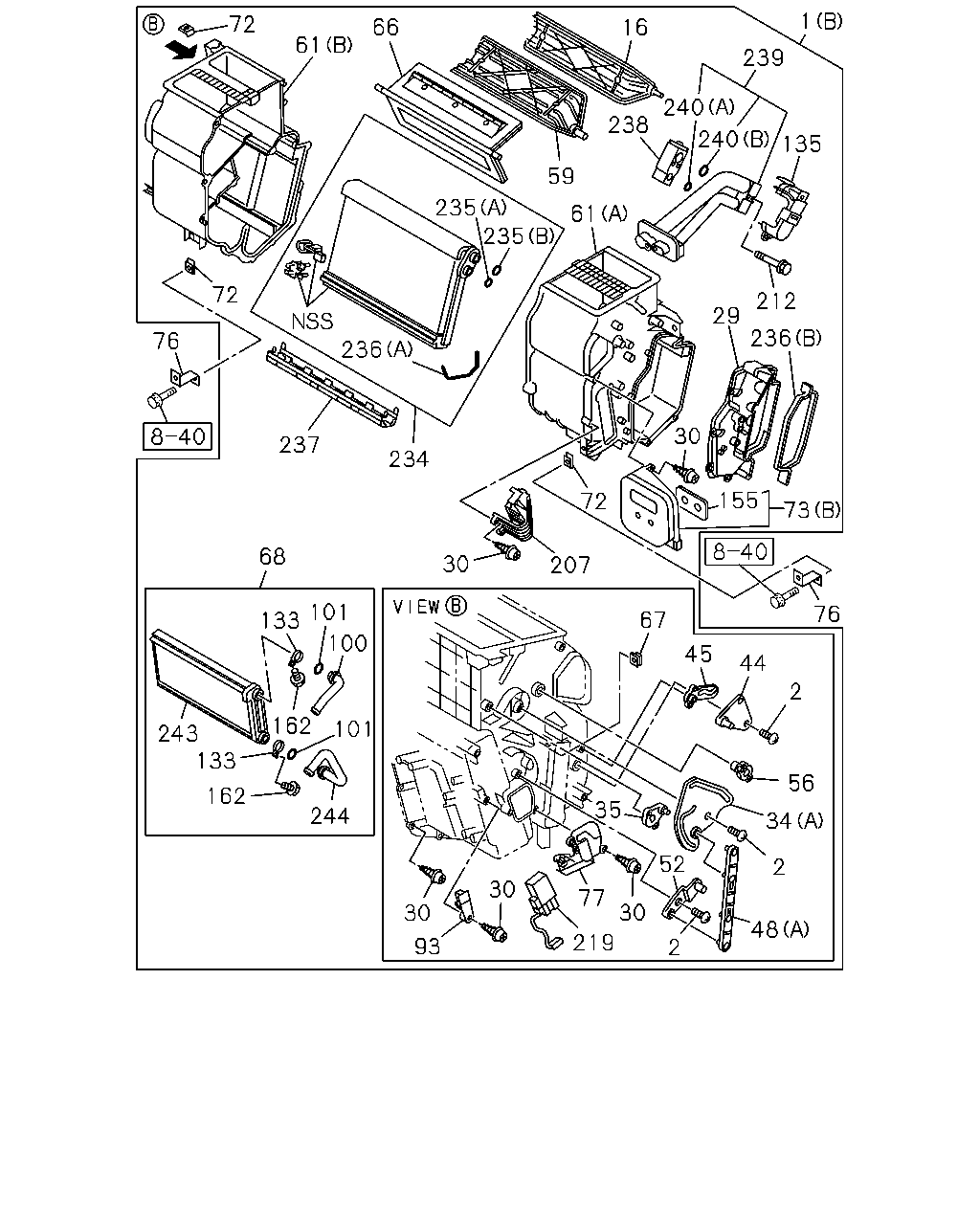

72 61 66 16 239 1 240 238 240 135 59 235 235 61 212 29 236 236 72 76 237 234 72 155 73 207 30 68 76 67 45 44 101 133 100 101 162 243 133 162 244 56 34 35 52 2 30 77 30 219 2 48 30 93 2 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1511-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1511-	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1511-	●	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1511-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1511-	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1511-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1511-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1511-	●	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1511-	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1511-	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1511-	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1511-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1511-	●	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1511-	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1511-	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1511-	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1511-	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1511-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1511-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1511-	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1511-	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1511-	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1511-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1511-	●	●
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98009-742-1	02	1	1511-	●	●
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1511-	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	1511-	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1511-	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1511-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1511-	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	1511-	●	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	1511-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1511-	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1511-	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1511-	●	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	1511-	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	1511-	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	01	1	1511-	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1511-	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1511-	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1511-	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	1511-	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	1511-	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	1511-	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	01	1	1511-	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1511-	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1511-	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1511-	●	●

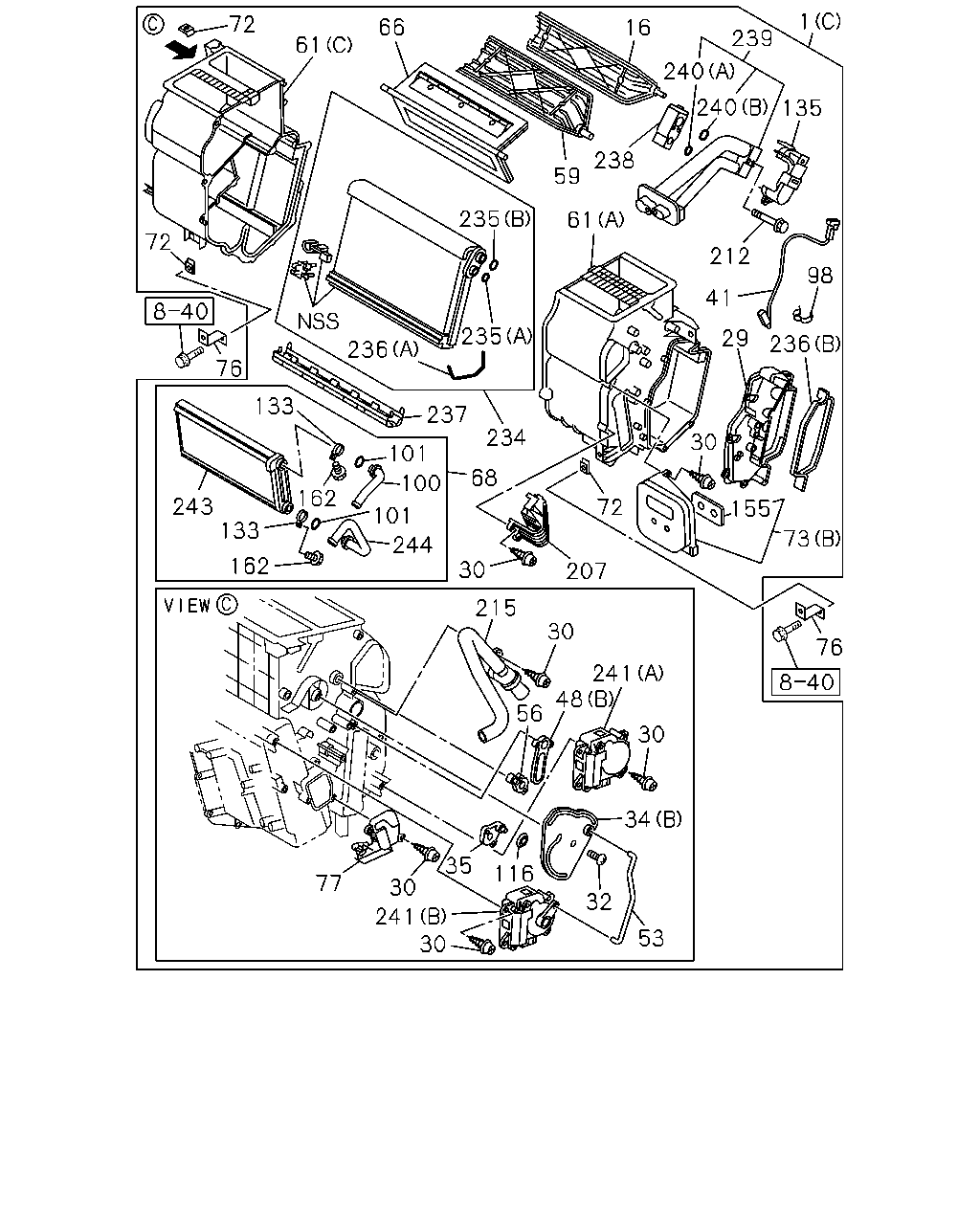

16 239 240 135 240 1 61 238 59 235 66 61 72 72 236 235 212 41 98 236 29 155 73 76 207 30 68 234 237 133 76 30 101 100 30 72 162 243 133 244 101 162 215 241 48 56 116 35 77 241 30 30 32 34 53 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1511-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1511-	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1511-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1511-	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1511-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1511-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1511-	●	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1511-	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1511-	●	●
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1511-	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1511-	●	●
41	THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	1511-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1511-	●	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1511-	●	●
53	ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	1511-	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1511-	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1511-	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1511-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1511-	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1511-	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1511-	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1511-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1511-	●	●
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98009-742-1	02	1	1511-	●	●
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1511-	●	●
98	CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	1511-	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1511-	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1511-	●	●
116	BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	1511-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1511-	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	1511-	●	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	1511-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1511-	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1511-	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1511-	●	●
215	DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	1511-	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	1511-	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	01	1	1511-	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1511-	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1511-	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1511-	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	1511-	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	1511-	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	1511-	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	01	1	1511-	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1511-	●	●
241	MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	1511-	●	●
241	MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	1511-	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1511-	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1511-	●	●

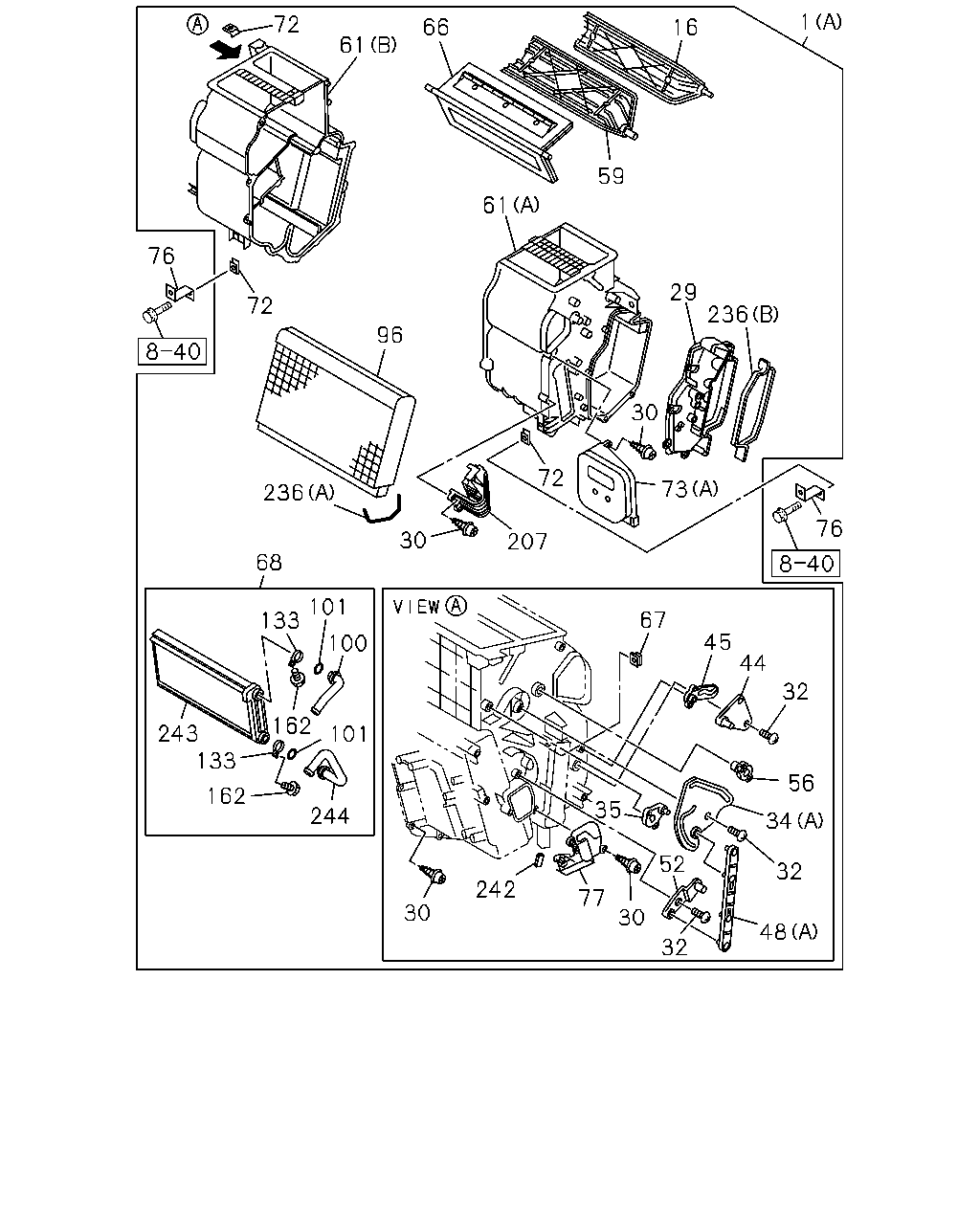

32 48 32 34 56 32 44 45 67 77 30 52 35 242 30 244 162 133 243 162 101 100 101 133 30 207 72 73 30 29 236 76 1 16 59 61 96 236 68 76 72 61 72 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1511-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1511-	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1511-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1511-	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1511-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1511-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1511-	●	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1511-	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1511-	●	●
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1511-	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1511-	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1511-	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1511-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1511-	●	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1511-	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1511-	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1511-	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1511-	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1511-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1511-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1511-	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1511-	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1511-	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1511-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1511-	●	●
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98009-742-1	02	1	1511-	●	●
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1511-	●	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1511-	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1511-	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1511-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1511-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1511-	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1511-	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1511-	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1511-	●	●
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1511-	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1511-	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1511-	●	●
