◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#169455) — 74 parça

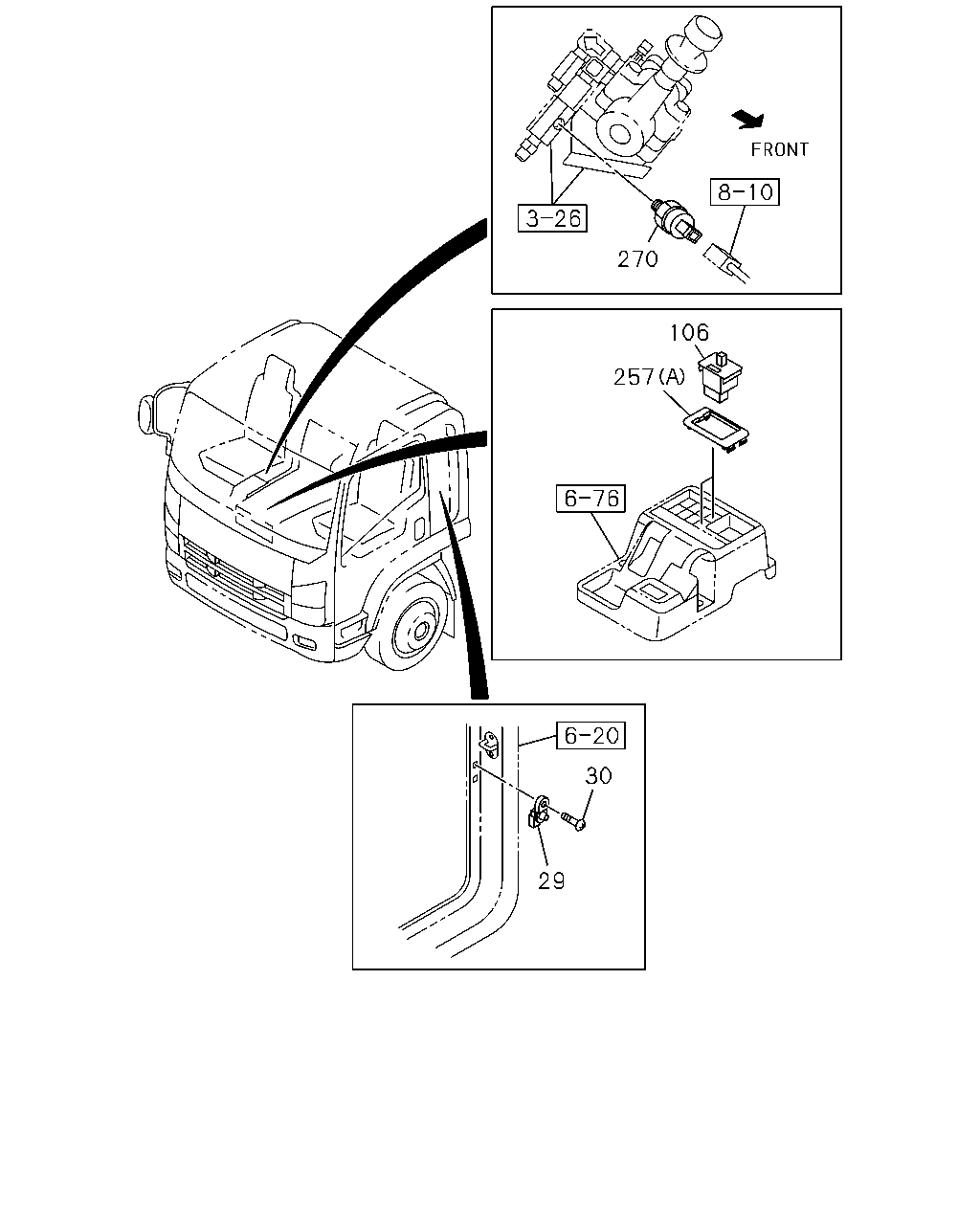

çizim 501644
270 106 257 30 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1511- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1511- ● ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82350-223-0 02 1 1511- ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1511- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1511- ●
270 SWITCH; PRESS,WHEEL PARKING
STAMP 2.0 		8-98010-856-2 01 1 1511- ● ●
çizim 501894
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●

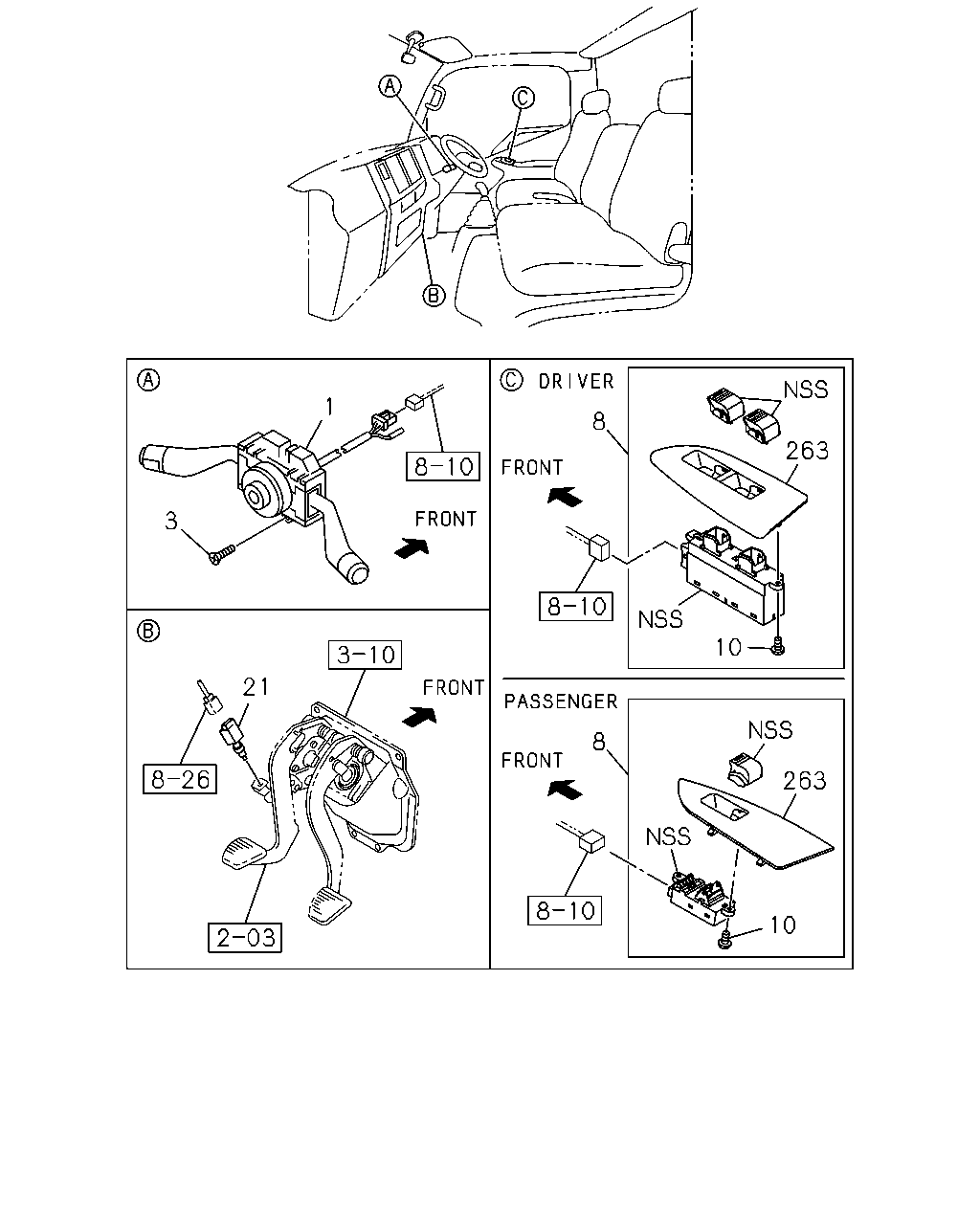

çizim 501902
1 3 8 263 10 8 263 10 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98243-692-0 01 1 1511- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1511- ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),CORNERING LAMP<T87> 		8-98243-705-0 01 1 1511- ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>,CORNERING LAMP<T87> 		8-98243-704-0 01 1 1511- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1511- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) PASSENGER SIDE 		8-97387-034-2 01 1 1511- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) DRIVER SIDE 		8-98159-543-0 01 1 1511- ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) DRIVER SIDE 		8-98227-828-0 01 1 1511- ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) PASSENGER SIDE 		8-98227-829-0 01 1 1511- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1511- ● ●
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 1511- ● ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1511- ● ●
263 COVER; SW
DRIVER SIDE 		8-98153-836-0 01 1 1511- ● ●
263 COVER; SW
PASSENGER SIDE 		8-98153-841-0 01 1 1511- ● ●

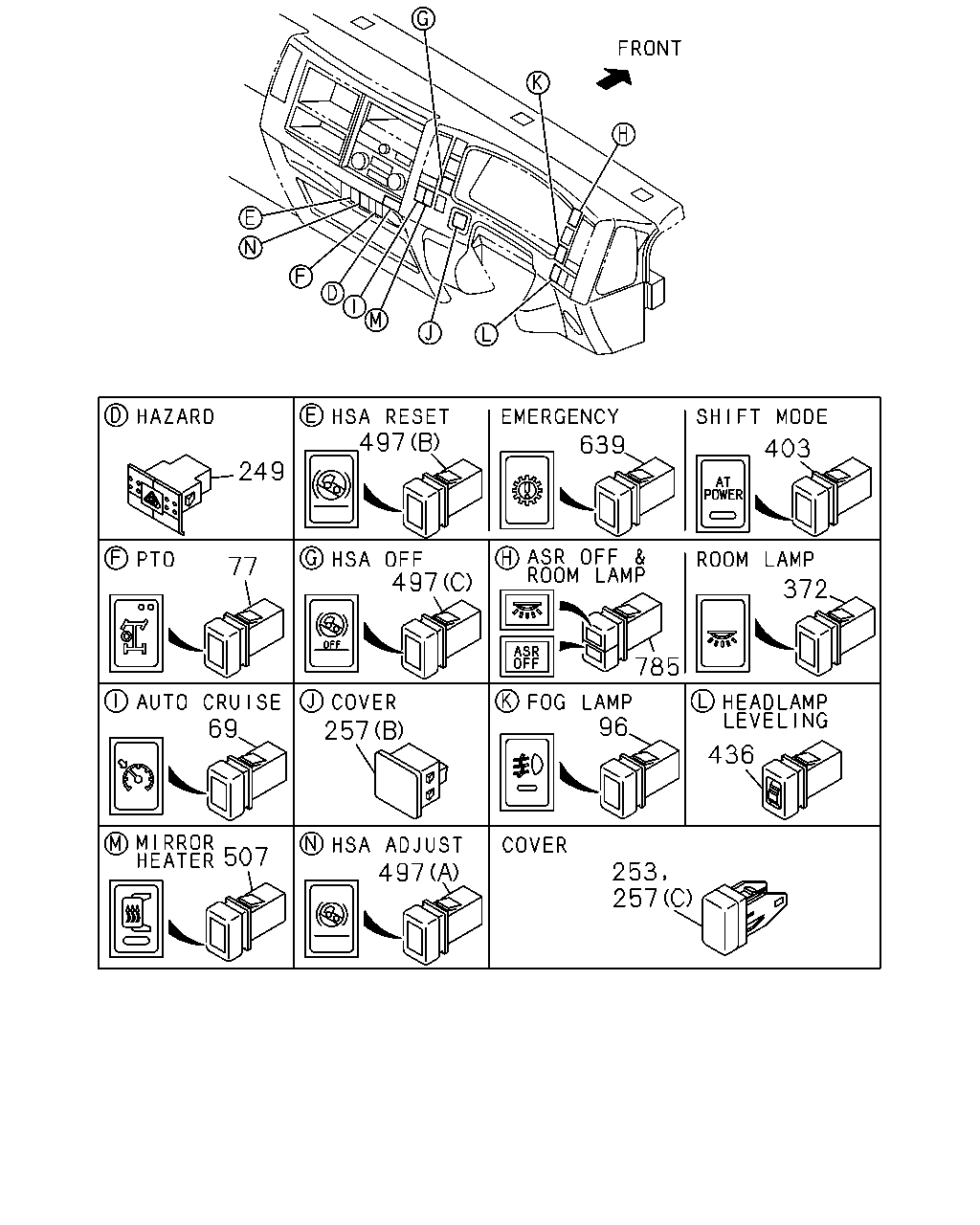

çizim 503361
497 497 497 257 253 507 69 257 96 436 372 403 639 785 77 249
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1511- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1511- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 1511- ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1511- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1511- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1511- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1511- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1511- ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1511- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1511- ●
372 SWITCH; ROOM LAMP
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-97386-917-2 01 1 1511- ● ●
403 SWITCH
LCT2500 A/T ALLISON(Y5W) 		8-98240-737-1 01 1 1511- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1511- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) OFF 		8-97386-923-2 01 1 1511- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 1511- ● ●
497 SWITCH; HSA
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) RESET 		8-98119-946-0 01 1 1511- ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 1511- ● ●
639 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1511- ● ●
785 SWITCH; ASR OFF & ROOM LAMP
THROTTLE CONTROL SYSTEM(6XH) 		8-98286-332-1 01 1 1511- ● ●

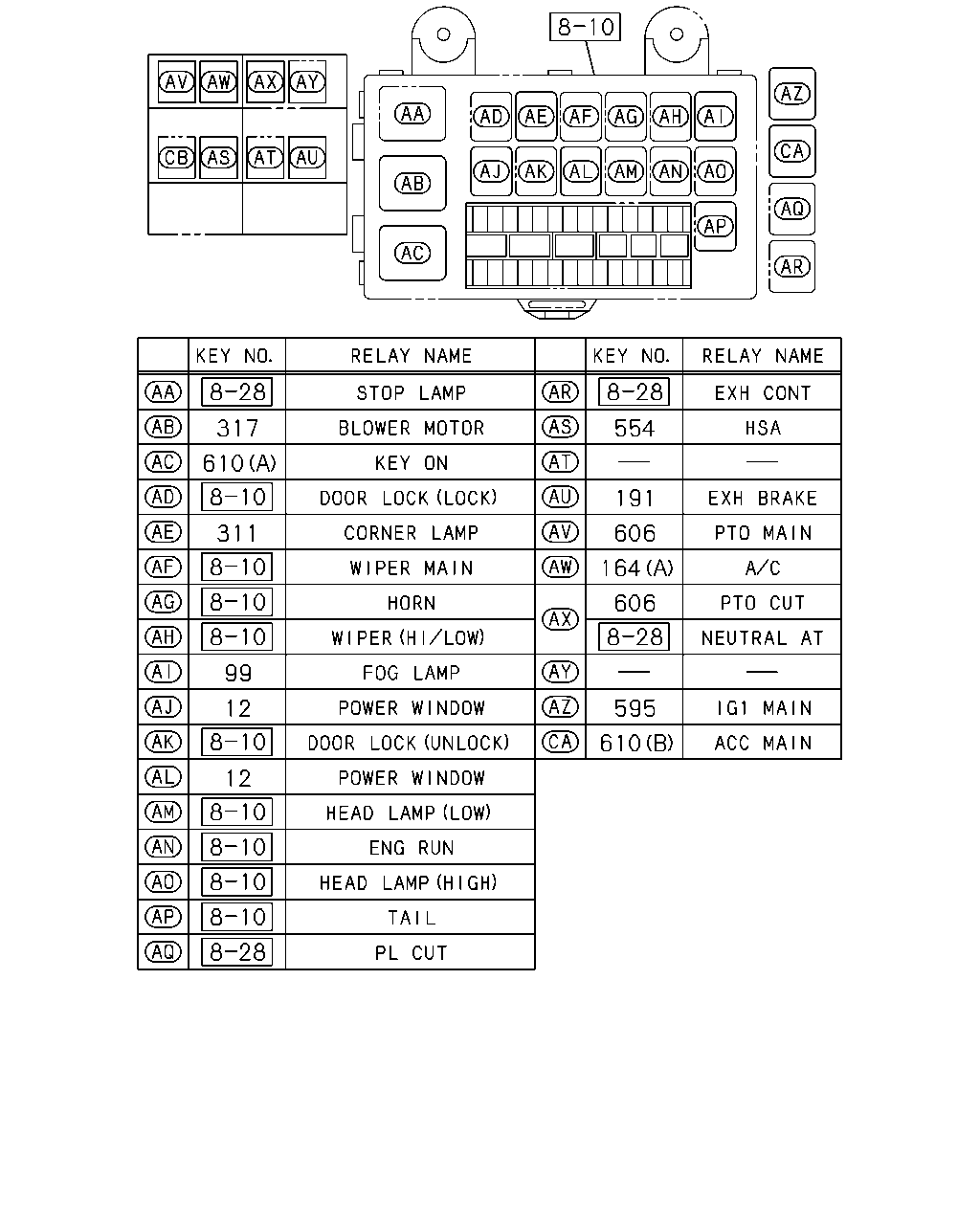

çizim 503538
317 311 99 12 12 554 191 606 164 606 595 610 610
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
311 RELAY; CORNERING LAMP
CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●
554 RELAY; HSA
H.S.A SYSTEM<6EP> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●
