◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#169451) — 277 parça

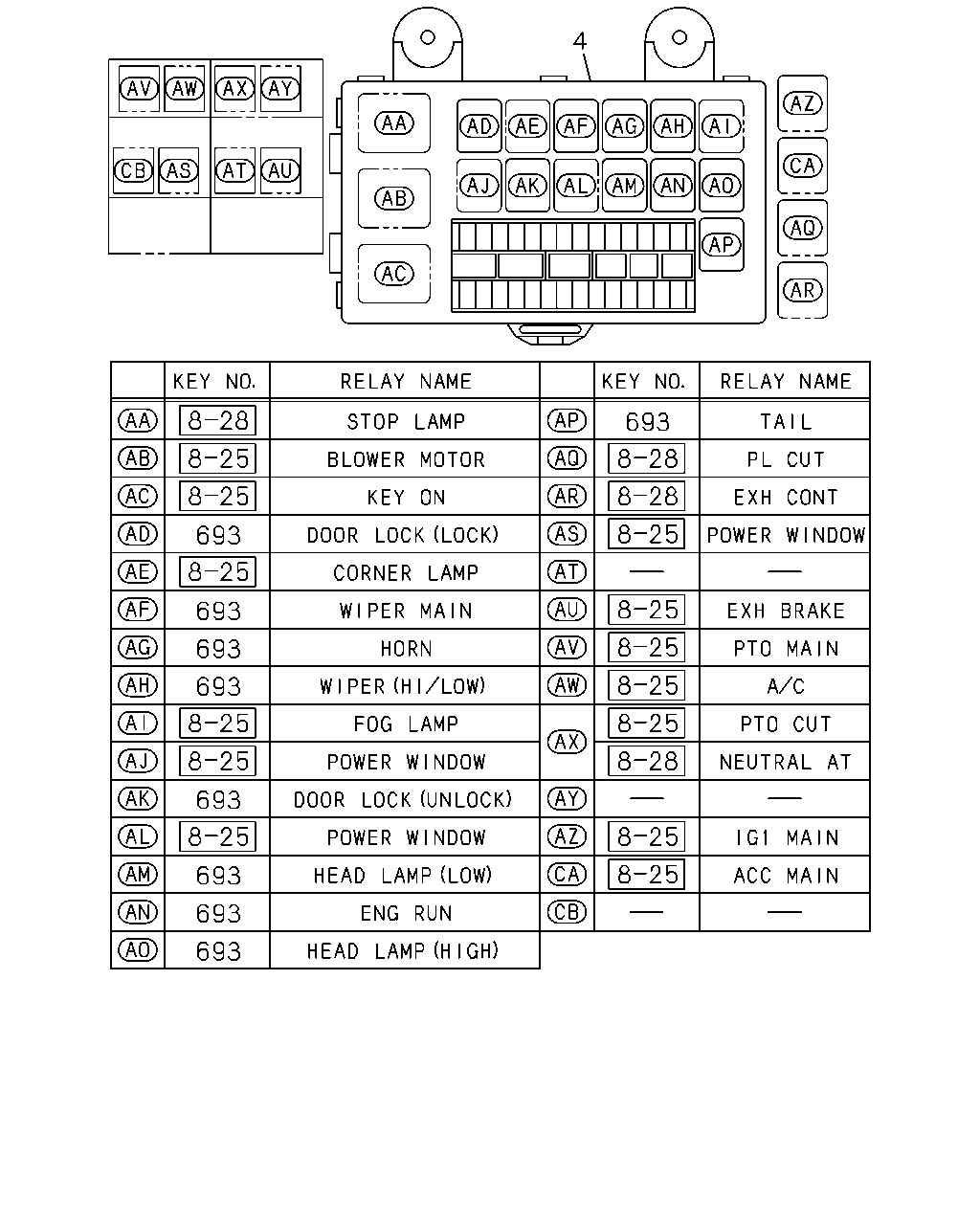

çizim 501918
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1511- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1511- ● ●

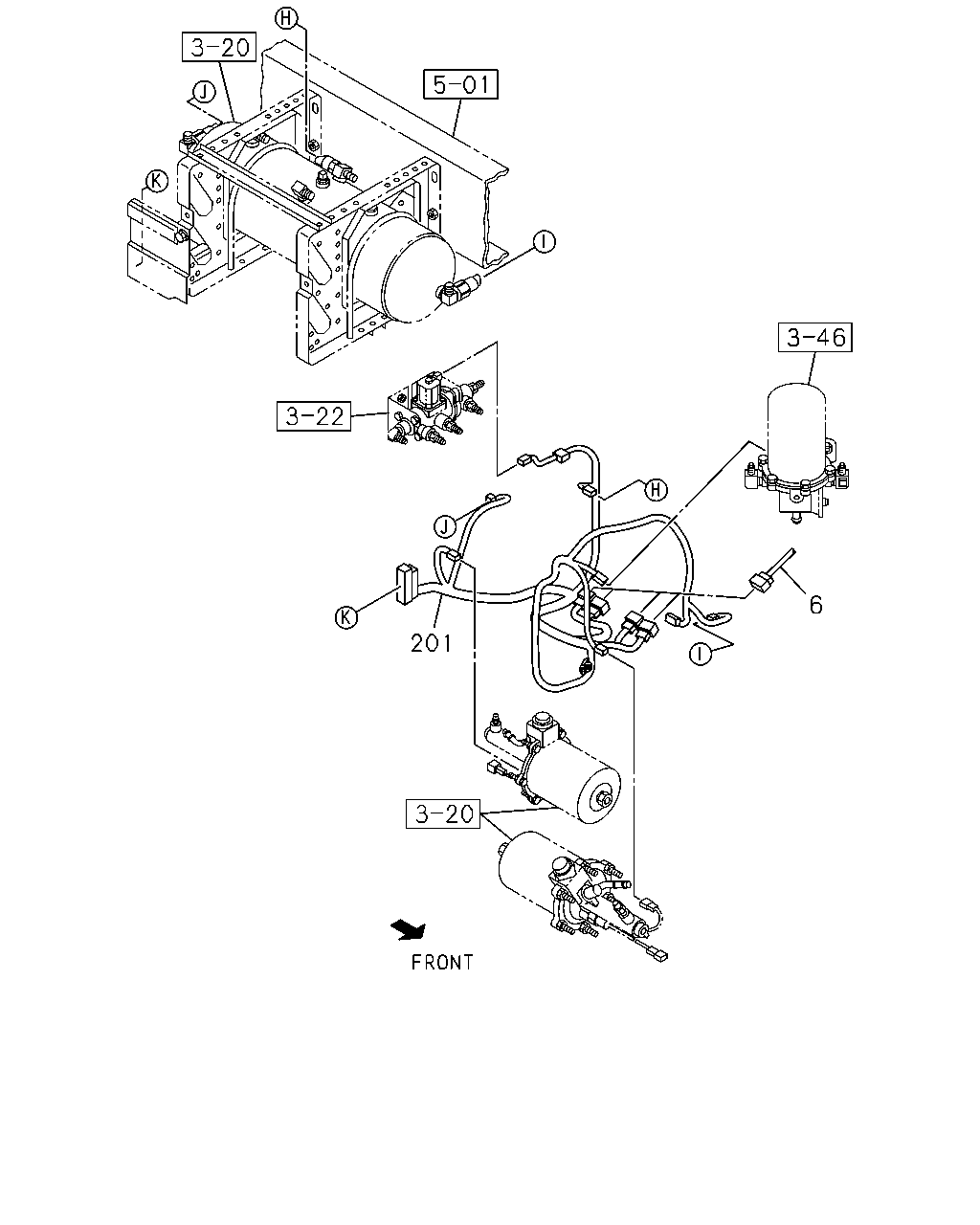

çizim 501919
201 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-060-1 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-324-1 01 1 1511- ● ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) 		8-98303-325-0 01 1 1511- ●
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) 		8-98309-141-0 01 1 1511- ● ●
201 HARNESS; AIR TANK
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98309-142-0 01 1 1511- ● ●

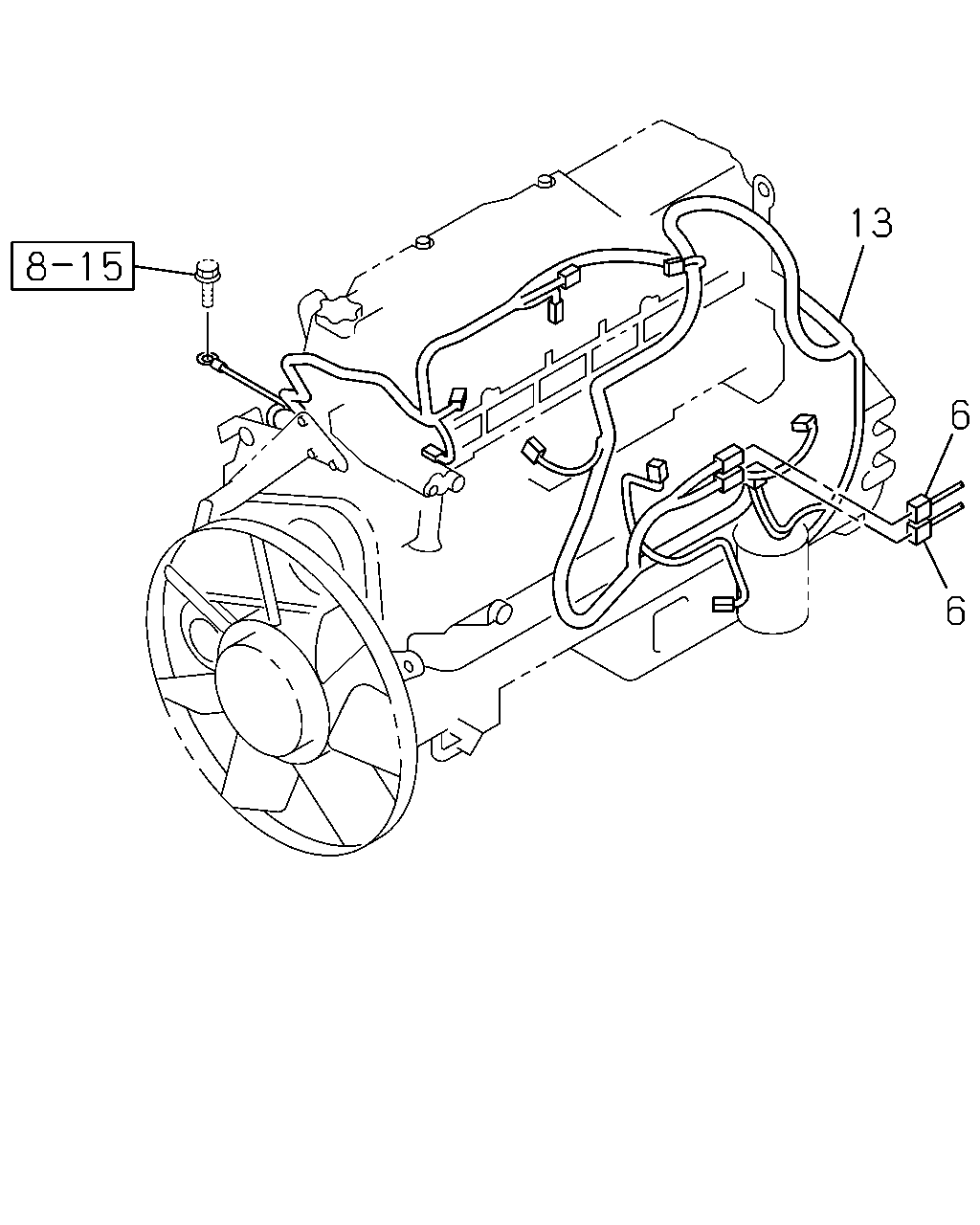

çizim 501925
13 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-060-1 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-324-1 01 1 1511- ● ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) 		8-98303-325-0 01 1 1511- ●
13 HARNESS; ENG
MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98328-515-0 01 1 1511- ● ●
13 HARNESS; ENG
MZW6P M/T(RSZ) GENERATOR 24V50A(K89) 		8-98328-514-0 01 1 1511- ● ●
13 HARNESS; ENG
LCT2500 A/T ALLISON(Y5W) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98328-521-0 01 1 1511- ● ●
13 HARNESS; ENG
LCT2500 A/T ALLISON(Y5W) GENERATOR 24V50A(K89) 		8-98328-520-0 01 1 1511- ● ●

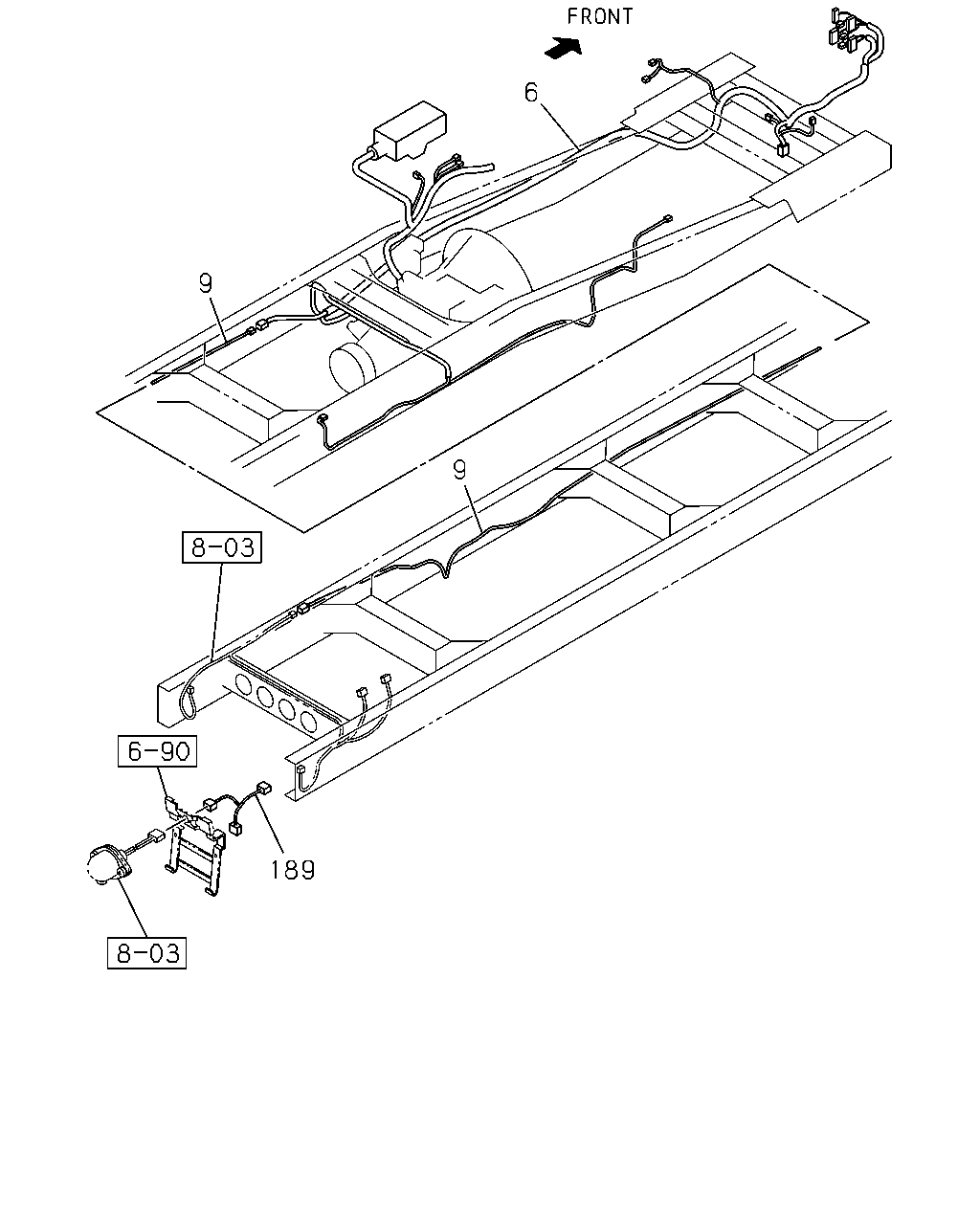

çizim 503136
6 9 9 189
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-060-1 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-324-1 01 1 1511- ● ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) 		8-98303-325-0 01 1 1511- ●
9 HARNESS; FRAME,RR 8-98232-917-1 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98168-581-0 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98168-596-0 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6500MM(65W) 		8-98170-240-0 01 1 1511- ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND(CX6) 		8-98131-066-0 01 1 1511- ● ●

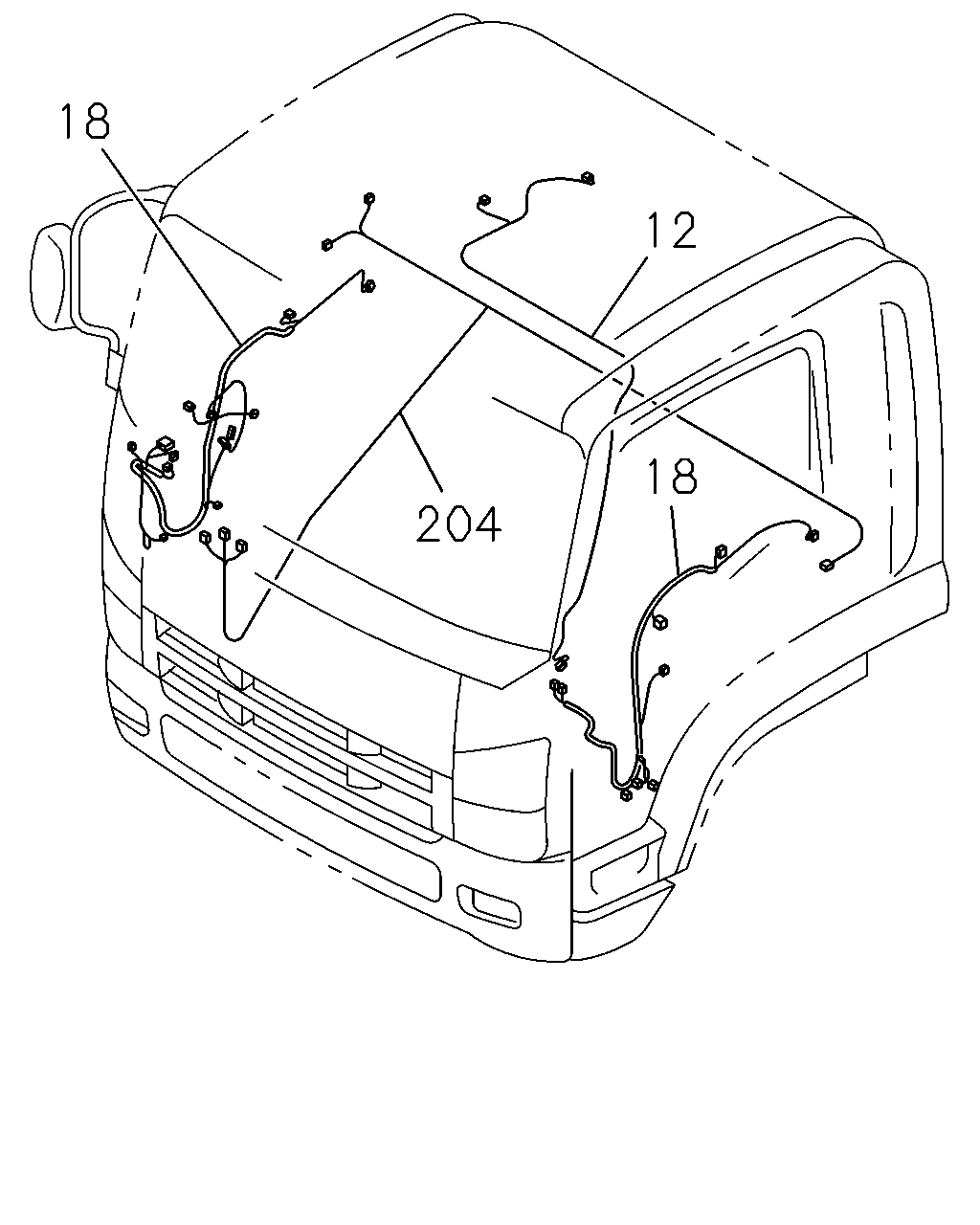

çizim 503167
18 204 12 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 8-98079-071-1 01 1 1511- ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> 		8-98225-378-0 01 1 1511- ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> 		8-98225-379-0 01 1 1511- ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> 		8-98079-076-5 01 1 1511- ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> 		8-98079-079-5 01 1 1511- ● ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-210-2 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-210-2 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-196-2 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-196-2 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-214-1 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-214-1 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-201-1 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-201-1 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) 		8-98085-250-2 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98085-250-2 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-251-1 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98085-251-1 01 1 1511- ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98306-565-0 01 1 1511- ●

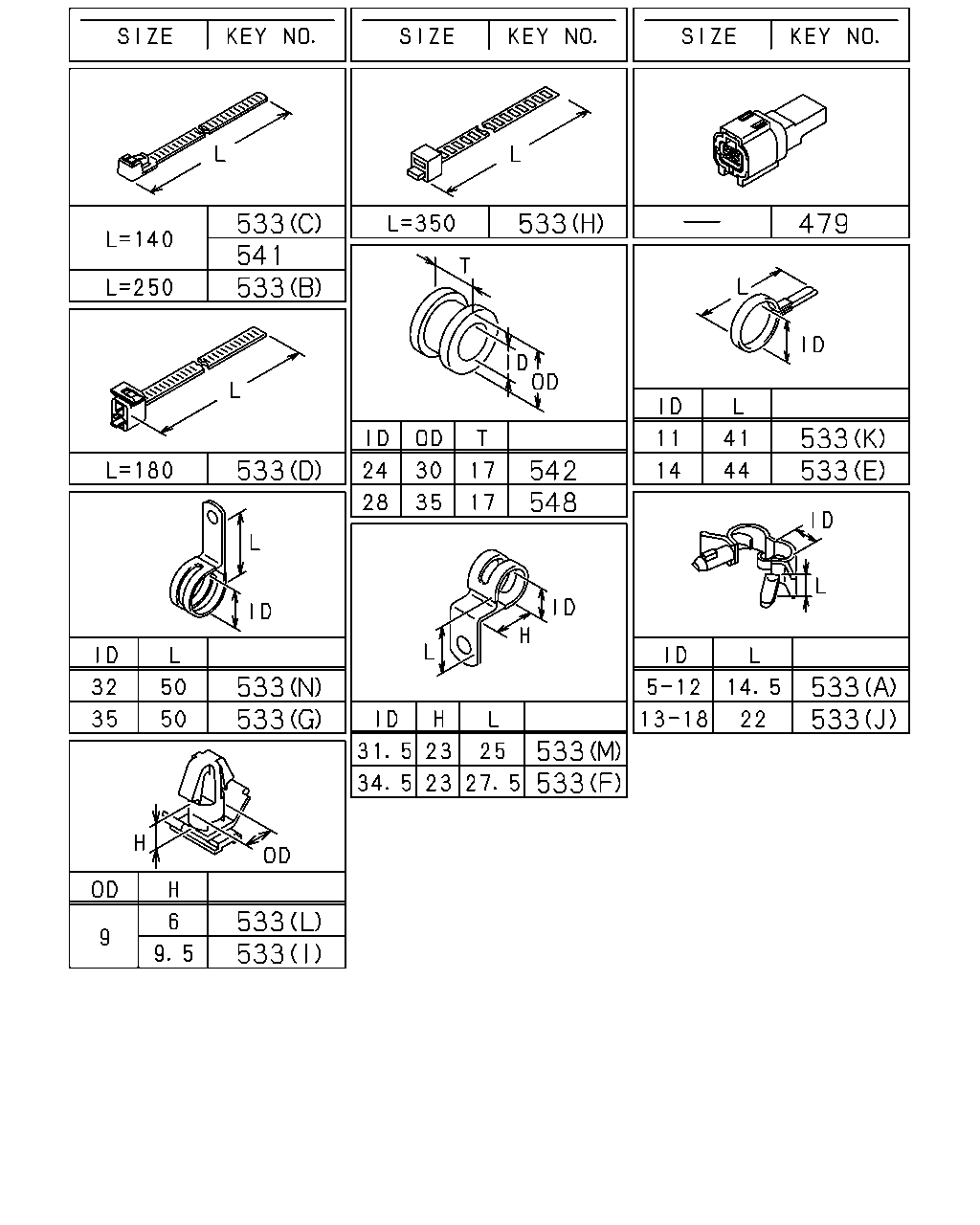

çizim 503170
533 541 533 533 533 533 533 533 533 542 548 533 533 479 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date A B
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 1511- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (D) L=180 		1-09707-162-1 01 1 1511- ● ●
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) L=180 		1-09707-162-1 01 1 1511- ● ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1511- ● ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50 		1-09701-055-1 01 1 1511- ● ●
533 CLIP
(E) ID=14 L=44 		9-09917-427-0 20 1 1511- ●
533 CLIP
(J) ID=13-18 L=22 		1-09709-292-0 01 1 1511- ●
533 CLIP
(J) ID=13-18 L=22 		1-09709-292-0 01 1 1511- ●
533 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (J) ID=13-18 L=22 		1-09709-292-0 01 1 1511- ●
533 CLIP
(H) L=350 		1-09707-183-0 01 1 1511- ● ●
533 CLIP
(H) L=350 		1-09707-183-0 01 1 1511- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (B) L=250 		5-09707-030-1 01 1 1511- ● ●
533 CLIP
(B) L=250 		5-09707-030-1 01 1 1511- ●
533 CLIP
(L) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
533 CLIP
(L) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
533 CLIP
EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
533 CLIP
(K) ID=11 L=41 		1-09700-403-0 01 1 1511- ● ●
533 CLIP
(B) L=250 		5-09707-030-1 03 1 1511- ● ●
533 CLIP
(G) L=600 		1-09707-107-1 01 1 1511- ● ●
533 CLIP
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1511- ● ●
533 CLIP
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
533 CLIP
(B) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(B) L=250 		5-09707-030-1 04 1 1511- ● ●
533 CLIP
(C) L=140 		5-09707-031-1 01 1 1511- ● ●
533 CLIP
(C) L=140 		5-09707-031-1 02 1 1511- ● ●
533 CLIP
(E) ID=14 L=44 		9-09917-427-0 02 1 1511- ● ●
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1511- ● ●
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=35 L=50 		1-09701-214-0 01 1 1511- ● ●
533 CLIP
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) (E) ID=14 L=44 		9-09917-427-0 09 1 1511- ●
533 CLIP
WHEEL BASE 4300MM(43W) (E) ID=14 L=44 		9-09917-427-0 13 1 1511- ●
533 CLIP
WHEEL BASE 5500MM(55W) (E) ID=14 L=44 		9-09917-427-0 19 1 1511- ●
533 CLIP
WHEEL BASE 6500MM(65W) (E) ID=14 L=44 		9-09917-427-0 24 1 1511- ●
541 CLIP
L=140 		5-09707-031-1 01 1 1511- ● ●
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1511- ● ●
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ●

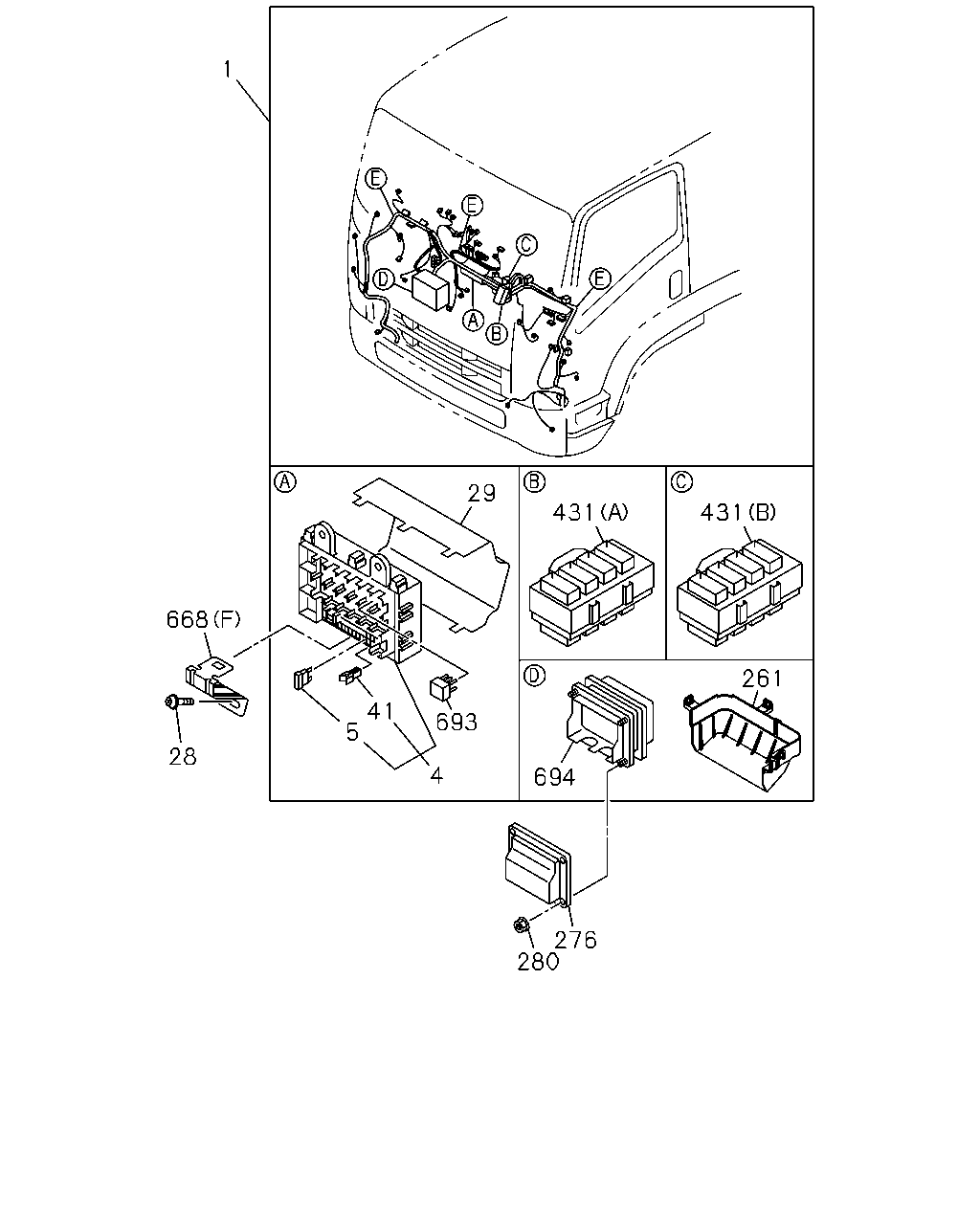

çizim 503257
1 29 431 431 668 28 41 5 693 4 694 261 276 280
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-909-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-905-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-907-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-903-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-901-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-908-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-899-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-904-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-900-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-906-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-898-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-902-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-897-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-895-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-896-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-894-2 01 1 1511- ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1511- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1511- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1511- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1511- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1511- ● ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1511- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1511- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1511- ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1511- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1511- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1511- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1511- ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) 		8-98095-653-2 01 1 1511- ● ●
668 BRACKET; HARNESS
(A) L=170 		1-47479-380-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1511- ●
668 BRACKET; HARNESS
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) 		8-97619-097-1 01 1 1511- ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(H) 		8-97622-828-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(D) 		8-98090-952-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(E) 		8-98254-592-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(G) 		8-98268-411-0 01 1 1511- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1511- ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1511- ● ●

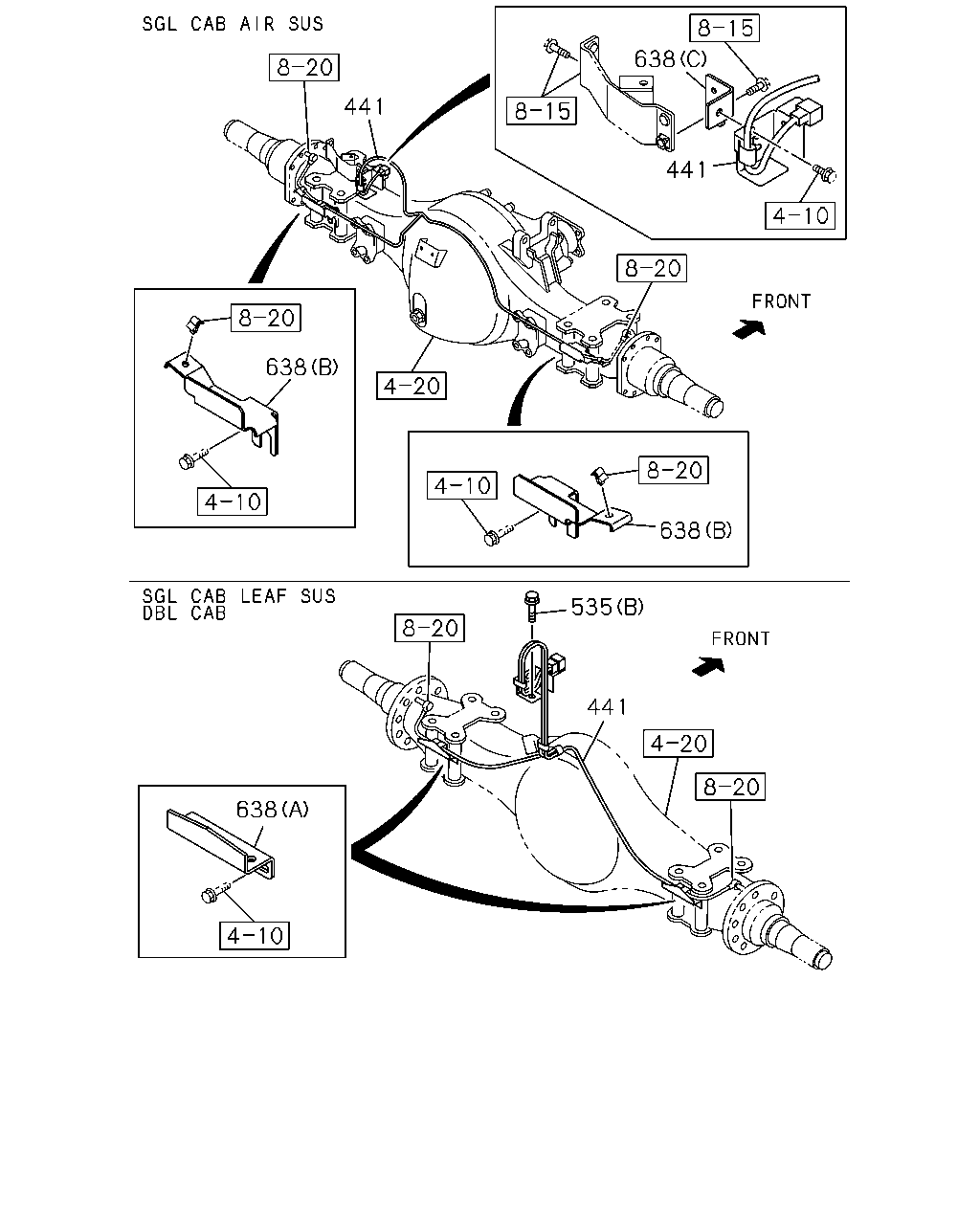

çizim 503261
441 638 638 441 638 535 441 638
BalonParca AdiParca NoAdetTipApplied Date A B
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1511- ● ●
535 BOLT; BRKT FIX
(B) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1511- ● ●
535 BOLT; BRKT FIX
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ● ●
535 BOLT; BRKT FIX
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ●
535 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ●
638 BRACKET; SPD SENSOR
(B) 		8-98236-731-0 01 1 1511- ●
638 BRACKET; SPD SENSOR
(B) 		8-98236-732-0 01 1 1511- ●
638 BRACKET; SPD SENSOR
(C) 		8-98249-802-0 01 1 1511- ●
638 BRACKET; SPD SENSOR
(A) 		8-98012-580-1 02 1 1511- ●
çizim 503265
290 293 525 290 267 534 639 267 267 535 535 534
BalonParca AdiParca NoAdetTipApplied Date A B
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1511- ● ●
267 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1511- ● ●
535 BOLT; BRKT FIX
(B) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1511- ● ●
535 BOLT; BRKT FIX
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ● ●
535 BOLT; BRKT FIX
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ●
535 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ●
639 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●

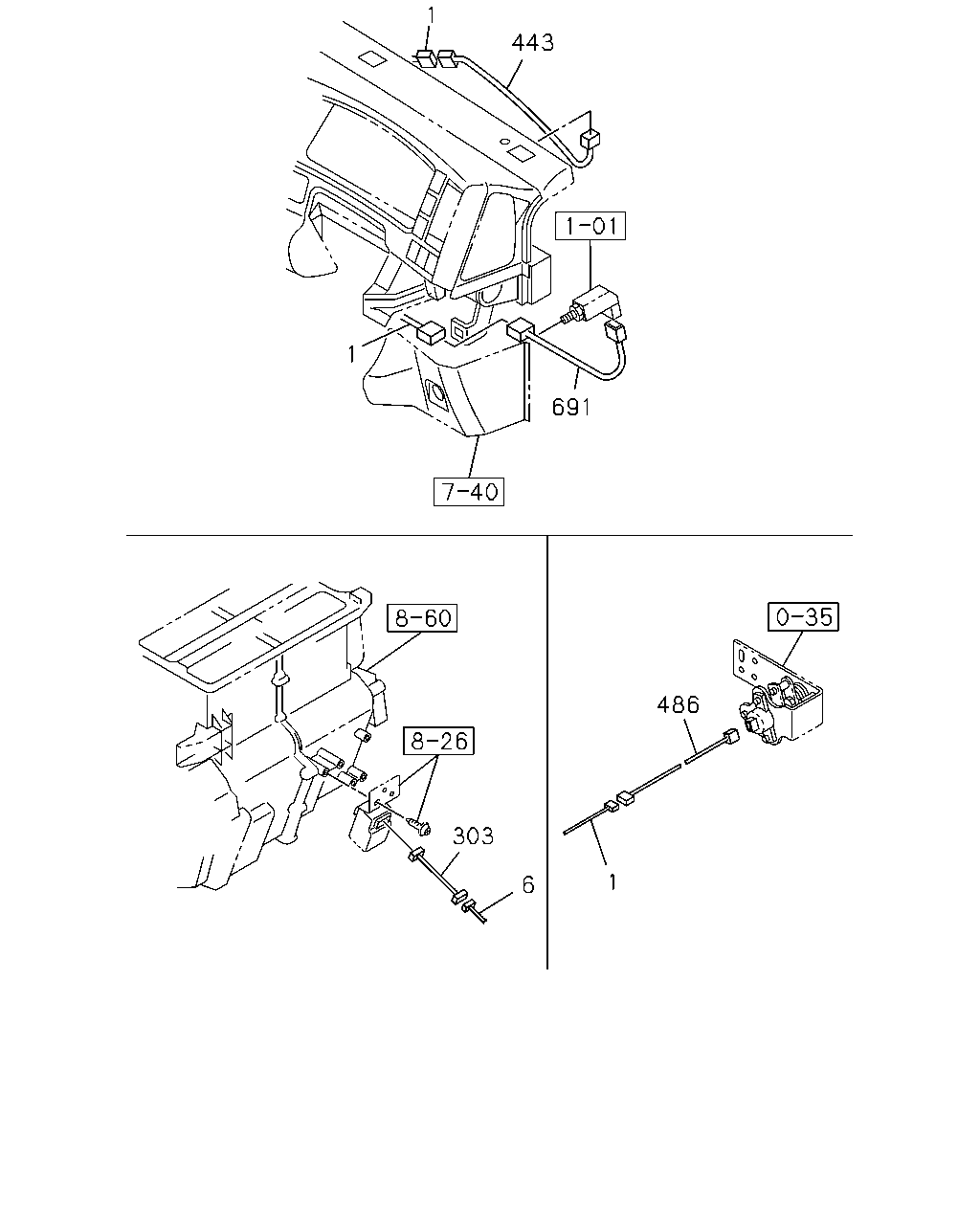

çizim 503296
691 443 1 486 1 6 303 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-909-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-905-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-907-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-903-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-901-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-908-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-899-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-904-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-900-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-906-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-898-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-902-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-897-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-895-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-896-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-894-2 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-060-1 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-324-1 01 1 1511- ● ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) 		8-98303-325-0 01 1 1511- ●
303 HARNESS; WATER LEVEL 8-98306-363-2 01 1 1511- ● ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 1511- ● ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1511- ● ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1511- ● ●
çizim 503331
668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) 		8-98095-653-2 01 1 1511- ● ●
668 BRACKET; HARNESS
(A) L=170 		1-47479-380-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1511- ●
668 BRACKET; HARNESS
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) 		8-97619-097-1 01 1 1511- ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(H) 		8-97622-828-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(D) 		8-98090-952-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(E) 		8-98254-592-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(G) 		8-98268-411-0 01 1 1511- ● ●
çizim 503380
339 570 1 6 595
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-909-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-905-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-907-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-903-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-901-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-908-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-899-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-904-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-900-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-906-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-898-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-902-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-897-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-895-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-896-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-894-2 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-060-1 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-324-1 01 1 1511- ● ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) 		8-98303-325-0 01 1 1511- ●
339 HARNESS; EXT,FUEL 8-98124-758-0 01 1 1511- ●
339 HARNESS; EXT,FUEL
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98124-758-0 01 1 1511- ●
339 HARNESS; EXT,FUEL
WHEEL BASE 4300MM(43W) 		8-98239-526-1 01 1 1511- ●
570 HARNESS; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98172-313-0 01 1 1511- ● ●
570 HARNESS; SPEED SENSOR
LCT2500 A/T ALLISON(Y5W) 		8-98305-915-0 01 1 1511- ● ●
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98328-474-0 01 1 1511- ● ●
595 HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98328-473-0 01 1 1511- ● ●
çizim 503438
1 2 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-909-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-905-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-907-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-903-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-901-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-908-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-899-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-904-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-900-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-906-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-898-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-902-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-897-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-895-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-896-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-894-2 01 1 1511- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1511- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1511- ● ●
2 DIODE; CABLE HARNESS
(C) 2P 		8-98223-969-0 AR 1 1511- ● ●

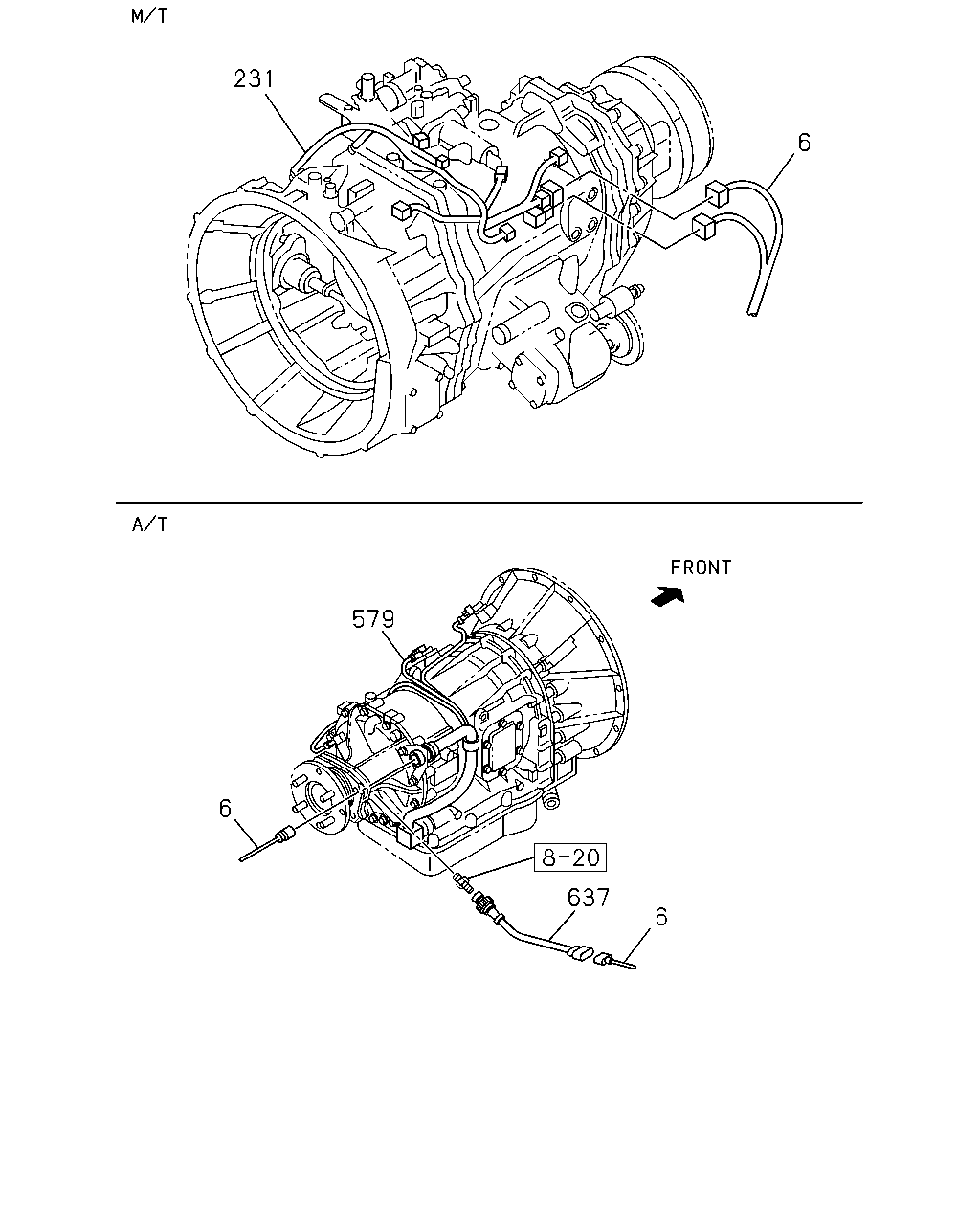

çizim 503441
579 6 6 637 6 231
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-060-1 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-324-1 01 1 1511- ● ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) 		8-98303-325-0 01 1 1511- ●
231 HARNESS; TRANS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98234-229-1 01 1 1511- ● ●
231 HARNESS; TRANS
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-722-0 01 1 1511- ● ●
579 HARNESS; A/T
LCT2500 A/T ALLISON(Y5W) 		8-98276-300-0 01 1 1511- ● ●
637 HARNESS; EXT,S/SENSOR
LCT2500 A/T ALLISON(Y5W) 		1-82671-045-1 01 1 1511- ● ●

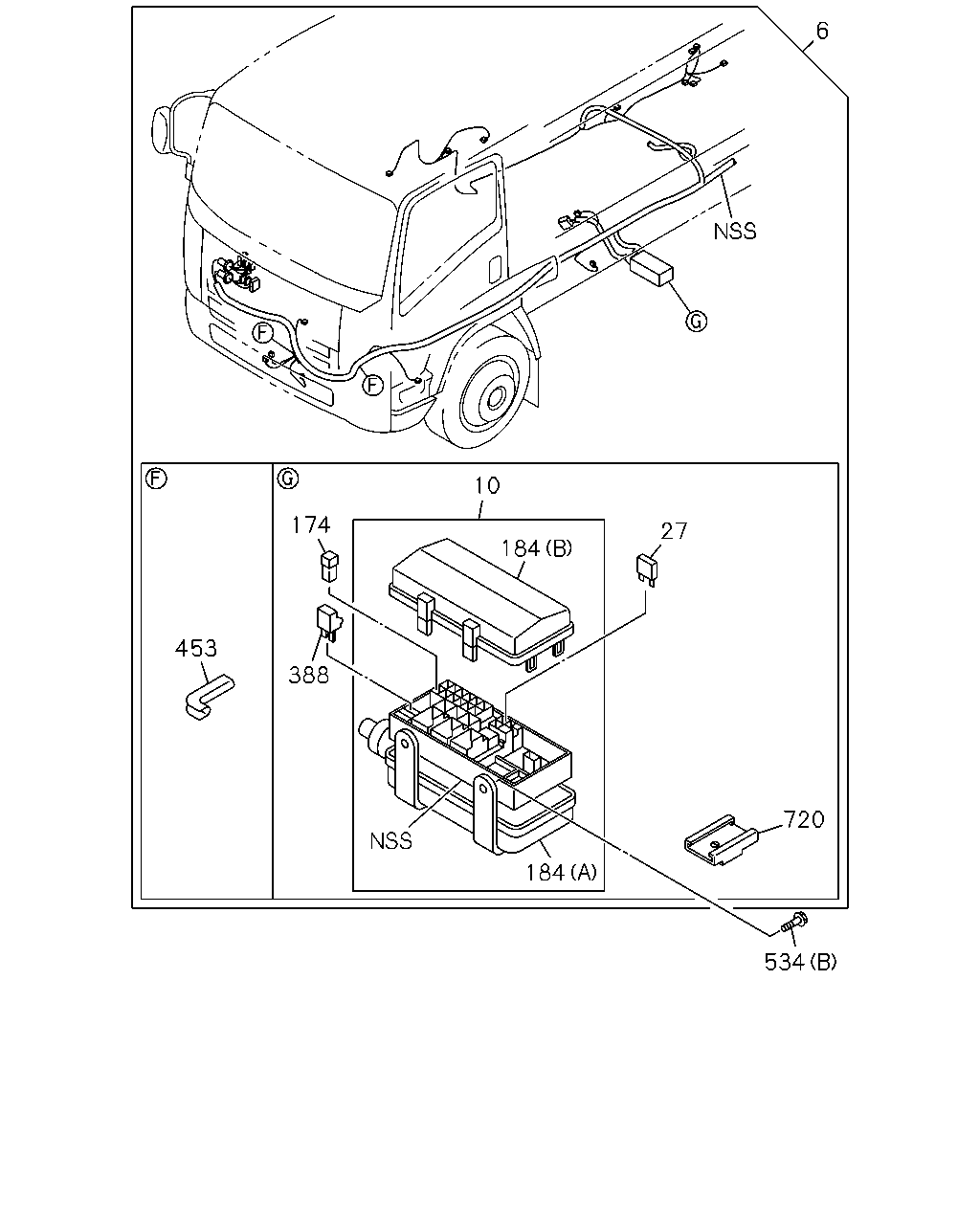

çizim 503531
6 174 184 27 453 388 184 720 534 10
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98305-060-1 01 1 1511- ● ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-324-1 01 1 1511- ● ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) 		8-98303-326-1 01 1 1511- ●
6 HARNESS; FRAME
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) 		8-98303-325-0 01 1 1511- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1511- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1511- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1511- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1511- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1511- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1511- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1511- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1511- ● ●
174 FUSE; SLOW BLOW
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) 30A PINK 		8-98079-191-0 01 1 1511- ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1511- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1511- ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 02 1 1511- ● ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1511- ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1511- ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1511- ● ●

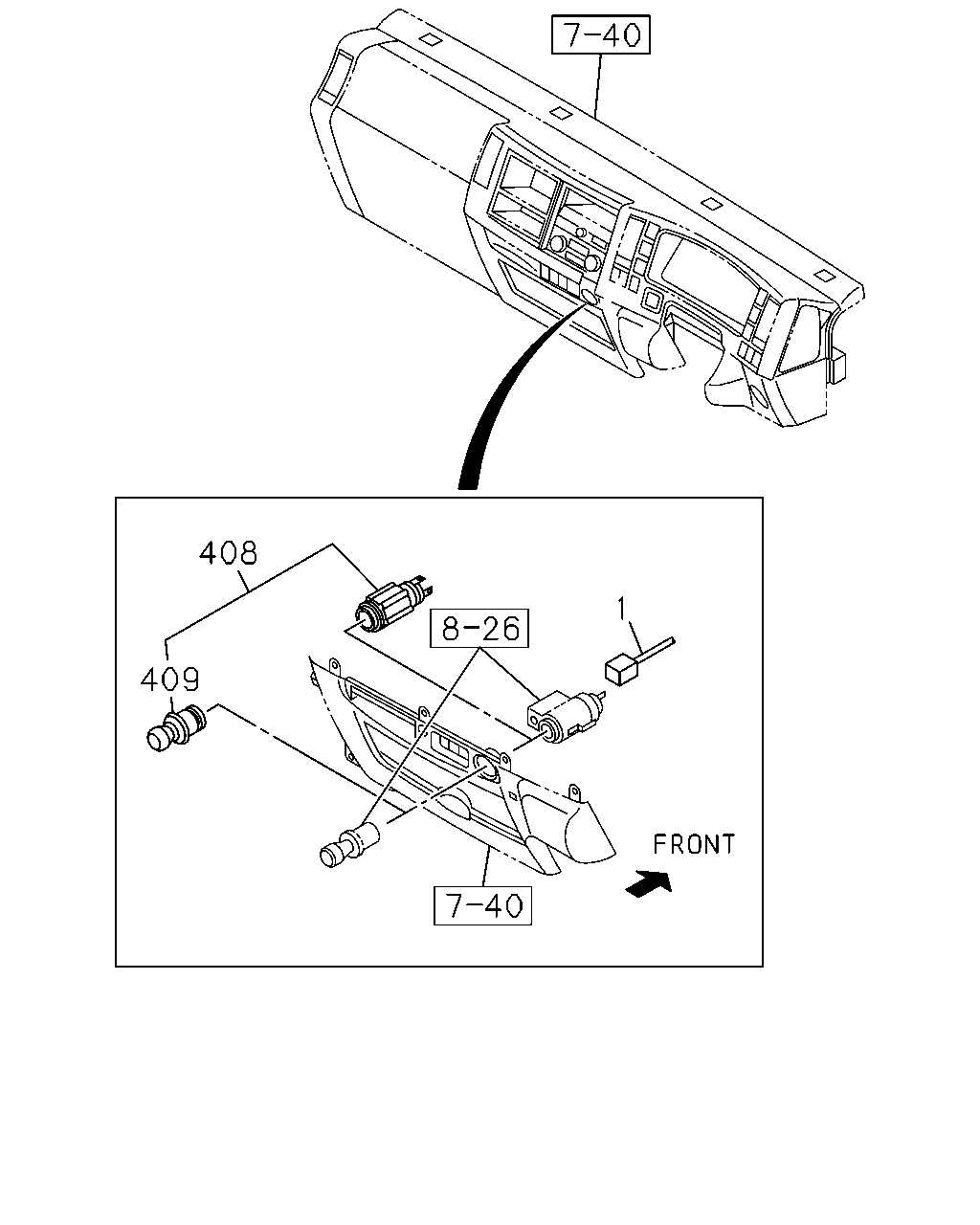

çizim 503534
408 409 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-909-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-905-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-907-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-903-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-901-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-908-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-899-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-904-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-900-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-906-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-898-2 01 1 1511- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-902-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-897-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-895-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-896-2 01 1 1511- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-894-2 01 1 1511- ● ●
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1511- ● ●
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
