1 |

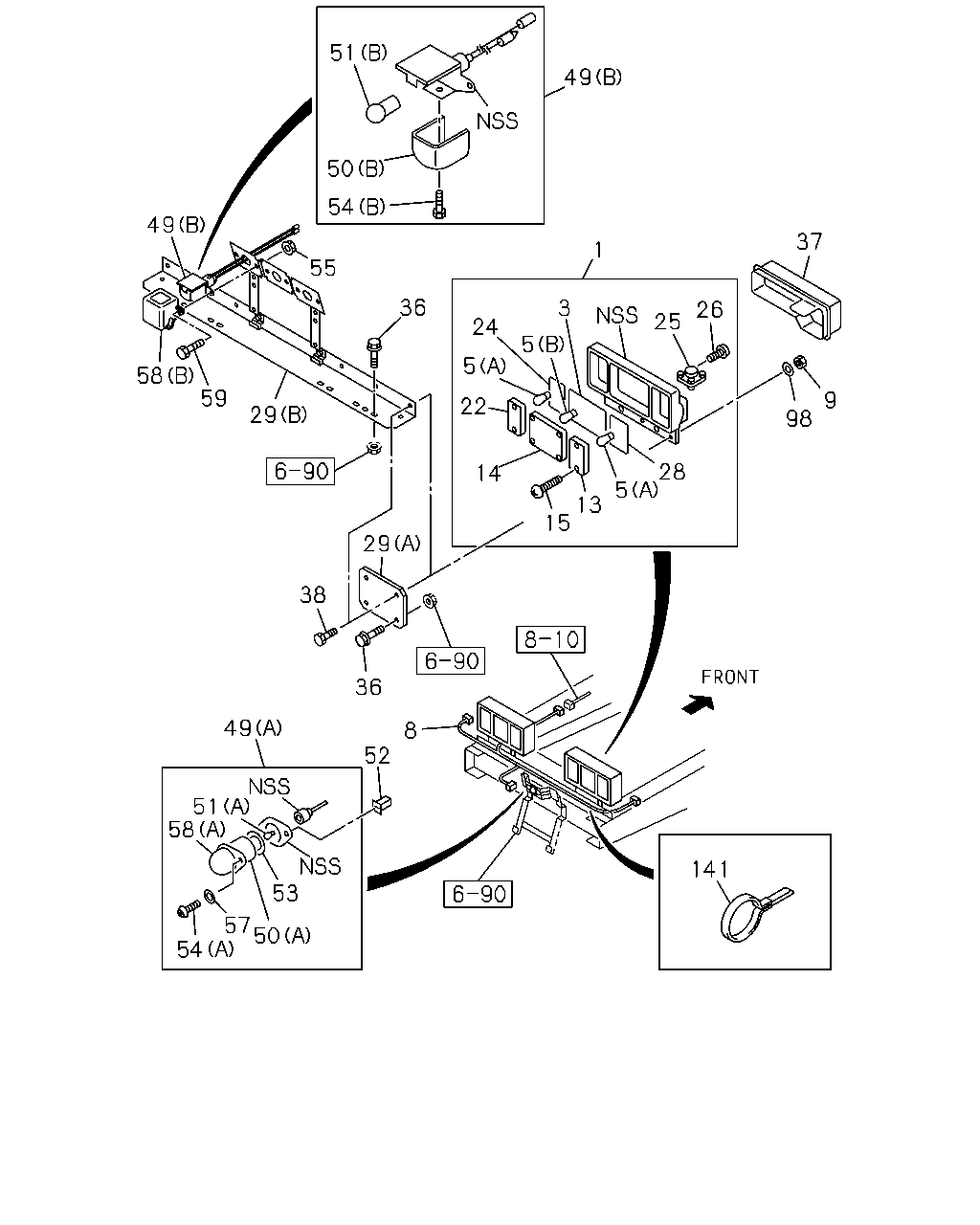

LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9>
|
8-98034-325-0 |
01 |
1 |
1511- |
● |
● |
| |
1 |
LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9>
|
8-98034-328-0 |
01 |
1 |
1511- |
● |
● |
| |
3 |
GASKET; RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
|
8-94257-505-0 |
02 |
1 |
1511- |
● |
● |
| |
5 |
BULB; RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
(A)
24V 21W
|
1-82194-108-0 |
04 |
1 |
1511- |
● |
● |
| |
5 |
BULB; RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
(B)
24V 21/5W
|
1-82194-109-0 |
02 |
1 |
1511- |
● |
● |
| |
8 |
HARNESS; RR COMB LAMP
|
8-98203-887-0 |
01 |
1 |
1511- |
● |
● |
| |
9 |
NUT; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9>
M6
|
0-91110-506-0 |
04 |
1 |
1511- |
● |
● |
| |
13 |
LENS; TURN SIGNAL
REVERSING WARNING BUZZER<YM9>
|
8-94174-638-0 |
01 |
1 |
1511- |
● |
● |
| |
13 |
LENS; TURN SIGNAL
REVERSING WARNING BUZZER<YM9>
|
8-94174-639-0 |
01 |
1 |
1511- |
● |
● |
| |
14 |
LENS; TAIL & STOP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
|
8-94178-624-0 |
01 |
1 |
1511- |
● |
● |
| |
14 |
LENS; TAIL & STOP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
|
8-94178-625-0 |
01 |
1 |
1511- |
● |
● |
| |
15 |
SCREW; RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
M4X20 TAPPING STAINLESS
|
0-71190-420-0 |
16 |
1 |
1511- |
● |
● |
| |
22 |
LENS; BACKUP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
|
8-94257-512-1 |
02 |
1 |
1511- |
● |
● |
| |
24 |
GASKET; BACK,LAMP
REVERSING WARNING BUZZER<YM9>
|
8-94257-506-0 |
02 |
1 |
1511- |
● |
● |
| |
25 |
HORN ASM; BACK
REVERSING WARNING BUZZER<YM9>
|
8-94257-518-0 |
01 |
1 |
1511- |
● |
● |
| |
26 |
SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9>
M4X12 TAPPING
|
9-07076-412-0 |
02 |
1 |
1511- |
● |
● |
| |
26 |
SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9>
M4X14 TAPPING
|
9-07076-414-0 |
01 |
1 |
1511- |
● |
● |
| |
28 |
GASKET; TURN,LAMP
REVERSING WARNING BUZZER<YM9>
|
8-94257-507-0 |
02 |
1 |
1511- |
● |
● |
| |
29 |
BRACKET; LAMP,RR COMB
COUNTRY NEW ZEALAND(CX6)
REVERSING WARNING BUZZER<YM9>
(A)
|
1-82237-050-1 |
02 |
1 |
1511- |
● |
● |
| |
29 |
BRACKET; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9>
EXC. COUNTRY NEW ZEALAND(CX6)
(B)
|
8-98029-390-3 |
01 |
1 |
1511- |
● |
● |
| |
36 |
BOLT; BRKT,RR COMB
COUNTRY NEW ZEALAND(CX6)
REVERSING WARNING BUZZER<YM9>
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1511- |
● |
● |
| |
36 |
BOLT; BRKT,RR COMB
REVERSING WARNING BUZZER<YM9>
EXC. COUNTRY NEW ZEALAND(CX6)
M8X40 FLANGE
|
0-28650-840-0 |
02 |
1 |
1511- |
● |
● |
| |
37 |
COVER; RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
|
8-94128-858-4 |
01 |
1 |
1511- |
● |
● |
| |
37 |
COVER; RR COMB LAMP
REVERSING WARNING BUZZER<YM9>
|
8-94129-274-4 |
01 |
1 |
1511- |
● |
● |
| |
38 |
BOLT; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9>
M6X30 W/LK&PL WASHER
|
0-50640-630-0 |
04 |
1 |
1511- |
● |
● |
| |
49 |
LAMP; LICENSE PLATE
COUNTRY NEW ZEALAND(CX6)
(A)
24V 10W
|
1-82120-024-1 |
01 |
1 |
1511- |
● |
● |
| |
49 |
LAMP; LICENSE PLATE
EXC. COUNTRY NEW ZEALAND(CX6)
(B)
24V 5W
|
8-97105-380-0 |
02 |
1 |
1511- |
● |
● |
| |
50 |
LENS; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6)
(A)
|
1-82235-006-0 |
01 |
1 |
1511- |
● |
● |
| |
50 |
LENS; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6)
(B)
|
8-97108-212-0 |
02 |
1 |
1511- |
● |
● |
| |
51 |
BULB; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6)
(A)
24V 10W
|
1-82194-037-0 |
01 |
1 |
1511- |
● |
● |
| |
51 |
BULB; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6)
(B)
24V 5W
|
1-82194-039-0 |
02 |
1 |
1511- |
● |
● |
| |
52 |
GROMMET; SCREW,LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6)
D=7.8X7.8 L=18 M5 BLACK
|
8-94275-946-0 |
02 |
1 |
1511- |
● |
● |
| |
53 |
GASKET; LICENSE LAMP
COUNTRY NEW ZEALAND(CX6)
|
1-82126-005-0 |
01 |
1 |
1511- |
● |
● |
| |
54 |
SCREW; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6)
(A)
M5X20
|
1-82129-007-0 |
02 |
1 |
1511- |
● |
● |
| |
54 |
SCREW; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6)
(B)
M4X8
|
8-94419-312-0 |
02 |
1 |
1511- |
● |
● |
| |
55 |
NUT; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6)
M5 FLANGE
|
1-09984-170-0 |
04 |
1 |
1511- |
● |
● |
| |
57 |
WASHER; PL,LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6)
|
1-82129-008-0 |
02 |
1 |
1511- |
● |
● |
| |
58 |
COVER; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6)
(A)
|
1-82129-005-0 |
01 |
1 |
1511- |
● |
● |
| |
58 |
COVER; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6)
(B)
|
8-97076-590-1 |
02 |
1 |
1511- |
● |
● |
| |
59 |
SCREW; TAP,LICENSE LAMP BODY
EXC. COUNTRY NEW ZEALAND(CX6)
M5X20
|
9-93490-520-0 |
04 |
1 |
1511- |
● |
● |
| |
98 |
WASHER
REVERSING WARNING BUZZER<YM9>
ID=6.4 OD=18
|
0-91610-706-0 |
04 |
1 |
1511- |
● |
● |
| |
141 |
CLIP; LICENSE & BODY HARNESS
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
1511- |
● |
● |
