7-60 — SEAT BELT (#169446) — 20 parça

çizim 501946

169 88

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	88	PLUG; HOLE DARK GRAY	8-97411-466-0	01	1	1511-	●	●
	88	PLUG; HOLE DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> DARK GRAY	8-97411-466-0	01	1	1511-		●
	169	SEAL EXC. SEAT ASM - WITH CENTER SEAT<7BC> OD=25 BLACK	1-76798-019-0	01	1	1511-	●	●

çizim 501948

123

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	123	BELT ASM; SEAT AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98097-970-0	01	1	1511-		●
	123	BELT ASM; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B)	8-98333-917-0	01	1	1511-		●
	123	BELT ASM; SEAT (A)	8-98097-971-0	01	1	1511-	●	●

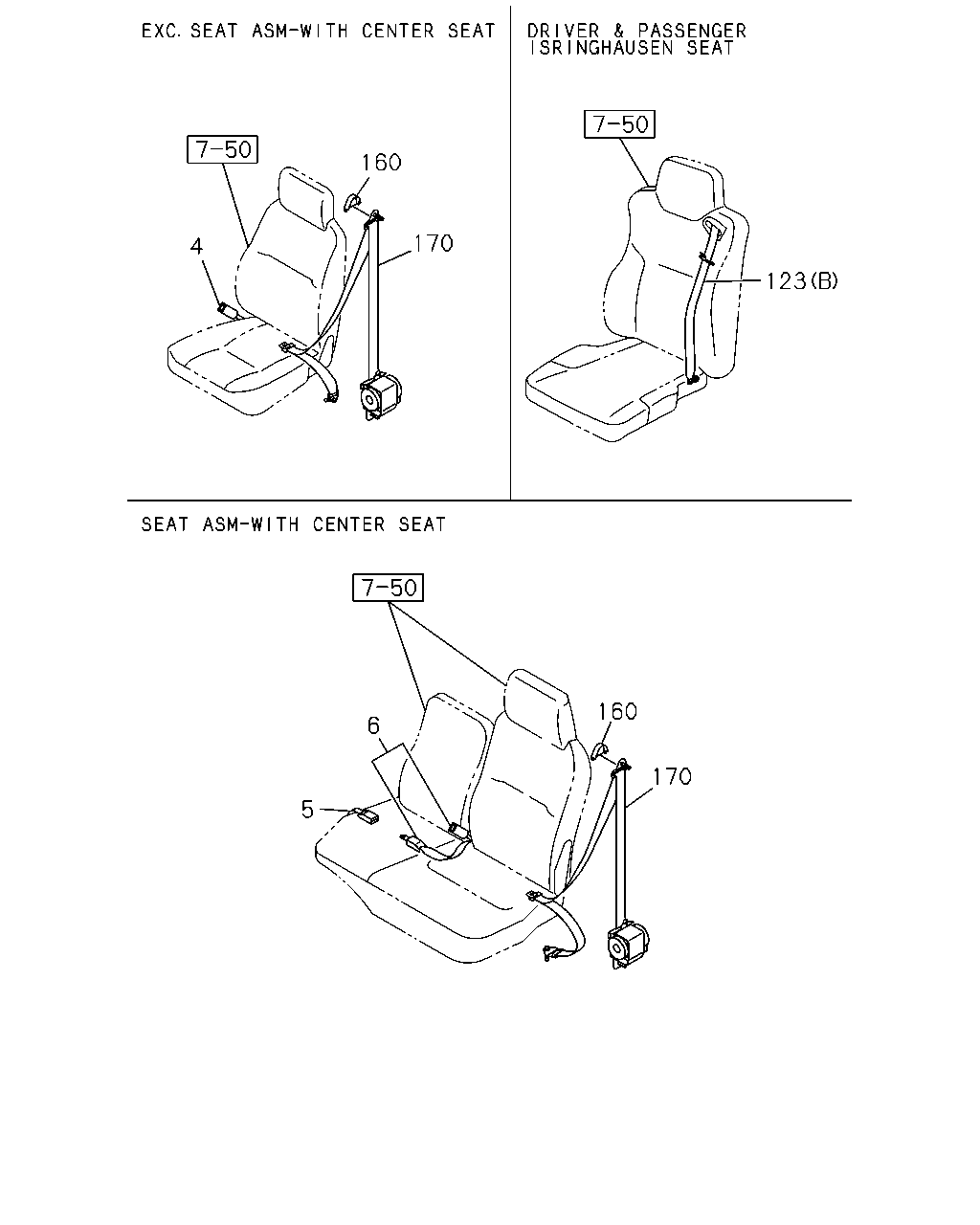

çizim 503435

160 170 4 123 160 170 6 5

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BELT; PASSENGER SEAT,BUCKLE SIDE EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97407-376-1	01	1	1511-	●
	4	BELT; PASSENGER SEAT,BUCKLE SIDE DRIVER ISRINGHAUSEN SEAT<SJA> EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97407-376-1	01	1	1511-		●
	5	BELT; CENTER SEAT,BUCKLE SIDE SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97407-377-1	01	1	1511-	●	●
	6	BELT; CENTER SEAT,TONGUE SIDE SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97423-515-1	01	1	1511-	●
	6	BELT; CENTER SEAT,TONGUE SIDE DRIVER ISRINGHAUSEN SEAT<SJA> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97423-515-1	01	1	1511-		●
	123	BELT ASM; SEAT AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98097-970-0	01	1	1511-		●
	123	BELT ASM; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B)	8-98333-917-0	01	1	1511-		●
	123	BELT ASM; SEAT (A)	8-98097-971-0	01	1	1511-	●	●
	160	COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1511-	●
	160	COVER; THROUGH ANCHOR DRIVER ISRINGHAUSEN SEAT<SJA> GRAY	8-97405-991-0	01	1	1511-		●
	170	BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97428-394-0	01	1	1511-	●
	170	BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> GRAY	8-97428-394-0	01	1	1511-		●
	170	BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97428-435-0	01	1	1511-	●
	170	BELT; PASSENGER SEAT,TONGUE SIDE DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97428-435-0	01	1	1511-		●
