◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#169441) — 111 parça

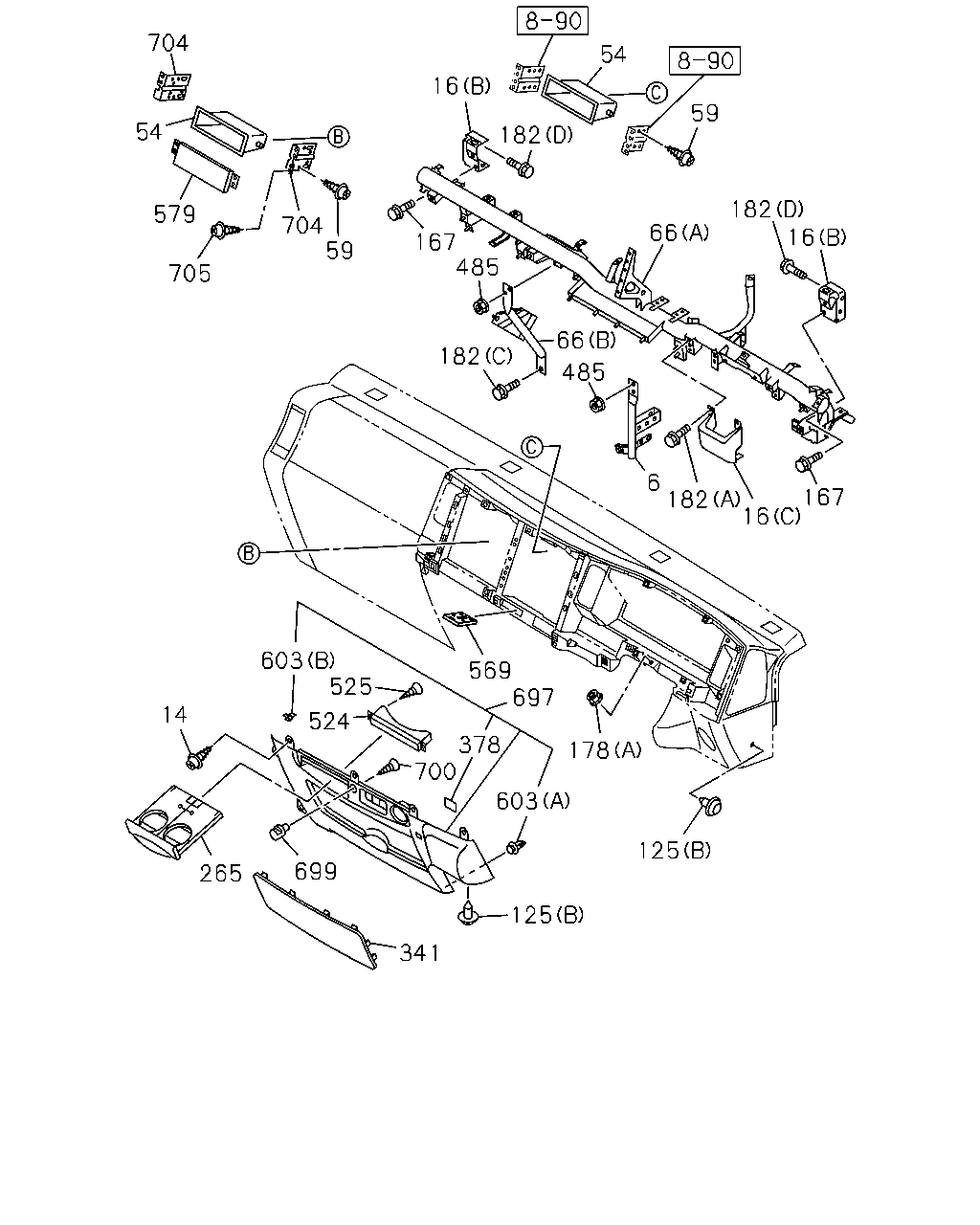

çizim 501865
704 54 579 705 704 59 167 485 182 66 485 6 182 16 167 182 16 66 182 16 59 54 603 525 524 700 603 178 125 125 341 699 265 14 569 697 378
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1511- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1511- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1511- ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1511- ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1511- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
59 SCREW; CLUSTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) EXC. H.S.A SYSTEM<6EP> (A) 		8-98240-605-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-605-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) EXC. H.S.A SYSTEM<6EP> (A) 		8-98240-604-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) (A) 		8-98248-345-1 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98248-347-1 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 1511- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1511- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1511- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1511- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1511- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1511- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1511- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1511- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1511- ● ●
579 COVER; INST PNL
BLACK 		8-97466-735-0 01 1 1511- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1511- ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1511- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1511- ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1511- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1511- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
704 BRACKET; CENTER POCKET 8-97585-618-2 02 1 1511- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511- ● ●

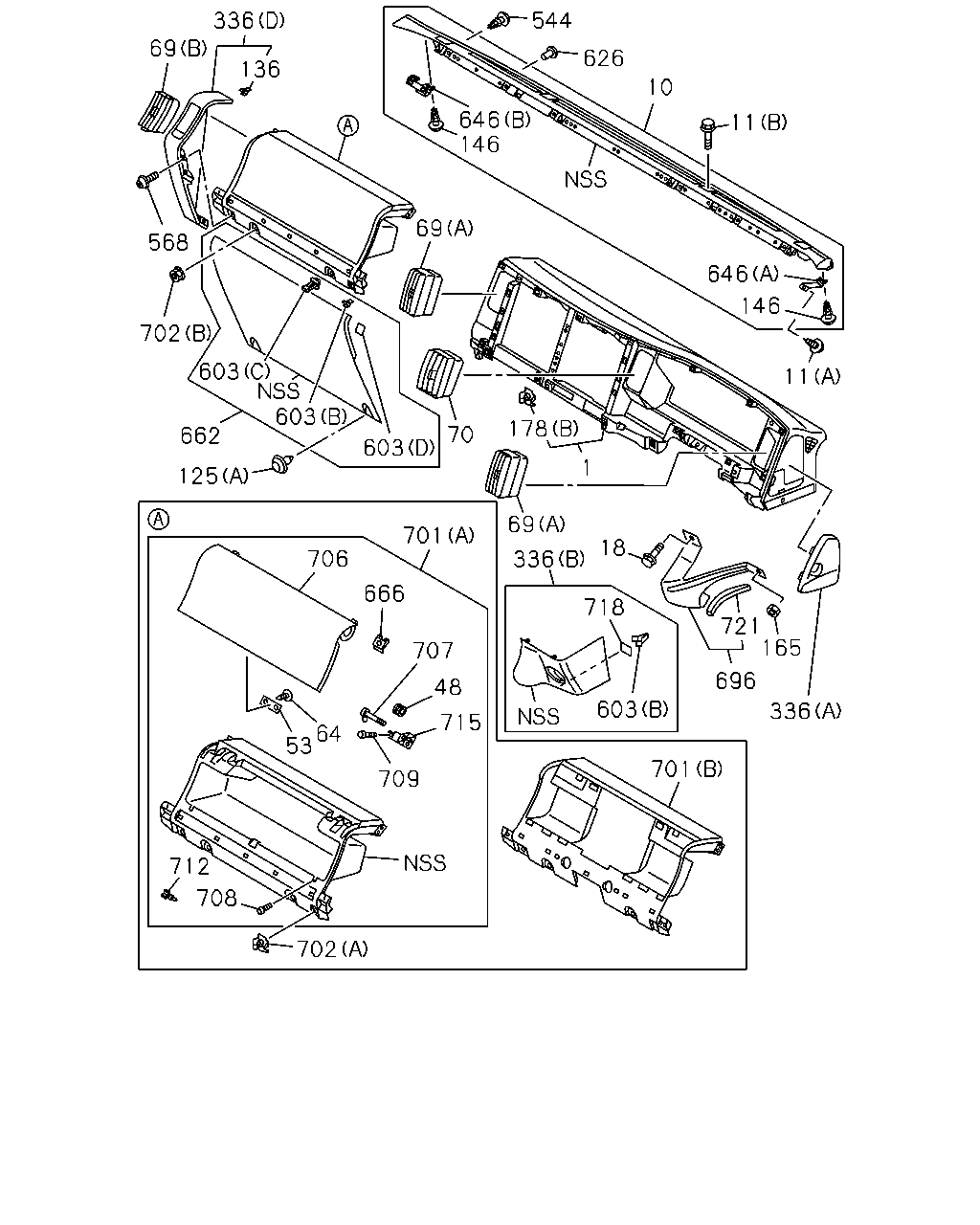

çizim 501867
336 69 136 568 702 603 662 125 603 603 70 178 1 11 146 646 11 10 626 544 646 146 69 69 336 18 718 603 721 165 336 696 701 702 701 706 666 707 48 715 709 64 53 712 708
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1511- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1511- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1511- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1511- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1511- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1511- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1511- ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1511- ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1511- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1511- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1511- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1511- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1511- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1511- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1511- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1511- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1511- ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1511- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1511- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1511- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1511- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1511- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1511- ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1511- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1511- ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1511- ● ●
701 TRAY; INST
EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1511- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1511- ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1511- ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1511- ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1511- ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1511- ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1511- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1511- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1511- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1511- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1511- ● ●

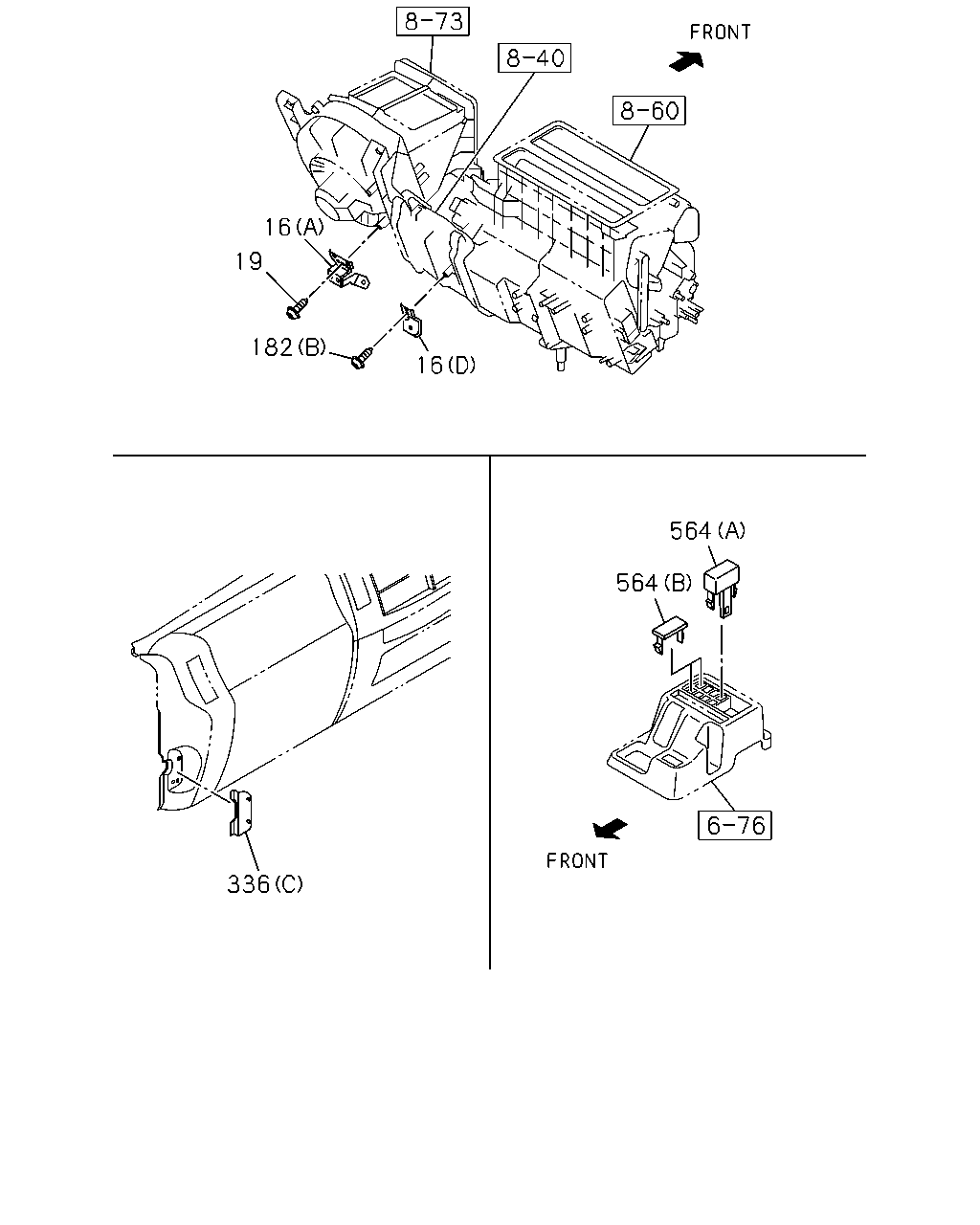

çizim 502716
16 19 182 16 336 564 564
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1511- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1511- ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1511- ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 1511- ● ●
564 COVER; SW
MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		1-82359-069-2 06 1 1511- ● ●
