Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

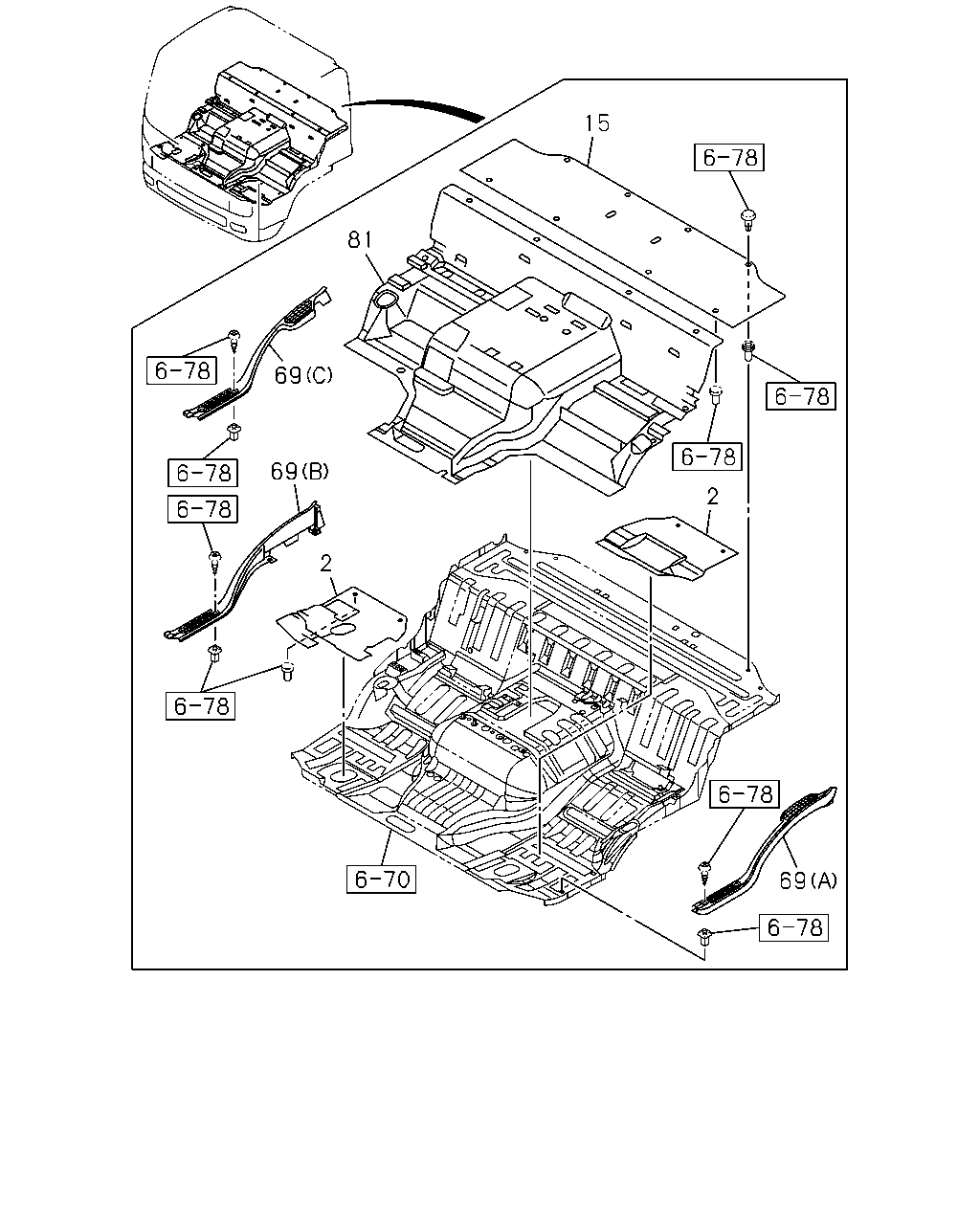

6-75 — MAT AND CARPET (#169430) — 11 parça

15 81 69 69 2 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	1511-	●	●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	1511-	●	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> DARK GRAY	8-97418-950-0	01	1	1511-	●	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> GRAY	8-97407-403-1	01	1	1511-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97465-138-0	01	1	1511-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1511-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	1511-	●	●
81	MAT; FLOOR,CENTER MZW6P M/T(RSZ) GRAY	8-97411-791-3	01	1	1511-	●	●
81	MAT; FLOOR,CENTER LCT2500 A/T ALLISON(Y5W) GRAY	8-97414-503-4	01	1	1511-	●
81	MAT; FLOOR,CENTER LCT2500 A/T ALLISON(Y5W) DRIVER ISRINGHAUSEN SEAT<SJA> GRAY	8-97414-503-4	01	1	1511-		●
81	MAT; FLOOR,CENTER LCT2500 A/T ALLISON(Y5W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> GRAY	8-97425-353-0	01	1	1511-		●
