6-70 — FLOOR PANEL (#169429) — 68 parça

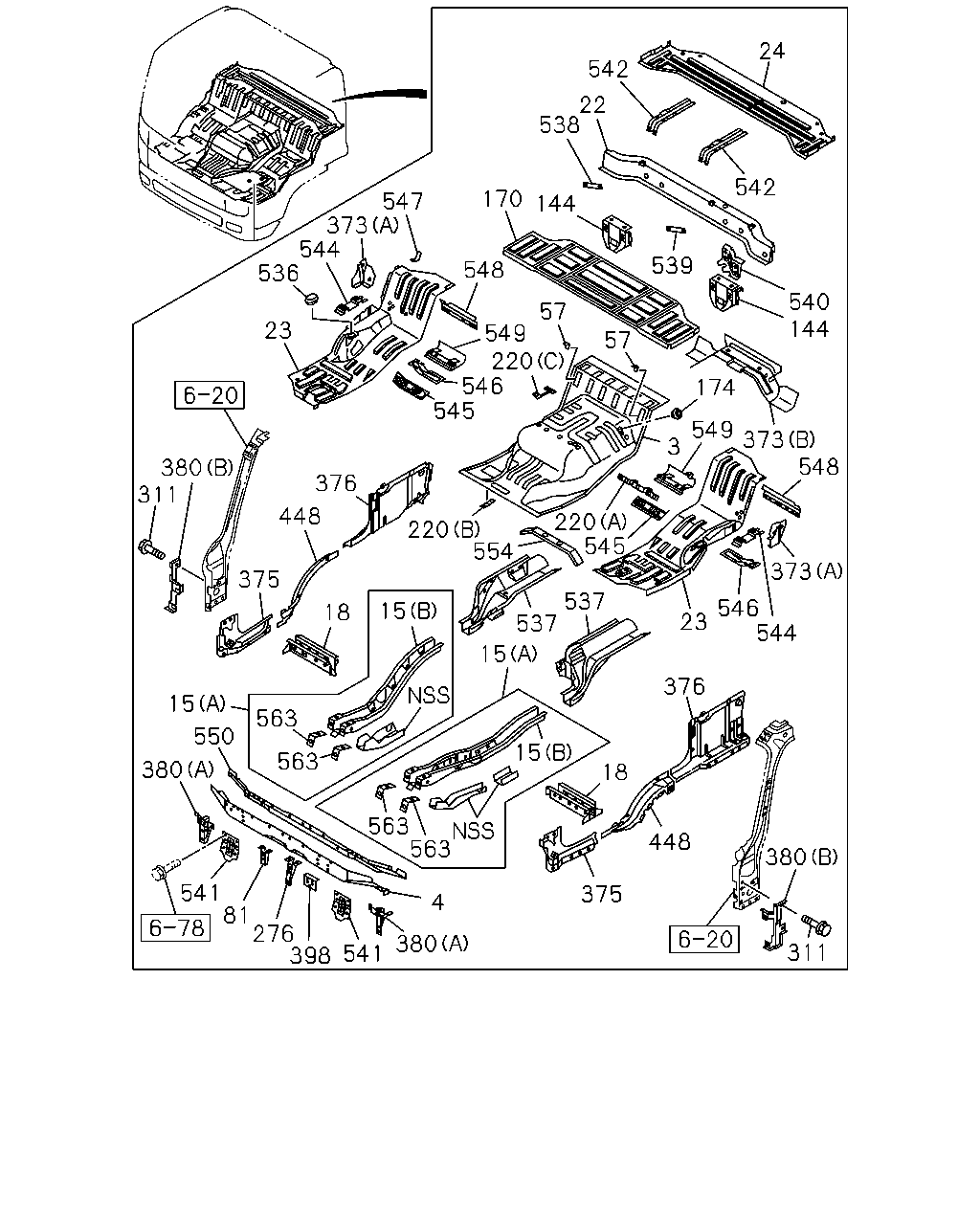

çizim 500930
24 542 538 22 542 540 144 539 144 170 547 373 544 536 23 380 376 448 375 18 15 537 15 15 18 448 380 375 563 563 563 563 15 550 380 541 81 174 549 3 373 548 57 549 220 546 545 546 544 23 376 537 545 220 554 220 311 57 380 4 541 398 276 311 373 548
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-874-0 01 1 1511- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1511- ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1511- ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-705-8 01 1 1511- ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-705-8 01 1 1511- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1511- ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1511- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1511- ● ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1511- ● ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1511- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1511- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1511- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1511- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1511- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1511- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1511- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1511- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1511- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1511- ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97584-373-1 01 1 1511- ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-188-0 01 1 1511- ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1511- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1511- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1511- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1511- ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97588-958-4 01 1 1511- ●
549 BRACKET; SEAT RR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-189-1 01 1 1511- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1511- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ●
