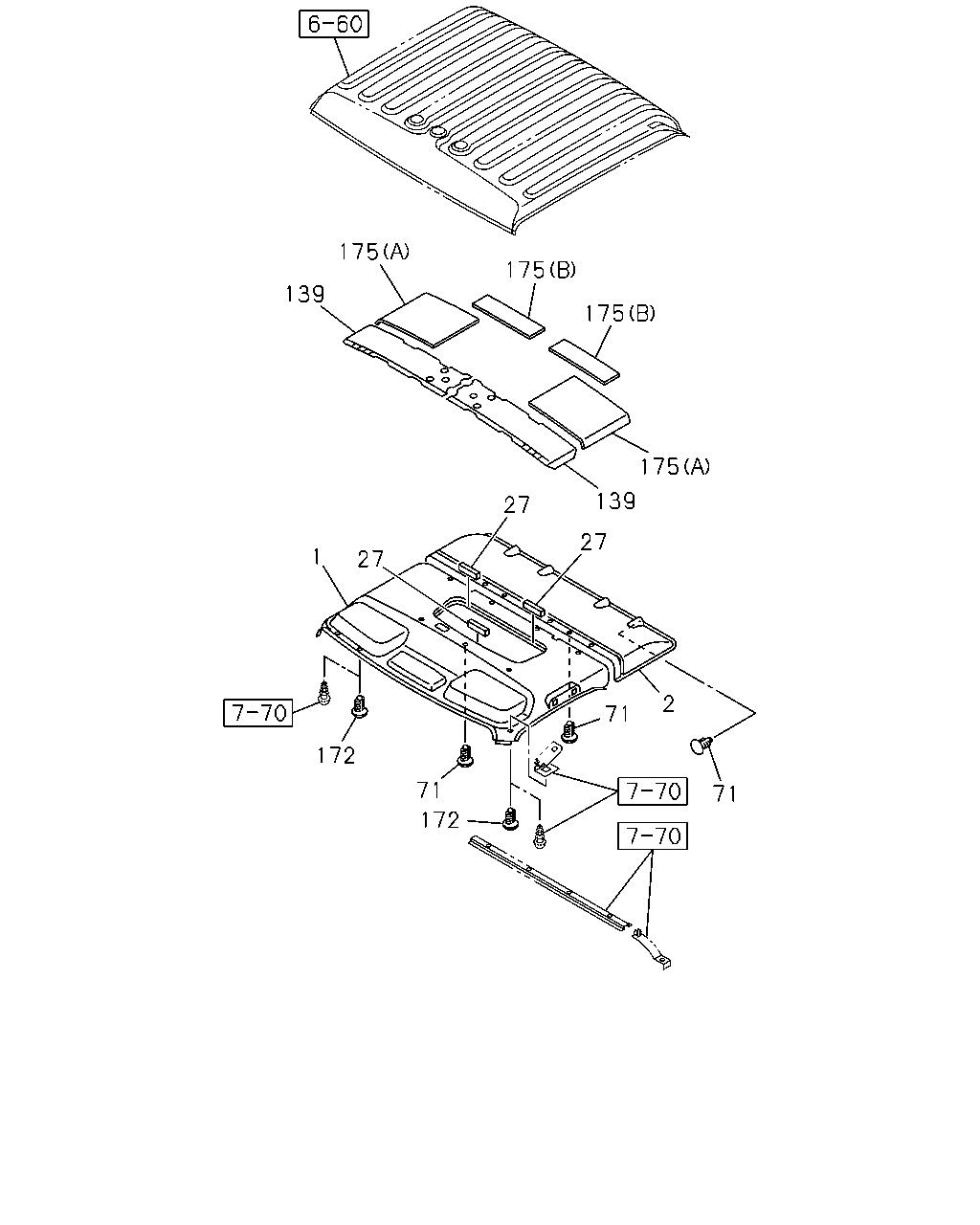

6-66 — HEAD LINING AND TRIM (#169428) — 8 parça

175 139 27 27 2 71 71 172 71 172 1 27 139 175 175 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-698-0	01	1	1511-	●	●
2	LINING; HD,ROOF RR DARK GRAY	8-97415-673-0	01	1	1511-	●	●
27	INSULATION; ROOF INTERIOR FULL TRIM<WM3>	8-98046-638-2	03	1	1511-	●	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	07	1	1511-	●	●
139	SEAL; ROOF	8-98169-116-0	02	1	1511-	●	●
172	RETAINER; HEAD LINING EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97411-875-0	14	1	1511-	●	●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	1511-	●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	1511-	●	●
